GPS External Amplified Ceramic Antenna

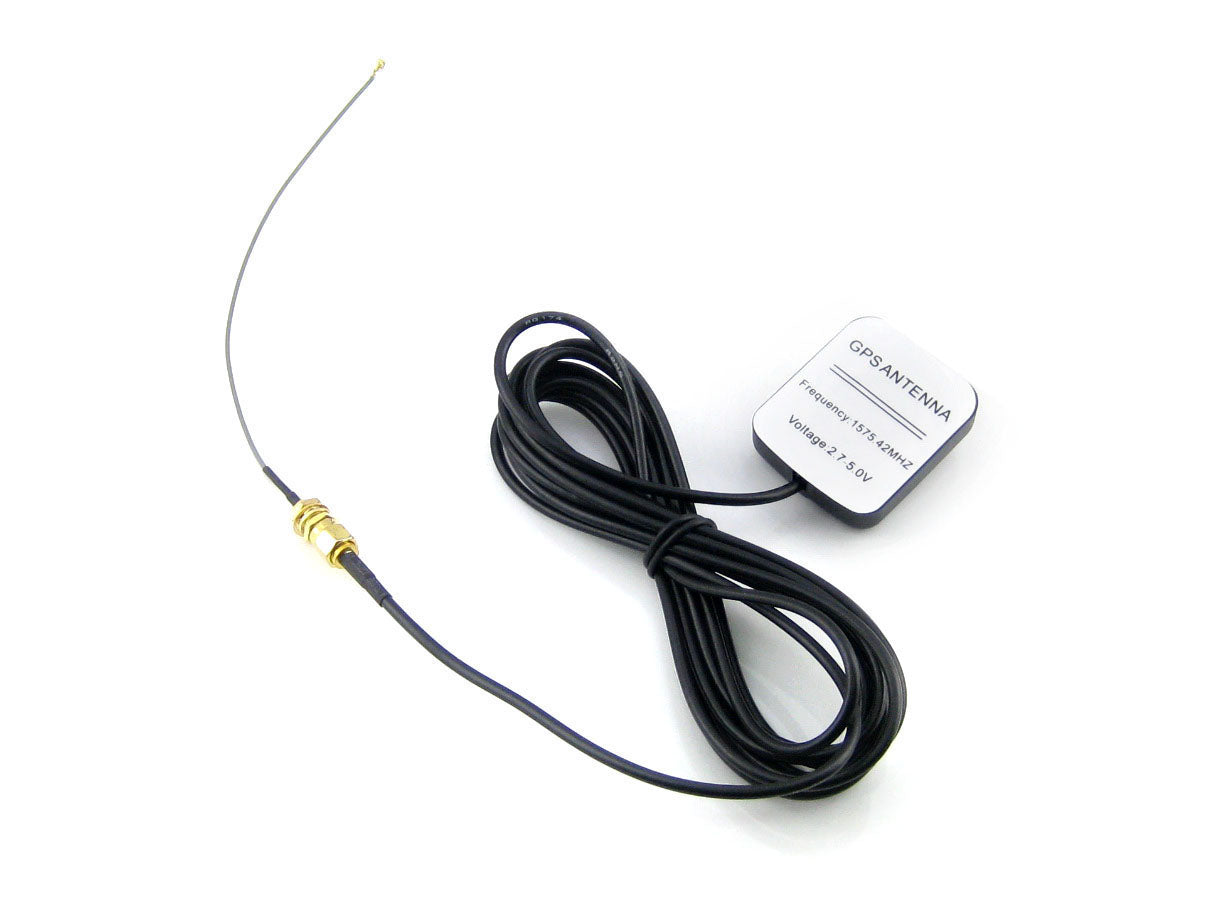

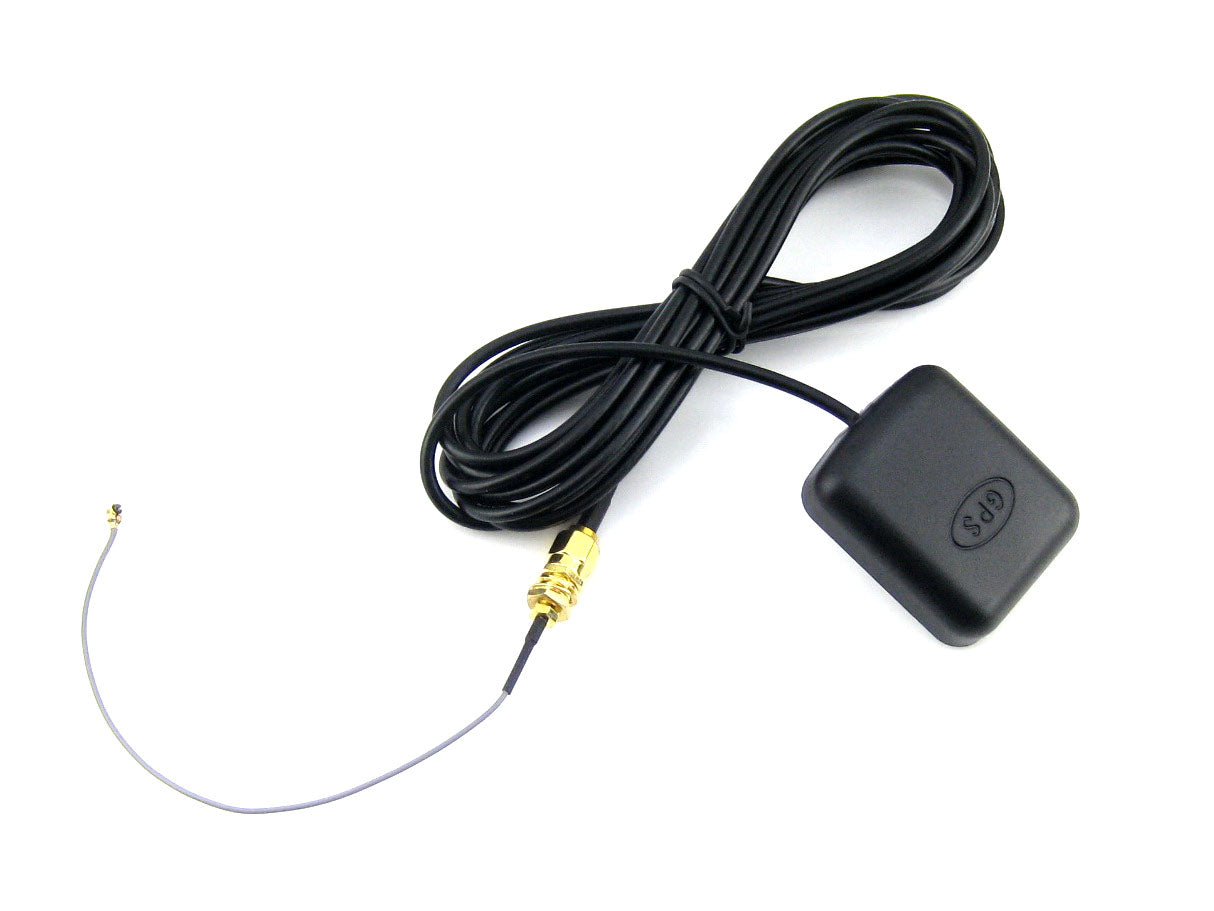

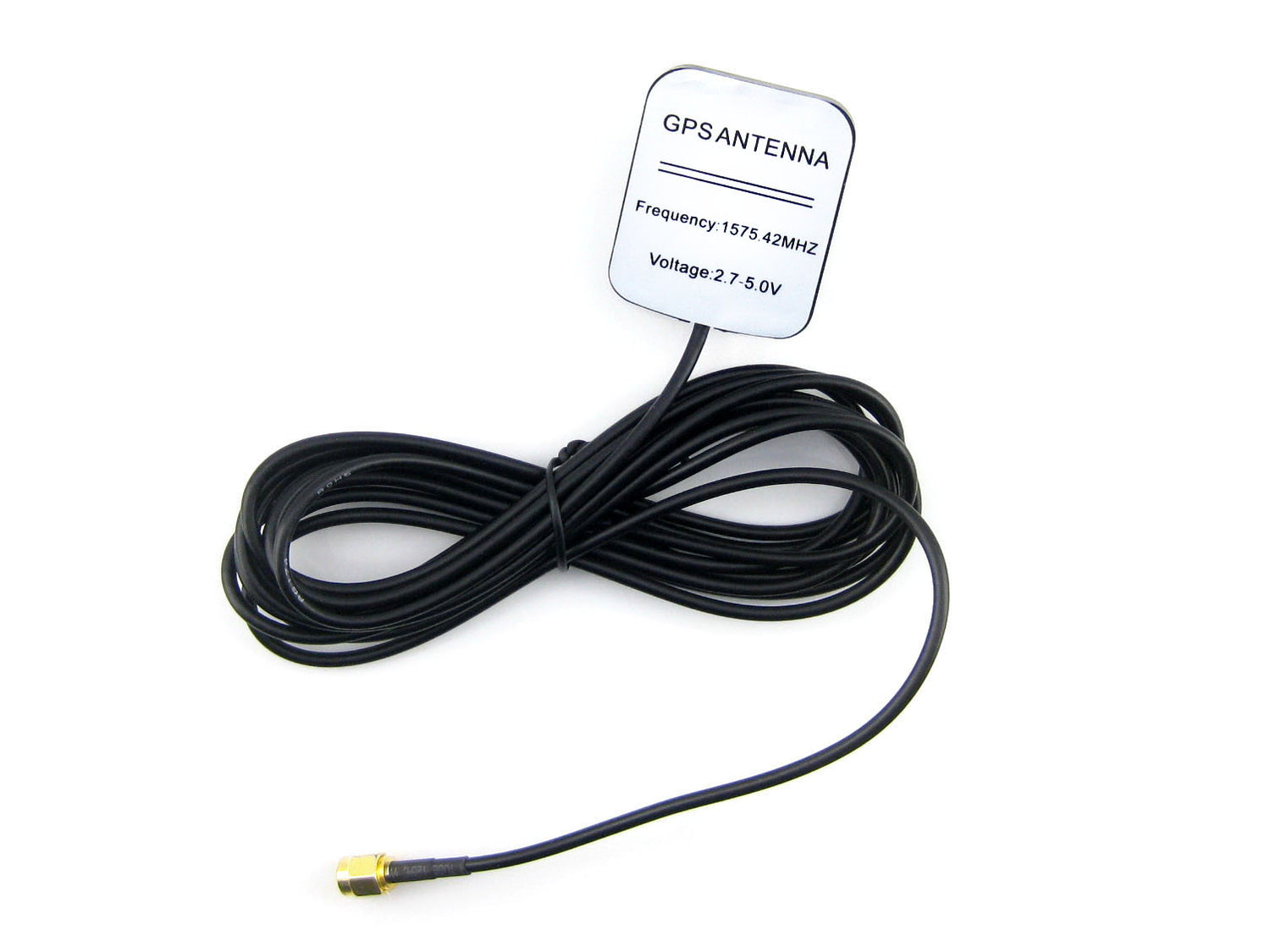

A high-performance external GPS antenna with built-in amplifier for improved signal reception. Features a ceramic element for optimal signal capture and comes with a 3m cable for flexible mounting options.

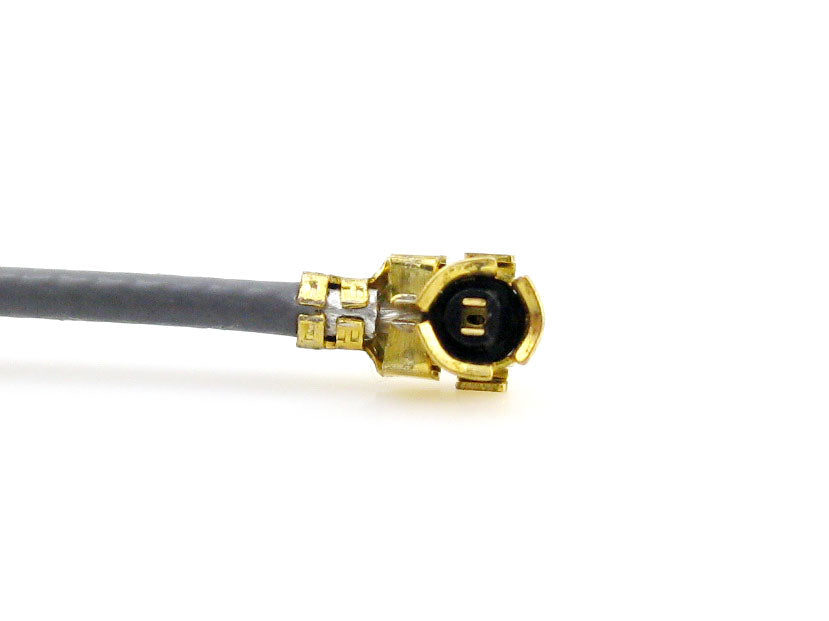

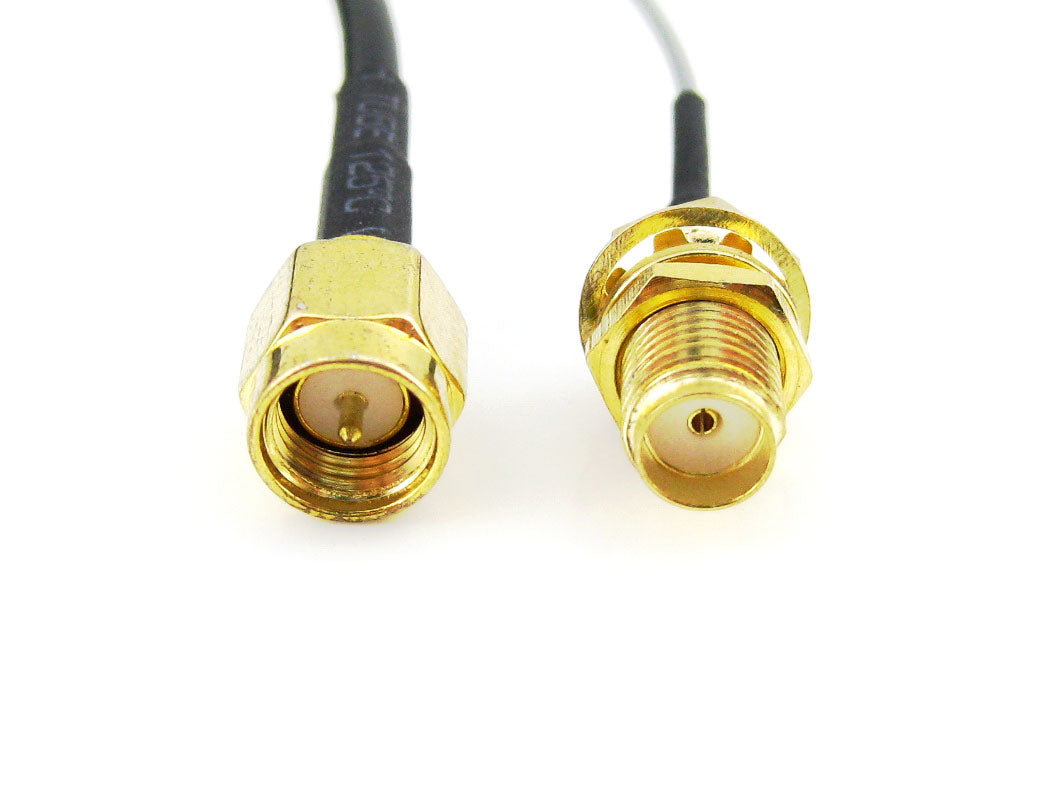

Includes both magnetic and adhesive mounting options, plus an IPX to SMA adapter for compatibility with various GPS modules and receivers.
Key Features
- Built-in Amplifier – 28±2dB gain for strong signal reception
- Ceramic Element – Superior signal capture
- Low Noise – Noise factor less than 1.0dB
- Weatherproof – IP65–IP67 rated
- Dual Mounting – Magnetic and adhesive options
- 3m Cable – RG174 with SMA connector
Specifications
- Frequency: 1575±1MHz (GPS L1)
- Polarisation: Right-Hand Circular (RHCP)
- Antenna Gain: 5dBic at zenith
- Amplifier Gain: 28±2dB
- Noise Figure: <1.0dB
- VSWR: <1.5
- Impedance: 50Ω
- Filter Loss: <3dB
- Ex-band Attenuation: 35dB @ CF±50MHz, 50dB @ CF±100MHz
- Dimensions: 25 × 25 × 4mm
- Cable: 3m RG174, tinned copper
- Connector: SMA (default)
- Operating Temp: -40°C to +85°C
- IP Rating: IP65–IP67
- Weight: 65g
Package Contents
- 1× GPS external antenna
- 1× IPX to SMA adapter cable
Ideal For
- GPS navigation systems
- Vehicle tracking
- Raspberry Pi GPS projects
- Outdoor and weatherproof installations
