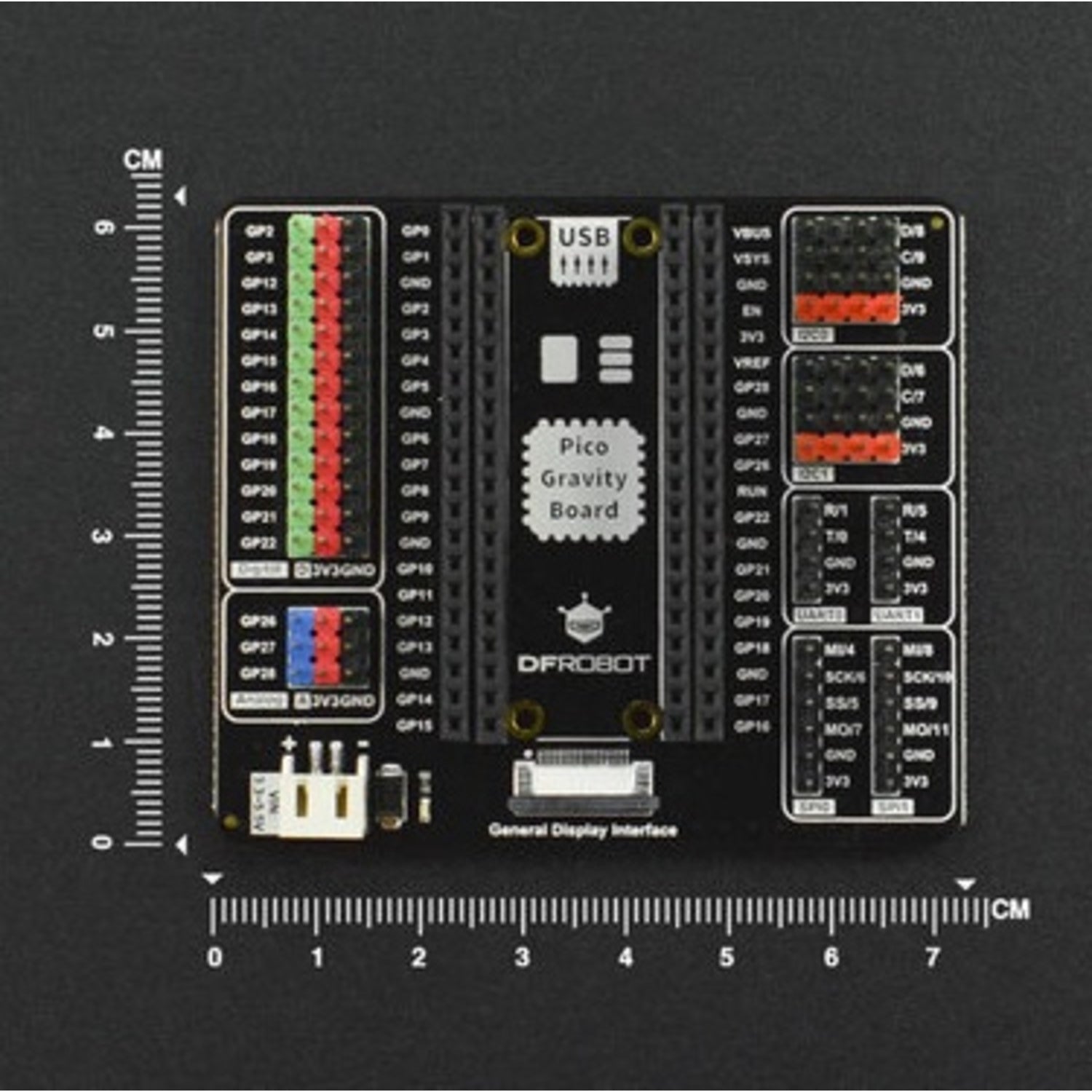

Gravity: Expansion Board for Raspberry Pi Pico
An expansion board for the Raspberry Pi Pico that provides easy access to all GPIO pins via the DFRobot Gravity connector system. Simply plug in your Pico – no soldering required – and connect Gravity sensors and modules directly.
Features multiple communication interfaces including I2C, UART, SPI, and a GDI display port for DFRobot screens. The external power connector supports mobile and battery-powered projects.
Key Features
- Plug and Play – No soldering required
- Gravity Compatible – Works with DFRobot Gravity sensors and modules
- Multiple Interfaces – I2C, UART, SPI, analog, and digital
- GDI Display Port – For DFRobot GDI series displays
- External Power – 3.3–5.5V via PH2.0 connector
Specifications
- Digital IO: 13× (GP2, GP3, GP12–22)
- Analog IO: 3× (GP26–GP28)
- UART: 2×
- I2C: 2×
- SPI: 2×
- Power Input: 3.3–5.5V (PH2.0 connector)
- Display Interface: GDI
- Dimensions: 73 × 63mm
Compatibility
- Raspberry Pi Pico
- Raspberry Pi Pico W
- DFRobot Gravity sensors and modules
Package Contents
- 1× Gravity Expansion Board
