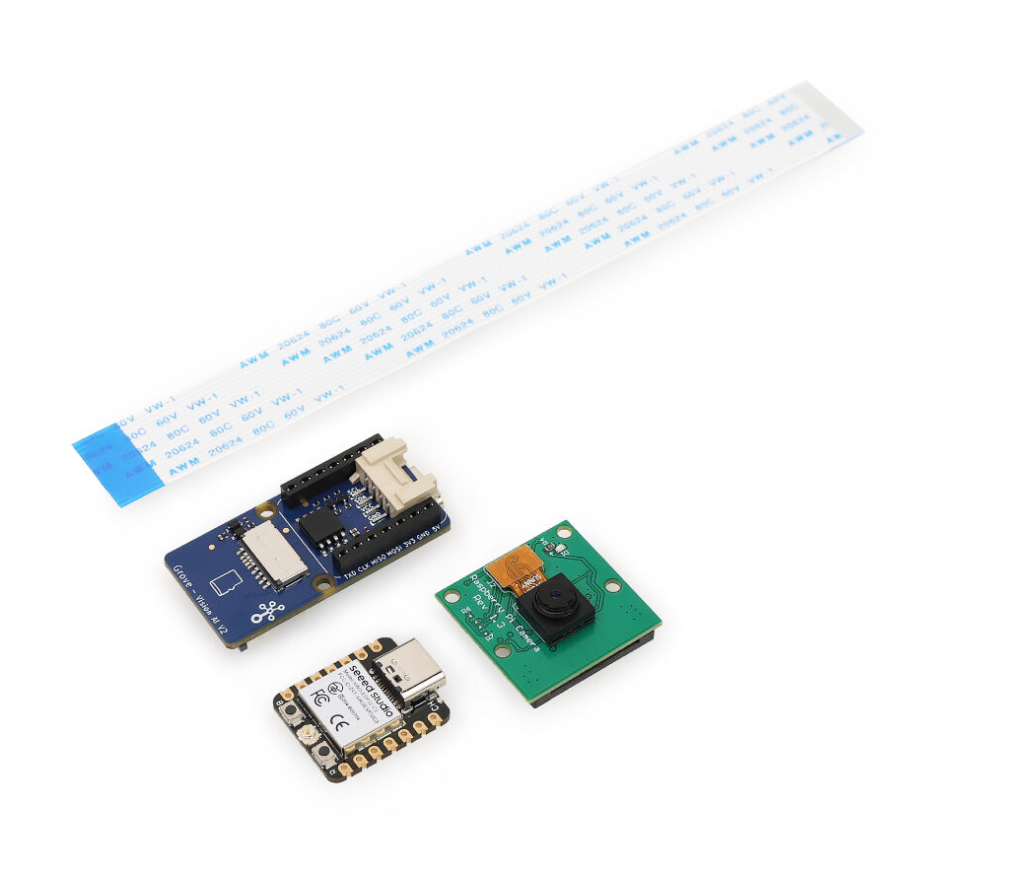

Grove Vision AI v2 Kit - with Raspberry Pi OV5647 Camera Module and Seeed Studio XIAO
Grove Vision AI v2 Kit - with Raspberry Pi OV5647 Camera Module and Seeed Studio XIAO is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Call us on 1300 240 817 between 10 AM and 4 PM on weekdays or email team@littlebird.com.au .
The Fastest Shipping
The Fastest Shipping
We ship faster because we built our own shipping 🤖 robot.
Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.
You can view shipping options and pricing at checkout without logging in.
For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.
We deliver across Australia, and here are the options (based on your location; view them on the cart page):
- Standard Post: Starting at $7 (6+ business days, with tracking)
- Express Post: Starting at $11 (2+ business days, with tracking)
- Same Day Delivery: Available for Sydney orders.
- Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.
A high-performance MCU-based AI vision module powered by the Himax WiseEye2 HX6538 processor featuring a dual-core Arm Cortex-M55 with integrated Arm Ethos-U55 neural network unit. Delivers impressive 33ms inference time at 30 FPS while consuming only 0.35W – ideal for battery-powered applications.
Easily deploy AI models from SenseCraft AI including MobileNet, EfficientNet-Lite, and YOLO v5/v8, or train your own custom models. Compatible with XIAO, Arduino, Raspberry Pi, and ESP development boards.
Key Features
- Powerful AI Processing – Dual-core Arm Cortex-M55 with Ethos-U55 NPU
- Fast Performance – 33ms inference, 30 FPS frame rate
- Low Power – Only 0.35W consumption
- Multiple AI Models – MobileNet, EfficientNet-Lite, YOLO v5/v8
- TensorFlow & PyTorch – Both frameworks supported
- Onboard Microphone – PDM mic for audio applications
- SD Card Slot – Store images, video, and results
- Fully Open Source – Code, design files, and schematics available
Specifications
- Processor: Himax WiseEye2 HX6538
- CPU: Dual-core Arm Cortex-M55
- NPU: Arm Ethos-U55
- Camera Interface: Standard CSI (Pi camera compatible)
- Interfaces: I2C, UART, SPI, USB Type-C, Grove
- Audio: PDM microphone
- Storage: SD card slot
Compatibility
- Seeed Studio XIAO series
- Raspberry Pi cameras (CSI)
- Arduino
- ESP development boards
- Home Assistant
