Pi Australia  |  SKU: WS-13460

GSM/GPRS/GNSS/Bluetooth HAT for Raspberry Pi

$47.68
Tax included Shipping calculated at checkout.

Call us on 1300 240 817 between 10 AM and 4 PM on weekdays or email team@littlebird.com.au .

The Fastest Shipping

We ship faster because we built our own shipping 🤖 robot.

Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.

You can view shipping options and pricing at checkout without logging in.

For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.

We deliver across Australia, and here are the options (based on your location; view them on the cart page):

  • Standard Post: Starting at $7 (6+ business days, with tracking)
  • Express Post: Starting at $11 (2+ business days, with tracking)
  • Same Day Delivery: Available for Sydney orders.
  • Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.

Warning: This product is 2G only and will NOT work in Australia where 2G networks have been shut down. Check network availability in your region before purchasing.

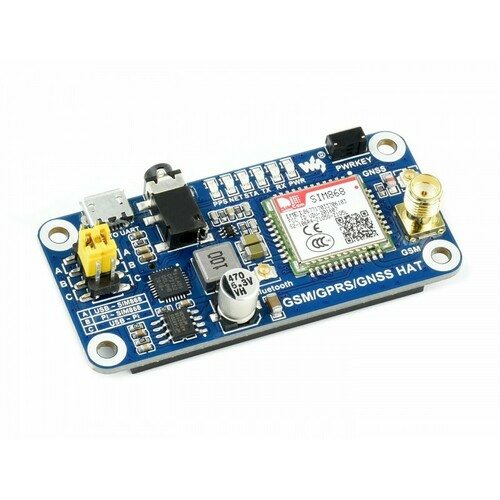

Add cellular connectivity, GPS positioning, and Bluetooth to your Raspberry Pi with this multi-function HAT. Based on the SIM868 module, it supports GSM/GPRS communication, GNSS positioning (GPS + GLONASS), and Bluetooth 3.0 – all in one board.

Features include SMS messaging, voice calls, GPRS data, HTTP/FTP protocols, and precise GPS tracking. The onboard RTC maintains time when powered off.

Key Features

  • Quad-Band GSM/GPRS – 850/900/1800/1900 MHz
  • GNSS Positioning – GPS + GLONASS with <2.5m accuracy
  • Bluetooth 3.0 – Wireless data transfer
  • SMS & Voice Calls – Full cellular functions
  • GPRS Data – Up to 85.6 kbps
  • HTTP/FTP/Email – Internet protocols supported
  • Onboard RTC – Real-time clock with battery backup
  • 6 Status LEDs – Visual connection indicators
  • USB Debug Interface – Built-in USB-to-UART

Specifications

  • Module – SIM868
  • Operating Voltage – 5V
  • GPS Accuracy – <2.5m CEP
  • GPRS Speed – 85.6 kbps max
  • Operating Temp – -40°C to 85°C
  • Dimensions – 30.2mm × 65mm

Compatibility

  • Raspberry Pi (40-pin GPIO)
  • Arduino (with examples)
  • STM32

Package Contents

  • 1× GSM/GPRS/GNSS/Bluetooth HAT

Resources
