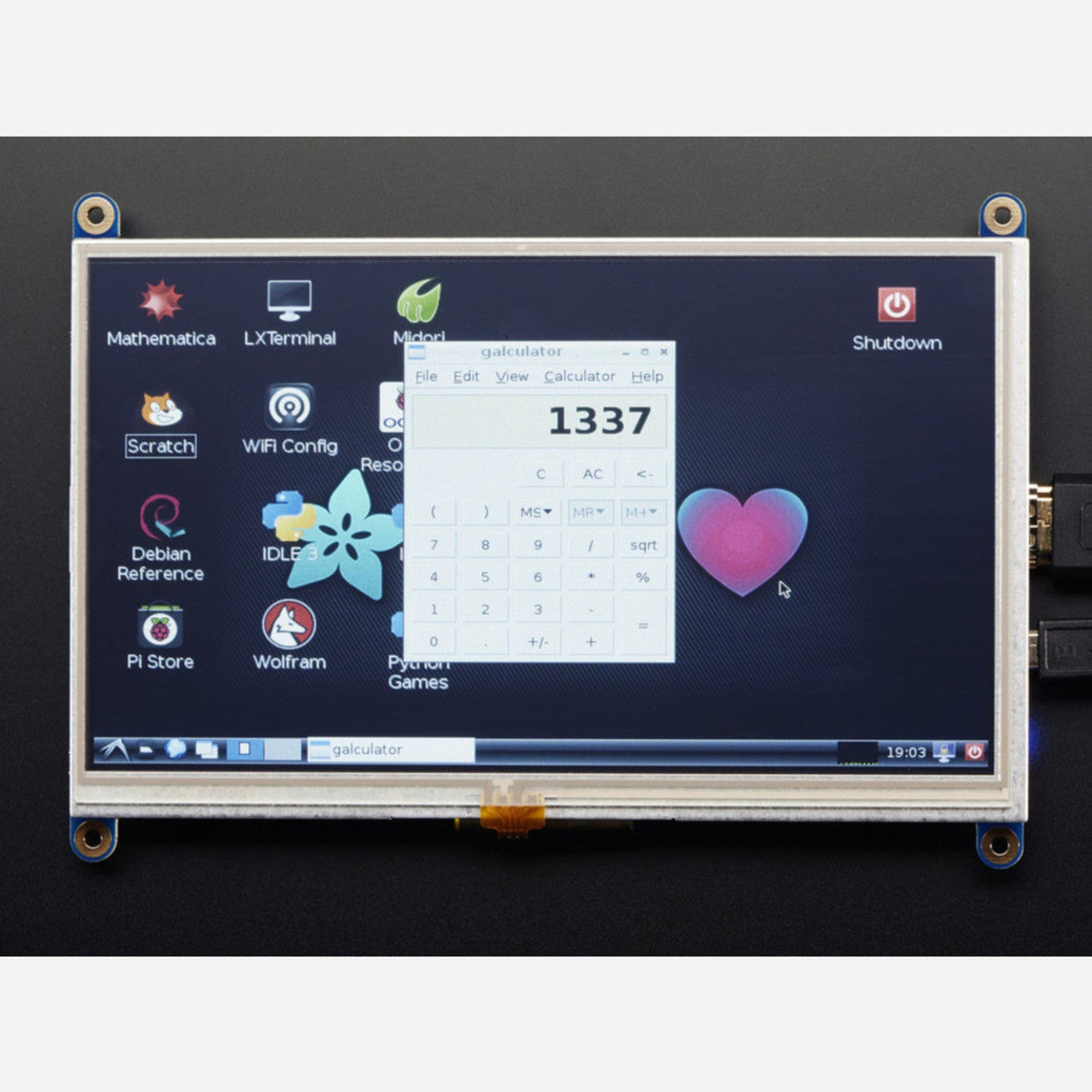

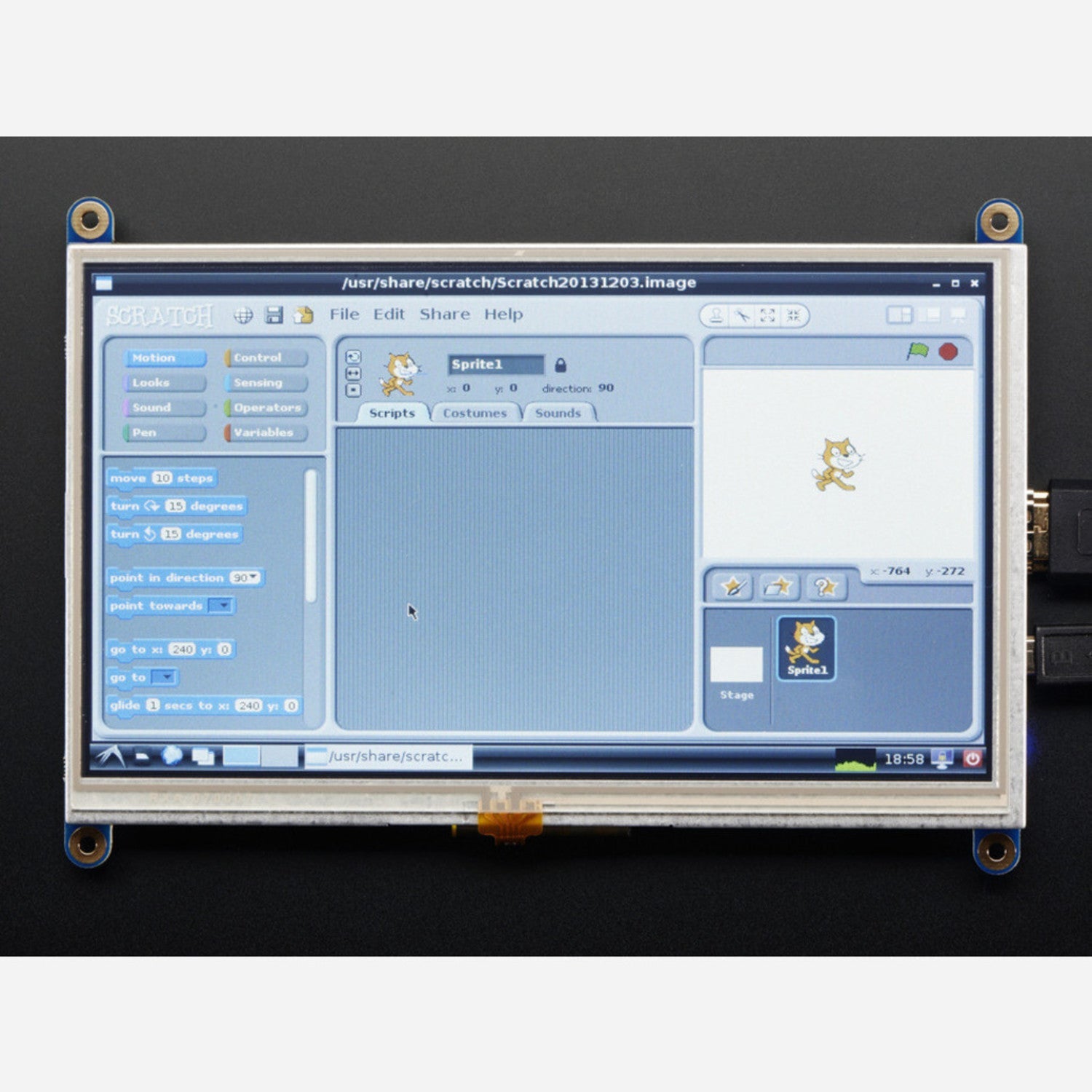

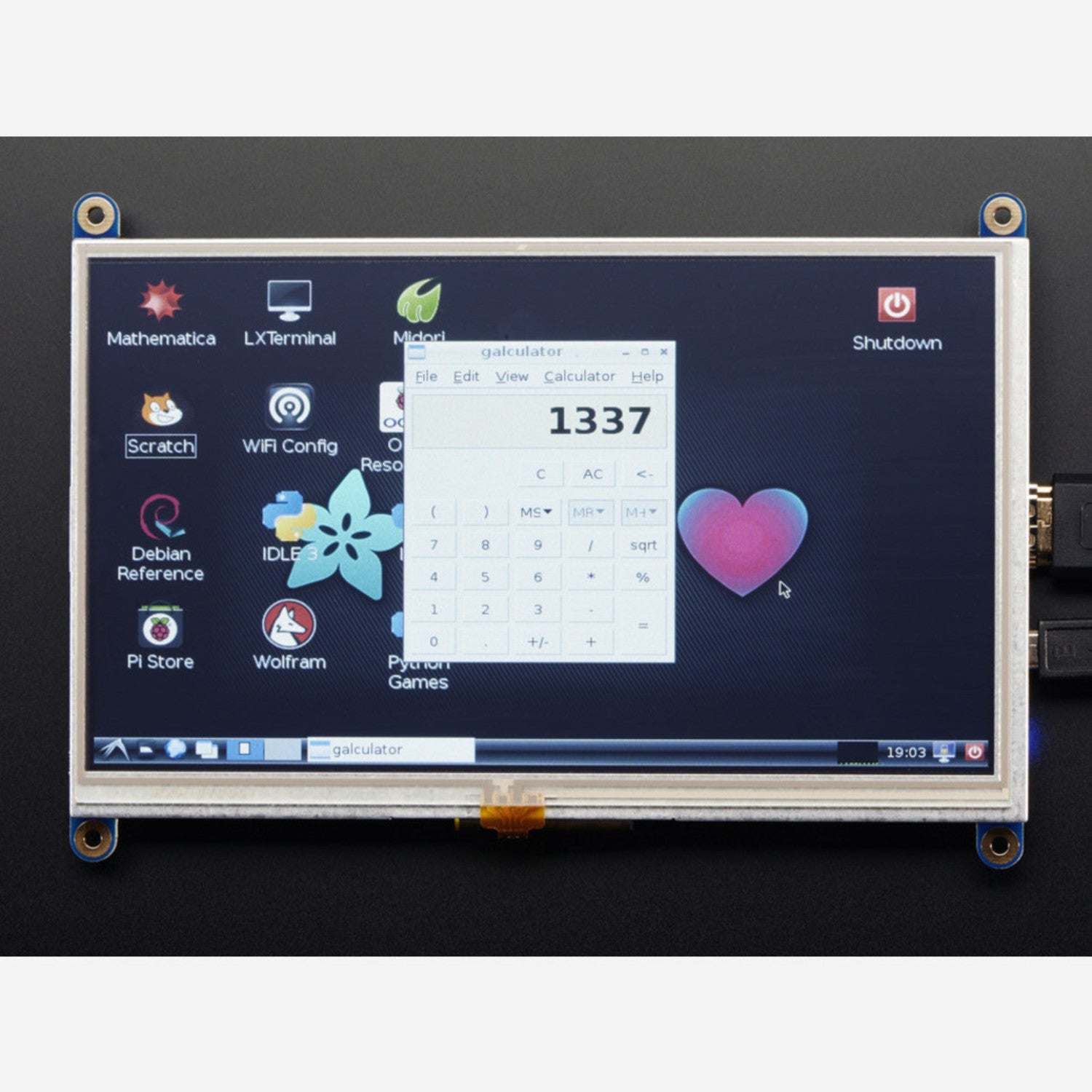

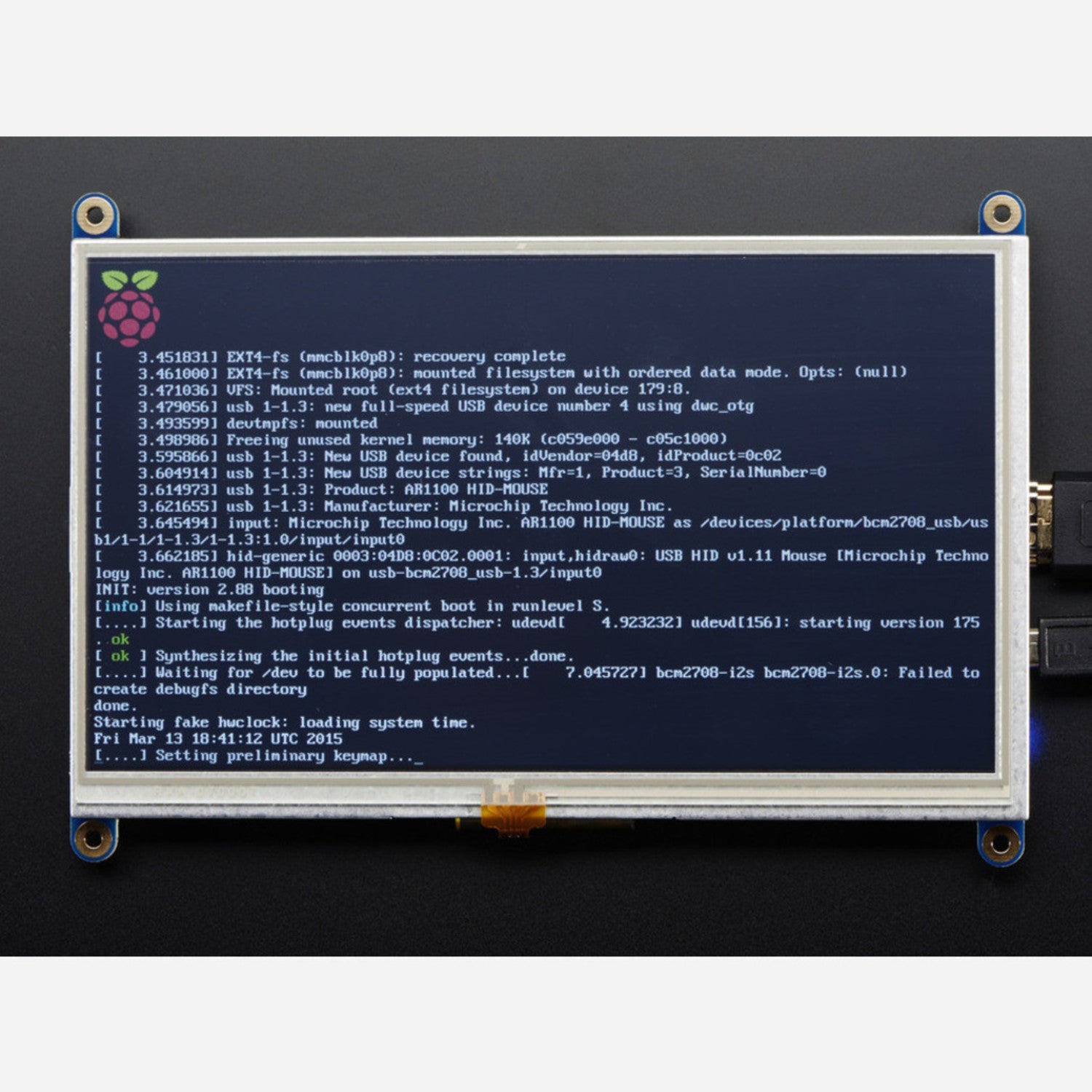

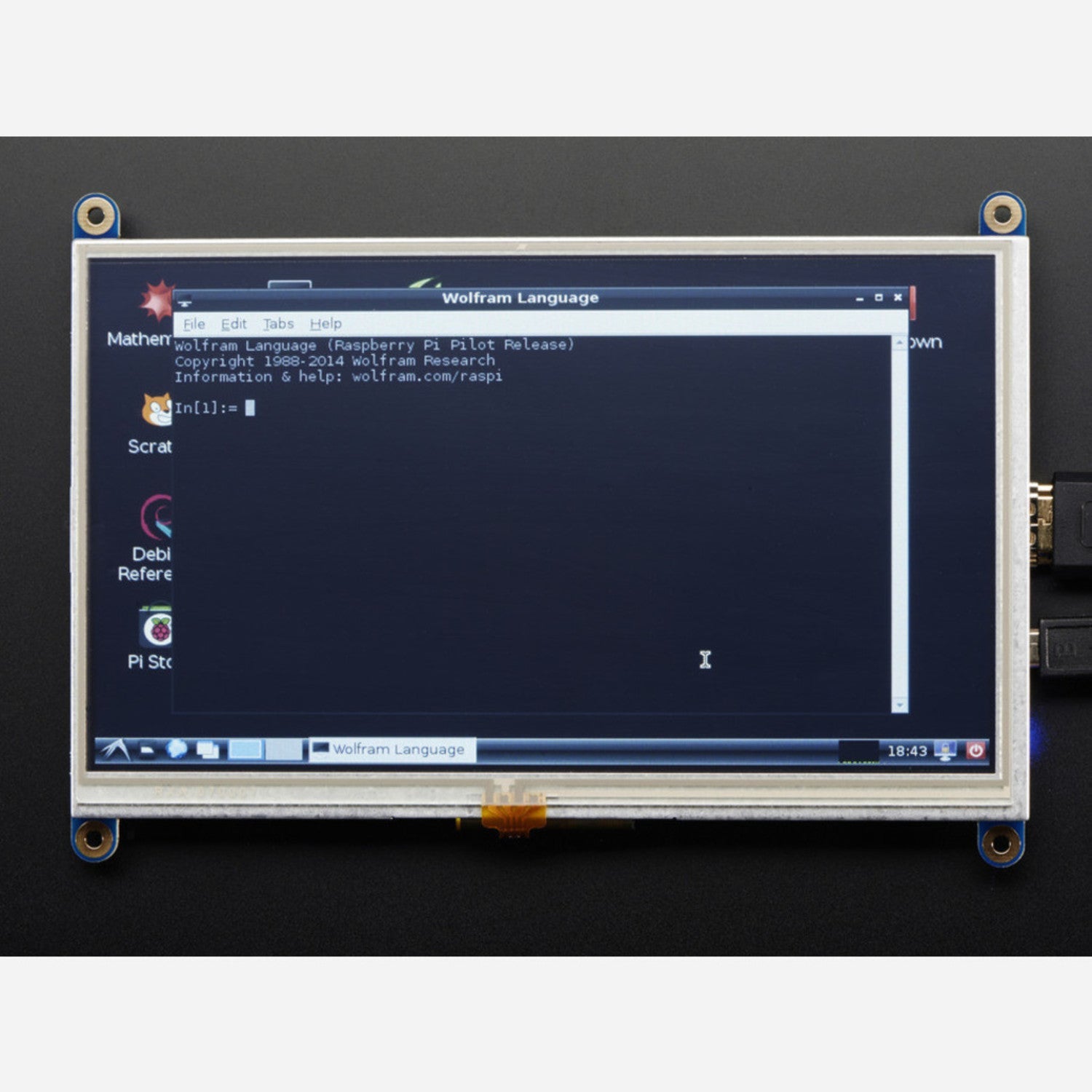

This 7-inch HDMI display with integrated resistive touchscreen provides plug-and-play operation for Raspberry Pi and other HDMI-equipped devices. The touchscreen functions as a USB mouse – no drivers required – making it perfect for portable projects and embedded systems.

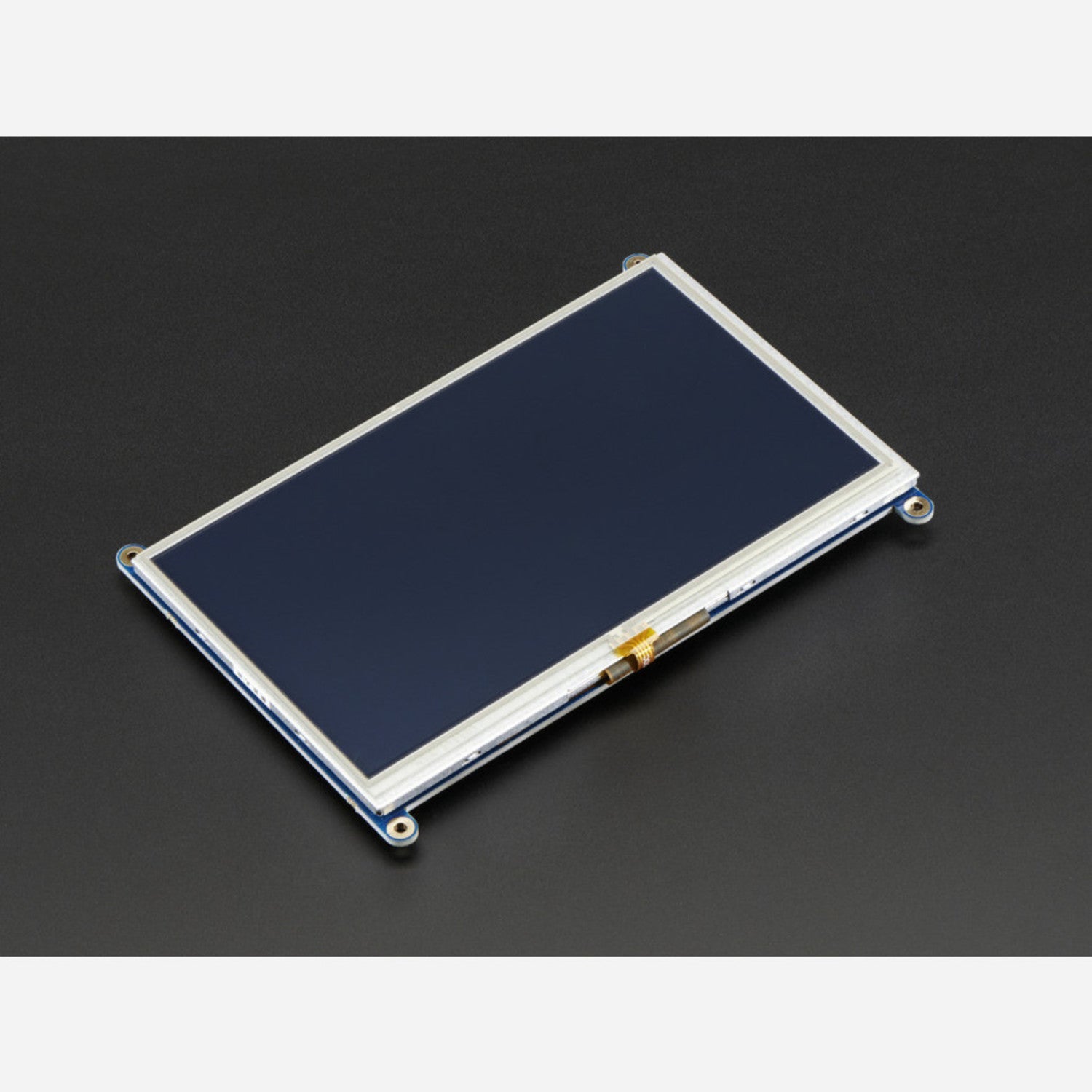

The compact backpack design is ready for panel mounting in enclosures. USB-powered with adjustable backlight brightness via PWM control.
Key Features
- 7" Touchscreen Display – 800×480 resolution

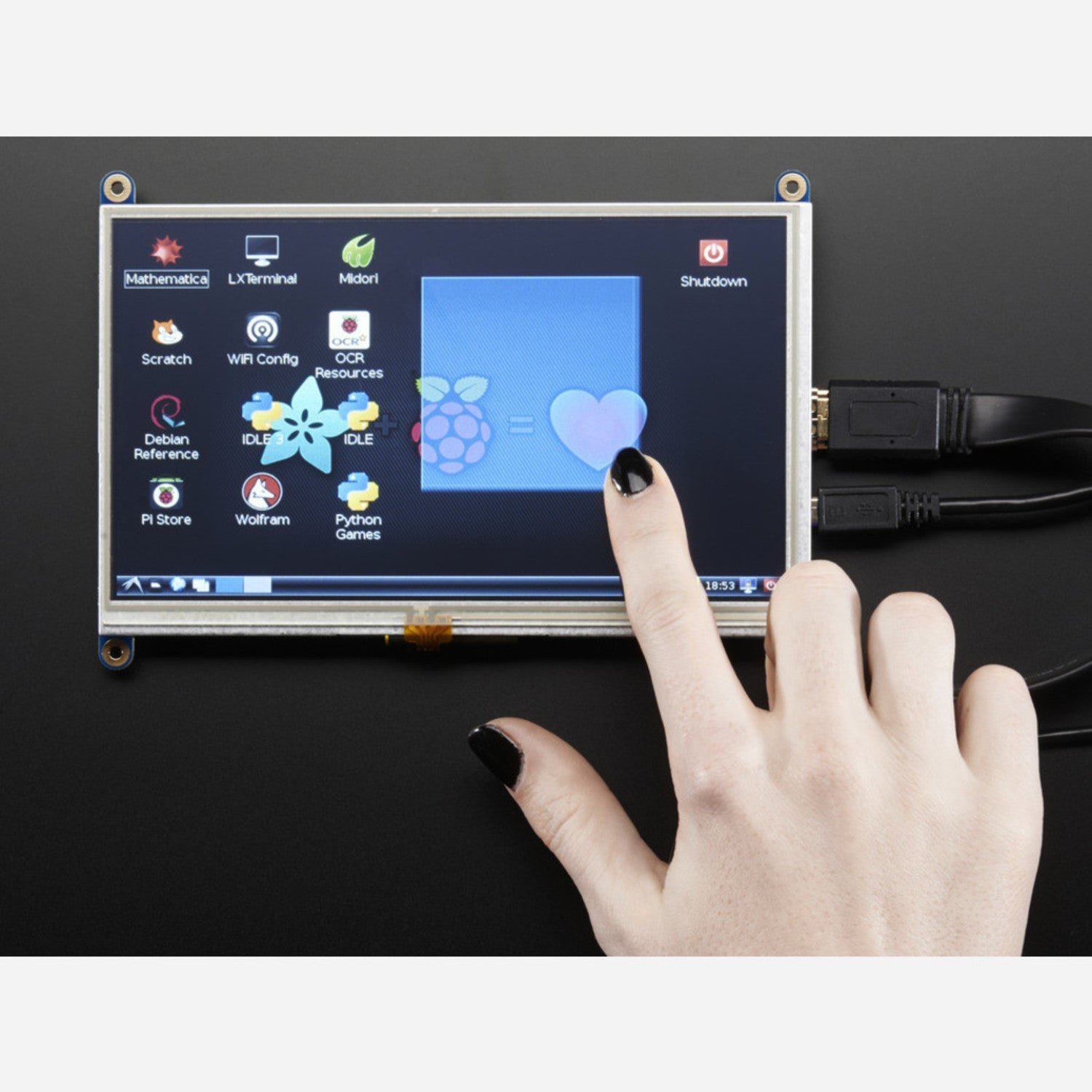

- USB HID Touch – Works as a mouse, no drivers needed

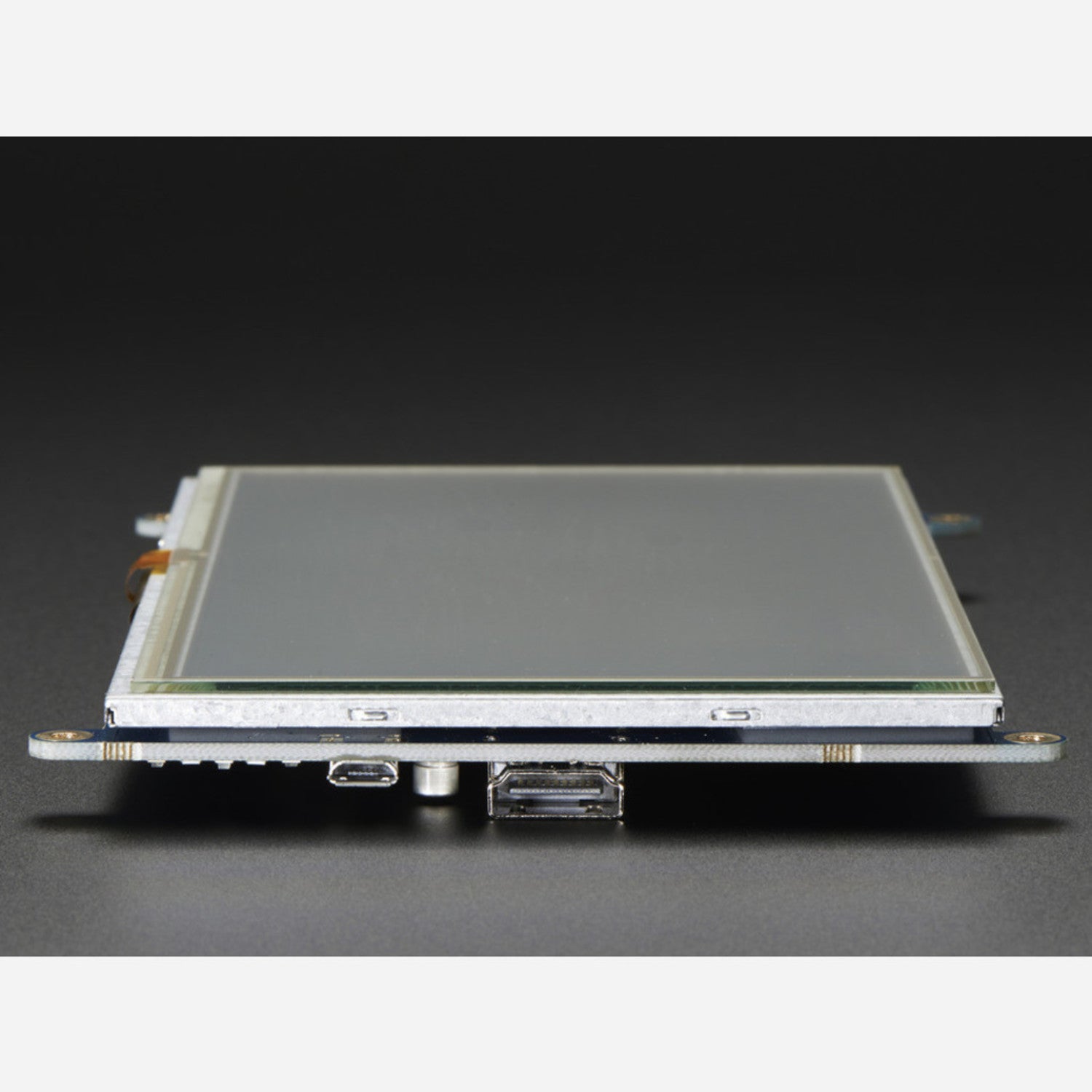

- HDMI Input – Standard connection
- USB Powered – Variable consumption with backlight control
- Panel Mountable – Designed for enclosure integration
- PWM Backlight – Adjustable brightness

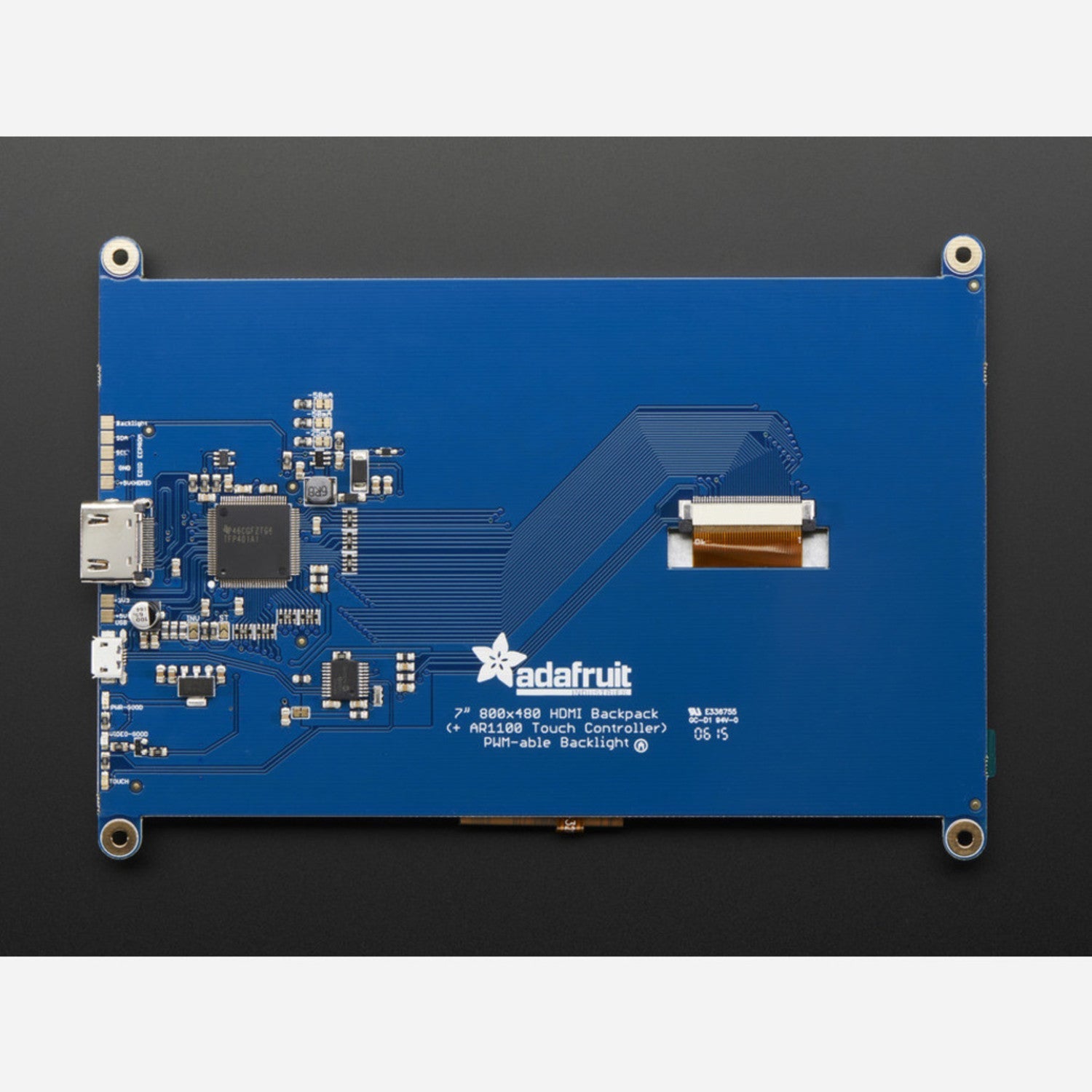

- 24-bit Colour – TFP401 decoder chip
Specifications
- Screen Size – 7 inches diagonal
- Resolution – 800 × 480 pixels
- Touch Type – Resistive
- Power – 600mA max, 400mA at 50% brightness
- Decoder – TFP401 (no HDCP support)
Compatibility

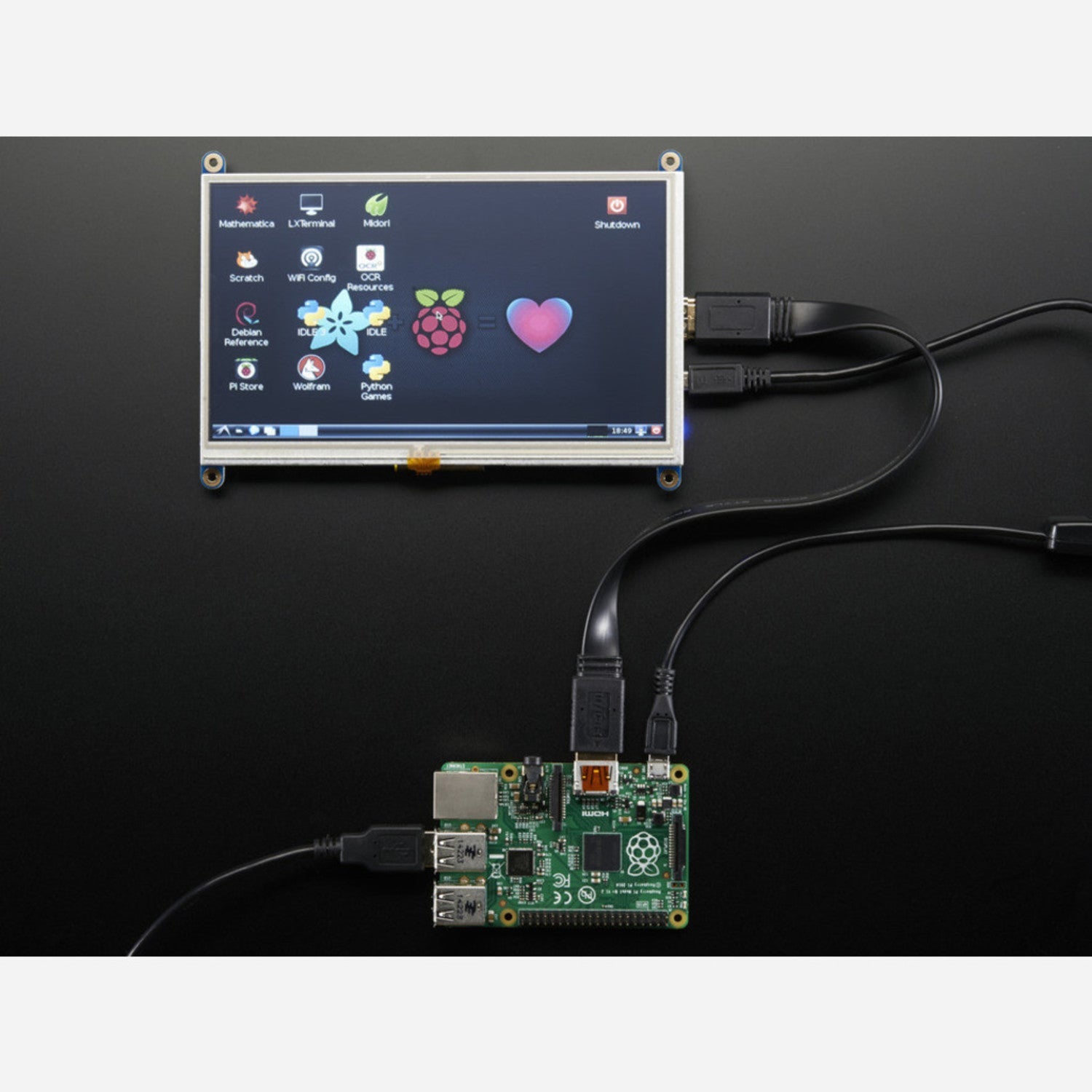

- Raspberry Pi (all models)
- BeagleBone Black
- Mac, Windows, Linux
- Any HDMI source at native resolution
Ideal For
- Embedded touch interfaces
- Portable Pi projects
- Custom kiosks
- Panel-mount applications
Package Contents
- 1× 7" Display with touchscreen
- 1× HDMI backpack driver
