HIFI DAC Audio Sound Card Module I2S interface for Raspberry Pi

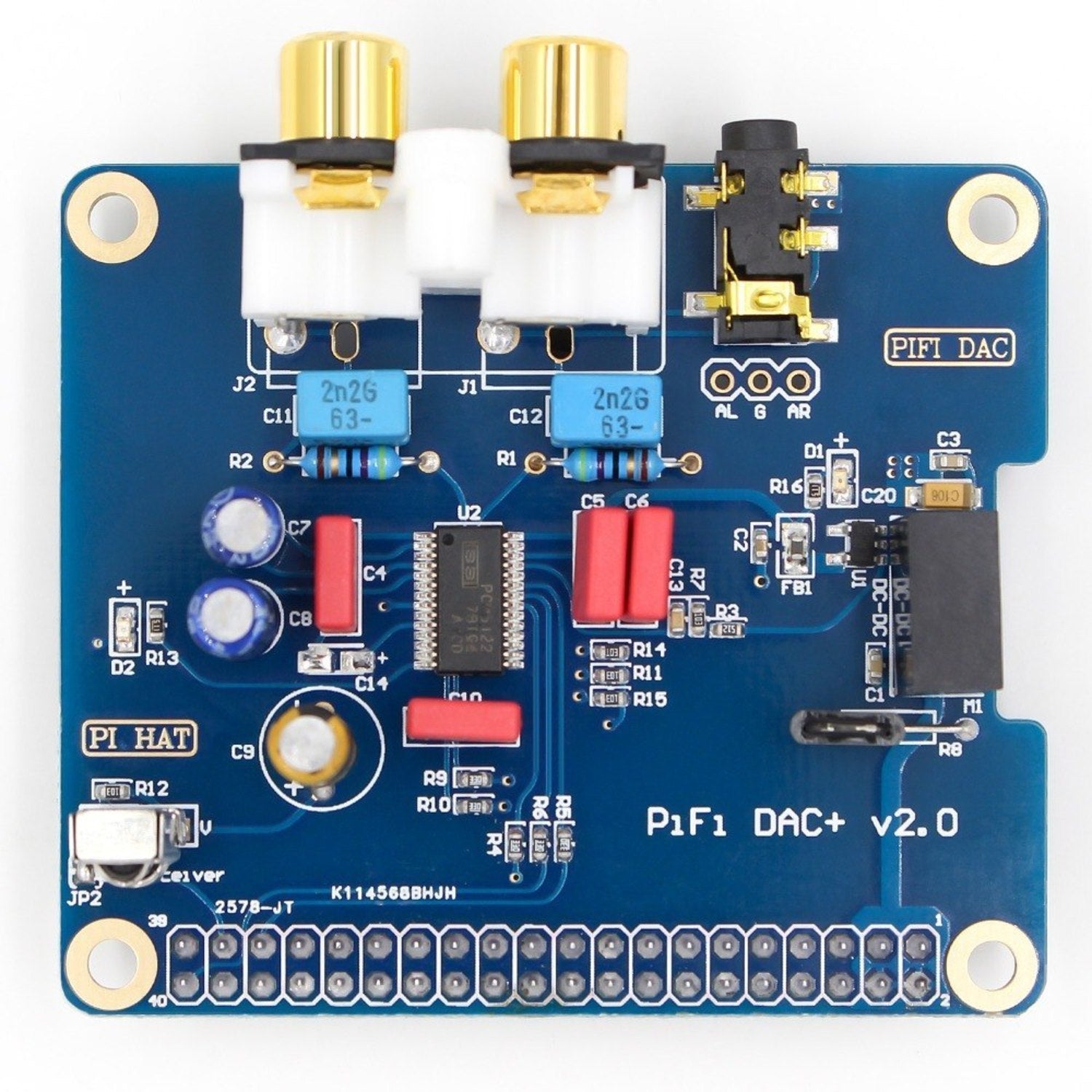

A high-quality DAC expansion board for Raspberry Pi featuring the Texas Instruments PCM5122 chip. Build your own network HiFi player with audiophile-grade digital-to-analog conversion via the I2S interface.
Provides two output interfaces for connecting to amplifiers and other audio equipment. LED indicator shows working status.
Key Features
- PCM5122 DAC – Texas Instruments high-end DAC chip
- I2S Interface – Direct digital audio connection to Pi
- High Resolution – Up to 384kHz sampling, 32-bit
- Excellent Audio Quality – 120dB SNR, 112dB dynamic range
- Dual Outputs – Two output interfaces for flexibility
- Status LED – Indicates working status
Specifications
- DAC Chip: Texas Instruments PCM5122
- Interface: I2S
- Sampling Frequency: Up to 384kHz
- Resolution: 16–32 bit
- SNR: 120dB
- THD: -93dB
- Dynamic Range: 112dB
- Dimensions: 70 × 65 × 23mm
Compatibility
- Raspberry Pi B+
- Raspberry Pi 2 / 3 / 4
Package Contents
- 1× HiFi DAC Audio Sound Card Module
Ideal For
- Network audio players (Volumio, moOde)
- HiFi media centres
- Audiophile Pi projects
