Inky Frame 4.0" (Pico W Aboard) – Inky Frame + Accessory Kit

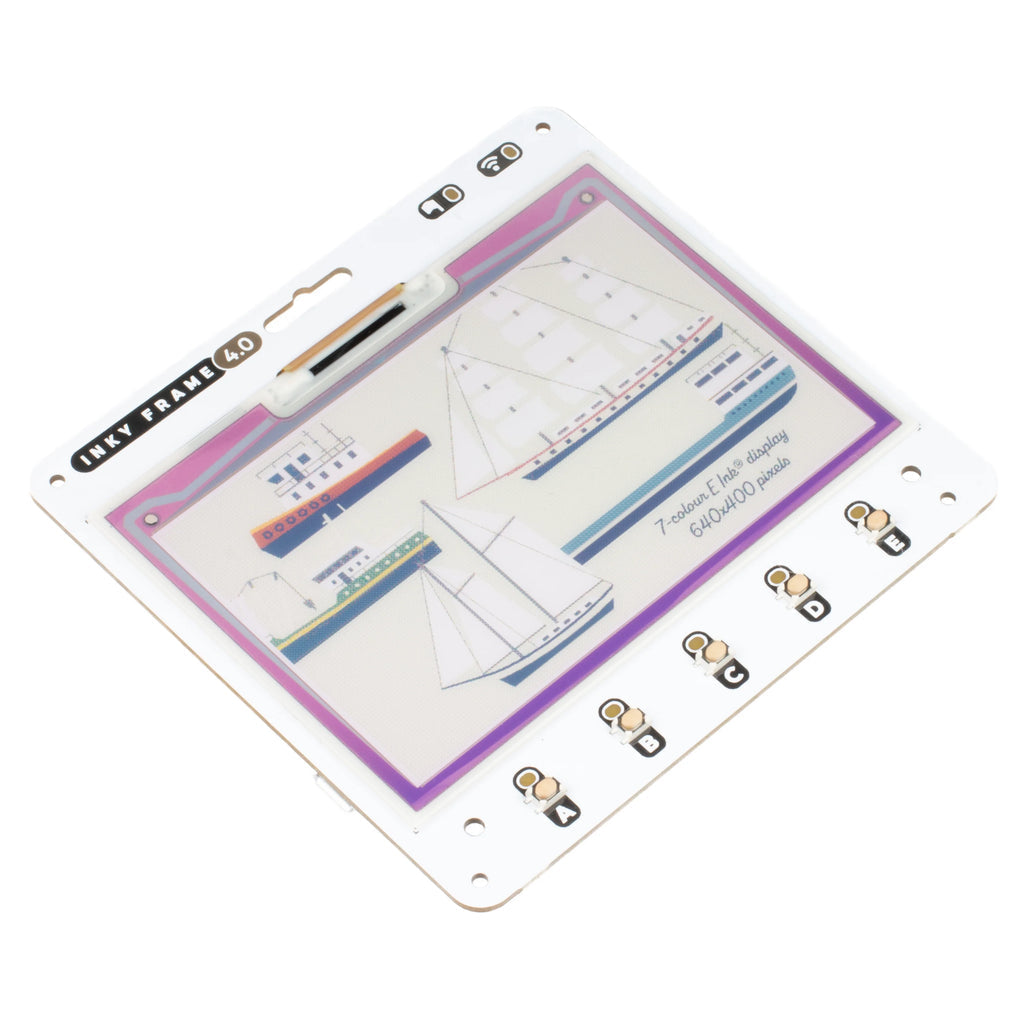

A compact 4" seven-colour E Ink photo frame and dashboard powered by Raspberry Pi Pico W. Features a vibrant 640×400 pixel ACeP display showing black, white, red, green, blue, yellow, and orange with ultra-wide viewing angles and minimal power consumption.
Built-in WiFi connectivity lets you display data from online APIs, home automation systems, or local sensors. The deep sleep mode draws only 20µA, making it ideal for battery-powered applications. Comes pre-loaded with MicroPython and example projects.
Key Features
- 7-Colour E Ink Display – 4.01" ACeP panel with 640×400 resolution
- Pico W Built-in – RP2040 dual-core processor with 2.4GHz WiFi
- Ultra Low Power – Deep sleep mode draws only 20µA
- 5 Buttons with LEDs – Interactive controls with visual feedback
- 2× Qw/ST Connectors – Easy connection for Qwiic/STEMMA QT breakouts
- MicroSD Slot – Store images, cache data, or log information
- RTC Chip – PCF85063A for scheduled wake from deep sleep
- Battery Powered – JST connector for portable use
Ideal For
- Home automation dashboards
- Digital photo frames with stylised images
- Weather and sensor displays
- API data visualisation
- Low-power IoT displays
Pico W Specifications
- Processor: Dual ARM Cortex M0+ @ 133MHz
- RAM: 264KB SRAM
- Flash: 2MB QSPI
- Wireless: 2.4GHz WiFi
- Programming: USB Micro-B
Display Specifications
- Size: 4.01" diagonal
- Resolution: 640×400 pixels
- Type: E Ink Gallery Palette 4000 (ACeP)
- Colours: 7 (black, white, red, green, blue, yellow, orange)
- Dot Pitch: 0.135×0.135mm
- Refresh Time: ~30 seconds
- Usable Area: 86×54mm

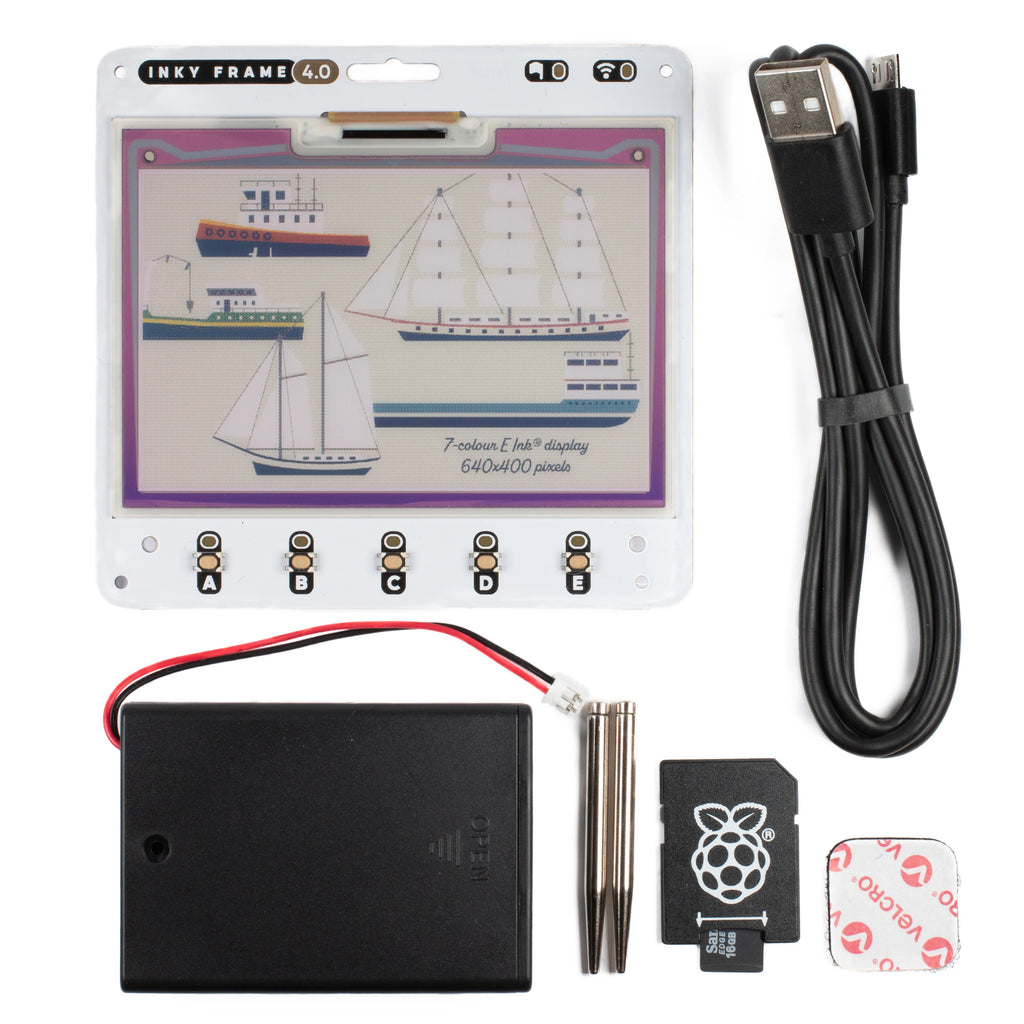

Package Contents (Accessory Kit)
- 1× Inky Frame 4.0" (with Pico W)
- 2× Metal display legs
- 1× 3×AA battery pack
- 3× AA batteries
- 1× USB Micro-B cable
- 1× Velcro square for battery pack
- 1× 16GB microSD card
Dimensions
- Board: 102.8 × 96.7mm
- Display (overall): 97 × 69mm
Resources
