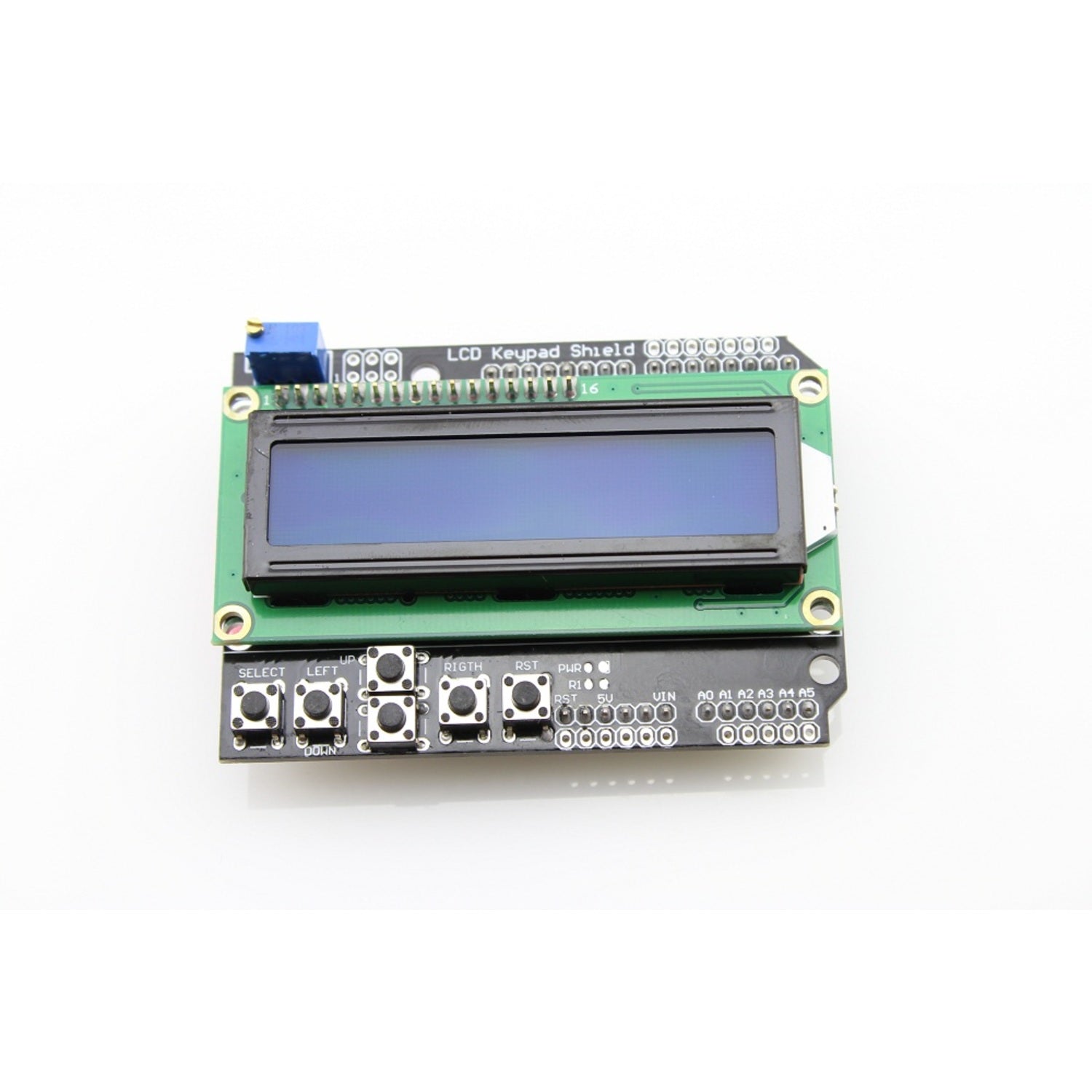

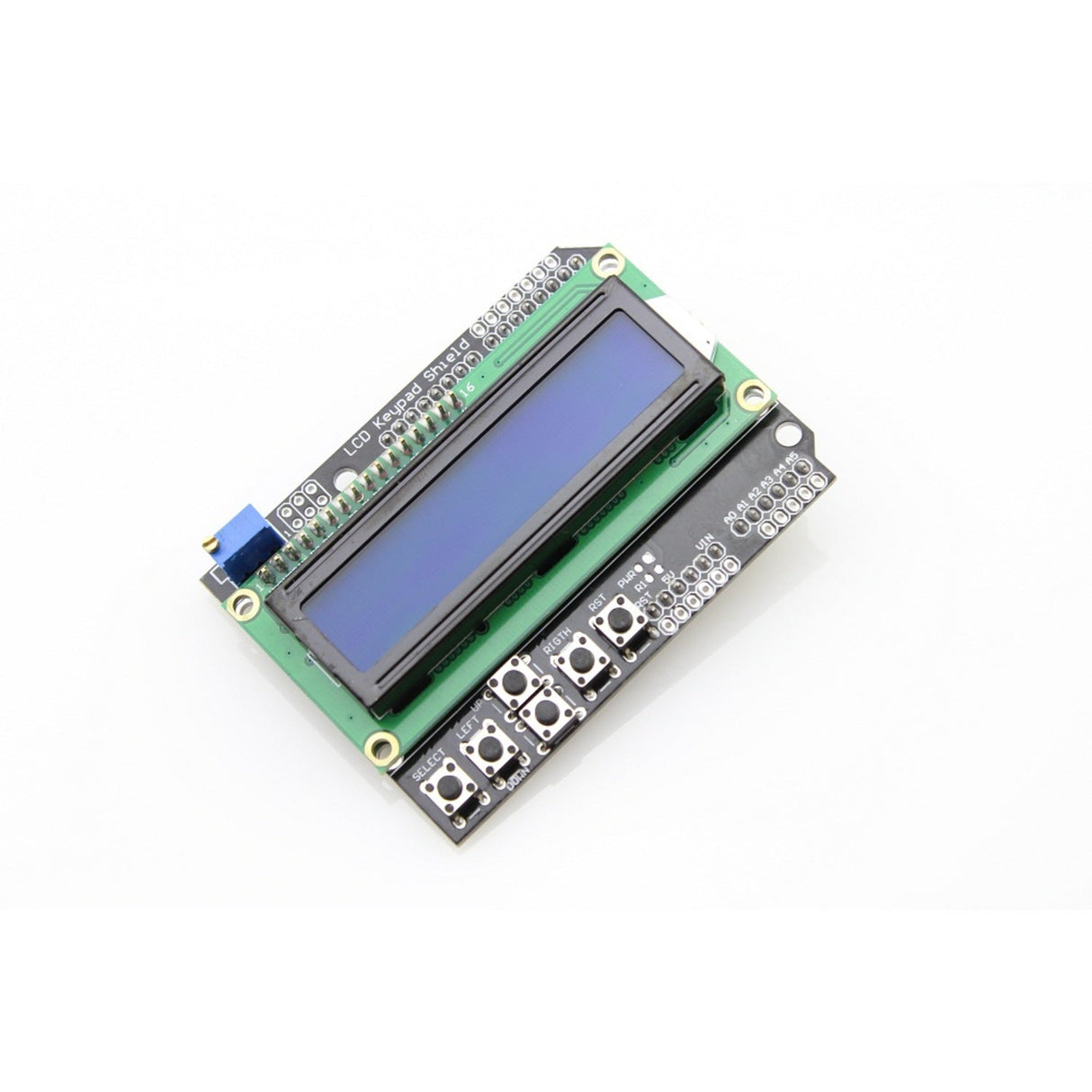

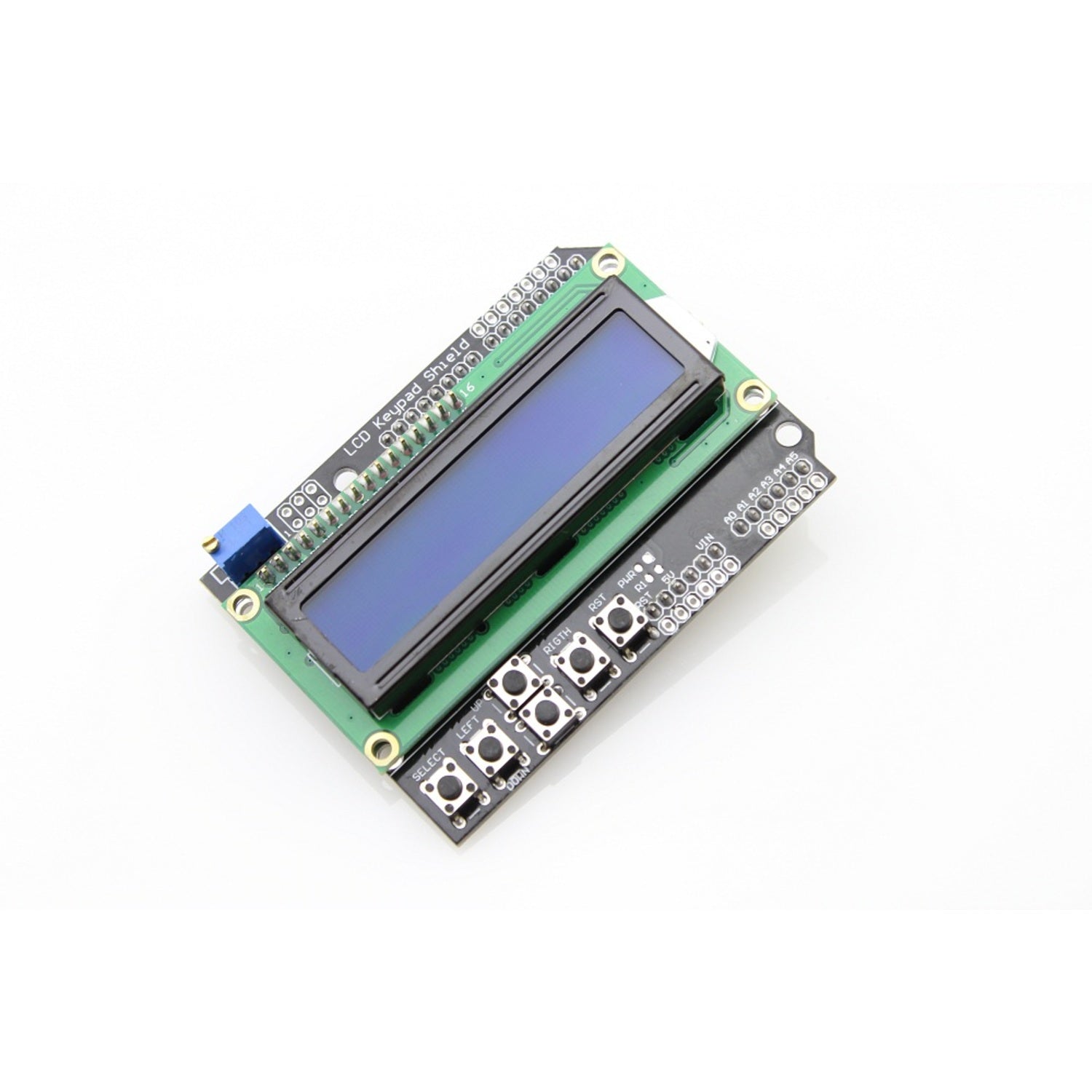

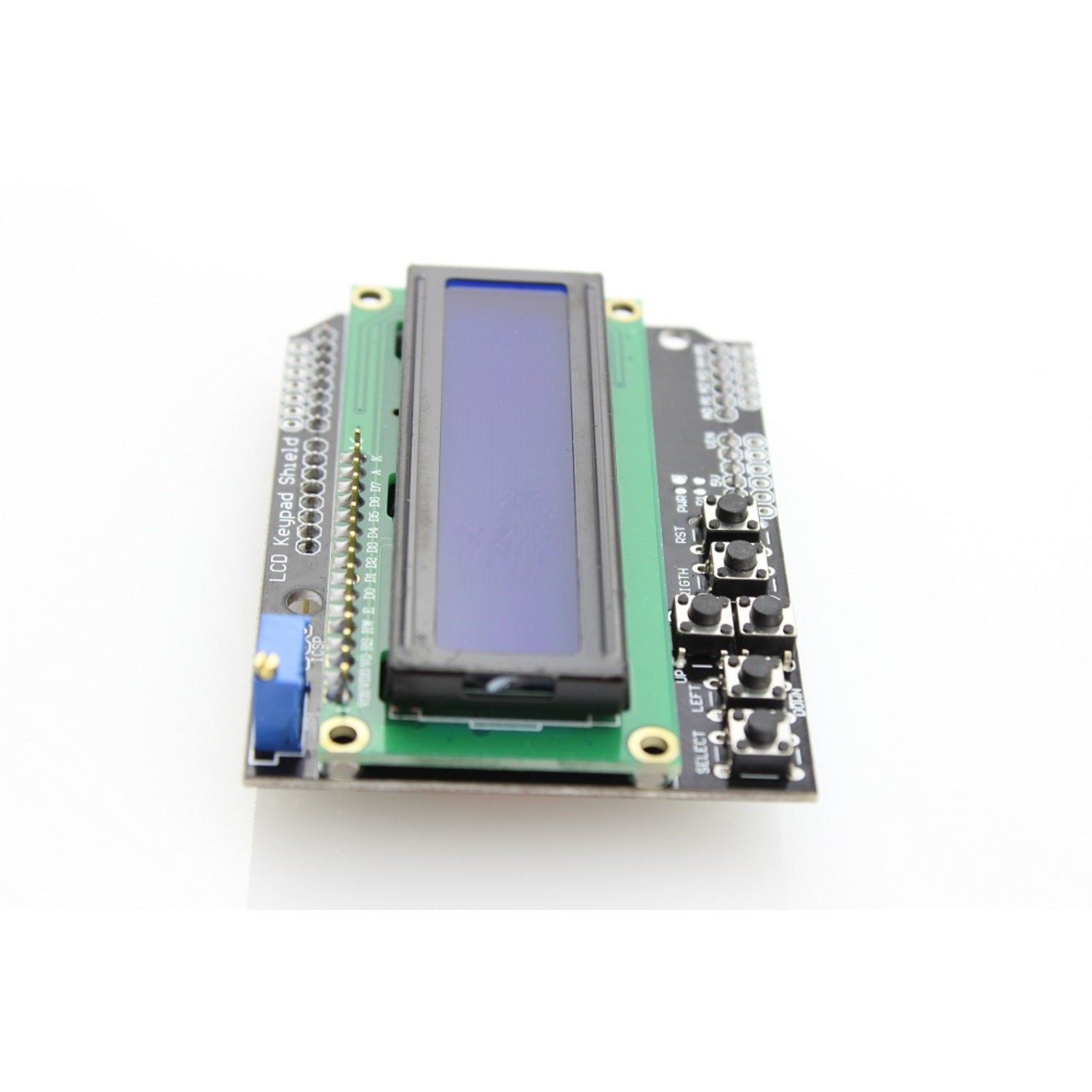

An Arduino-compatible LCD shield with integrated keypad for creating user-friendly interfaces. Features a 1602 LCD with white characters on blue backlight, plus a 5-button navigation keypad for menu selection and control.
The clever design uses only one analog pin (A0) for all five buttons via a voltage divider circuit, saving digital I/O pins for your project. Includes an onboard potentiometer for contrast adjustment.
Key Features
- 1602 LCD Display – 16 characters × 2 lines with blue backlight
- 5-Button Keypad – Select, Up, Down, Left, Right navigation
- Single Pin Input – All buttons read through one analog channel (A0)
- Contrast Control – Onboard potentiometer for adjustment
- Shield Form Factor – Plugs directly into Arduino Uno/Mega
Specifications
- Display: 1602 LCD (16×2 characters)
- Backlight: Blue with white characters
- Keypad: 5 buttons (Select, Up, Down, Left, Right)
- Input Pin: A0 (analog)
- Compatibility: Arduino Uno, Mega, and compatible boards
Ideal For
- Menu-driven Arduino projects
- User interface prototyping
- Temperature/sensor displays
- Simple games and interactive projects
Package Contents
- 1× LCD Keypad Shield
