LM75A Temperature Sensor I2C Interface Development Board Module For...
The LM75A is a high-accuracy digital temperature sensor with an I2C interface, ideal for temperature monitoring in Raspberry Pi and microcontroller projects. With a wide measurement range of -55°C to +125°C and 0.125°C resolution, it provides precise readings for environmental sensing applications.
The module features three configurable address pins, allowing up to 8 sensors on a single I2C bus without conflicts. This makes it perfect for multi-zone temperature monitoring systems.
Key Features
- Wide Temperature Range – Measures from -55°C to +125°C
- High Resolution – 0.125°C precision for accurate readings
- I2C Interface – Simple 2-wire connection to any microcontroller
- Configurable Address – 3 address pins allow up to 8 devices on one bus
- Low Power – Shutdown mode available for battery-powered applications

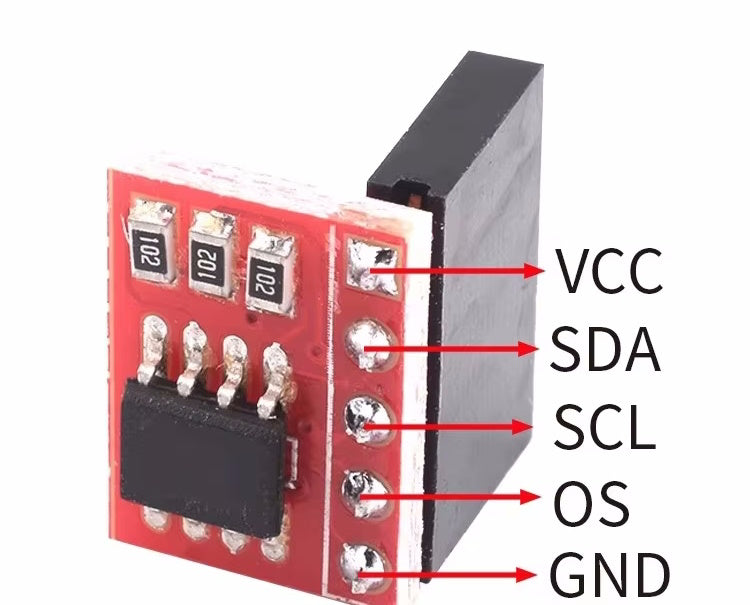

- OS Output – Programmable over-temperature alarm output
Specifications
- Sensor – LM75A
- Temperature Range – -55°C to +125°C
- Resolution – 0.125°C (9-bit)
- Interface – I2C (up to 400kHz)
- Operating Voltage – 2.8V to 5.5V
Ideal For
- Raspberry Pi temperature monitoring
- Environmental sensing stations
- HVAC and climate control systems
- Multi-zone temperature logging
- Thermal management in electronics
Package Contents
- 1× LM75A temperature sensor module
