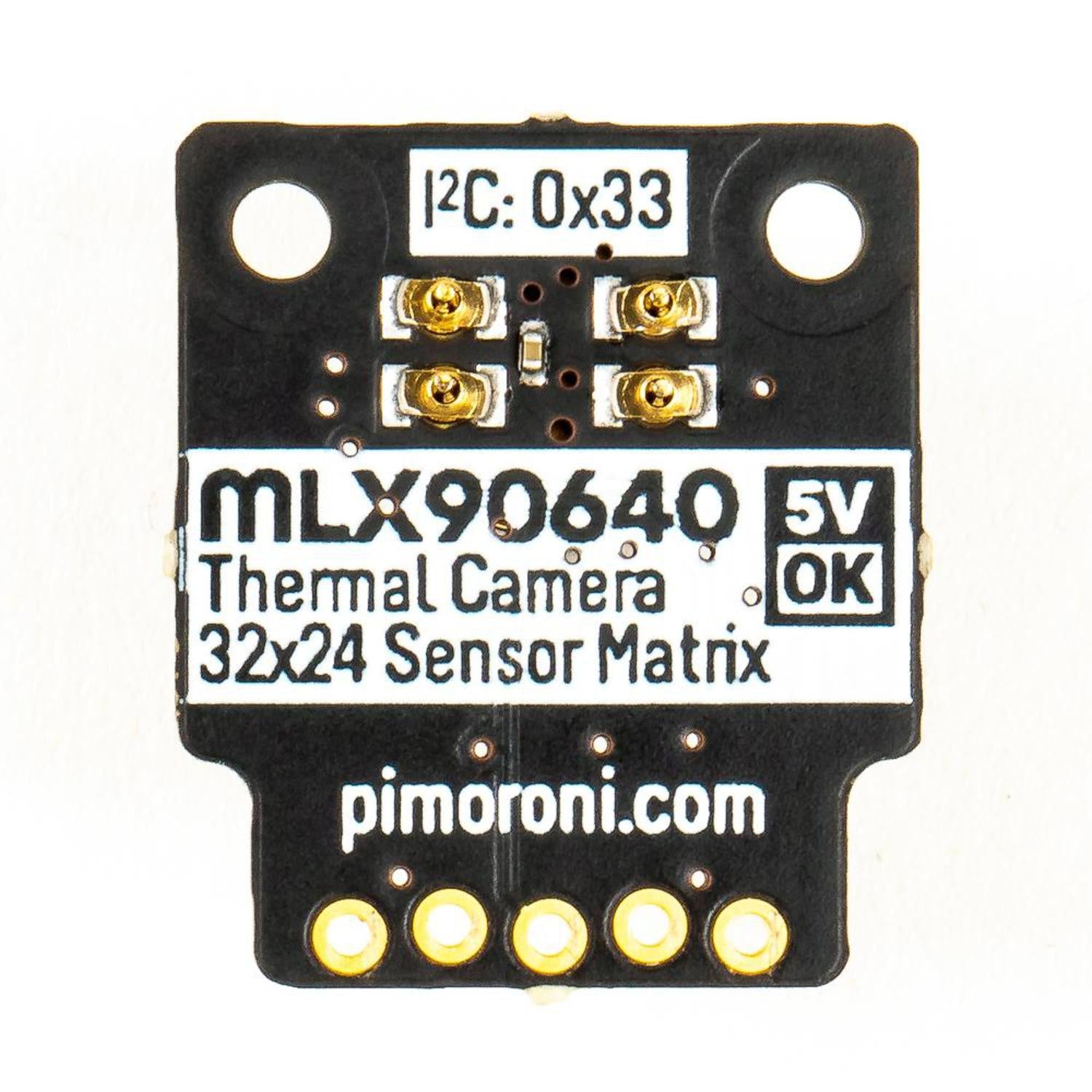

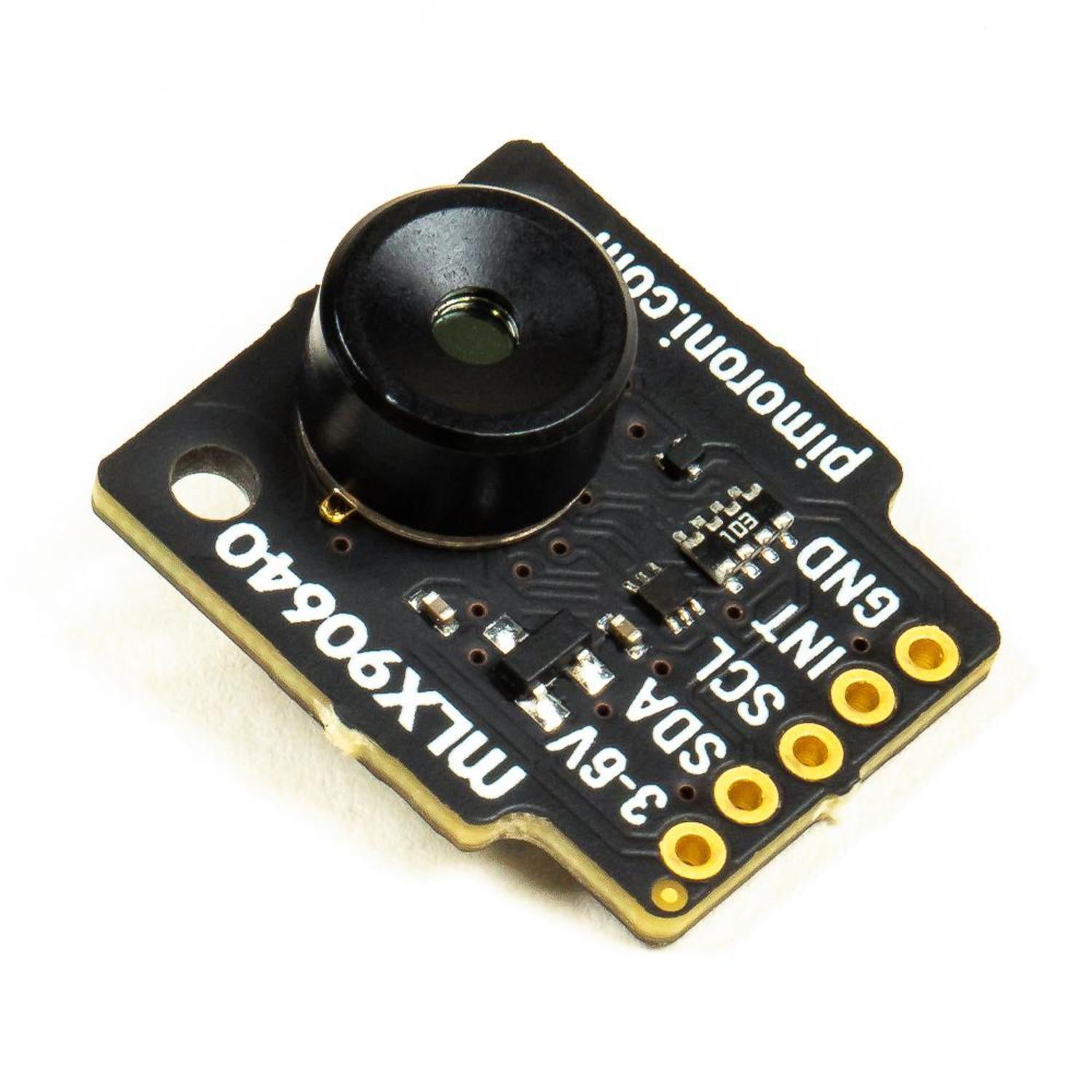

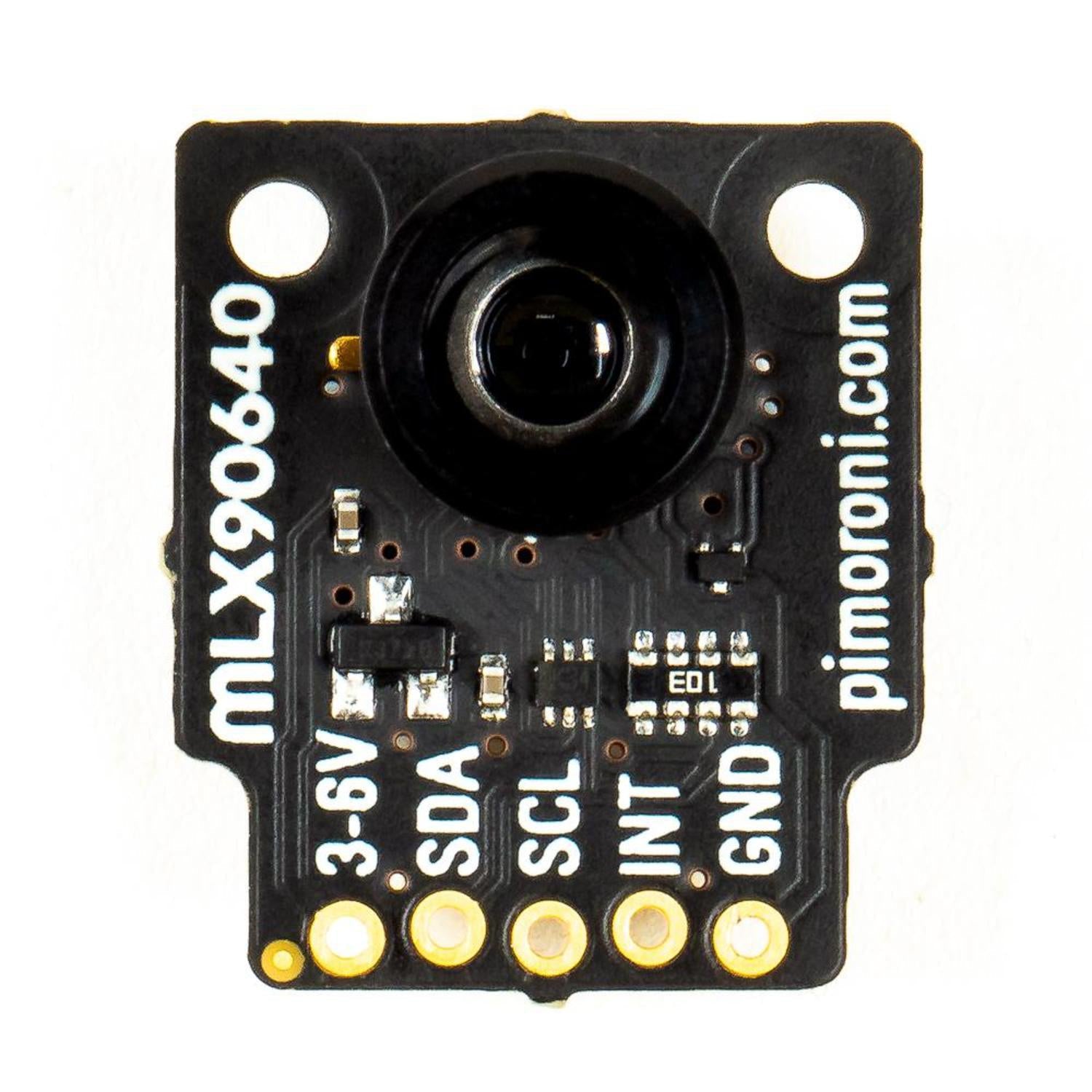

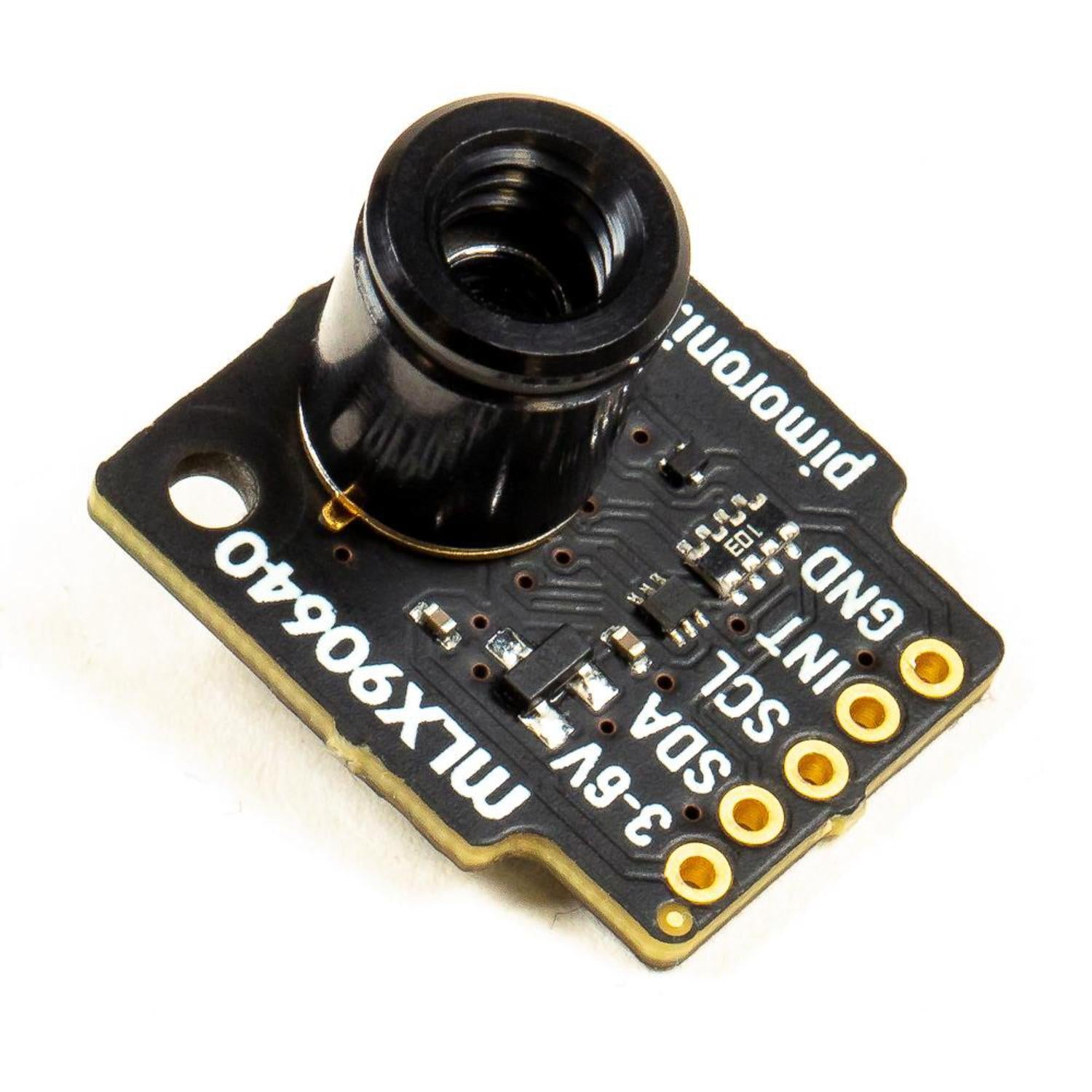

The MLX90640 Thermal Camera Breakout brings affordable thermal imaging to your Raspberry Pi and Arduino projects. With a 32×24 pixel sensor array and 110° wide-angle field of view, it creates heat maps showing temperature variations across a scene—perfect for detecting people, monitoring equipment, or visualising heat distribution.
Measuring temperatures from -40°C to 300°C with approximately 1°C accuracy, the sensor connects via I2C and runs at up to 64 frames per second for smooth thermal video.
Key Features
- 32×24 Resolution – 768 individual temperature sensors
- Wide Temperature Range – -40°C to 300°C detection
- 110° Field of View – Wide-angle coverage (110° × 75°)
- Up to 64 FPS – Smooth thermal video output
- ~1°C Accuracy – Reliable temperature measurements
- I2C Interface – Simple 2-wire connection
- 3.3V/5V Compatible – Works with most microcontrollers
- Reverse Polarity Protection – Protects against wiring mistakes
Specifications
- Sensor – MLX90640
- Resolution – 32×24 pixels
- Temperature Range – -40°C to 300°C
- Accuracy – ~1°C
- Field of View – 110° × 75°
- Frame Rate – Up to 64 FPS
- Interface – I2C (address 0x33)
- Dimensions – 19 × 19 × 2.75mm
Compatibility
- Raspberry Pi (all models)
- Arduino (3.3V or 5V tolerant models)
- Any I2C-capable microcontroller
Ideal For
- People and presence detection
- Heat leak detection in buildings
- Equipment temperature monitoring
- Night vision and low-light sensing
- Thermal mapping projects
Package Contents
- 1× MLX90640 thermal camera breakout
- 1× 1×5 male header
- 1× 1×5 female right-angle header
