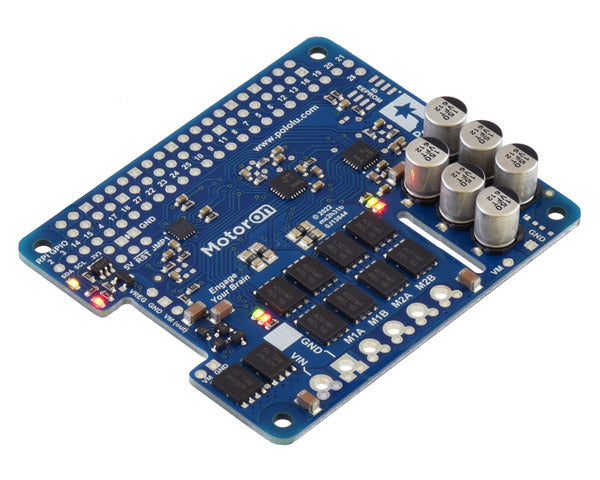

Motoron M2H18v20 Dual High-Power Motor Controller for Raspberry Pi (No Connectors or Standoffs)
Motoron M2H18v20 Dual High-Power Motor Controller for Raspberry Pi (No Connectors or Standoffs) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Call us on 1300 240 817 between 10 AM and 4 PM on weekdays or email team@littlebird.com.au .
The Fastest Shipping
The Fastest Shipping
We ship faster because we built our own shipping 🤖 robot.
Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.
You can view shipping options and pricing at checkout without logging in.
For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.
We deliver across Australia, and here are the options (based on your location; view them on the cart page):
- Standard Post: Starting at $7 (6+ business days, with tracking)
- Express Post: Starting at $11 (2+ business days, with tracking)
- Same Day Delivery: Available for Sydney orders.
- Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.
The Motoron M2H18v20 is a high-power dual motor controller for Raspberry Pi, capable of driving two brushed DC motors with up to 20A continuous per channel. This bare-board version lets you choose your own connectors and mounting hardware for custom installations.
Featuring I2C communication, reverse-voltage protection, and configurable current limiting, it's built for demanding robotics and powered vehicle applications.
Key Features
- Dual Motor Channels – Independent control of 2 DC motors
- 20A Per Channel – High-current capacity for powerful motors
- 6.5V to 30V Input – Wide motor voltage range
- Bidirectional Control – Full forward and reverse operation
- I2C Interface – Up to 400kHz with optional CRC
- Current Sensing – Monitor motor current draw
- Hardware Current Limiting – Configurable protection
- Reverse Voltage Protection – Protects against wiring mistakes
- Status LEDs – Visual feedback for motor direction
Specifications
- Motor Channels – 2 (independent, bidirectional)
- Motor Voltage – 6.5V to 30V
- Logic Voltage – 3.0V to 5.5V
- Max Current – 20A continuous per channel
- Interface – I2C (400kHz)
- PWM Frequencies – 1kHz to 80kHz (8 options)
Compatibility
- Raspberry Pi Model B+ and later
- Raspberry Pi 3, 4, 5
- Raspberry Pi Zero (with GPIO header)
Ideal For
- Custom robotics builds
- Powered vehicles requiring high current
- Industrial automation
- Projects requiring custom mounting
Package Contents
- 1× Motoron M2H18v20 controller board (assembled PCB only)
