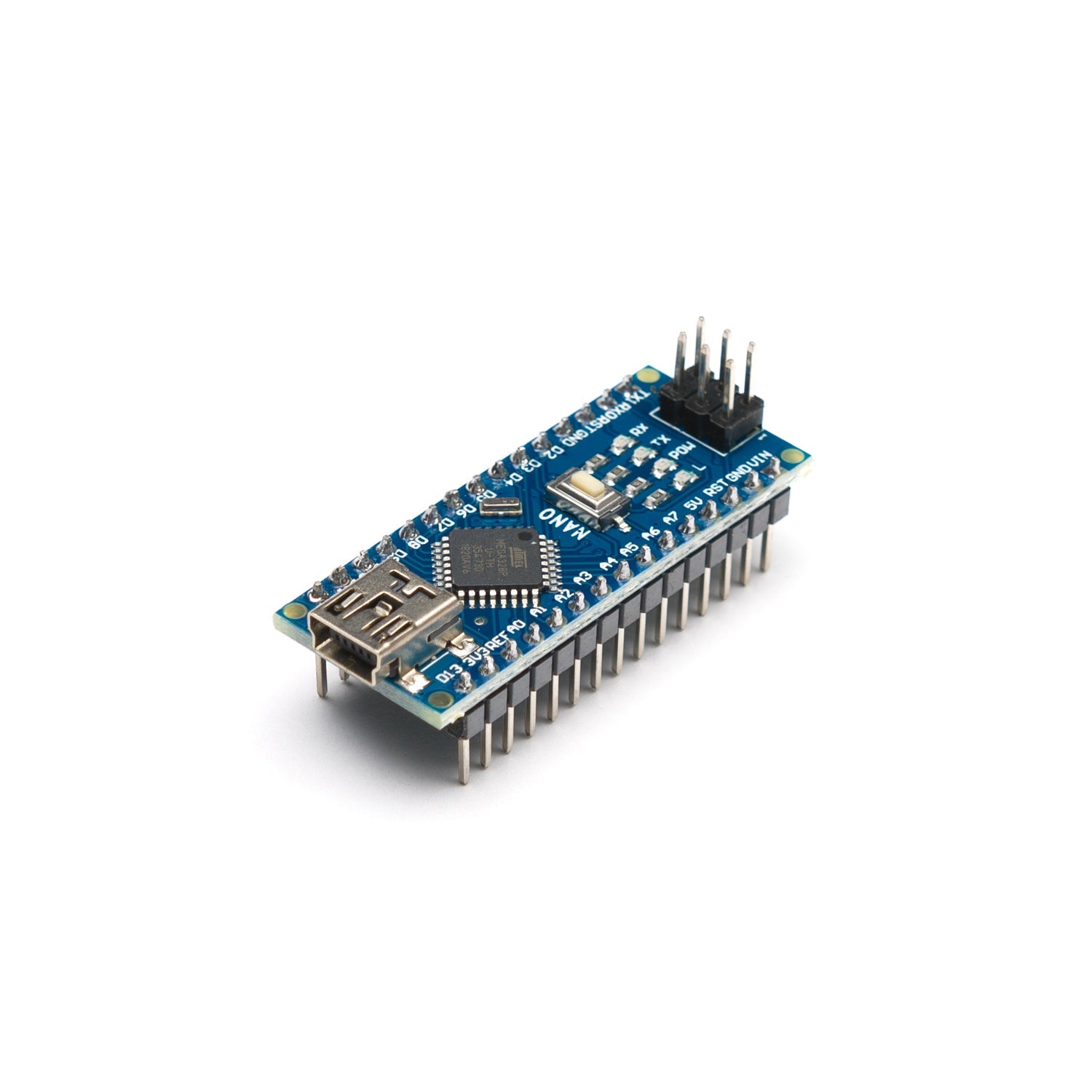

Nano v3.0 CH340 Chip with Mini USB Cable
An Arduino Nano-compatible development board with all the functionality of an Arduino Uno in a compact breadboard-friendly package. Features the ATmega328P microcontroller and CH340G USB interface – perfect for projects where size matters.
Comes with mini USB cable included. Bootloader pre-installed so you can start programming immediately with the Arduino IDE.
Key Features
- Compact Size – Just 43 × 18mm, fits directly in a breadboard
- ATmega328P MCU – Same chip as Arduino Uno
- CH340G USB Interface – Reliable USB-serial communication
- Bootloader Pre-installed – Ready to program out of the box
- Flexible Power Options – USB, 5-12V DC, or 9V battery
Specifications
- Microcontroller: ATmega328P-AU
- USB Chip: CH340G
- Operating Voltage: 5V
- Input Voltage: 5–12V DC
- Digital I/O Pins: 14 (D0–D13, TX, RX)
- PWM Pins: 6 (D3, D5, D6, D9, D10, D11)
- Analog Input Pins: 8 (A0–A7)
- Serial: 1× TTL UART (TX/RX)
- USB: Mini-B
- Dimensions: 43 × 18mm
Ideal For
- Breadboard prototyping
- Compact embedded projects
- Wearables and small devices
- Learning Arduino programming
Package Contents
- 1× Nano v3.0 board
- 1× Mini USB cable
