WaveShare  |  SKU: WS-17693

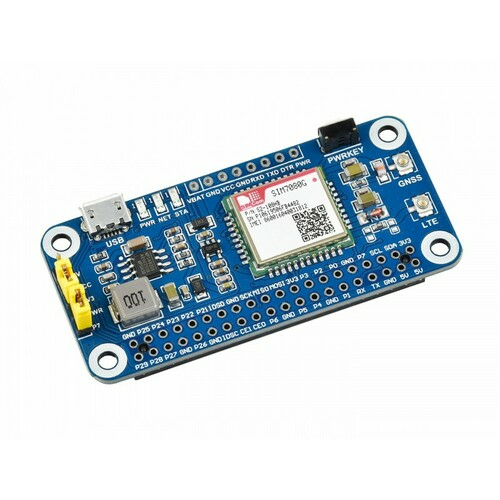

NB-IoT / Cat-M(eMTC) / GNSS HAT for Raspberry Pi, Globally Applicable

$52.82
Tax included Shipping calculated at checkout.

Call us on 1300 240 817 between 10 AM and 4 PM on weekdays or email team@littlebird.com.au .

The Fastest Shipping

We ship faster because we built our own shipping 🤖 robot.

Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.

You can view shipping options and pricing at checkout without logging in.

For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.

We deliver across Australia, and here are the options (based on your location; view them on the cart page):

  • Standard Post: Starting at $7 (6+ business days, with tracking)
  • Express Post: Starting at $11 (2+ business days, with tracking)
  • Same Day Delivery: Available for Sydney orders.
  • Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.

A multi-function telecommunications HAT for Raspberry Pi featuring NB-IoT, Cat-M (eMTC), and GNSS positioning. Based on the SIM7080G module with global band support, it's ideal for IoT applications requiring low-power wide-area connectivity and location tracking.

Supports multiple protocols including TCP, UDP, HTTP, HTTPS, MQTT, CoAP, and LWM2M. The onboard USB port allows direct AT command testing and GPS data access.

Key Features

  • NB-IoT & Cat-M – Global band support for low-power IoT connectivity
  • GNSS Positioning – GPS, GLONASS, BeiDou, and Galileo support
  • Multiple Protocols – TCP/UDP/HTTP/HTTPS/MQTT/CoAP/LWM2M
  • Low Power Modes – PSM (3.2µA), eDRX, and sleep modes
  • USB Interface – Direct AT command and GPS data access
  • UART Breakout – Connect to Arduino, STM32, or other hosts
  • Voltage Selection – 3.3V/5V via jumper
  • 3× LED Indicators – Status monitoring

GNSS Specifications

  • Receiver: 16-channel C/A code
  • Systems: GPS, GLONASS, BeiDou, Galileo
  • Update Rate: 1Hz (default)
  • Data Format: NMEA-0183

Specifications

  • Module: SIM7080G
  • Power Supply: 5V
  • Logic Level: 3.3V/5V (jumper selectable)
  • Idle Current: 39mA (overall), 10mA (module)
  • PSM Current: 3.2µA
  • Baudrate: 300–3,686,400 bps
  • SIM Card: 1.8V SIM only (3V not supported)
  • Operating Temp: -40°C to +85°C
  • Dimensions: 30.2 × 65mm

Package Contents

  • 1× SIM7080G Cat-M/NB-IoT HAT
  • 1× LTE antenna
  • 1× GPS external antenna
  • 1× USB-A to Micro USB cable
  • 1× 2×20 pin female header
  • 1× Mounting screws pack
Important: This HAT only supports 1.8V SIM cards. 3V SIM cards are not compatible.
