Pi Australia  |  SKU: PI-PIM699

NVMe Base for Raspberry Pi 5

$31.95
Tax included Shipping calculated at checkout.
Style

Call us on 1300 240 817 between 10 AM and 4 PM on weekdays or email team@littlebird.com.au .

The Fastest Shipping

We ship faster because we built our own shipping 🤖 robot.

Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.

You can view shipping options and pricing at checkout without logging in.

For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.

We deliver across Australia, and here are the options (based on your location; view them on the cart page):

  • Standard Post: Starting at $7 (6+ business days, with tracking)
  • Express Post: Starting at $11 (2+ business days, with tracking)
  • Same Day Delivery: Available for Sydney orders.
  • Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.

Add super-fast NVMe storage to your Raspberry Pi 5 for lightning-fast boots, snappy applications, and NAS builds. NVMe Base is a PCIe extension board that mounts under your Pi for a compact, high-performance storage solution.

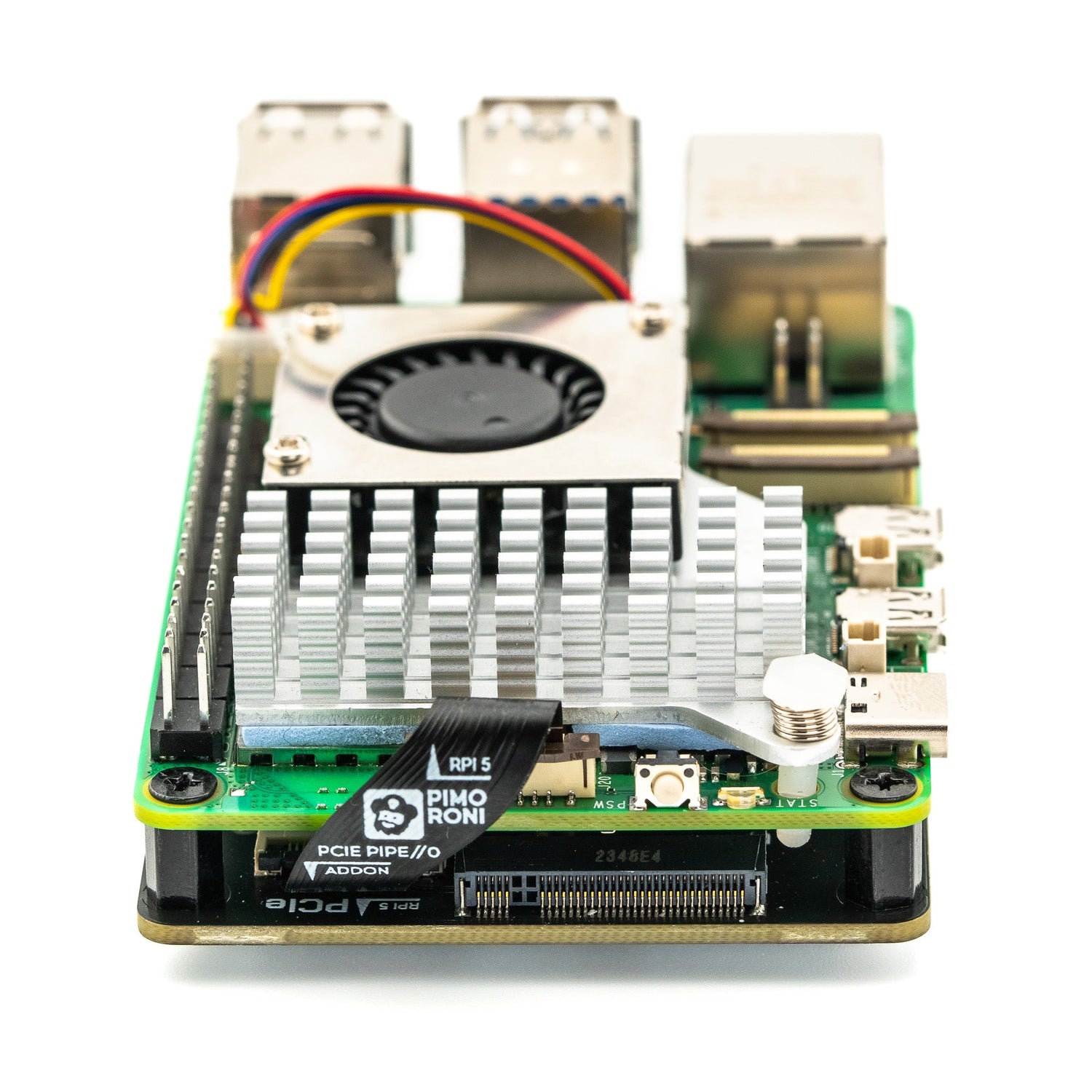

Simply install an M-key NVMe SSD (2230 to 2280 sizes supported) and connect via the included PCIe flat flex cable. Following Raspberry Pi's official PIP design guidelines, NVMe Base ensures long-term compatibility with Raspberry Pi OS updates.

Key Features

  • PCIe Storage – Add fast NVMe storage with speeds up to 800MB/s read
  • M.2 M-Key Slot – Supports 2230, 2242, 2260, and 2280 SSDs

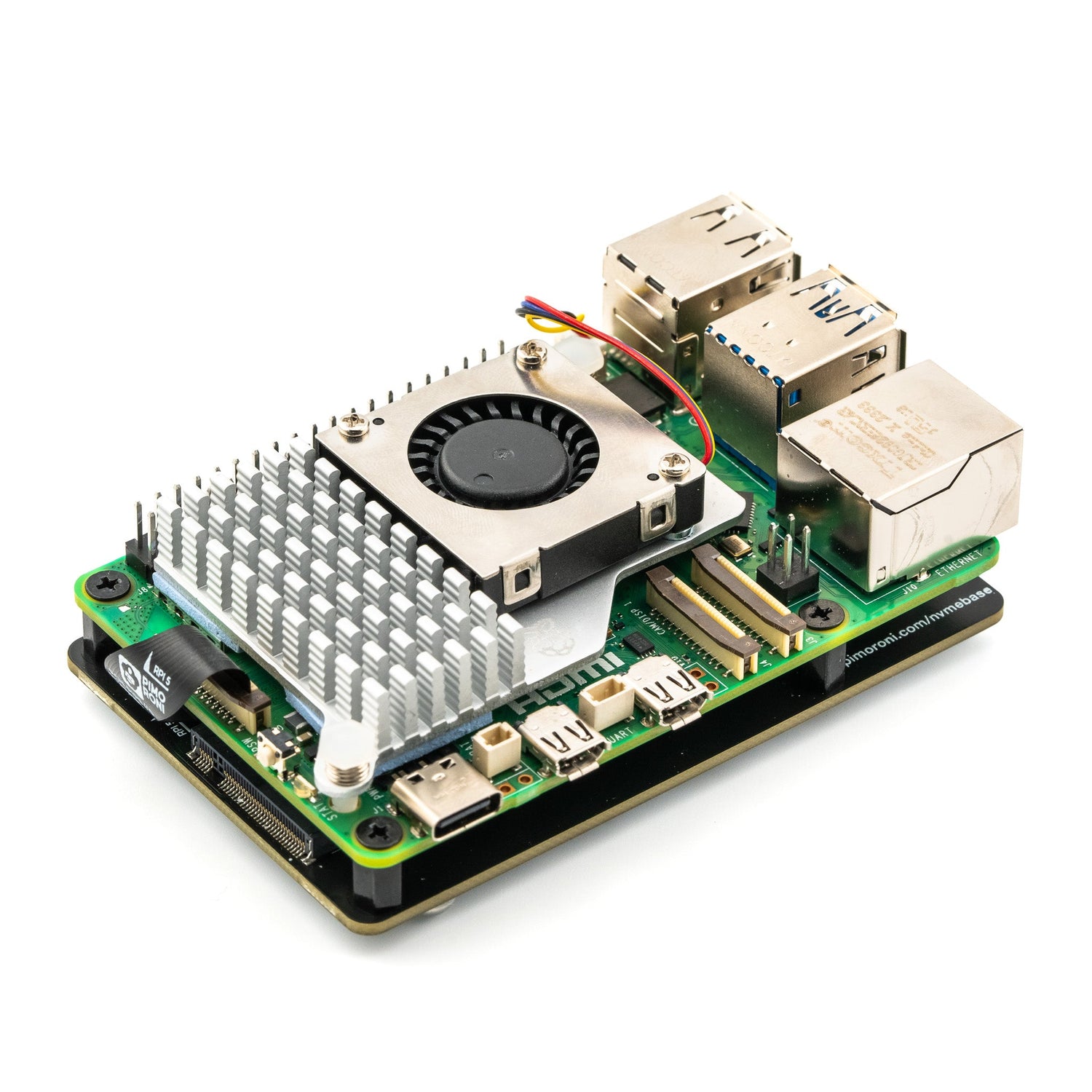

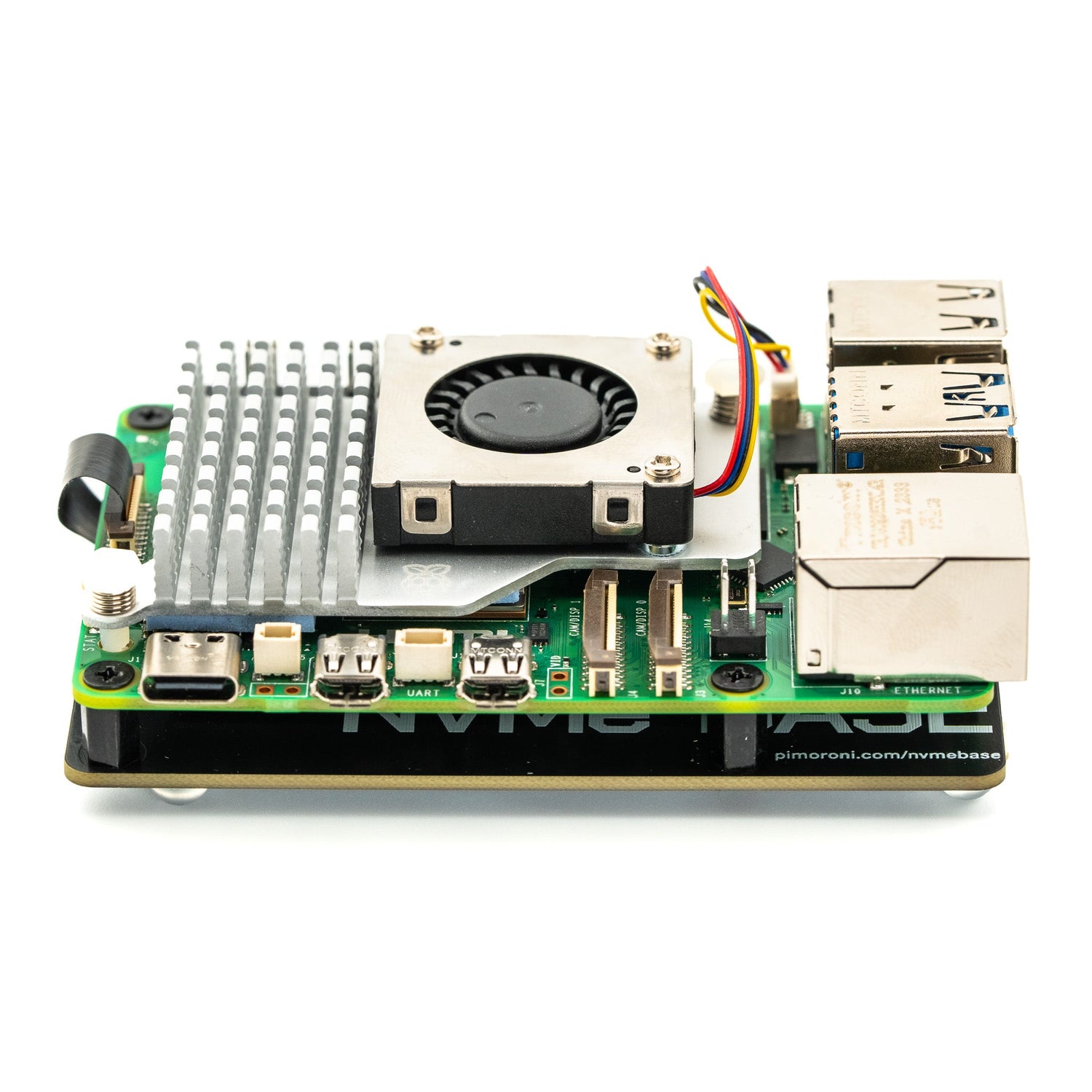

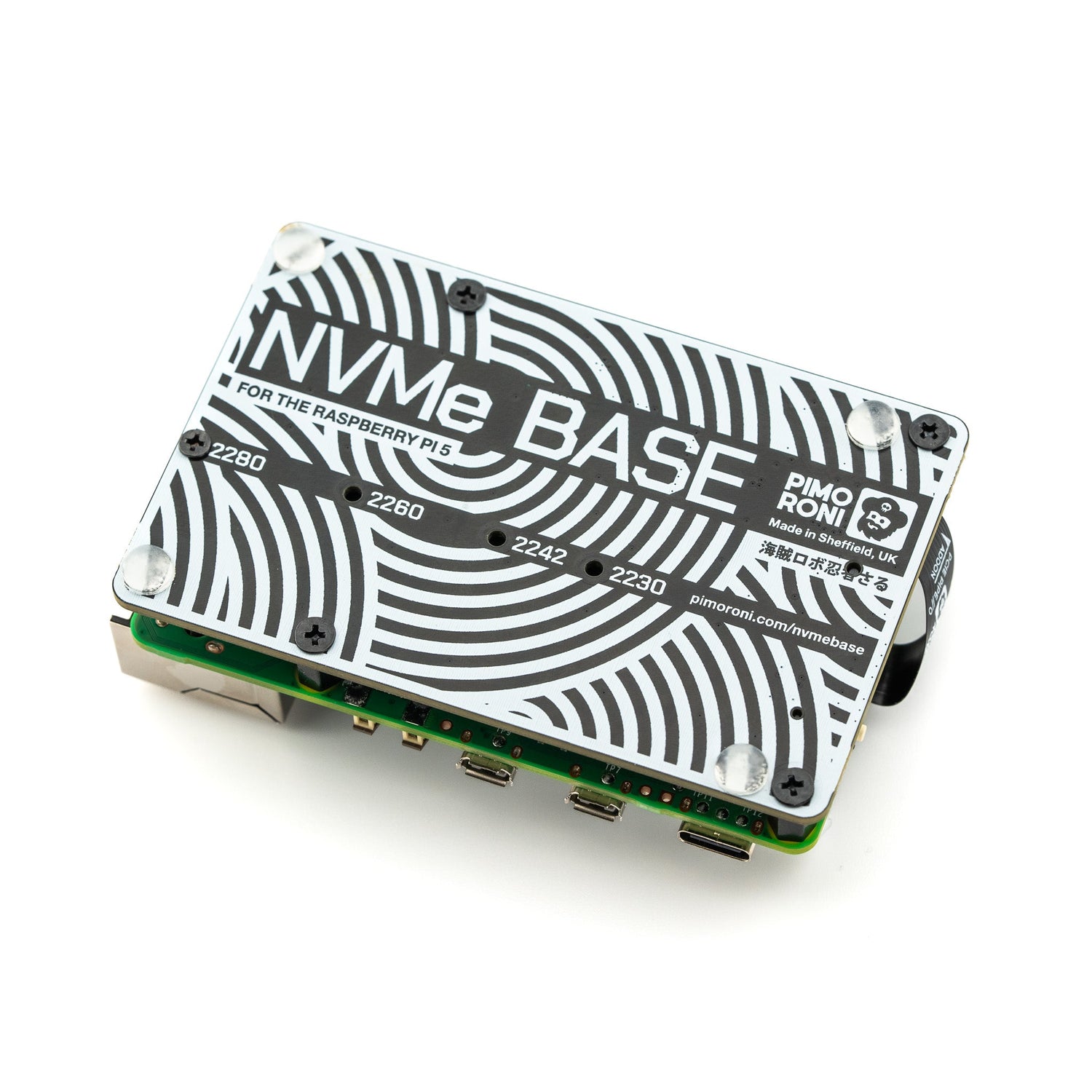

  • Compact Design – Mounts under your Pi 5 with included standoffs
  • HAT Compatible – Includes pass-through bolts for stacking with HATs
  • Boot Support – Boot directly from NVMe for faster startup

Ideal For

  • File servers and NAS builds
  • Media centres (Plex, Jellyfin)
  • High-IOPS applications and databases
  • Anyone wanting faster storage than microSD

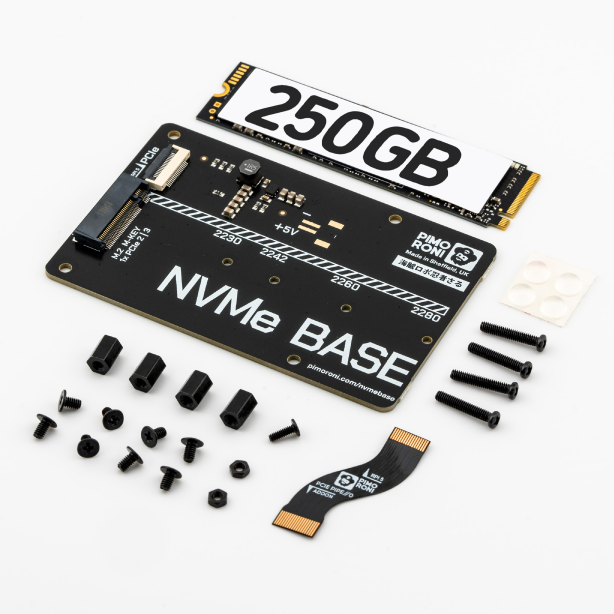

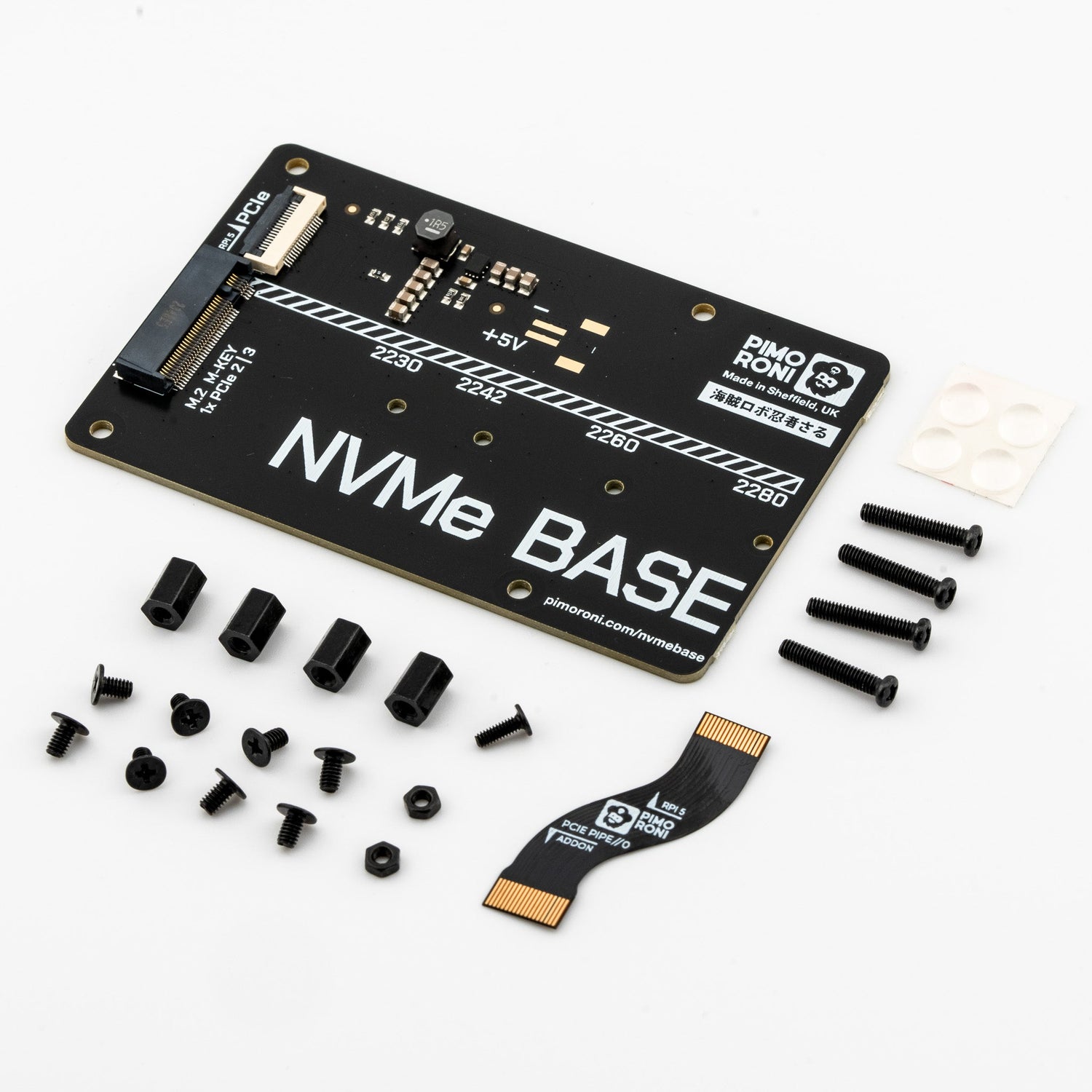

Package Contents

  • 1× NVMe Base PCB with M.2 Slot (M-Key)
  • 1× PCIe Pipe Flat Flex Cable
  • 4× Rubber feet
  • 1× M2 bolt and 2× nuts for SSD mounting
  • 4× 7mm M2.5 standoffs for base mounting
  • 8× Short M2.5 bolts for base mounting
  • 4× Long M2.5 bolts for pass-through HAT mounting

Tested Compatible Drives

  • AData Legend 700/800, XPG SX8200 Pro
  • Crucial P2, P3, P3 Plus
  • Kingston KC3000
  • Kioxia Exceria, Exceria G2
  • Lexar NM620, NM710
  • Netac NV2000, NV3000
  • Sabrent Rocket 4.0, Rocket Nano
  • Samsung 980, 980 Pro (500GB/1TB)
  • Team MP33
  • WD Black SN750 SE
Avoid: Kingston OM8SEP4256Q-A0, Transcend 110Q, WD Green/Blue/Red/Black (except SN750 SE), Samsung 980 Pro 250GB, PNY CS1030 250GB. Check compatibility before purchasing.

Getting Started

  1. Update firmware to 2023-12-06 or newer via sudo raspi-config → Advanced Options → Bootloader Version → Latest
  2. For PCIe 3.0 speeds, add dtparam=pciex1_gen=3 to /boot/firmware/config.txt
  3. Format drive using Raspberry Pi Imager
  4. Enable NVMe boot via sudo raspi-config → Advanced Options → Boot Order → NVMe/USB
Note: Always power off and disconnect power before installing or removing the NVMe Base. The Pi 5 runs at PCIe 3.0 x1 speeds (up to ~800MB/s read, ~450MB/s write).
