Pi Australia  |  SKU: PR-PIM704

NVMe Base Duo for Raspberry Pi 5

$74.55
Tax included Shipping calculated at checkout.
Style

Call us on 1300 240 817 between 10 AM and 4 PM on weekdays or email team@littlebird.com.au .

The Fastest Shipping

We ship faster because we built our own shipping 🤖 robot.

Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.

You can view shipping options and pricing at checkout without logging in.

For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.

We deliver across Australia, and here are the options (based on your location; view them on the cart page):

  • Standard Post: Starting at $7 (6+ business days, with tracking)
  • Express Post: Starting at $11 (2+ business days, with tracking)
  • Same Day Delivery: Available for Sydney orders.
  • Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.

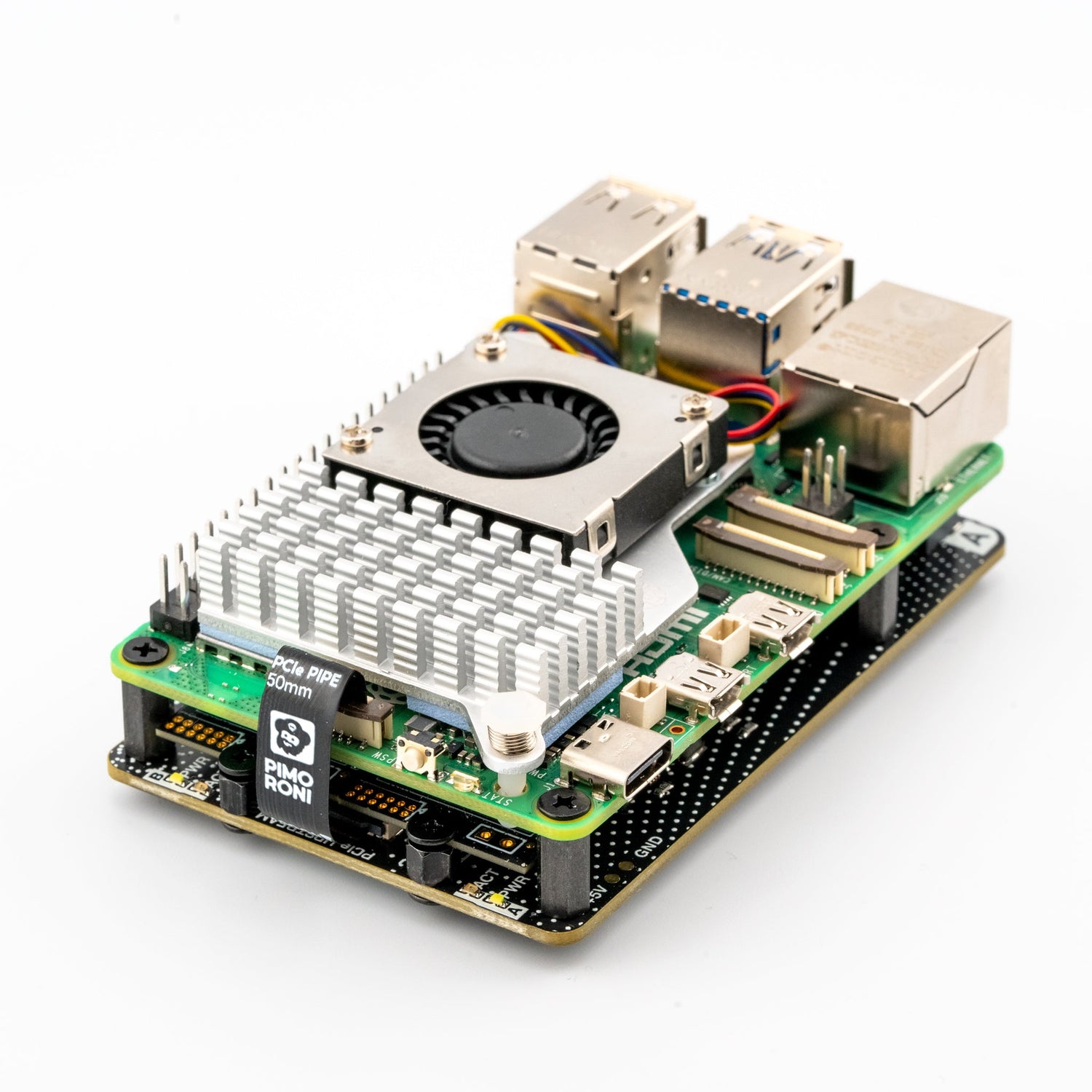

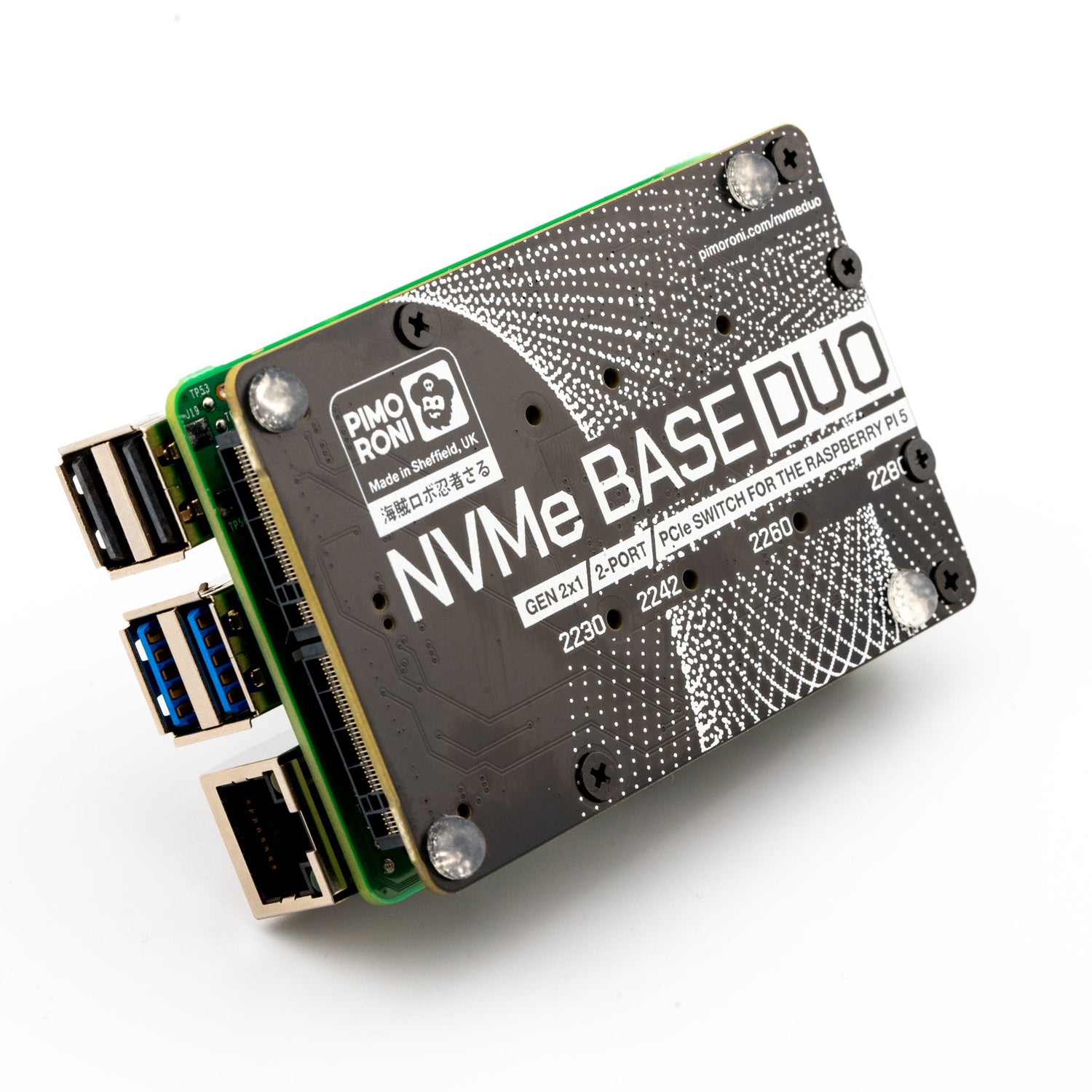

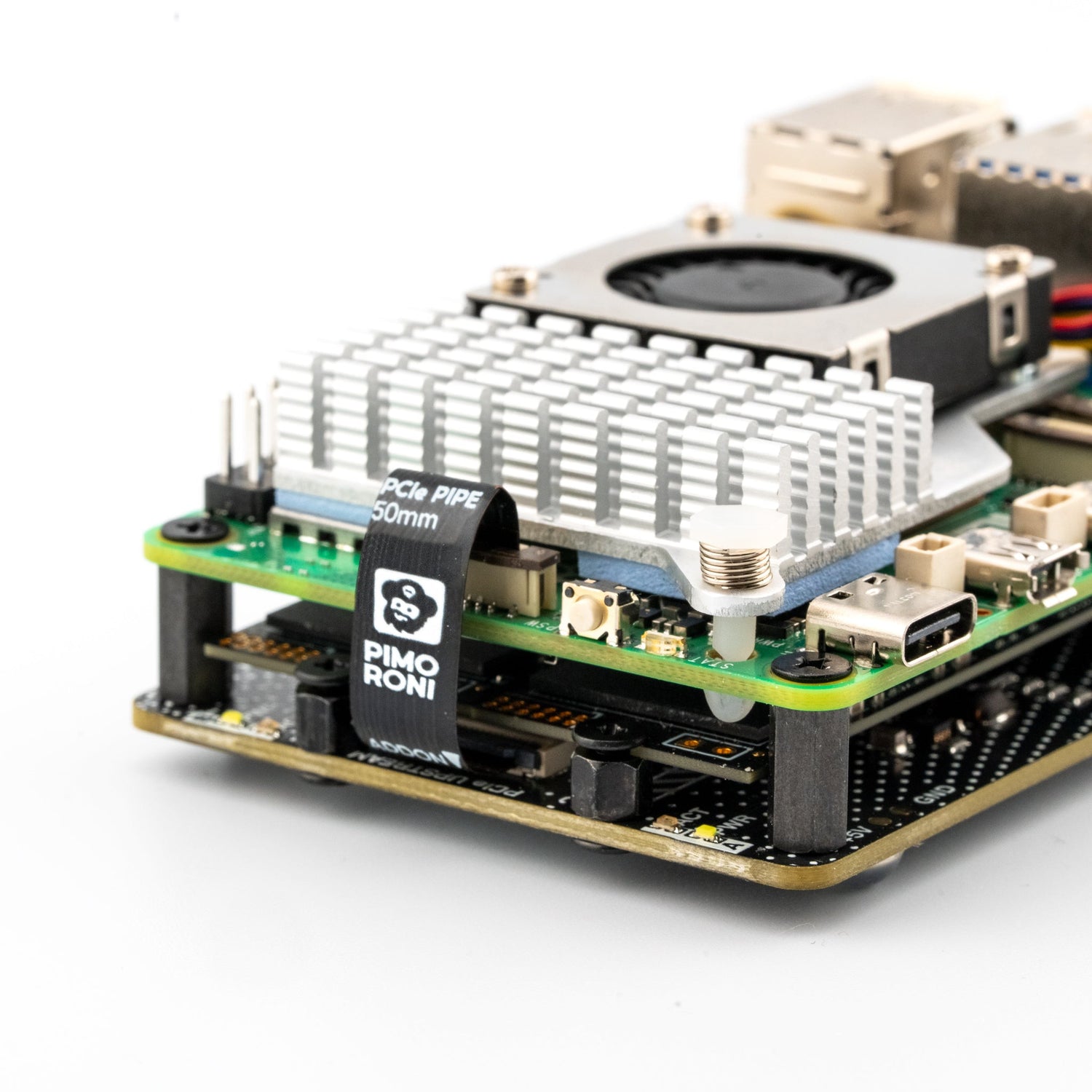

Add two super-fast NVMe SSDs to your Raspberry Pi 5 for redundancy, RAID configurations, or simply more storage. NVMe Base Duo is a PCIe Gen 2 extension board with dual M.2 slots that mounts under or over your Pi.

Perfect for file servers, media centres, home automation with backup, or any task requiring large amounts of fast, redundant storage. Follows Raspberry Pi's official PIP design guidelines for long-term OS compatibility.

Note: NVMe Base Duo cannot be used as a boot device. Boot from SD card, then the system hands over to the NVMe drives for storage.

Key Features

  • Dual M.2 Slots – Mount two NVMe SSDs (2230 to 2280 sizes)
  • PCIe Gen 2 – ~450MB/s total throughput, ~220MB/s per drive
  • PCIe Switch – Wider drive compatibility than single NVMe Base
  • Compact Design – Mounts under or over your Pi 5
  • HAT Compatible – Includes pass-through bolts for stacking

Ideal For

  • RAID configurations (mirroring, striping)
  • File servers and NAS builds with redundancy
  • Media centres with large storage requirements
  • Home automation with built-in backup drives

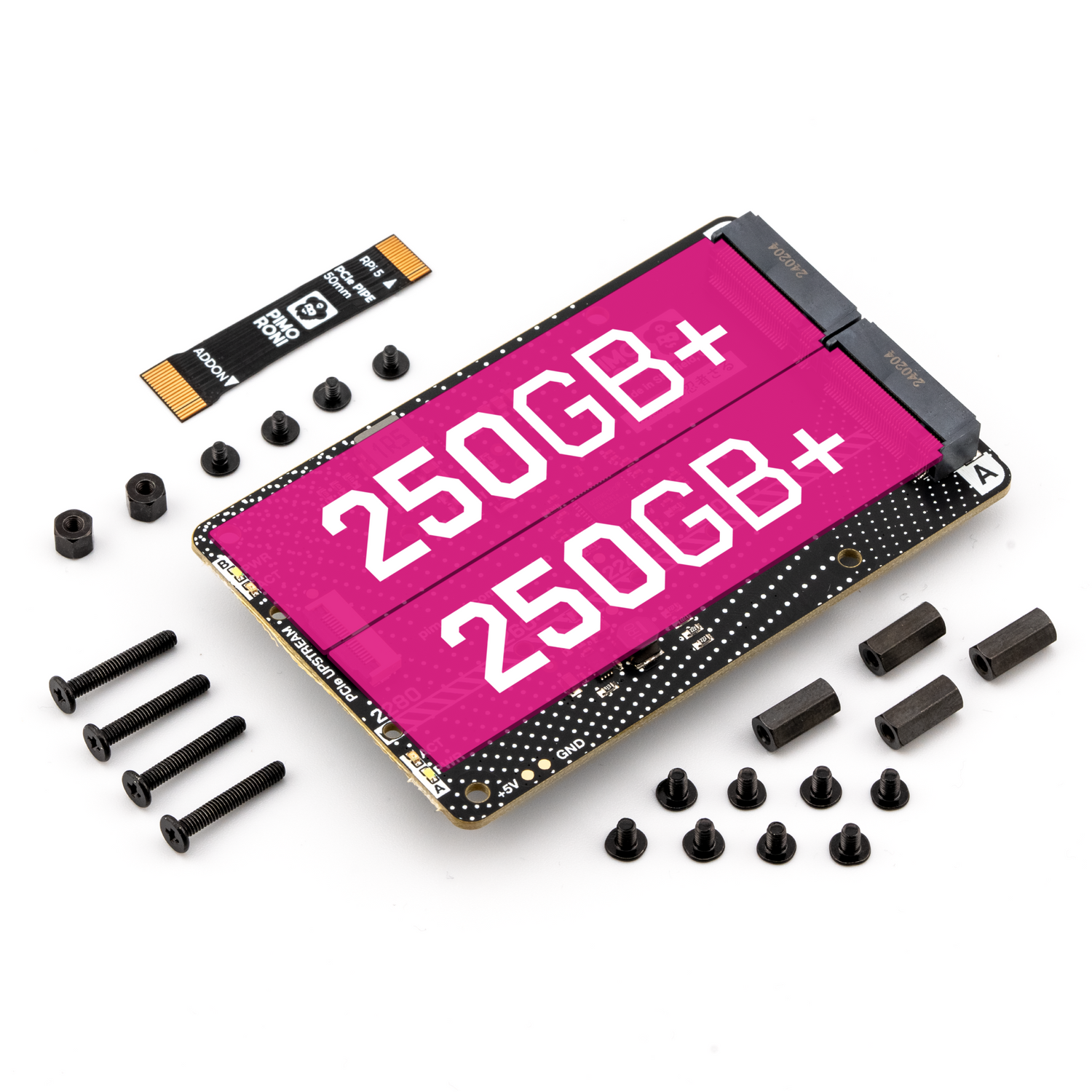

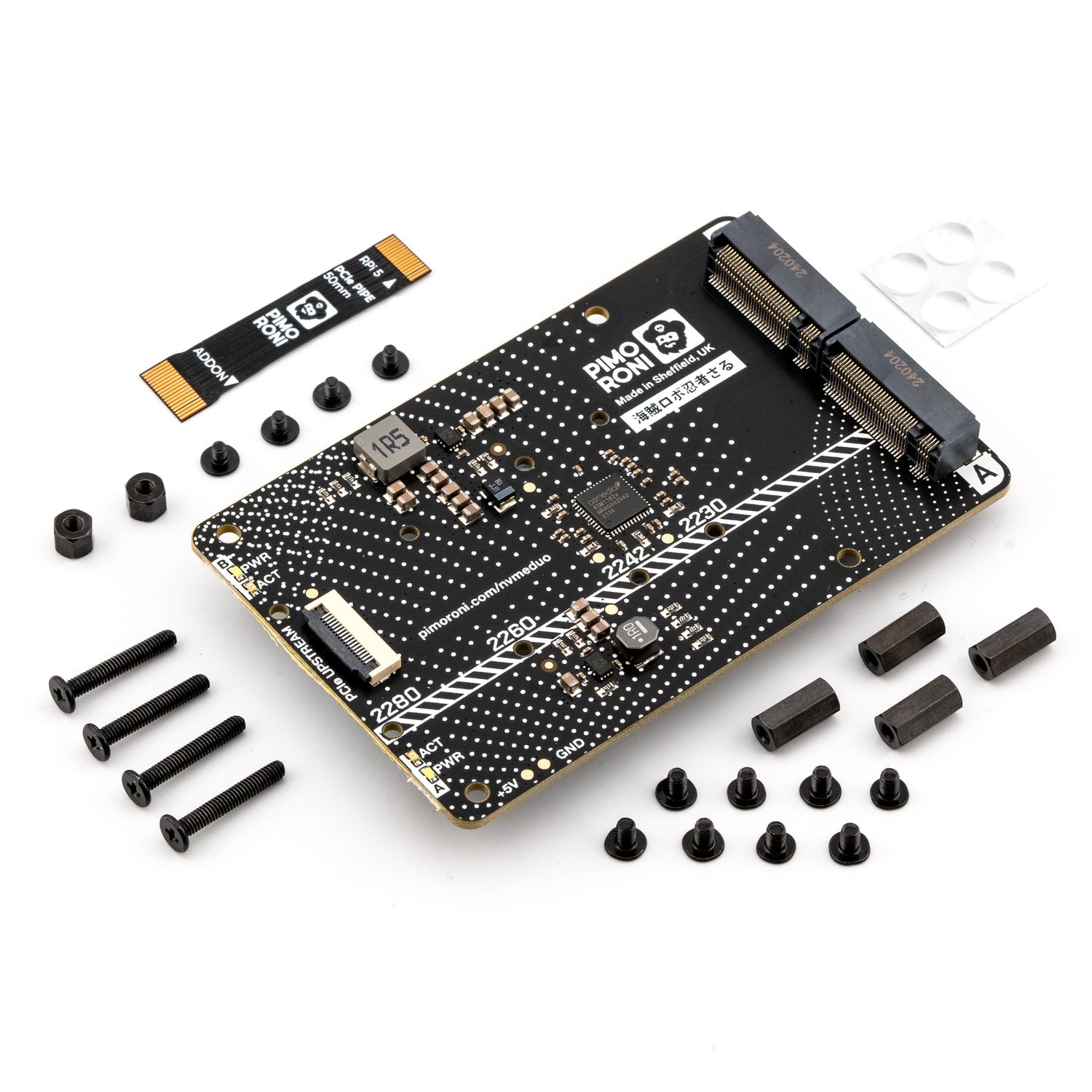

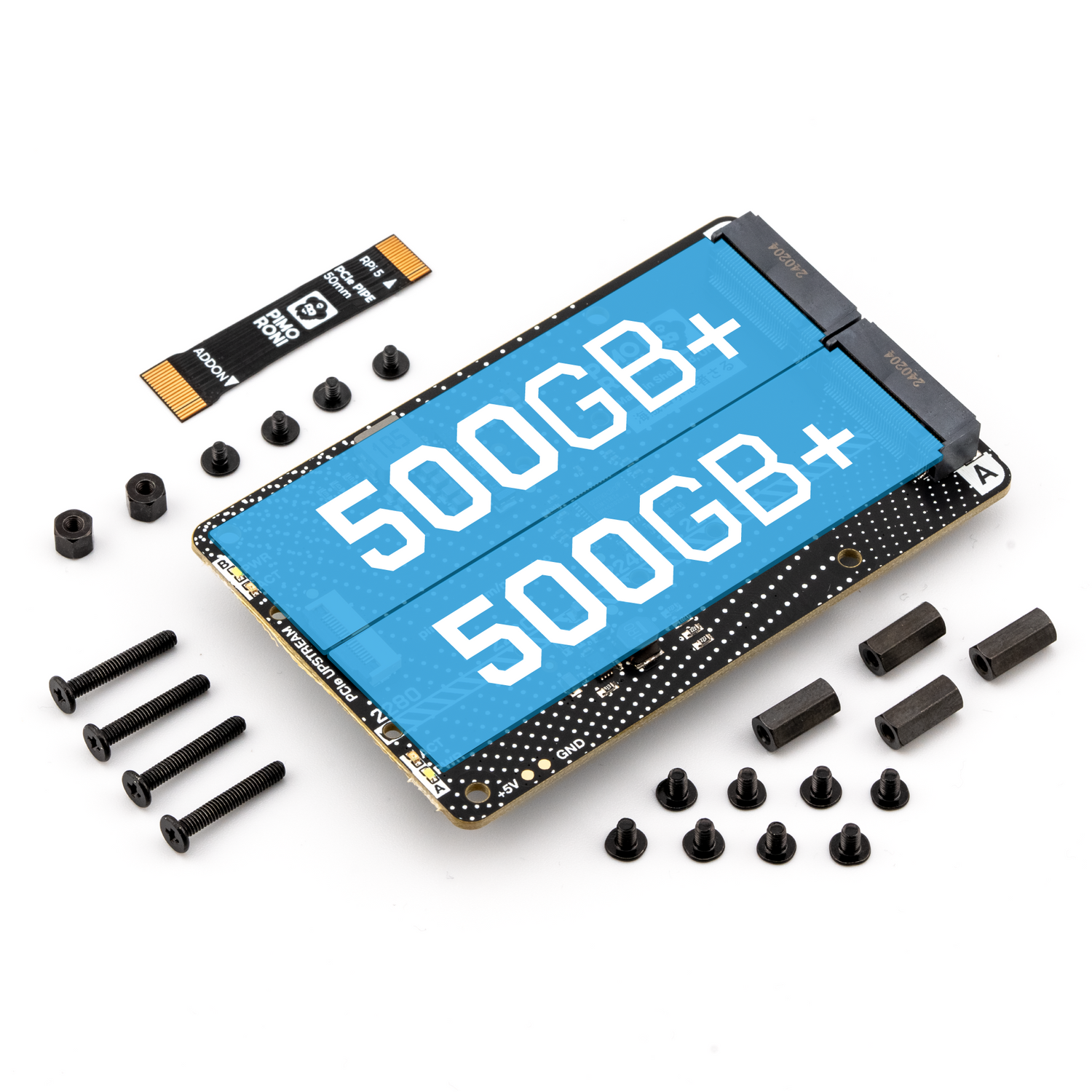

Package Contents

  • 1× NVMe Base Duo PCB with two M.2 slots (M-Key)
  • 1× PCIe Flex Flat Flex Cable
  • 4× Rubber feet
  • 4× M2 bolts and 2× 5mm standoffs for SSD mounting
  • 4× 12mm M2.5 standoffs for base mounting
  • 8× Short M2.5 bolts for base mounting
  • 4× 20mm M2.5 bolts for pass-through HAT mounting

Tested Compatible Drives

  • ADATA Legend 700, SX8200PNP
  • Crucial P5 Plus
  • Kingston KC3000
  • Kioxia Exceria, Exceria G2
  • Lexar NM710
  • Patriot P300, P310
  • PNY CS1030
  • Sabrent Rocket 4.0, Rocket Nano
  • Samsung 970 EVO Plus, 980, 980 Pro
  • SK hynix Gold P31
  • WD Blue SN550/SN570, Black SN750 SE/SN770, Red SN700, Green SN350

Getting Started

  1. Update Pi 5 firmware to 2023-12-06 or newer via sudo raspi-config → Advanced Options → Bootloader Version → Latest
  2. Install drives and connect PCIe cable
  3. Boot from SD card – drives appear as additional storage
  4. Configure RAID using mdadm if desired
Important: Always power off and disconnect power before installing or removing drives.
