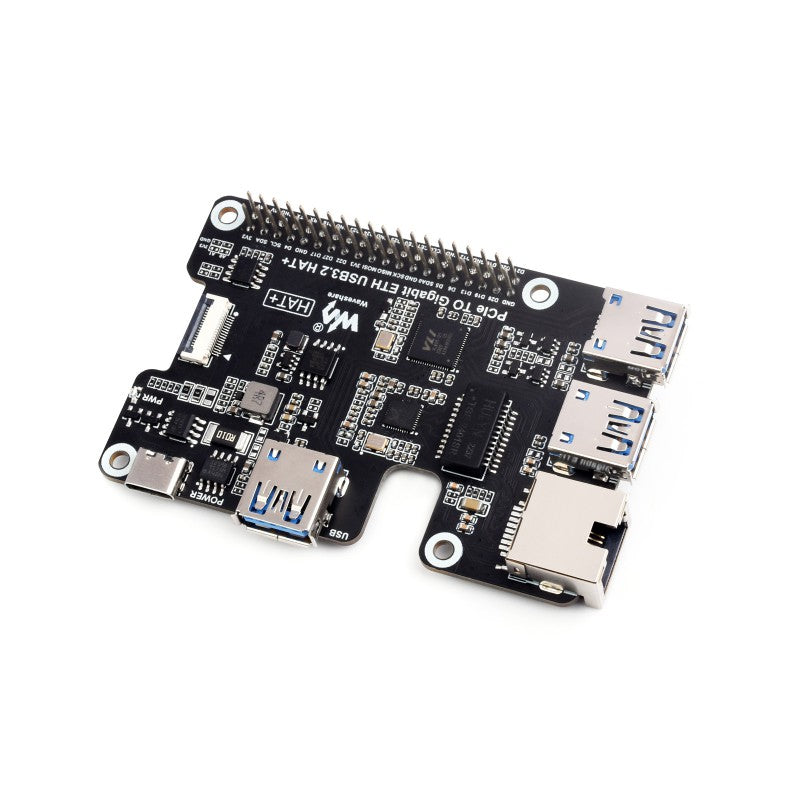

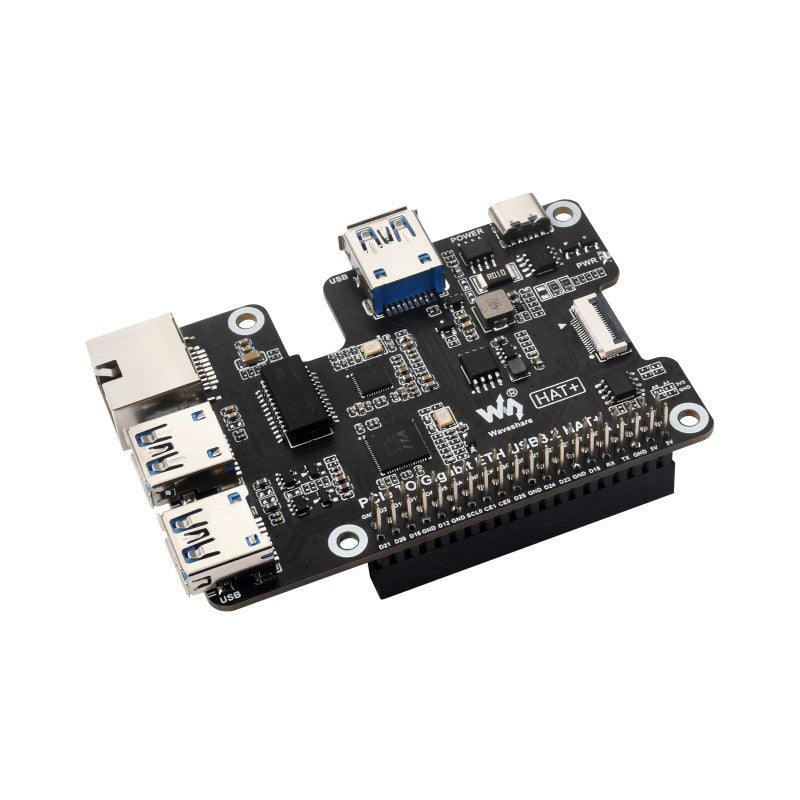

Expand your Raspberry Pi 5's connectivity with this PCIe HAT that adds three USB 3.2 Gen1 ports and a Gigabit Ethernet port. Connects via the Pi 5's PCIe interface for high-speed data transfer, with driver-free plug-and-play operation.
Features the VL805 USB hub controller and RTL8153B Gigabit Ethernet chip for reliable performance. Includes onboard power monitoring (INA219) with software control of USB port power.
Key Features
- 3× USB 3.2 Gen1 Ports – High-speed USB expansion via PCIe
- Gigabit Ethernet – RTL8153B chip, 1000/100 Mbps compatible
- Driver-Free – Plug and play on Raspberry Pi OS, Ubuntu, OpenWRT
- Power Monitoring – INA219 chip with software USB power control
- External Power – USB-C port for additional power if needed
- HAT Format – Standard 40-pin GPIO header passthrough
Onboard Components
- VL805 – PCIe to USB 3.2 Gen1 hub controller
- RTL8153B – USB to Gigabit Ethernet chip
- INA219 – Power monitoring IC
- EEPROM – HAT ID and product information
Specifications
- USB Ports: 3× USB 3.2 Gen1
- Ethernet: 1× Gigabit (1000/100 Mbps)
- Interface: 16-pin PCIe FFC
- External Power: USB-C 5V DC
- Compatibility: Raspberry Pi 5
Package Contents
- 1× PCIe to Gigabit Ethernet and USB 3.2 HAT
- 1× 16-pin PCIe FFC Cable
- Mounting hardware
