PCIE to M.2 NVME SSD solid state drive expansion board for Raspberr...

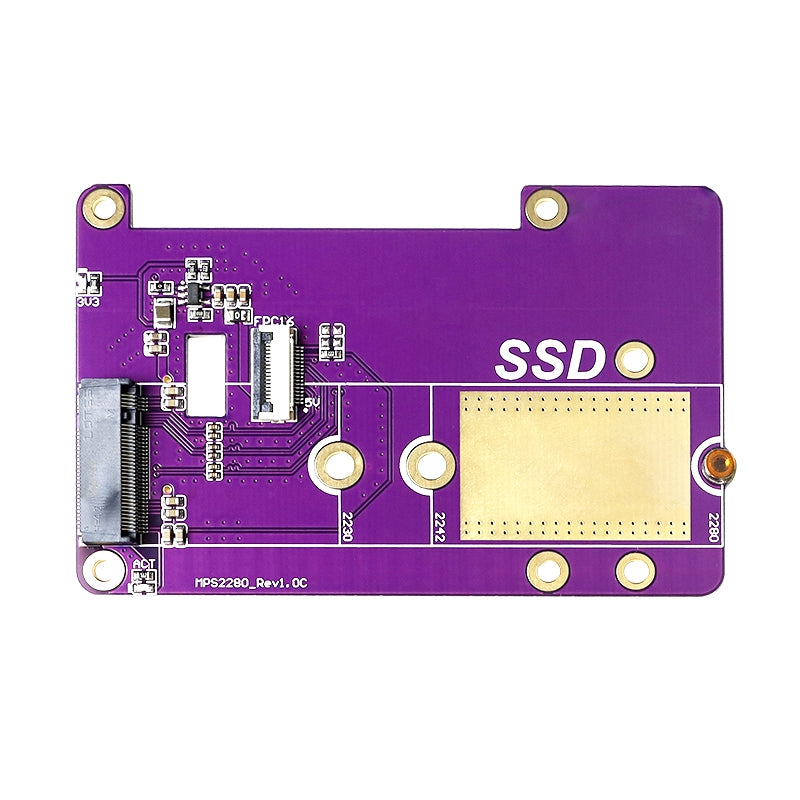

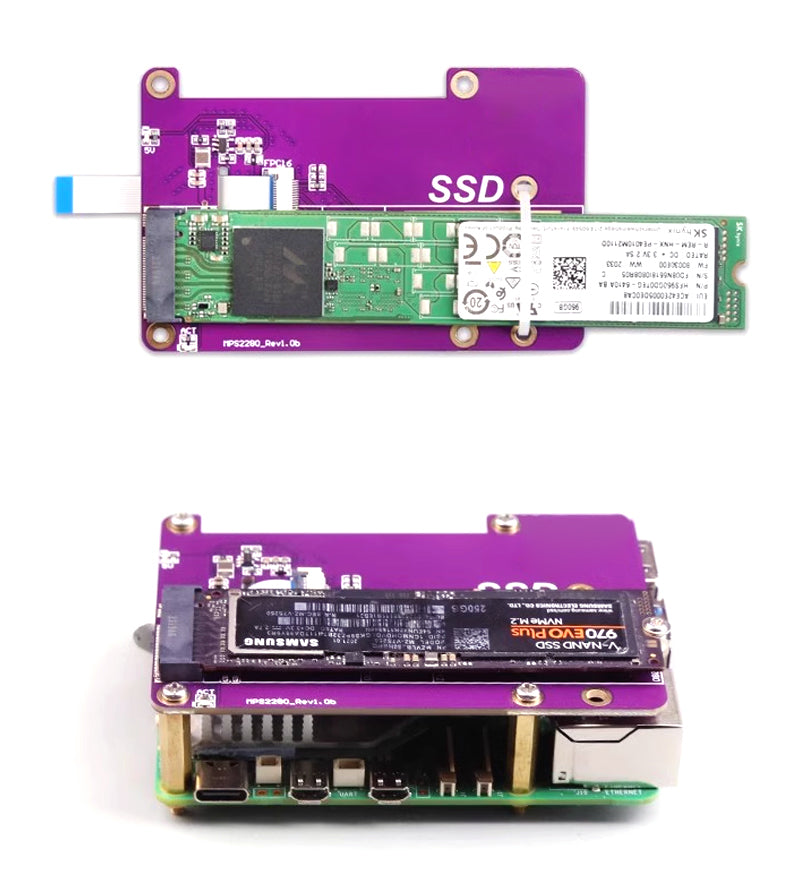

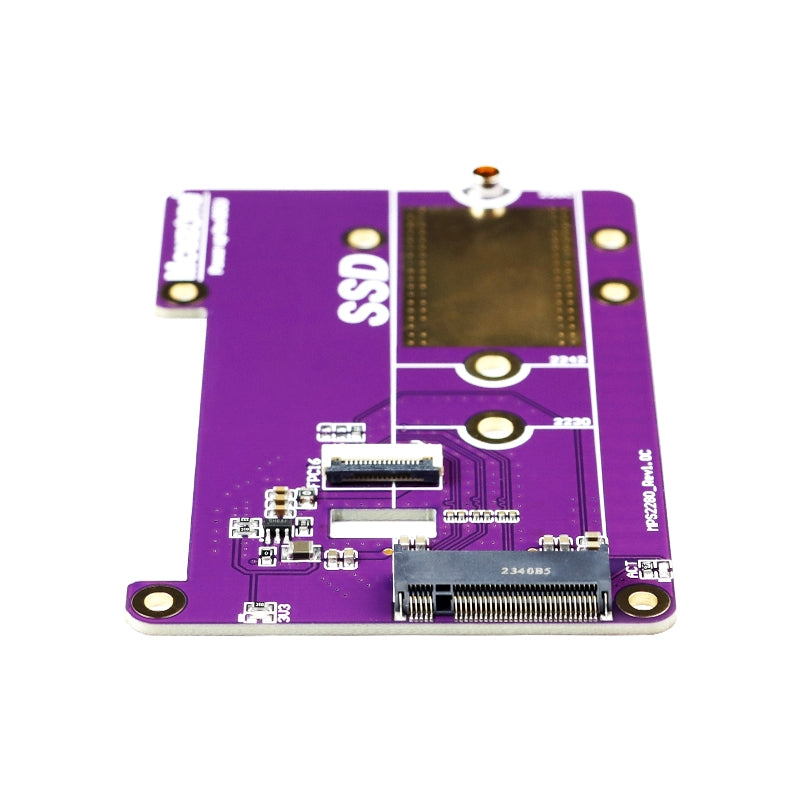

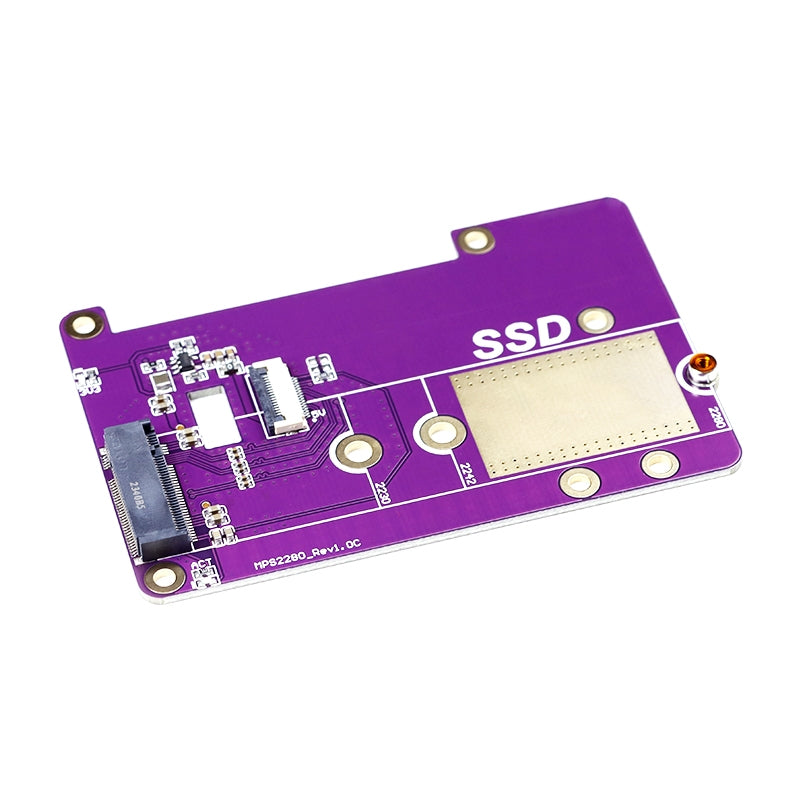

Add high-speed NVMe storage to your Raspberry Pi 5 with this PCIe to M.2 expansion board. Connect an M.2 NVMe SSD for dramatically faster storage performance compared to microSD, with support for both boot and data storage.
Features a recessed top design that maintains access to the 40-pin GPIO header. Built with quality components and immersion gold PCB technology.
Key Features
- M.2 M-Key Slot – Supports M.2 2280 NVMe SSDs
- Boot Support – Boot directly from NVMe or use for storage only
- Dual LED Indicators – Visual status feedback
- GPIO Access – Recessed design maintains 40-pin header access
- Quality Build – Immersion gold PCB, lead-free manufacturing
Specifications
- Interface: PCIe FFC and M.2 M-Key
- SSD Support: M.2 2280 NVMe
- Power: 3.3V @ 1.5A
- Dimensions: 56 × 85 mm
- Weight: 18.6g
- Compatibility: Raspberry Pi 5

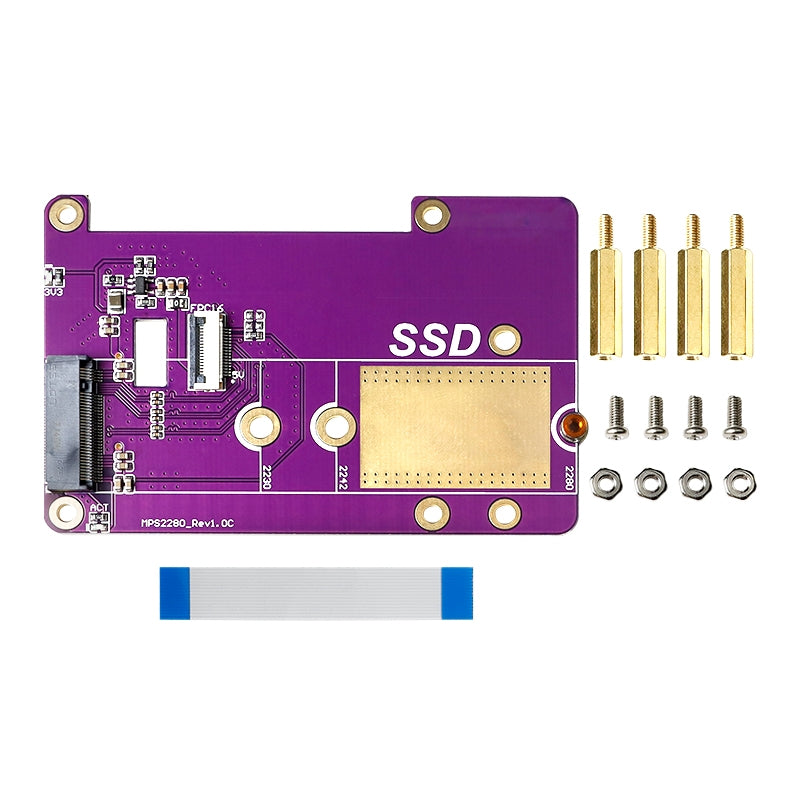

Package Contents
- 1× NVMe Expansion Board
- 1× PCIe Flex Cable
- 4× Copper Standoffs
