Pico - 10DOF-IMU IC Test Board

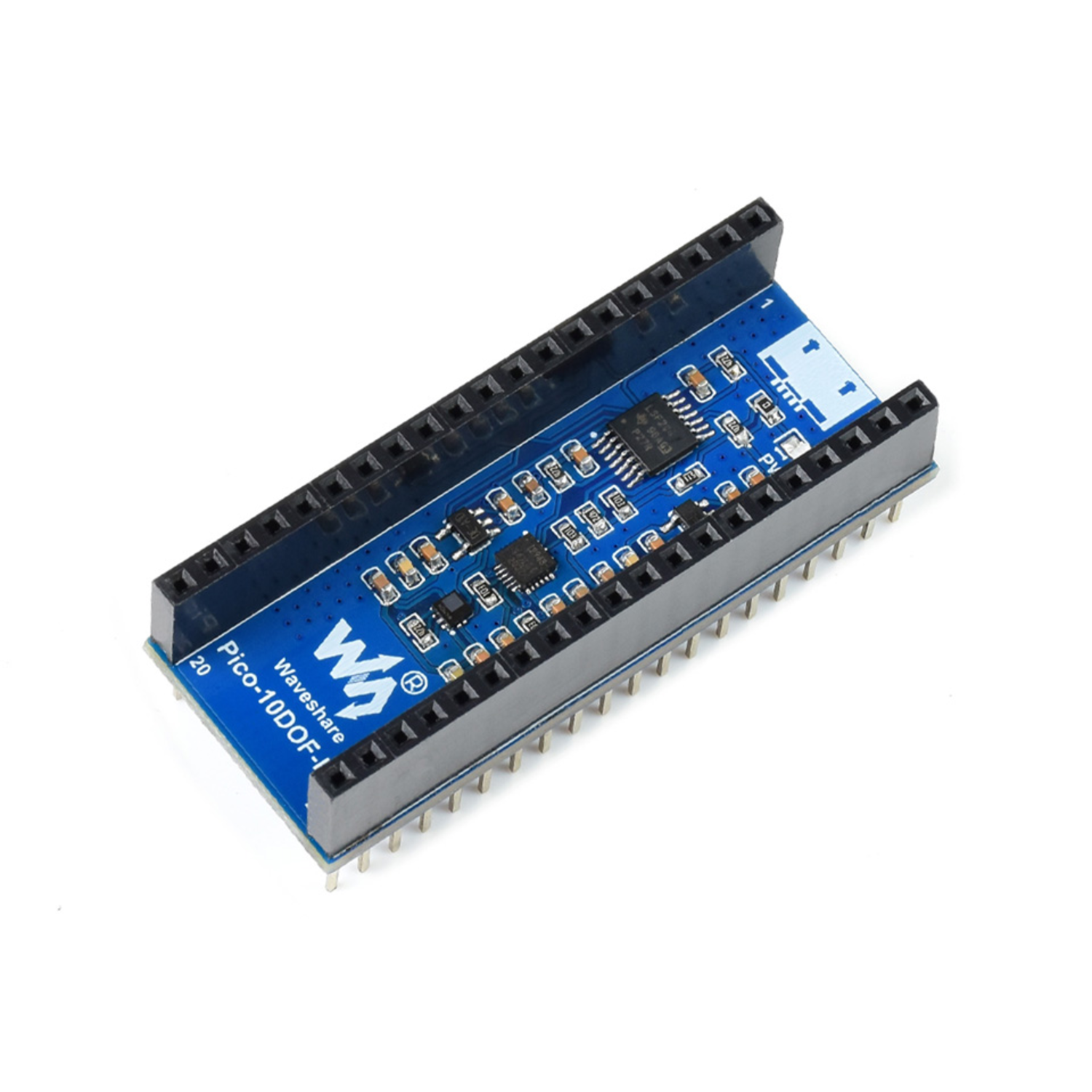

A 10-DOF IMU sensor expansion module for Raspberry Pi Pico, combining the ICM20948 9-axis motion sensor with the LPS22HB barometric pressure sensor. Perfect for robotics projects, motion sensing, and environmental monitoring.

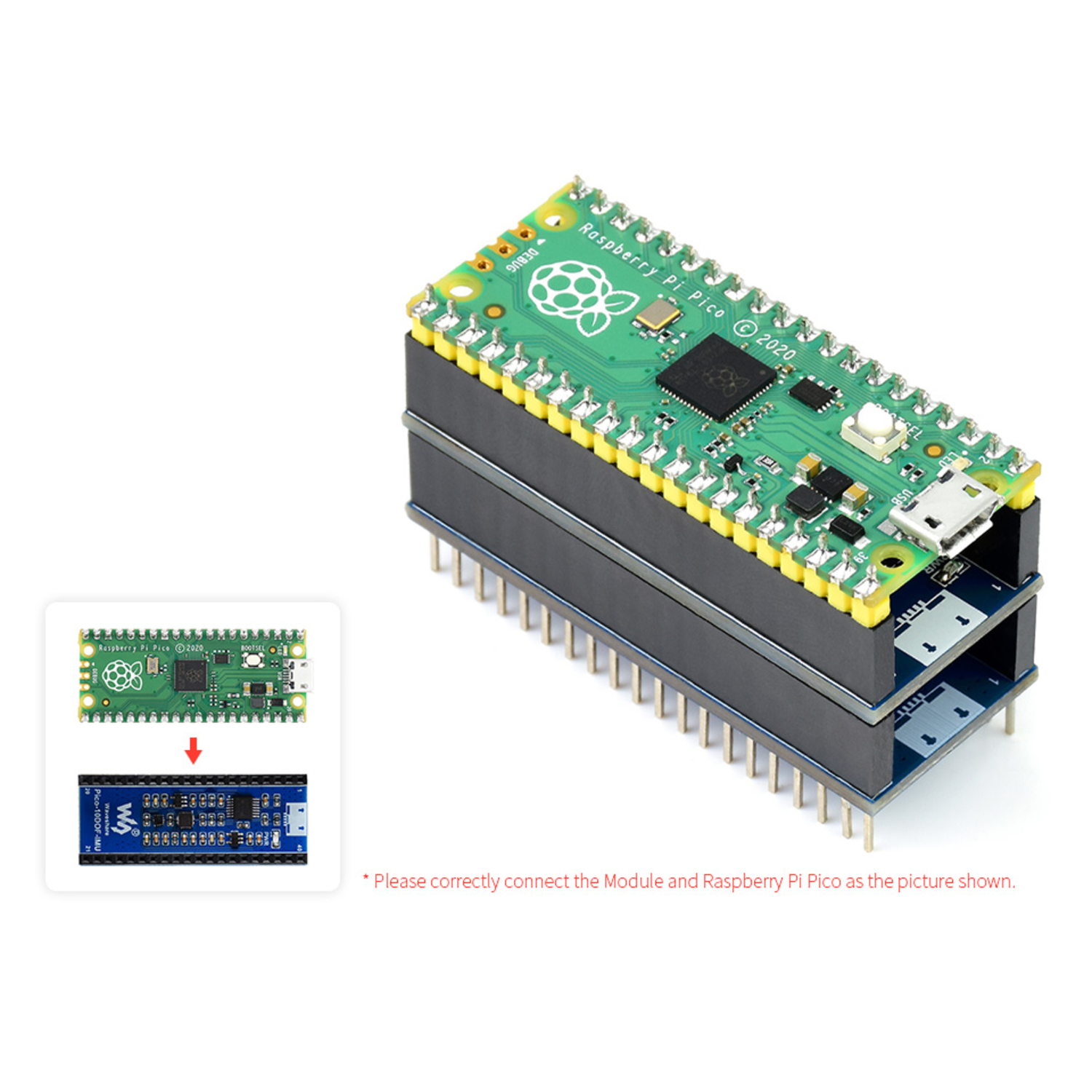

Plugs directly onto the Pico with a stackable design allowing additional modules on top. Communicates via I2C bus with example code provided for both C/C++ and MicroPython.
Key Features
- 9-Axis Motion Sensor – ICM20948 gyroscope, accelerometer, magnetometer
- Barometric Sensor – LPS22HB for atmospheric pressure
- Stackable Design – Add more modules on top
- I2C Interface – Simple two-wire communication
- Example Code – C/C++ and MicroPython included
Sensor Specifications
- Accelerometer: 16-bit, ±2/±4/±8/±16g configurable
- Gyroscope: 16-bit, ±250/±500/±1000/±2000°/sec configurable
- Magnetometer: 16-bit, ±4900µT range
- Barometer: 260–1260 hPa, ±0.025 hPa accuracy, 1–75 Hz
Onboard Components
- ICM20948 – 9-axis motion sensor
- LPS22HB – Barometric pressure sensor
- RT9193-33/18 – 3.3V and 1.8V regulators
- LSF0204PWR – 4-channel voltage translator
Specifications
- Operating Voltage: 5V
- Interface: I2C
- Compatibility: Raspberry Pi Pico series
Package Contents
- 1× Pico-10DOF-IMU Module
