Pico - LCD-1.14 IC Test Board

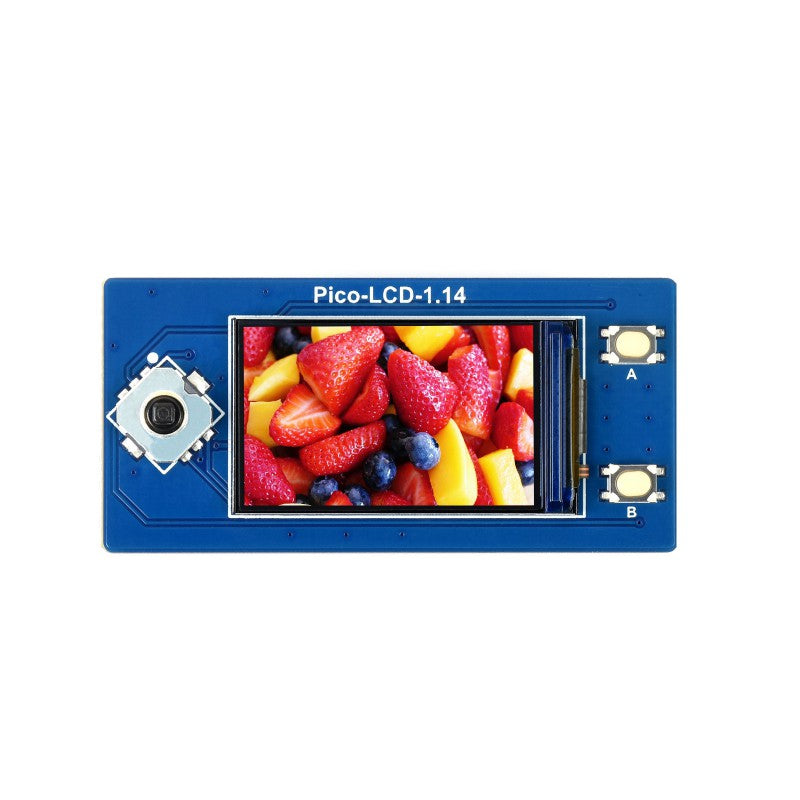

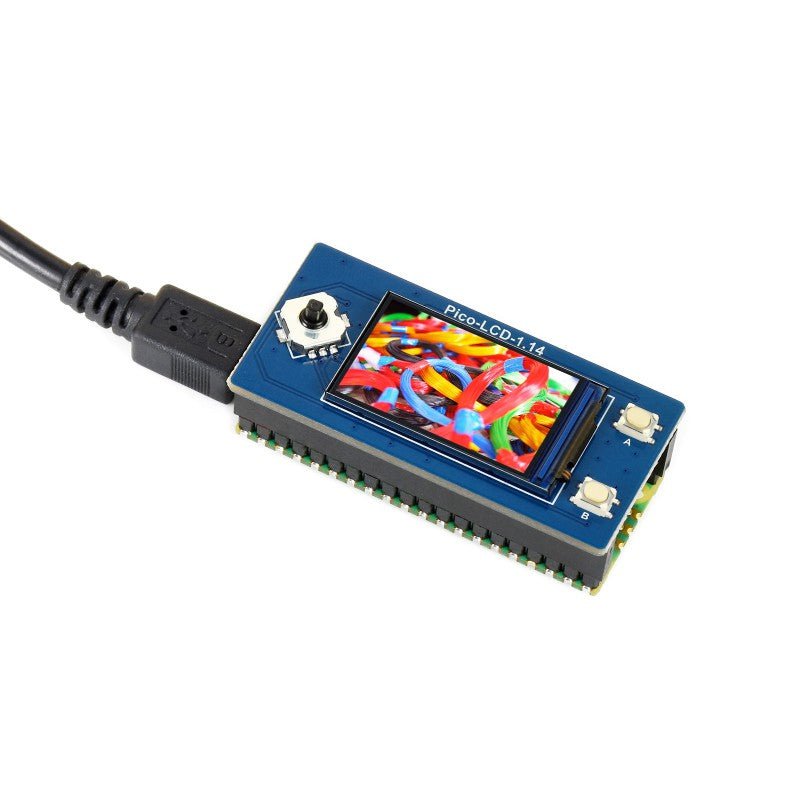

A compact 1.14" IPS LCD display module for Raspberry Pi Pico featuring vibrant 65K colour output and four user buttons for interactive projects. The ST7789 driver and SPI interface make it easy to display graphics, text, and sensor data.
Key Features
- 1.14" IPS Display – 240 × 135 pixels, 65K RGB colours
- 4 User Buttons – Built-in controls for interaction
- SPI Interface – Minimal GPIO usage
- Wide Voltage – 2.6V to 5.5V compatible

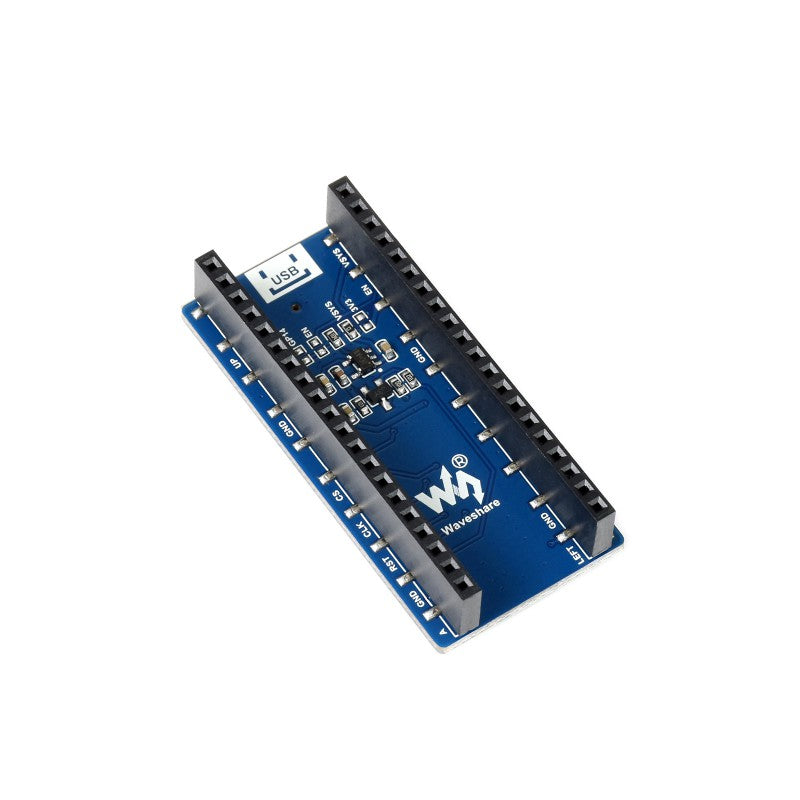

- Plug and Play – Female header for direct Pico attachment
Specifications
- Display Size: 1.14" (24.91 × 14.86 mm active area)
- Resolution: 240 × 135 pixels
- Panel Type: IPS
- Colours: 65K RGB
- Driver IC: ST7789
- Interface: 4-wire SPI
- Operating Voltage: 2.6V–5.5V
- Dimensions: 52 × 25 mm
Package Contents
- 1× Pico-LCD-1.14 Module
