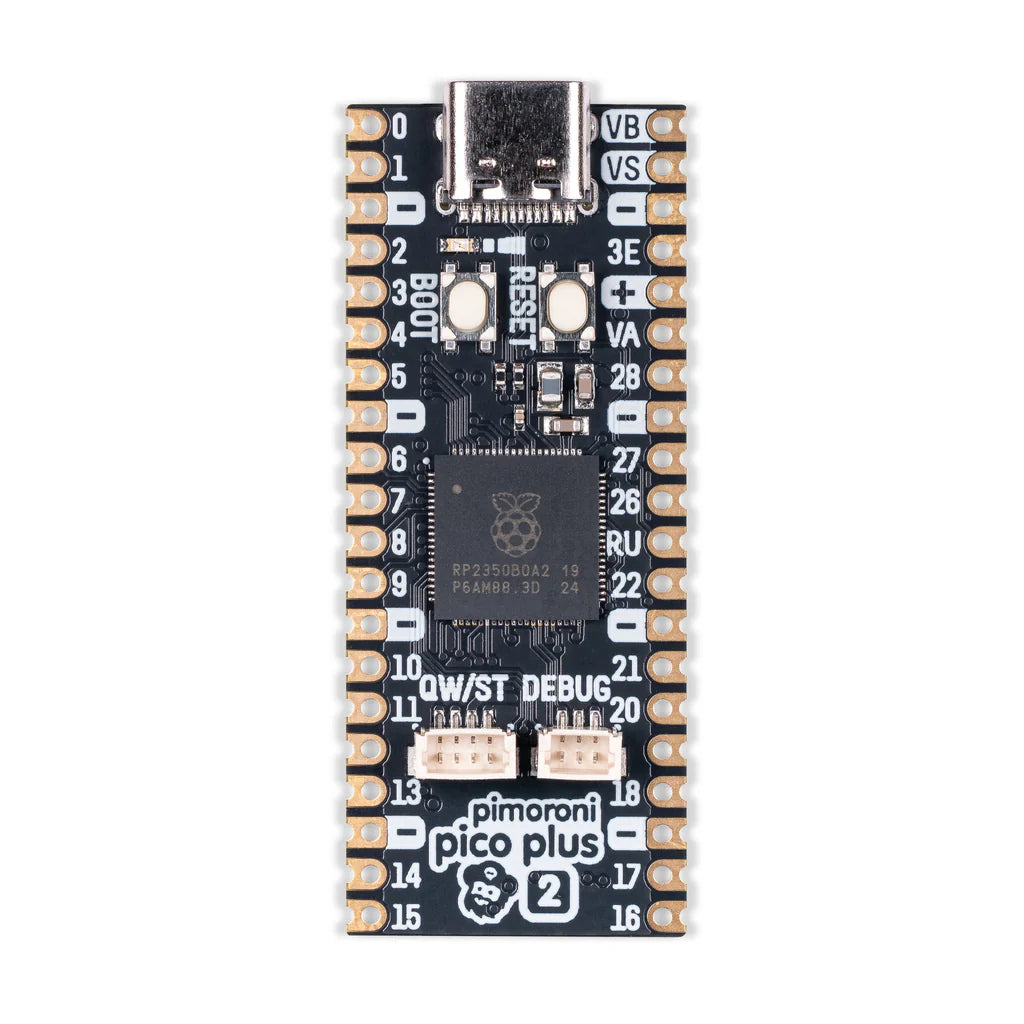

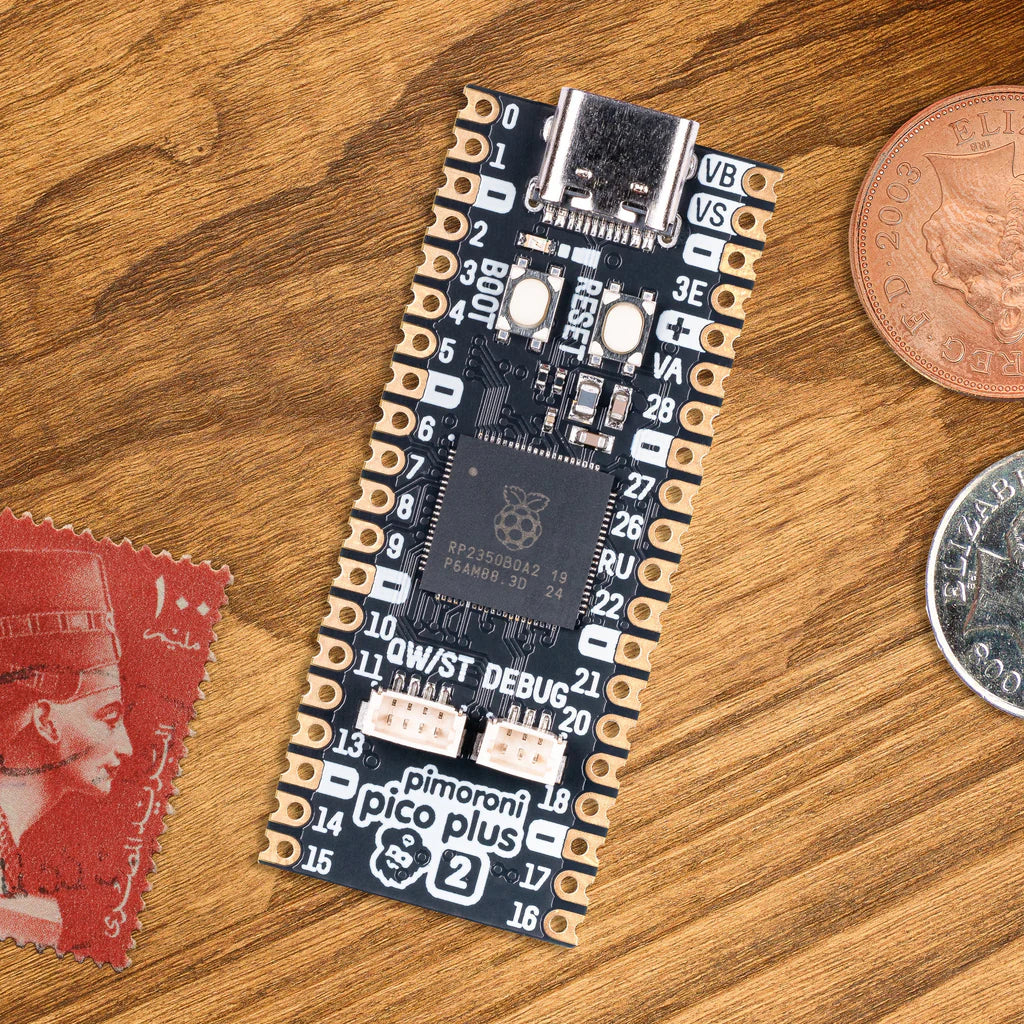

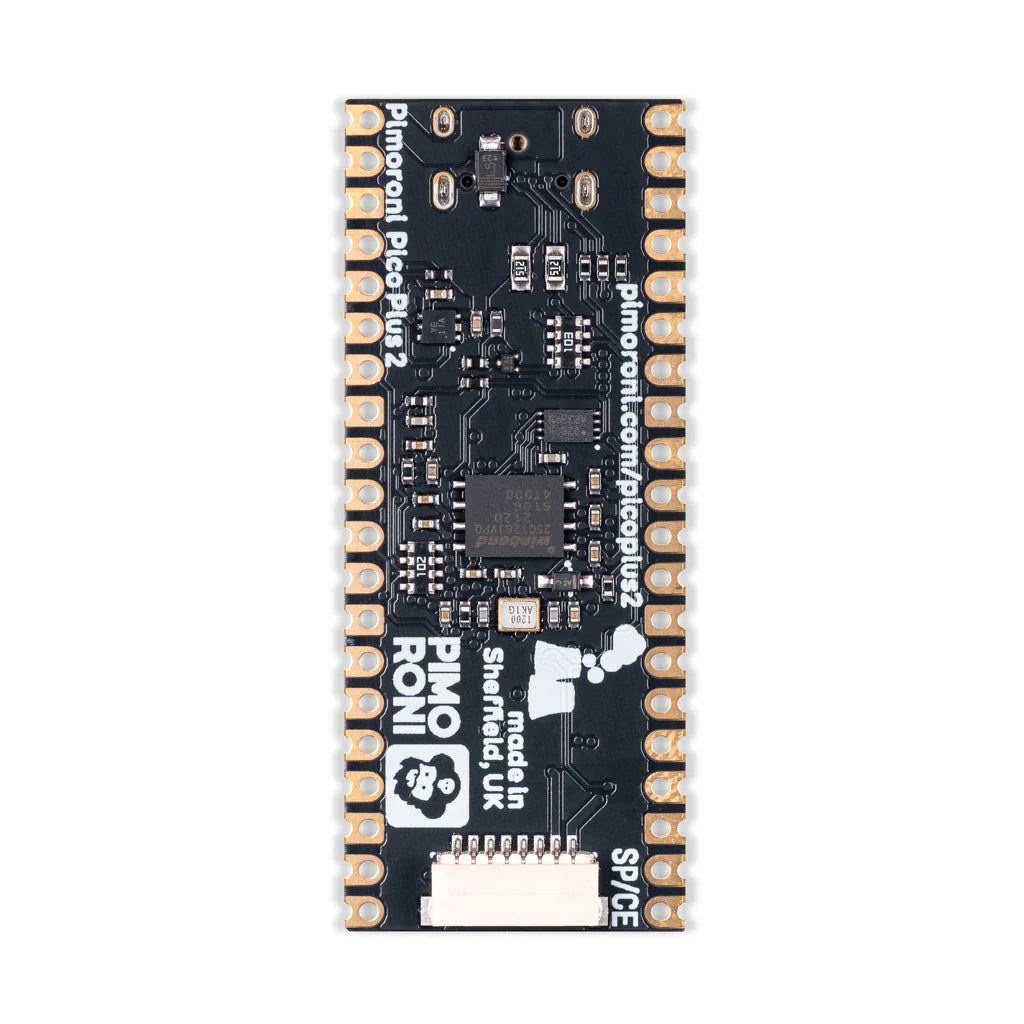

Pimoroni Pico Plus 2
A premium RP2350-based microcontroller board with 16MB flash, 8MB PSRAM, USB-C, and multiple connectivity options. Maintains the original Pico footprint for compatibility with existing add-ons while adding significant upgrades.
Features Qwiic/STEMMA QT connector for easy I2C breakout connection, SP/CE connector for SPI devices, and a debug connector for SWD programming – all without soldering.
Key Features
- RP2350B Chip – Dual ARM Cortex M33 at up to 150MHz with 520KB SRAM
- 16MB Flash – QSPI with execute-in-place
- 8MB PSRAM – For memory-intensive applications
- USB-C – Modern connector for power and programming
- Qw/ST Connector – Plug-and-play I2C breakout support
- SP/CE Connector – SPI/serial device connection
- Debug Connector – 3-pin JST-SH for SWD debugging
- Reset & BOOT Buttons – BOOT doubles as user button (GP45)
- User LED – On GP25, same as original Pico
Specifications
- Processor: RP2350B (Dual Cortex M33 @ 150MHz)
- Memory: 520KB SRAM, 16MB Flash, 8MB PSRAM
- Regulator: 3.3V @ 600mA max
- Input Voltage: 3V–5.5V
- Dimensions: 53 × 21 × 9 mm
- Compatibility: Raspberry Pi Pico add-ons
Package Contents
- 1× Pimoroni Pico Plus 2
