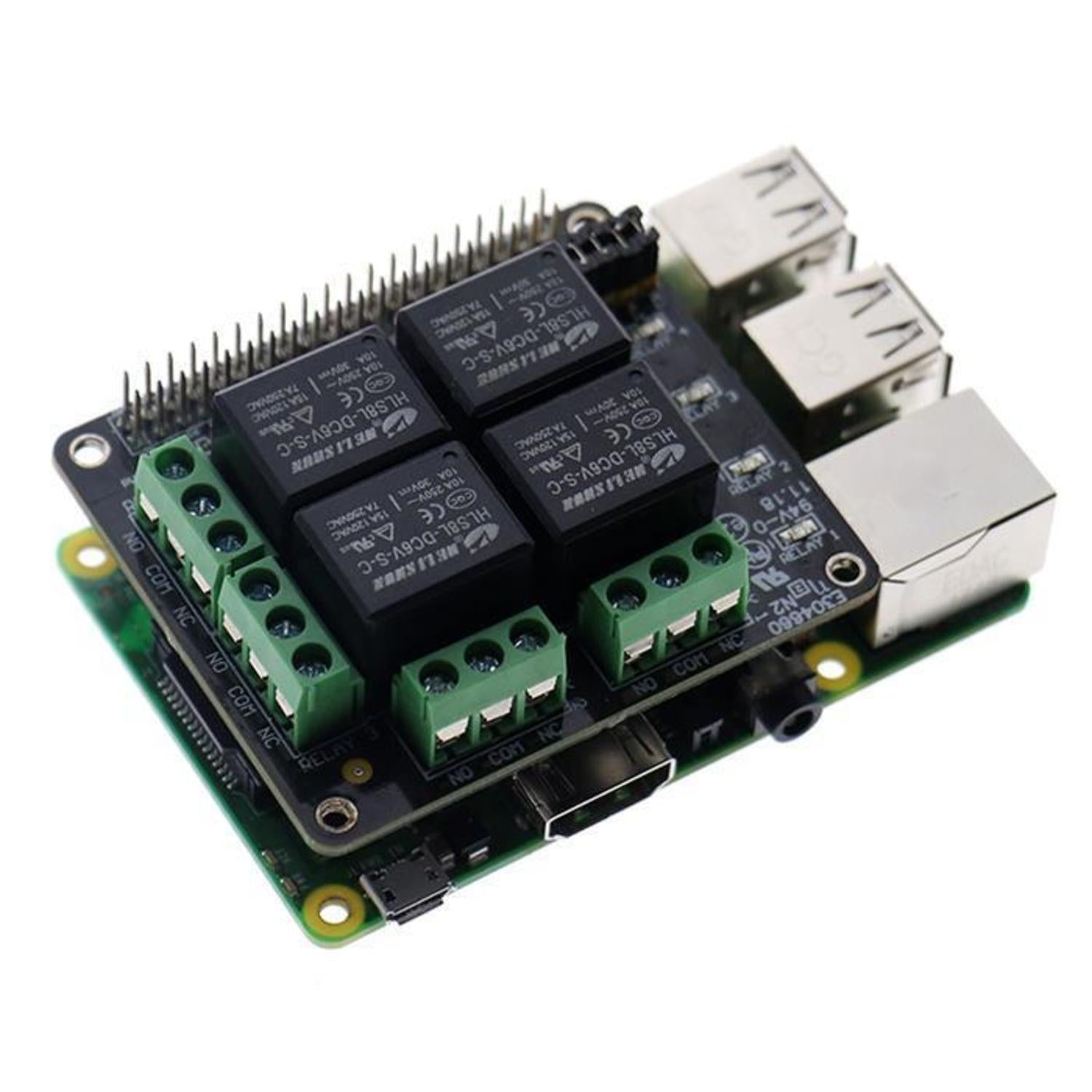

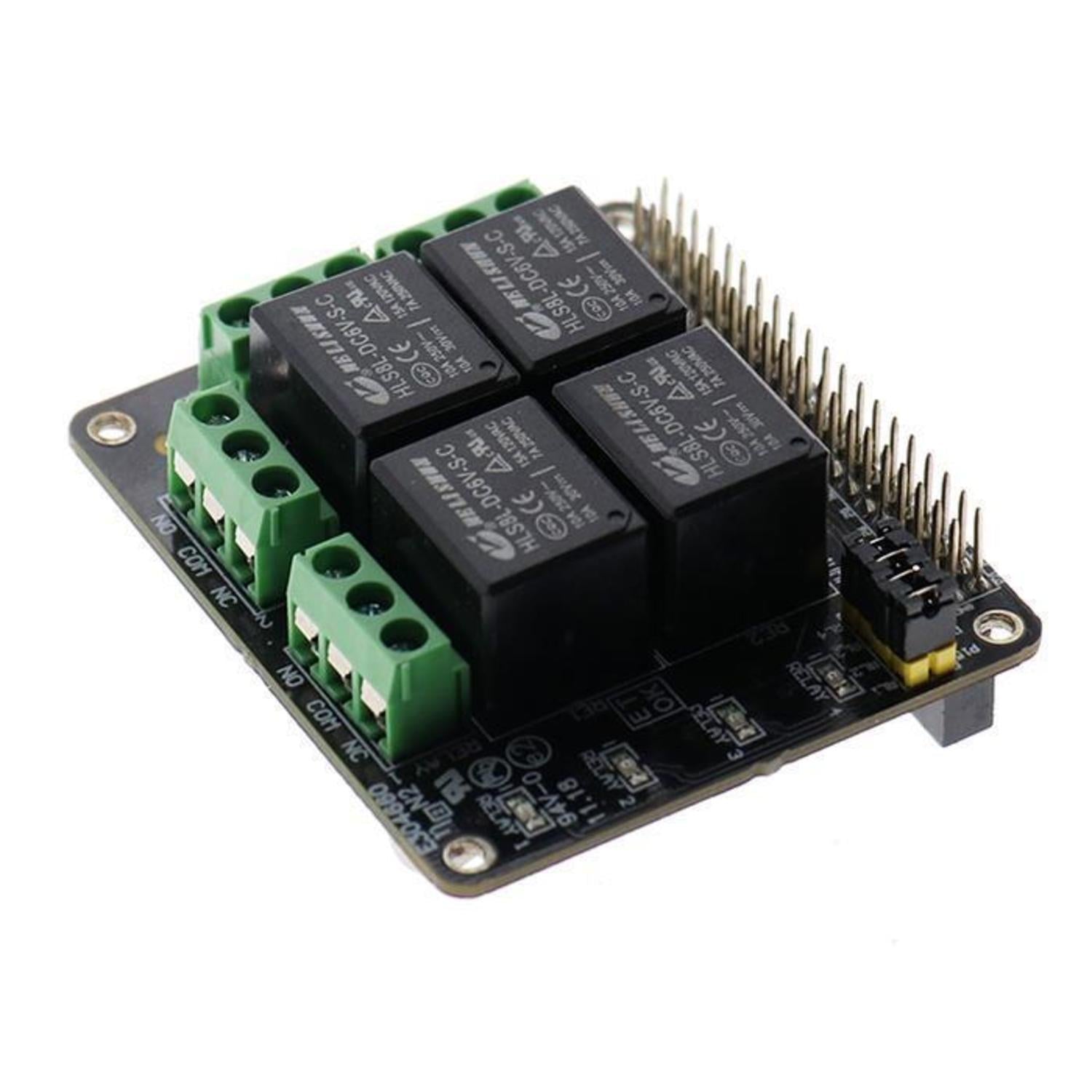

The PiRelay is a Raspberry Pi relay HAT that lets you control high-current and high-voltage devices directly from your Pi. Transform your home appliances into smart IoT devices with four independent relay channels capable of switching loads up to 240VAC/7A or 125VDC/10A.

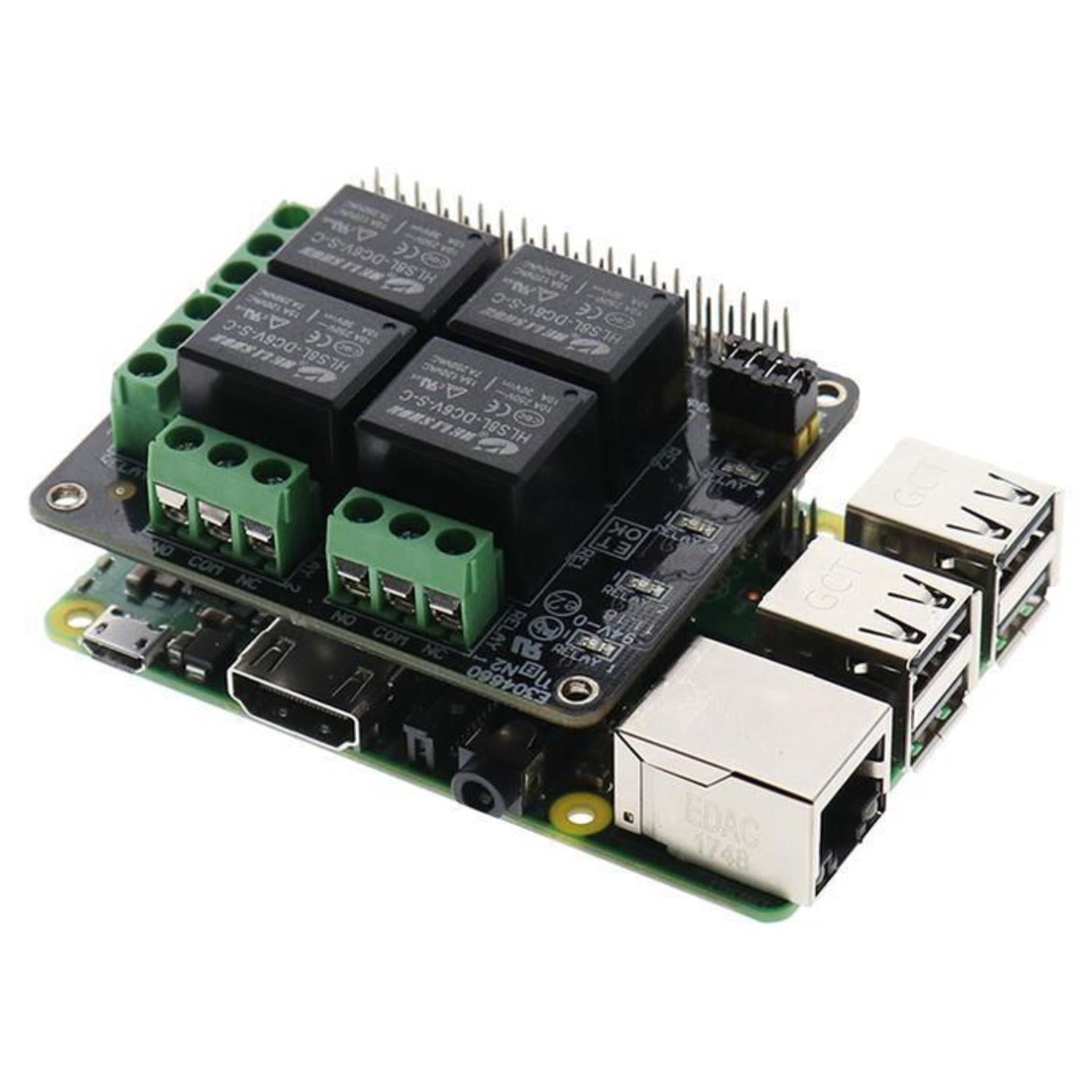

The standardised HAT form factor connects smoothly to any 40-pin Raspberry Pi, with a stacking header that keeps GPIO pins accessible for additional boards. LED indicators show relay status at a glance for easy debugging.
Key Features
- 4 Independent Relays – Control up to four appliances simultaneously
- High Power Switching – Handles 240VAC/7A or 125VDC/10A per relay
- Status LEDs – Visual indicator for each relay state
- Stacking Header – 40-pin passthrough keeps GPIO accessible
- Flexible Wiring – COM, NO (Normally Open), and NC (Normally Closed) terminals per relay
- Configurable GPIO – Remove jumpers to use custom GPIO pins
- Mobile App Control – PiRelay Android app available
Specifications
- Relay Rating: 240VAC/7A, 125VDC/10A
- Number of Relays: 4
- Default GPIO Pins: GPIO 4, 17, 27, 22
- Compatibility: Raspberry Pi 4, 3B+, 3, 2, Zero (all 40-pin models)
GPIO Pin Mapping
- Pin 2: 5V Power
- Pin 6: GND
- Pin 7 (GPIO 4): Relay 4
- Pin 11 (GPIO 17): Relay 3
- Pin 13 (GPIO 27): Relay 2
- Pin 15 (GPIO 22): Relay 1
Ideal For
- Home automation and IoT projects
- Controlling lights, fans, and appliances
- Industrial control applications
- Switching high-power loads from Raspberry Pi
Package Contents
- 1× PiRelay HAT
- 2× Standoffs
