Adafruit | SKU: AF-1944

PowerBoost 500 Charger - Rechargeable 5V Lipo USB Boost @ 500mA+

Name: PowerBoost 500 Charger - Rechargeable 5V Lipo USB Boost @ 500mA+
Brand: Adafruit
SKU: AF-1944
Price: 31.47 AUD
Availability: InStock

$31.47

Tax included Shipping calculated at checkout.

Call us on 1300 240 817 between 10 AM and 4 PM on weekdays or email team@littlebird.com.au .

The Fastest Shipping

We ship faster because we built our own shipping 🤖 robot.

Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.

You can view shipping options and pricing at checkout without logging in.

For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.

We deliver across Australia, and here are the options (based on your location; view them on the cart page):

Standard Post: Starting at $7 (6+ business days, with tracking)
Express Post: Starting at $11 (2+ business days, with tracking)
Same Day Delivery: Available for Sydney orders.
Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.

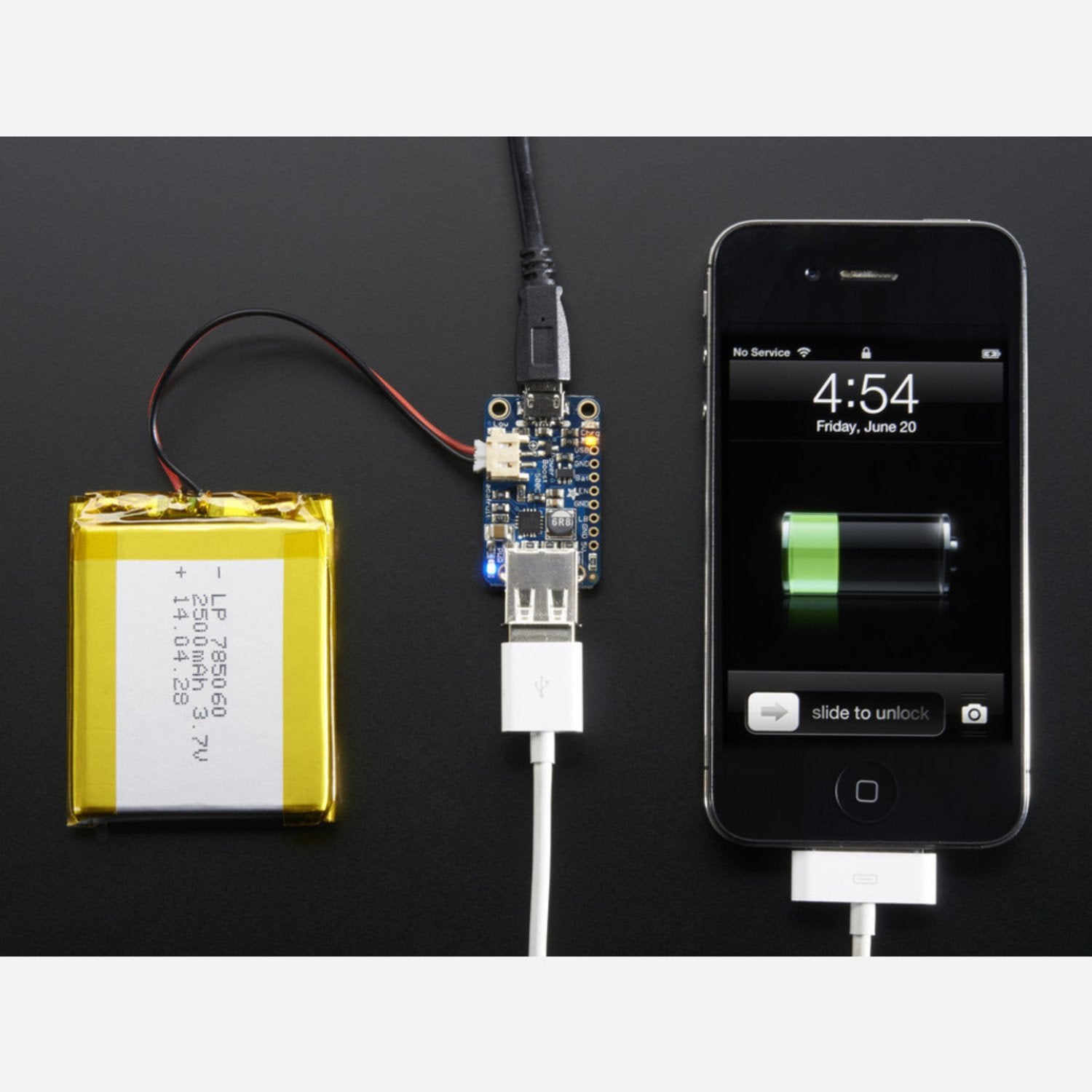

The PowerBoost 500C is a DC/DC boost converter with integrated LiPo/LiIon battery charger. Convert any 3.7V battery to 5.2V output while simultaneously charging – perfect as a portable power supply or UPS for your projects.

Built around the TPS61090 boost converter, it delivers 500mA+ output (up to 1000mA with a capable battery) with over 90% efficiency. The 5.2V output provides headroom for cable resistance and high-current draws, keeping your Arduino, Raspberry Pi, or other 5V projects running smoothly.

Key Features

Charge and Boost Simultaneously – Use as an uninterruptible power supply
500mA+ Output – Up to 1A with appropriate battery
500mA Charge Rate – MicroUSB input for battery charging
5.2V Output – Headroom for cable loss and high current
Low Battery Indicator – Red LED at 3.2V threshold
Charge Status LEDs – Yellow (charging), Green (complete)
Enable Pin – Disconnect output completely when grounded
iOS Data Resistors – 500mA charge rate for iPhones/iPods

Specifications

Boost Converter: TPS61090
Input Voltage: 3.7V LiPo/LiIon battery
Output Voltage: 5.2V DC
Output Current: 500mA+ (up to 1A with capable battery)
Charge Input: MicroUSB
Charge Rate: 500mA max
Efficiency: 90%+ typical
Quiescent Current: 5mA enabled, 20µA disabled
Internal Switch: 2A (2.5A peak limiting)
Frequency: 700KHz

Ideal For

Portable Arduino and Raspberry Pi projects
Battery-backed UPS applications
Robot power supplies
Mobile device charging stations

Package Contents

1× PowerBoost 500C (assembled and tested)
1× USB A jack (unsoldered)

Note: Battery not included. Use a LiPo/LiIon battery with 500mAh+ capacity. If drawing more than ~300mA continuously, the battery will slowly drain as charge rate is less than discharge rate.
