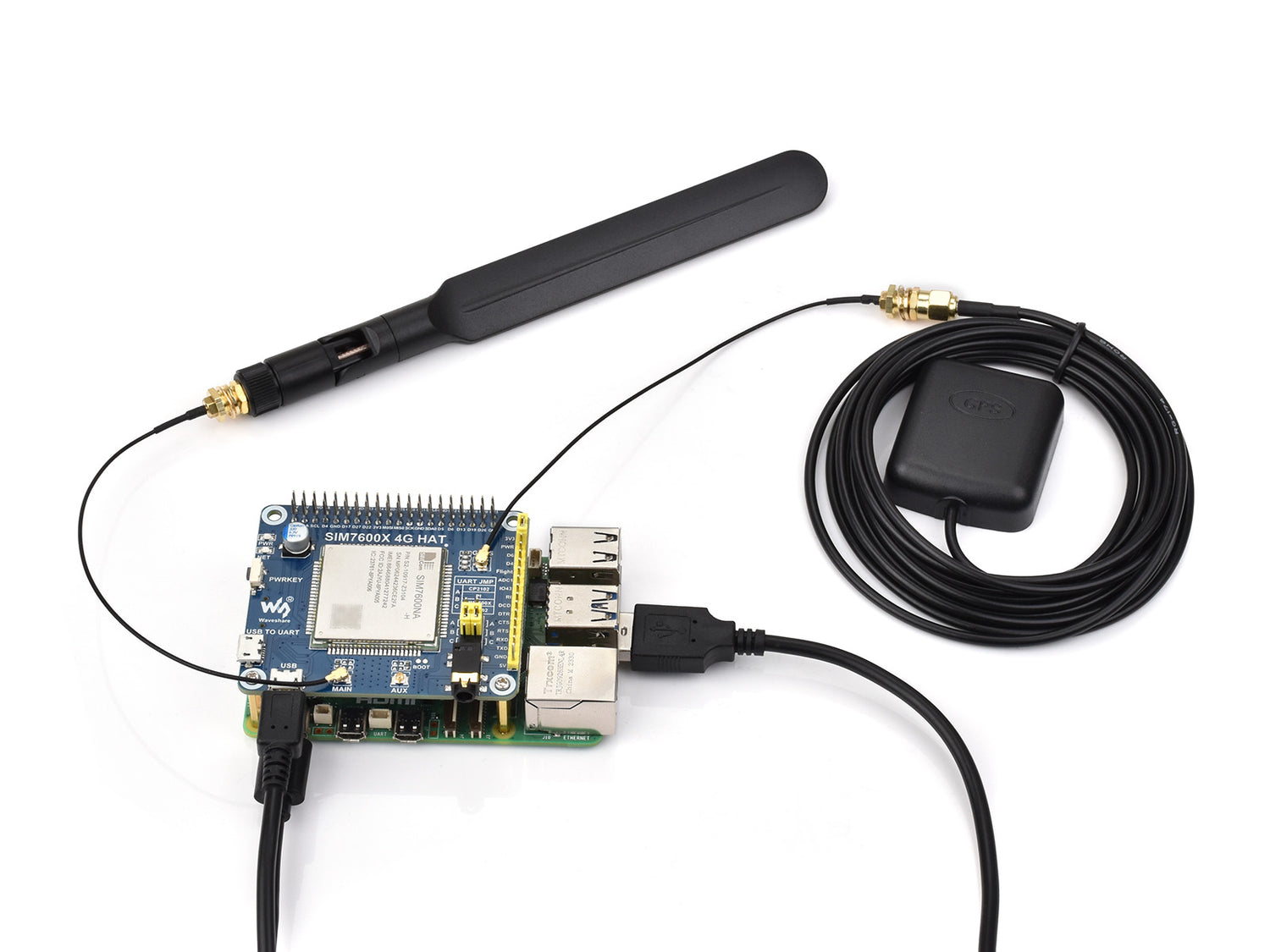

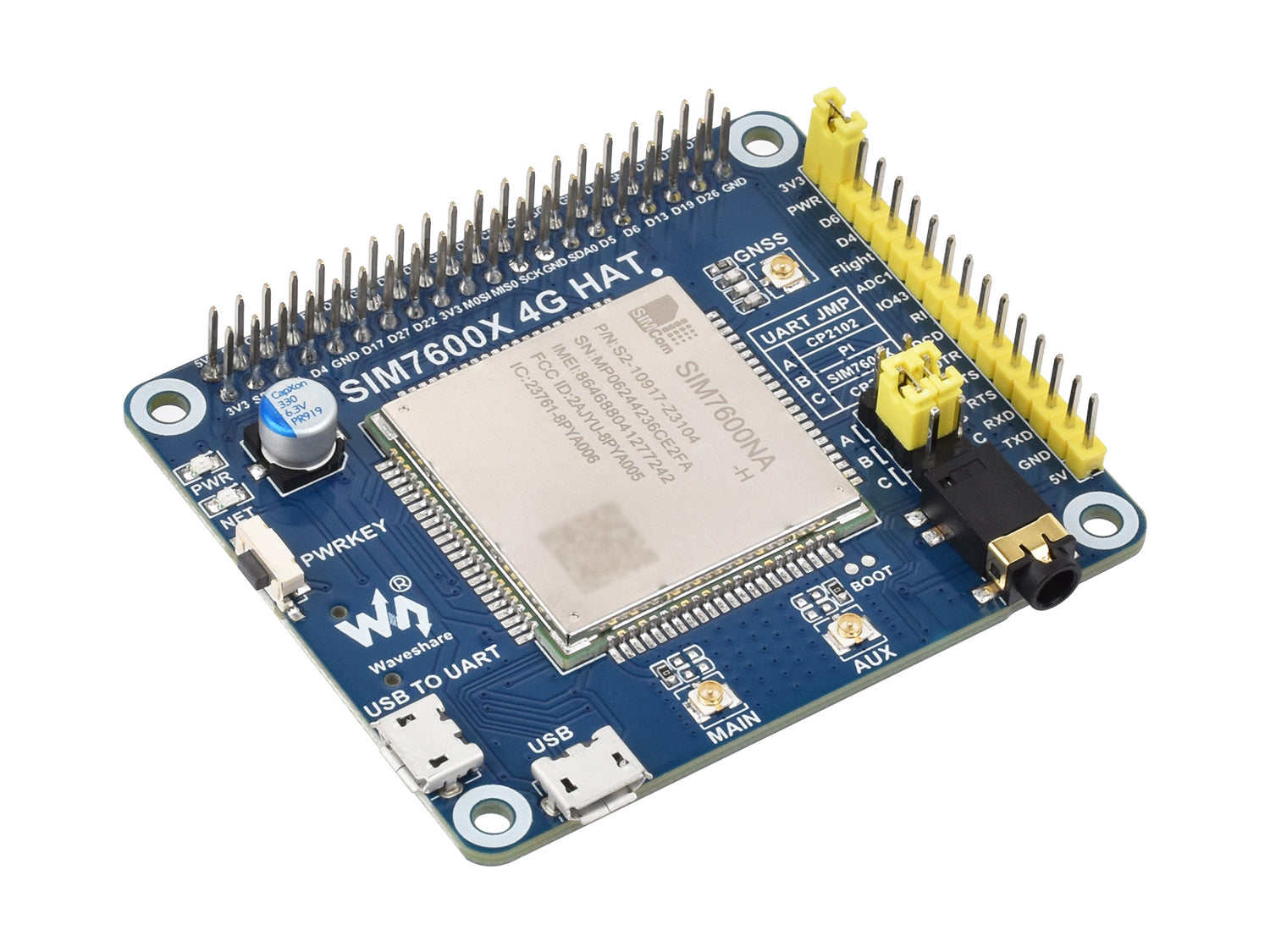

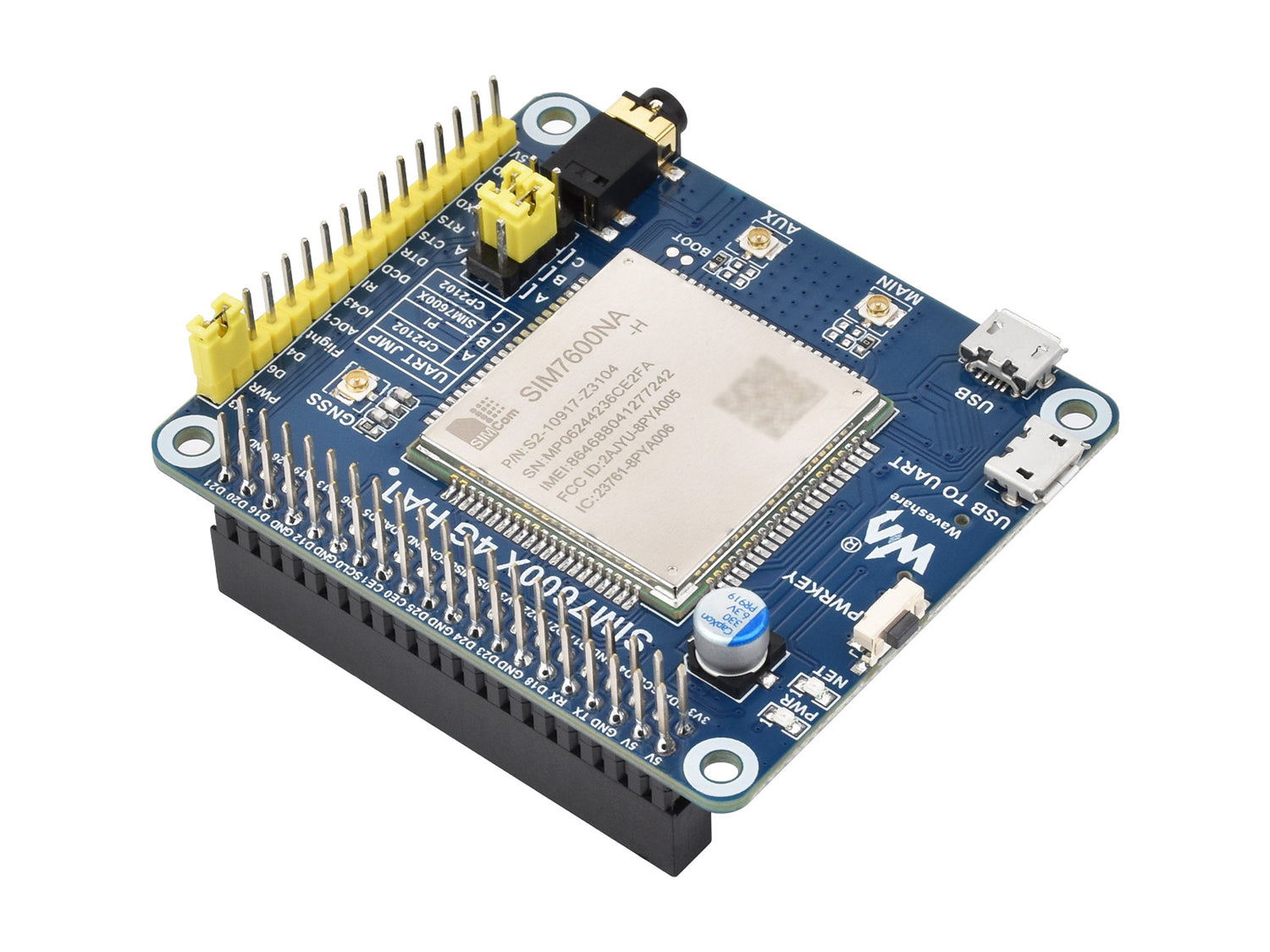

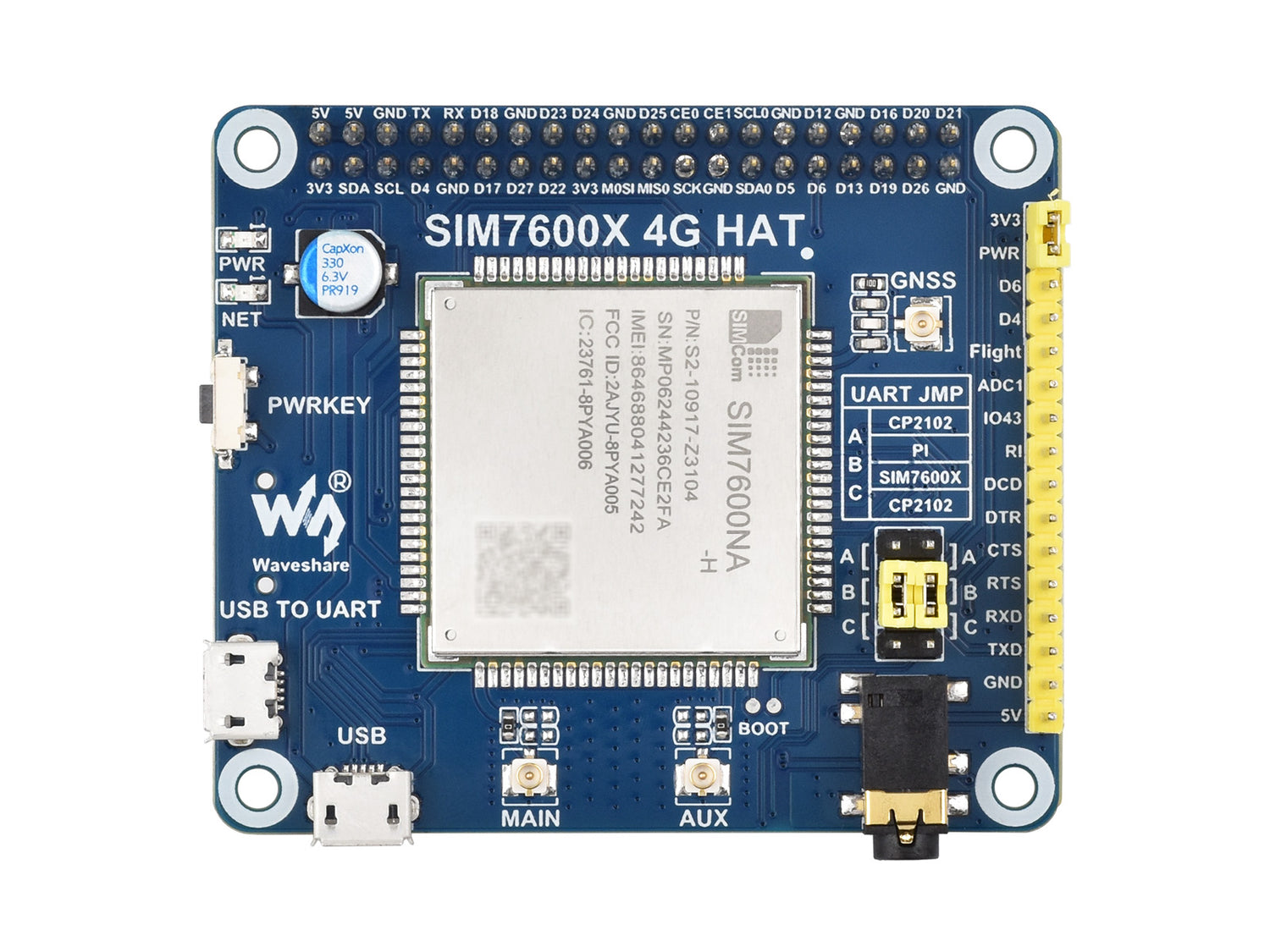

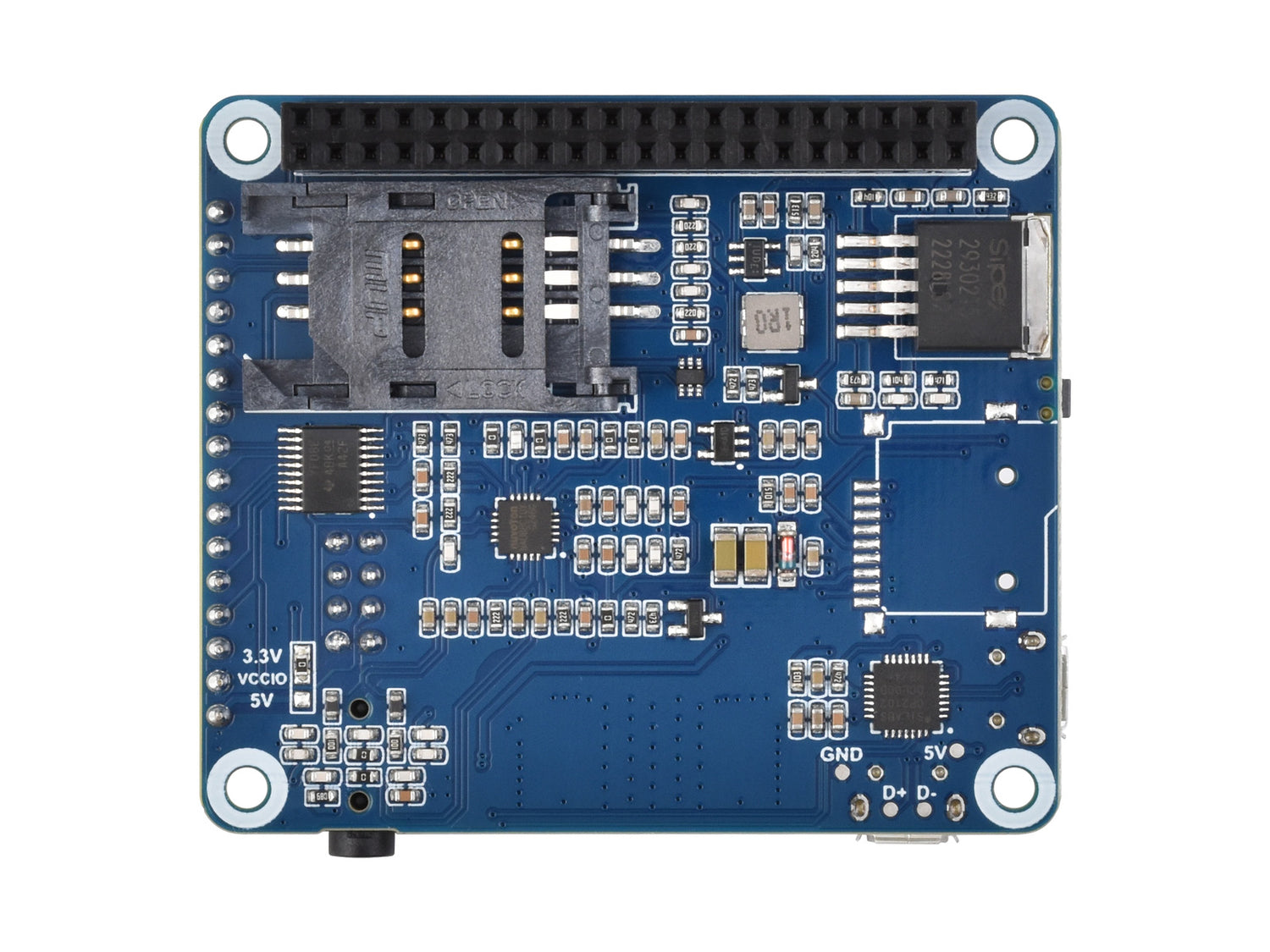

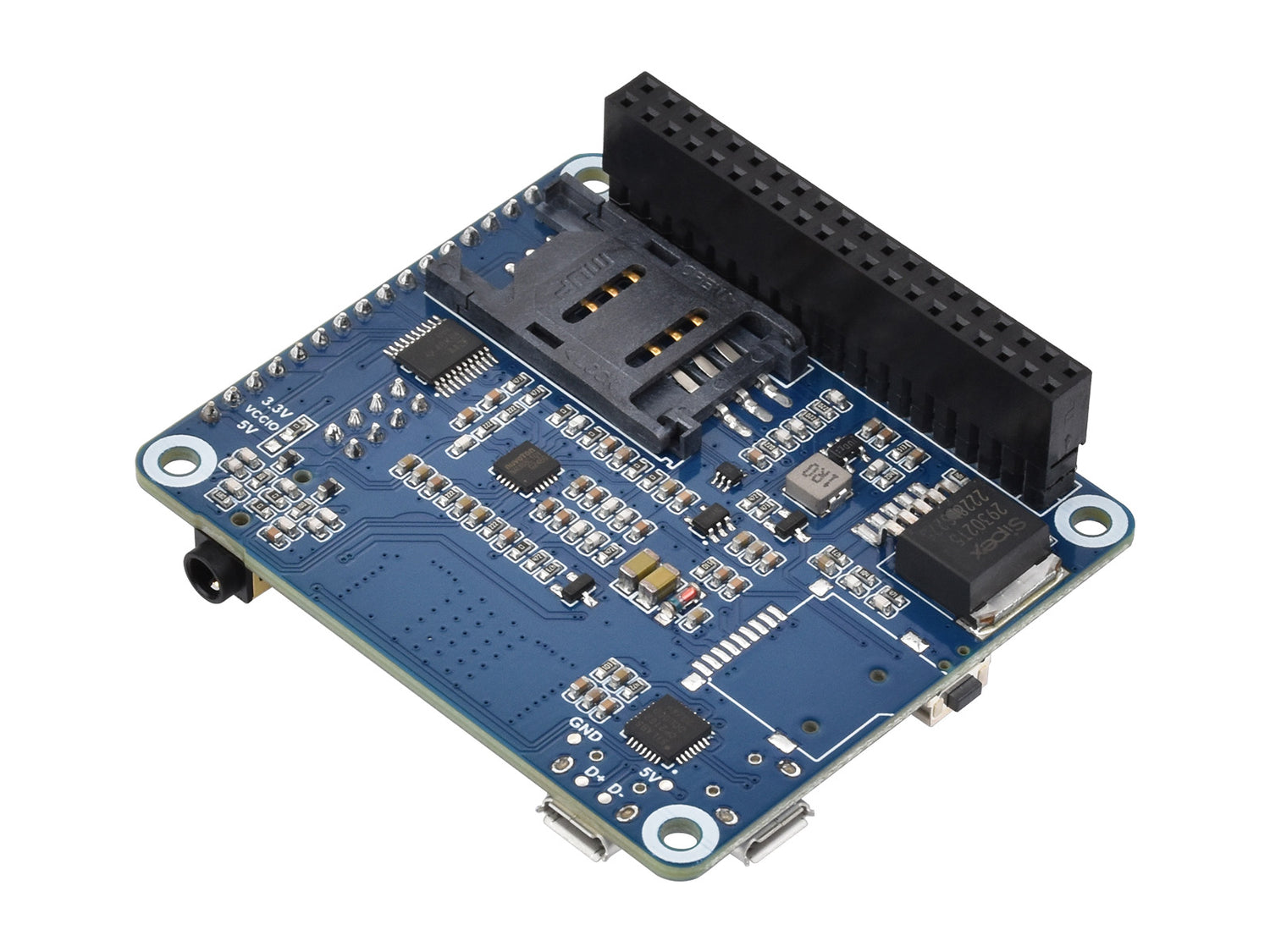

Raspberry Pi 4G HAT SIM7600NA-H – LTE Cat-4, GNSS, North America
Add high-speed 4G LTE connectivity and precision GNSS positioning to your Raspberry Pi with the SIM7600NA-H 4G HAT. Designed for North American networks, this HAT delivers LTE Cat-4 speeds up to 150Mbps downlink and 50Mbps uplink, plus multi-constellation satellite navigation.
Perfect for IoT projects, remote monitoring, and mobile applications requiring cellular data, voice calls, SMS, and accurate location tracking.
Key Features
- LTE Cat-4 – Up to 150Mbps download, 50Mbps upload
- Multi-GNSS – GPS, BeiDou, GLONASS, Galileo, and QZSS support
- Voice Calls & SMS – Make calls and send texts via AT commands
- Audio Ready – Onboard audio jack and decoder for voice
- USB Debugging – CP2102 USB to UART for AT command testing
- Flexible Voltage – 3.3V or 5V operation (configurable)
- Status LEDs – Easy monitoring of operating status
Communication Protocols
- Dial-up, TCP/IP, UDP
- HTTP, FTP, DTMF
- SMS and telephone calls
- AT command control (3GPP TS 27.007/27.005)
Specifications
- Module: SIM7600NA-H
- Network: LTE Cat-4 (North American bands)
- GNSS Sensitivity: -159 dBm (GPS), -158 dBm (GLONASS)
- Interface: 40-pin GPIO header
- Power Input: 5V
- Dimensions: 56mm × 65mm
Compatibility
- Raspberry Pi (all 40-pin models)

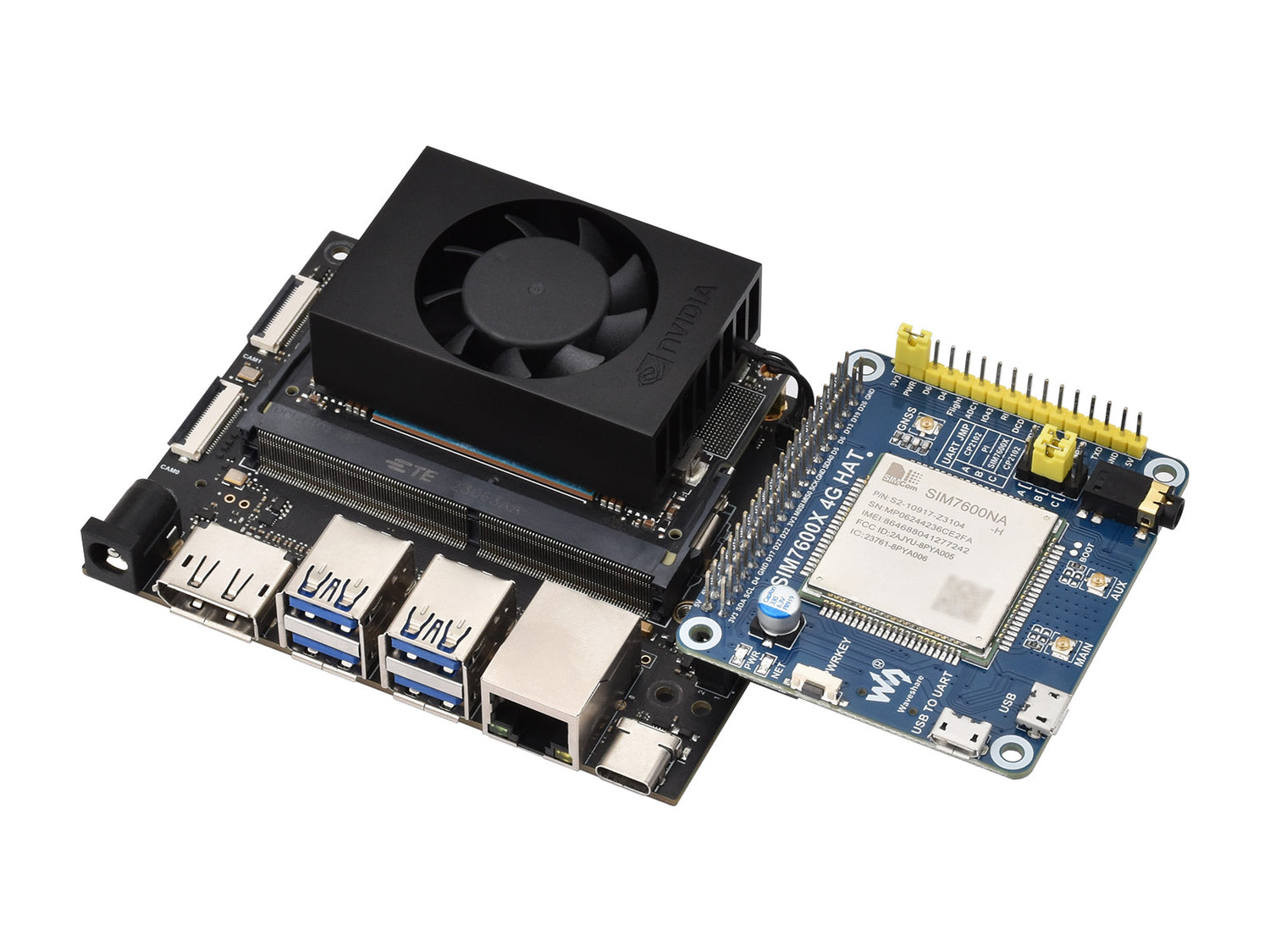

- Jetson Nano
Package Contents
- 1× SIM7600NA-H 4G HAT
- 1× Multi-band SMA antenna (4G)
- 1× GPS external antenna
- 1× USB cables
- 1× Screws pack
