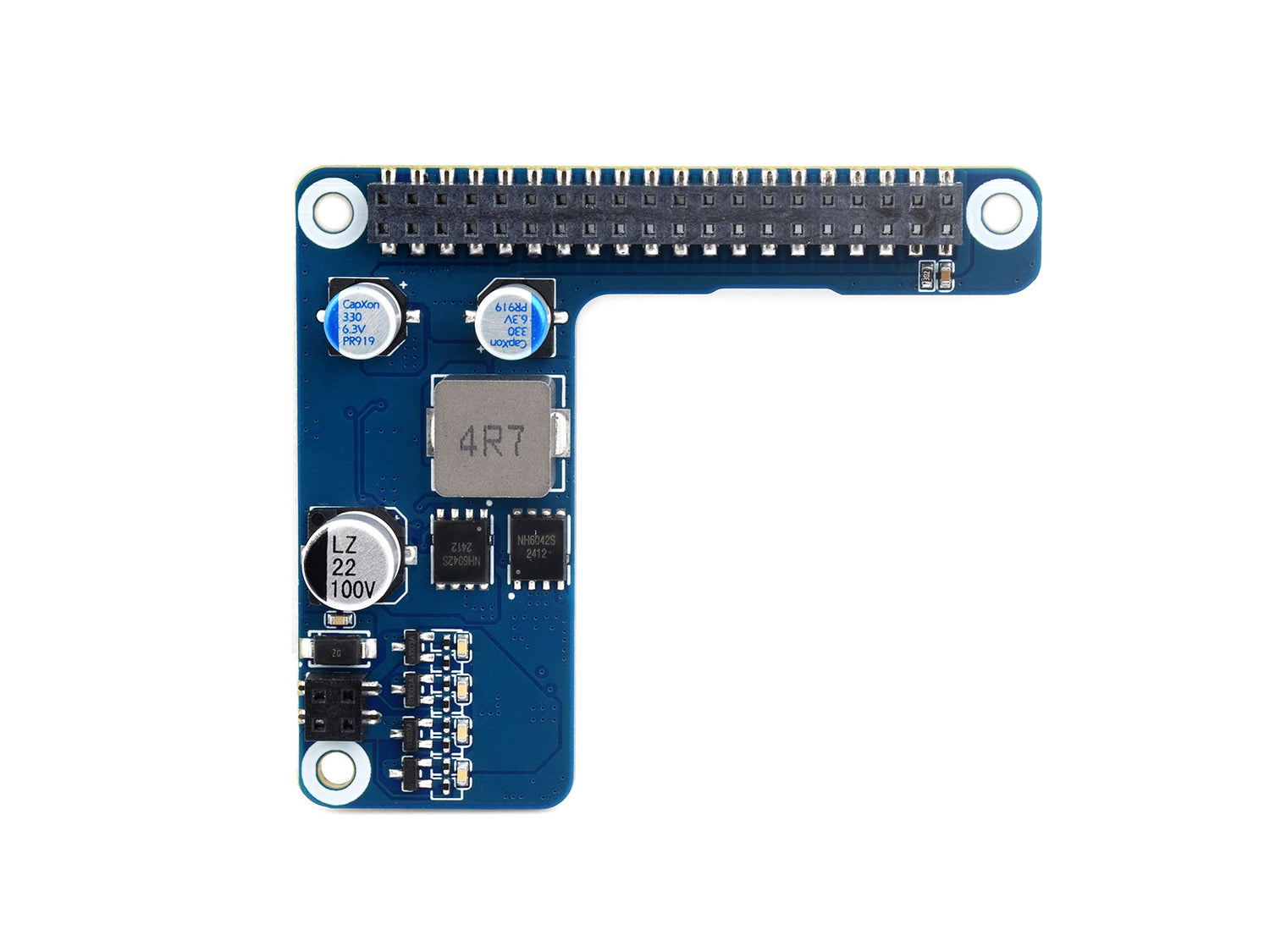

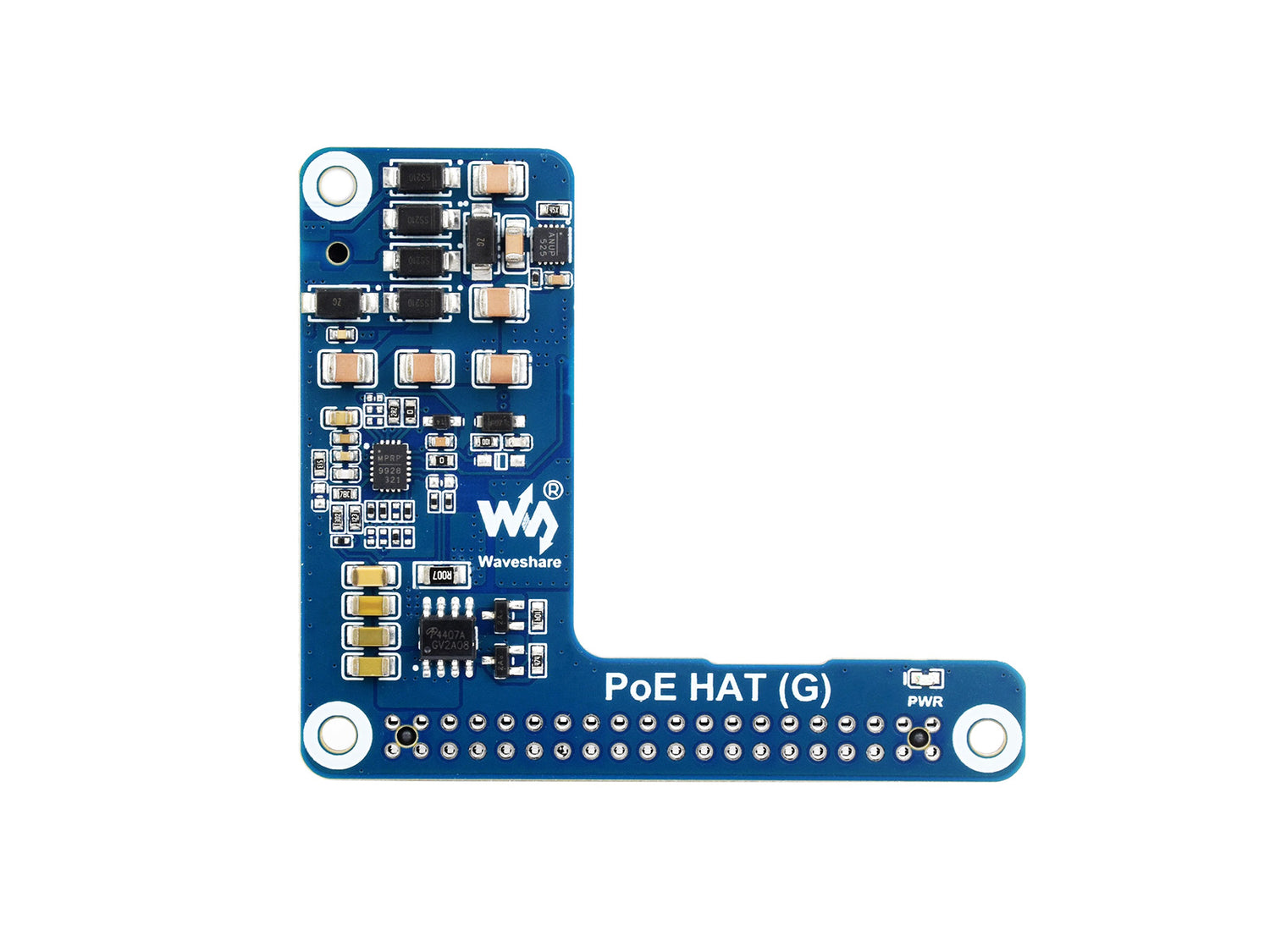

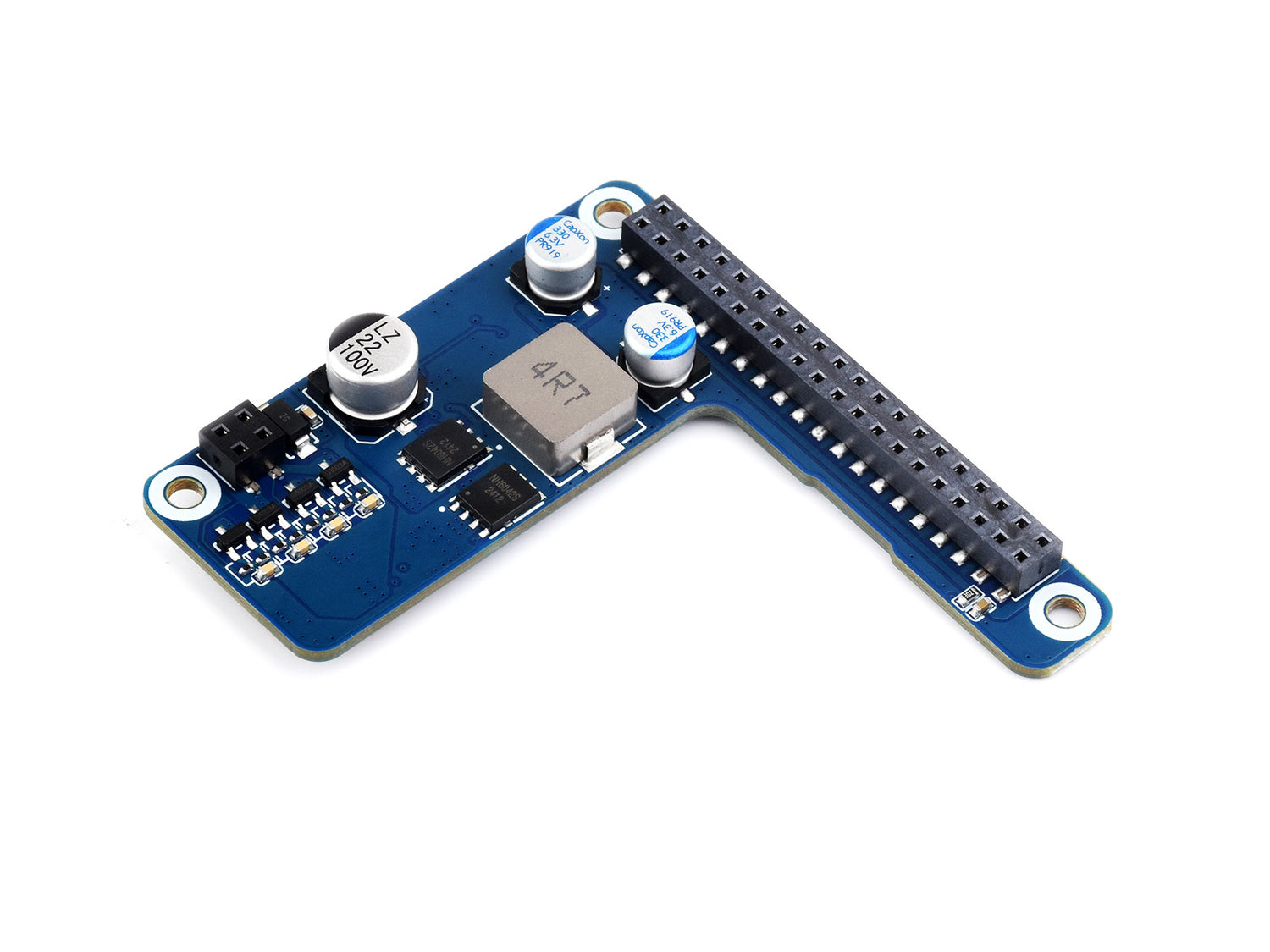

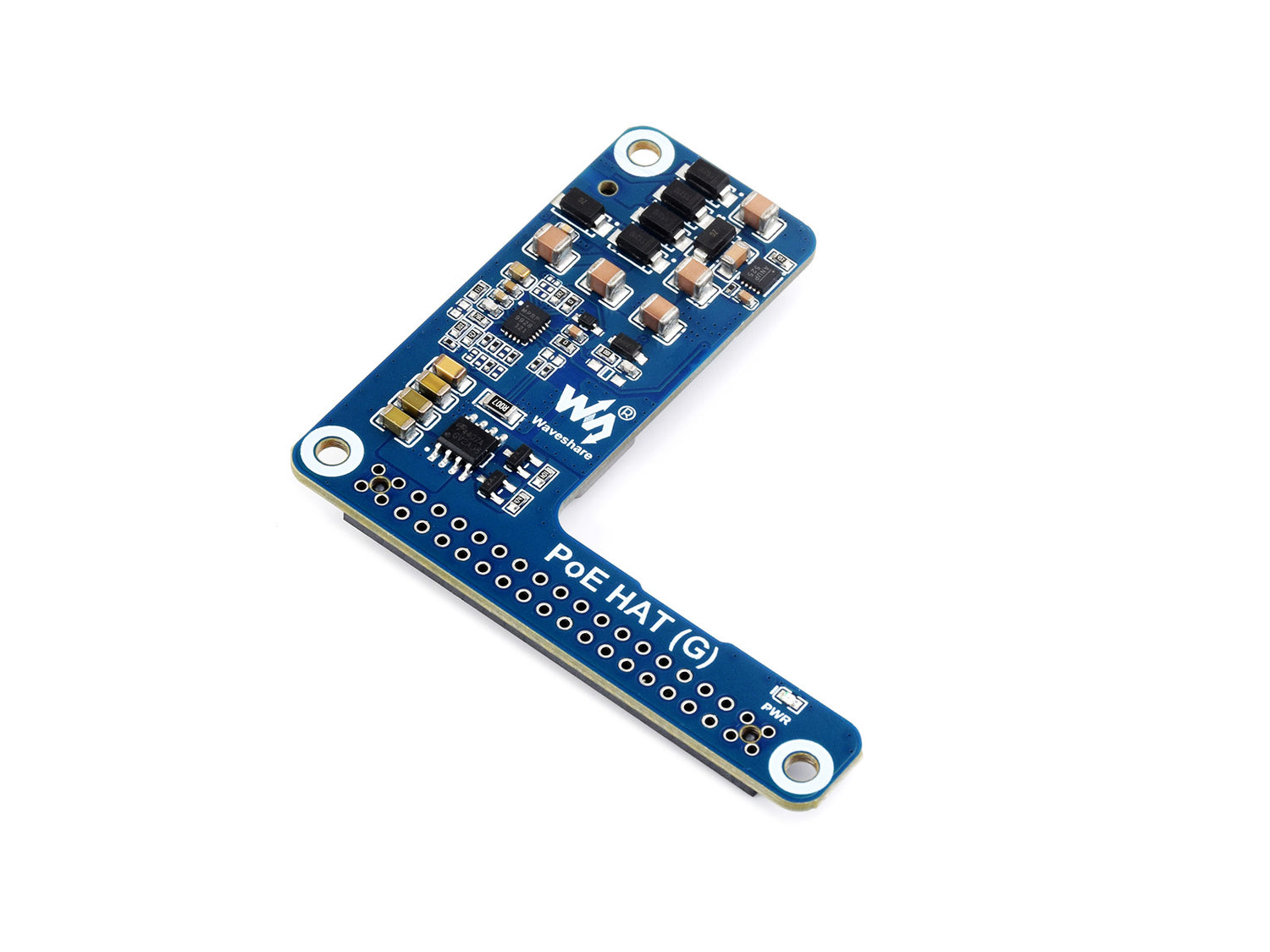

Raspberry Pi 5/CM 5 PoE HAT (G) – 5V 5A, 802.3af/at
Power your Raspberry Pi 5 or Compute Module 5 over Ethernet with the PoE HAT (G). Delivers up to 5V 5A output via a single Ethernet cable, eliminating the need for a separate power supply while complying with 802.3af/at PoE standards.

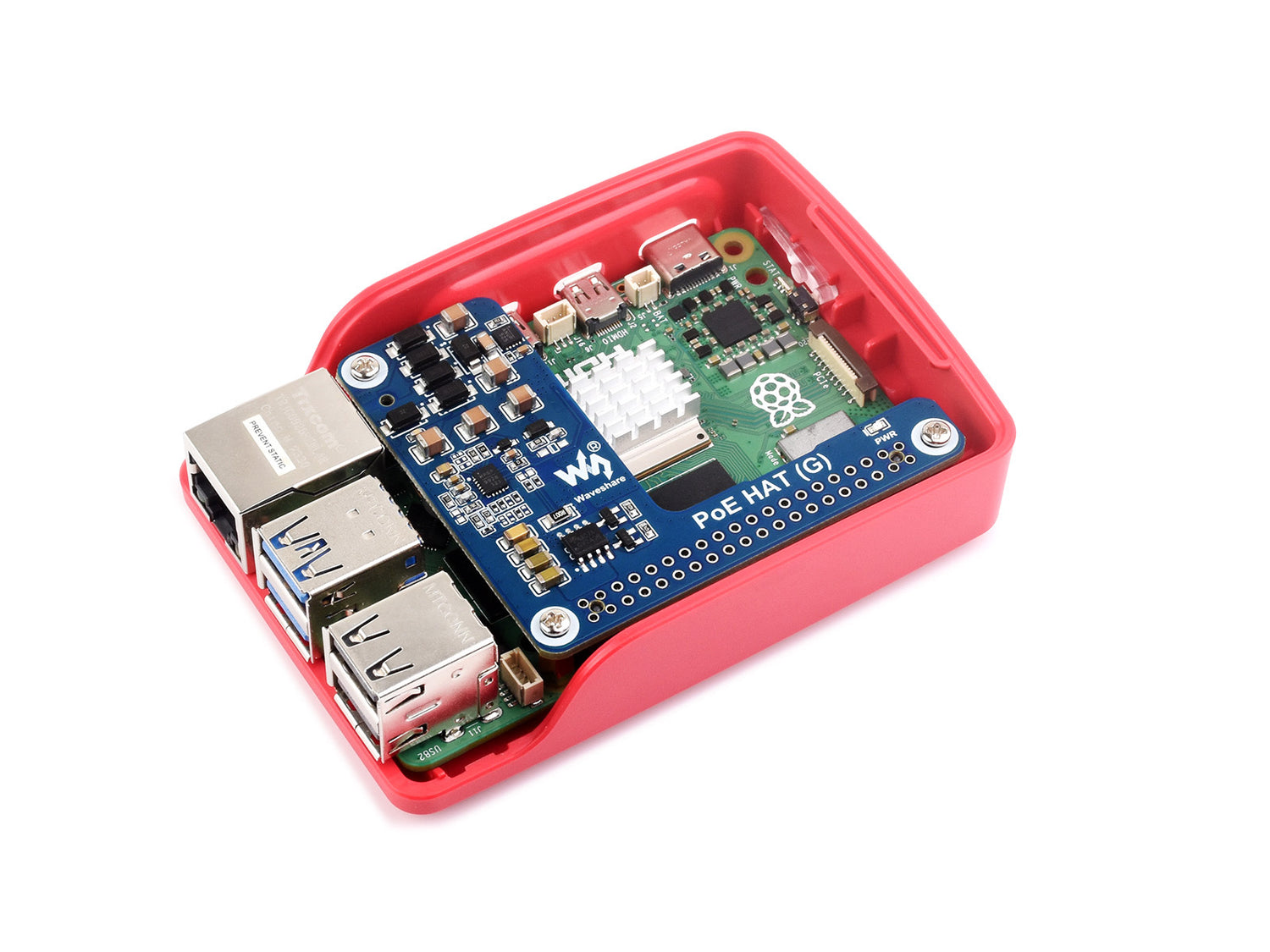

Designed to fit inside the Official Raspberry Pi 5 Case with support for the case's cooling fan via PWM speed control. Premium integrated circuits ensure stable, reliable power distribution.
Key Features
- High Power Output – 5V 5A maximum for demanding projects
- 802.3af/at Compliant – Works with standard PoE switches
- Single Cable Solution – Power and network in one connection
- Official Case Compatible – Fits inside Pi 5 case
- Fan Control – PWM speed control with tachometer
- 40-Pin GPIO Header – Easy installation
Specifications
- Input Voltage: 38V - 57V DC
- Output: 5V 5A (max)
- Network Standard: IEEE 802.3af/at PoE
- Fan Control: PWM with tachometer
- Dimensions: 56.5mm × 64.98mm
- Compatibility: Raspberry Pi 5, Compute Module 5
Package Contents
- 1× PoE HAT (G)
- 1× 2×2 header
- 1× 2×20 header
- 1× Standoff set
