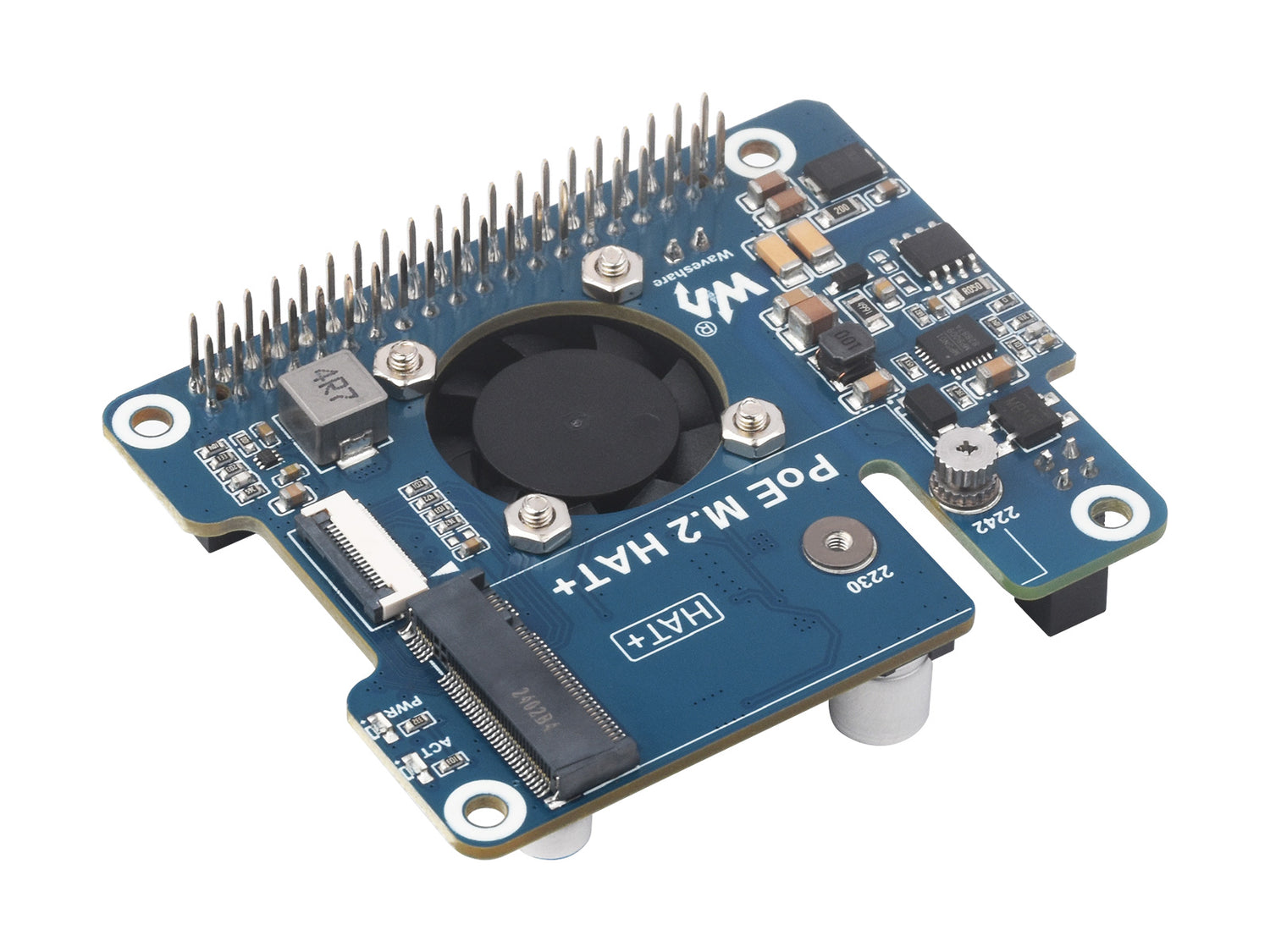

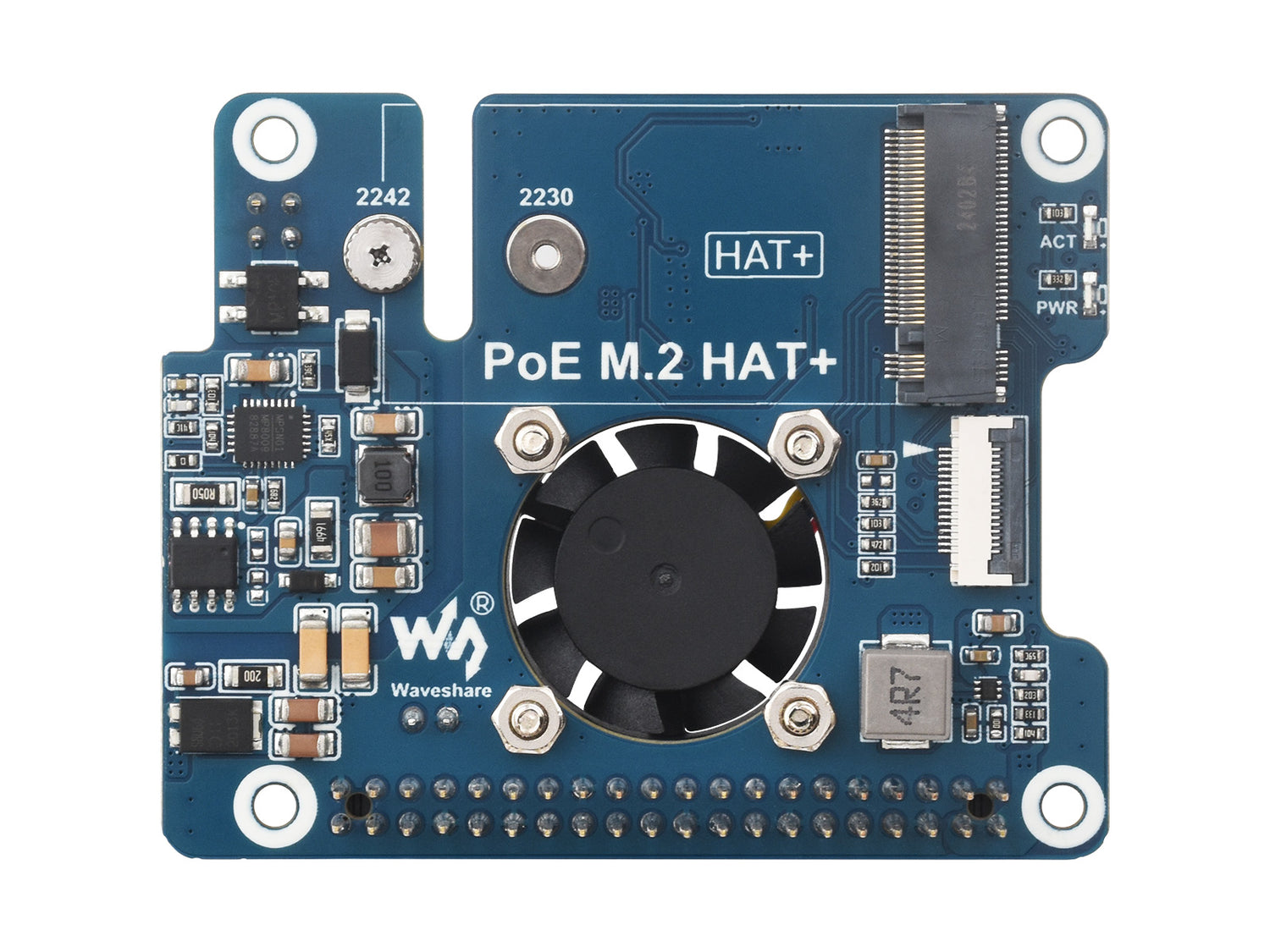

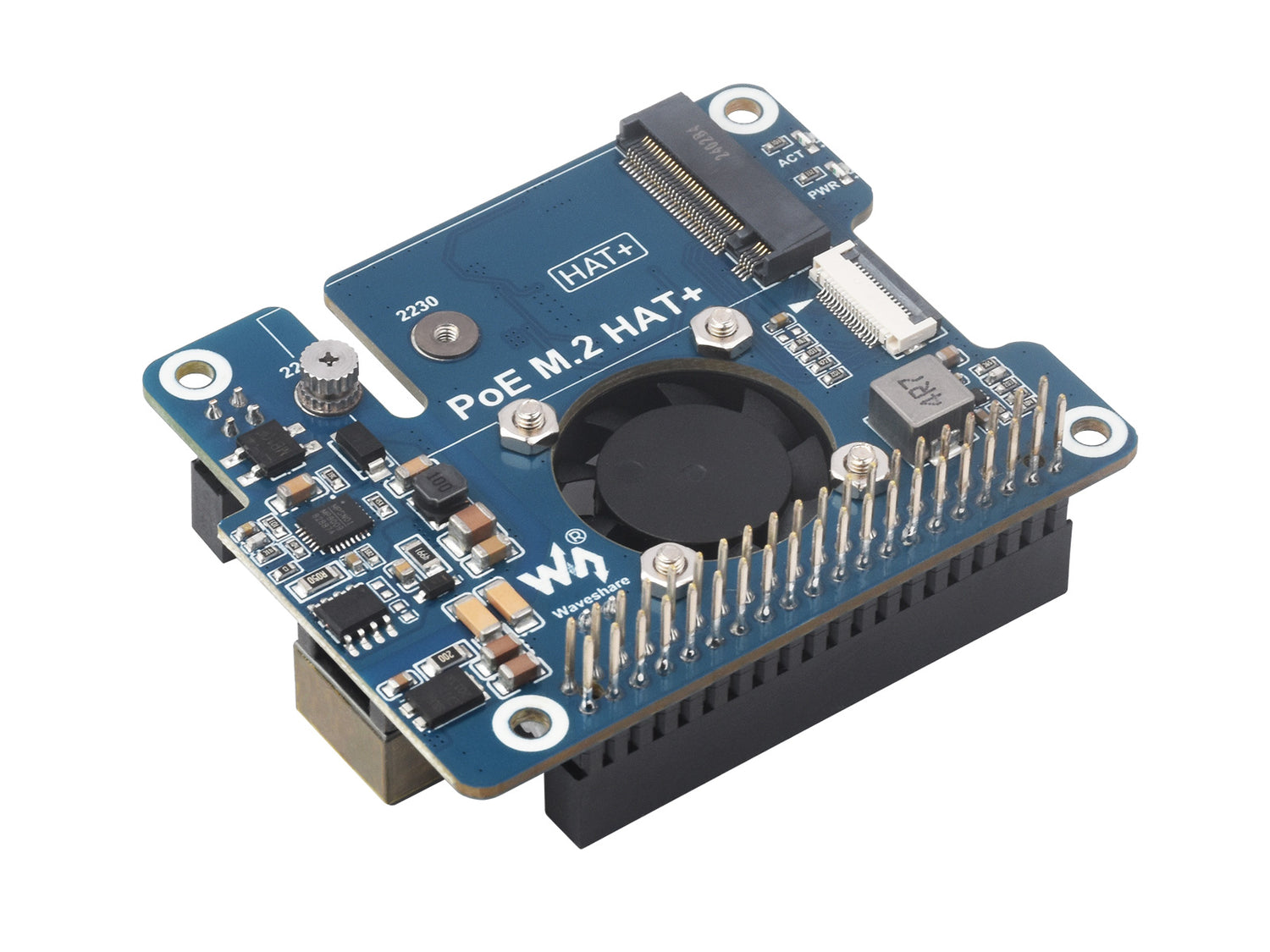

Raspberry Pi 5 PCIe to M.2 NVMe Adapter with PoE
Power your Raspberry Pi 5 over Ethernet while adding high-speed NVMe storage with this compact PoE M.2 HAT+. Run a single Ethernet cable for both power and network connectivity—perfect for remote installations, embedded systems, and clean deployments.

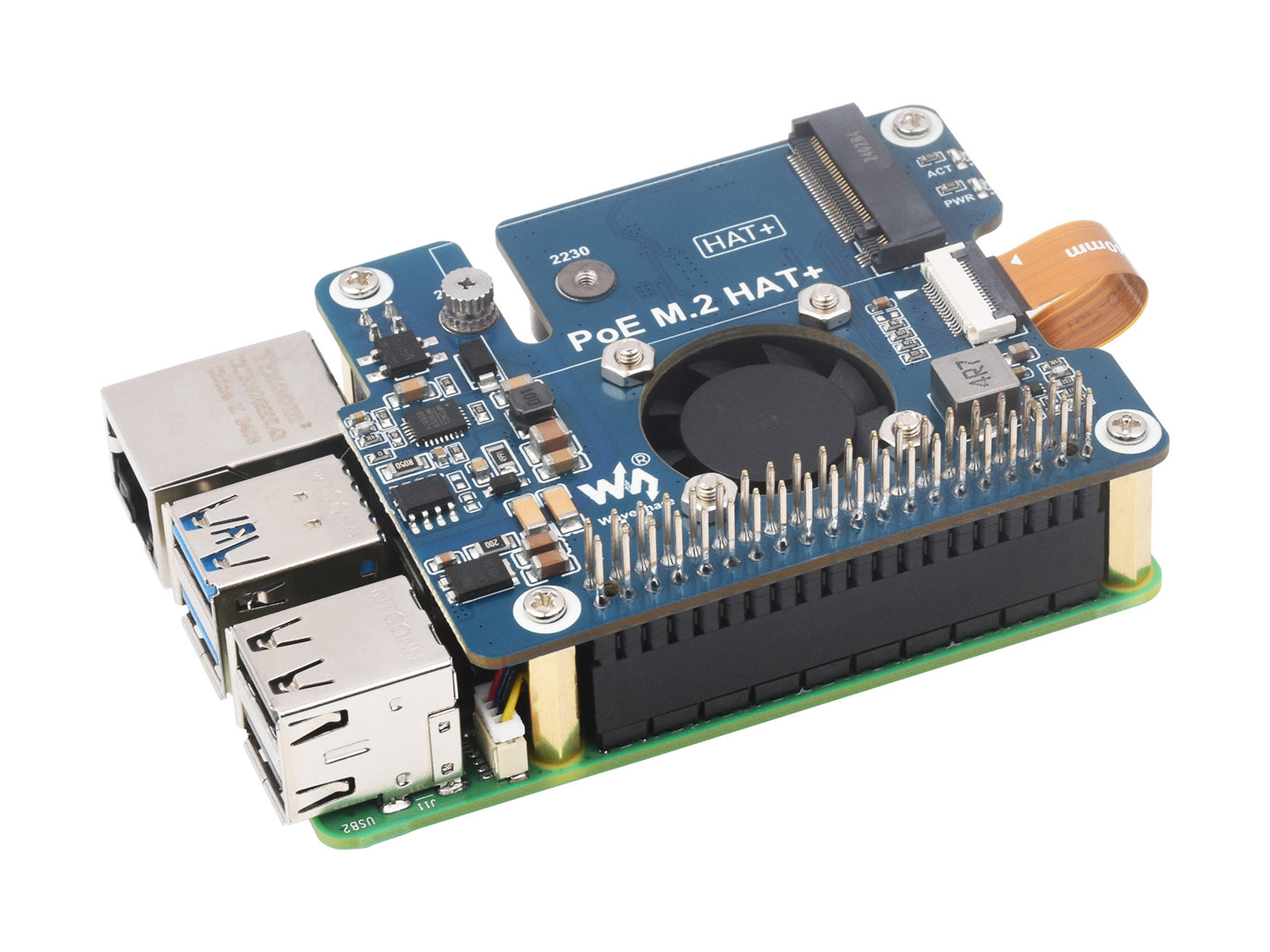

The adapter connects via the Pi 5's PCIe interface and includes a metal heatsink with active cooling fan to maintain optimal temperatures under load. Dual power outputs let you power additional peripherals alongside your Pi.
Key Features
- Power over Ethernet – IEEE 802.3af/at compliant, single-cable power and network
- NVMe M.2 SSD Support – Compatible with 2230 and 2242 size NVMe drives
- Boot from SSD – Supports Gen2 and Gen3 modes for fast boot and file operations
- Dual Power Output – 5V 4.5A max and 12V 2A max for powering peripherals
- Active Cooling – Metal heatsink with onboard cooling fan
- LED Indicators – Dual onboard LEDs for status monitoring
- Compact Design – 56.5 × 70.0mm footprint
Specifications
- PoE Standard: IEEE 802.3af/at
- Power Input: 37-57V DC (via PoE)
- Power Output: 5V 4.5A max, 12V 2A max
- M.2 Sizes: 2230, 2242
- Connection: 16-pin PCIe cable
- Dimensions: 56.5 × 70.0mm
Package Contents
- 1× PoE M.2 HAT+
- 1× Metal heatsink
- 1× 16-pin PCIe cable (40mm)
- 3× Thermal tape
- 1× Screws pack
