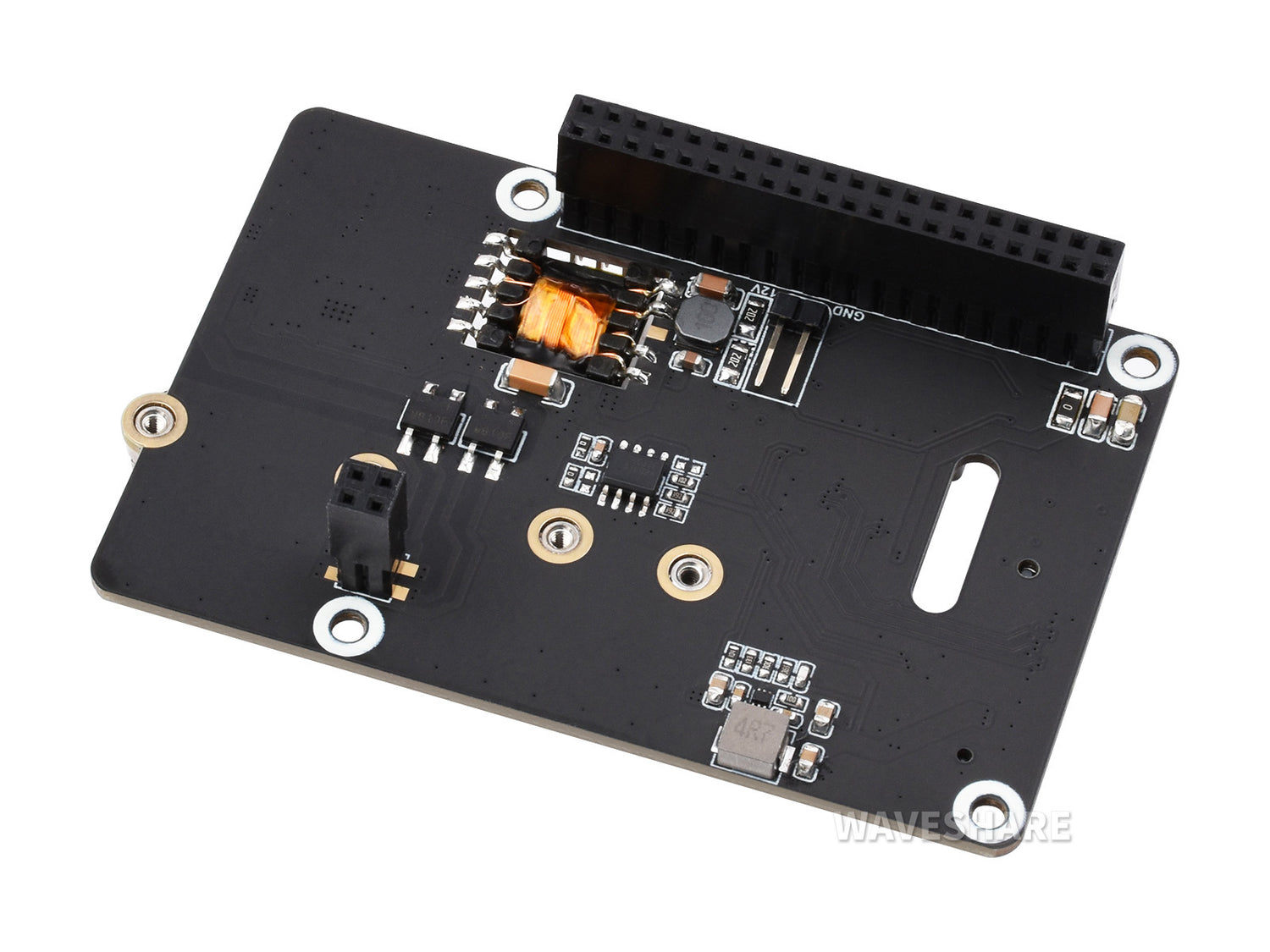

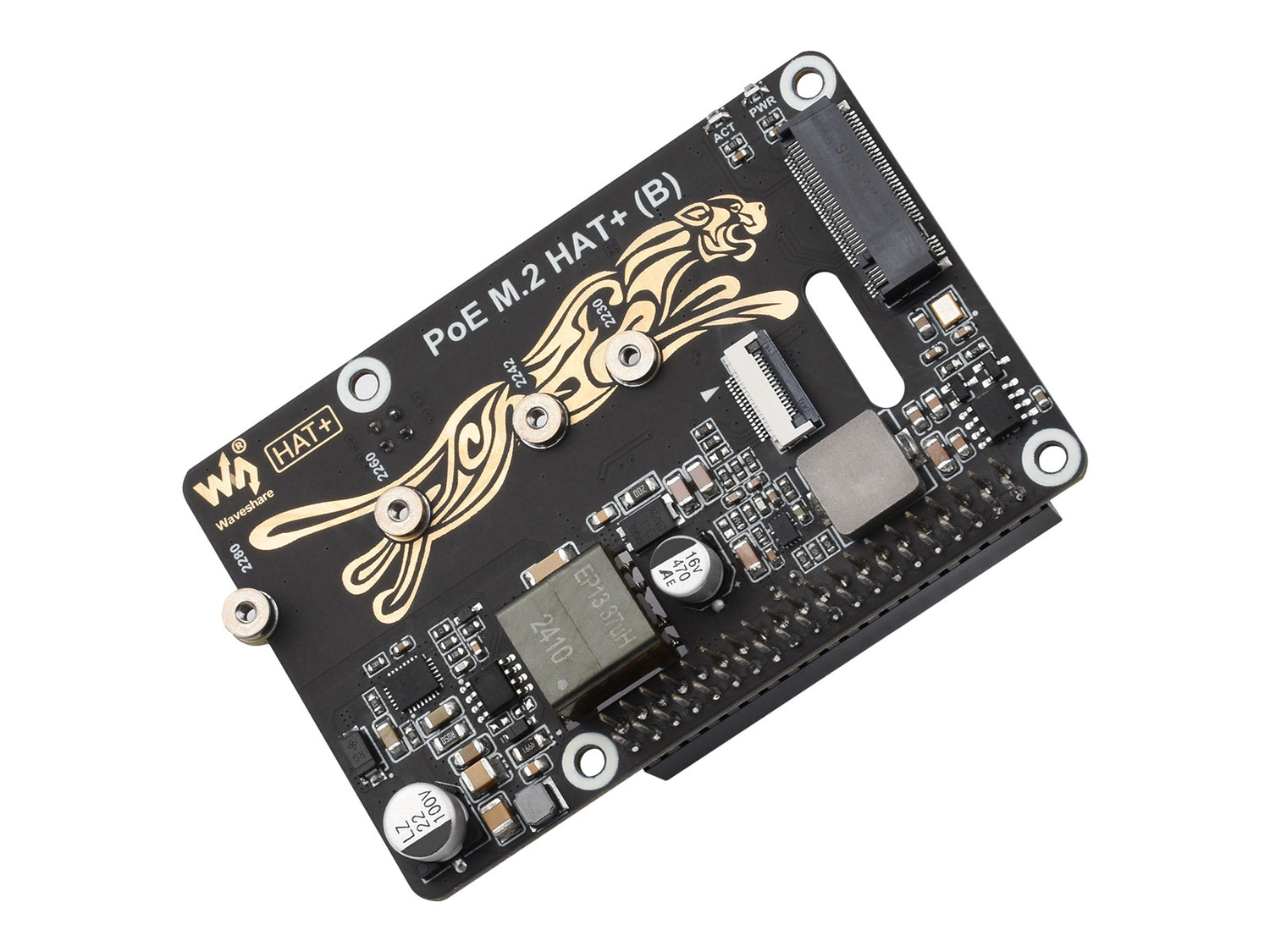

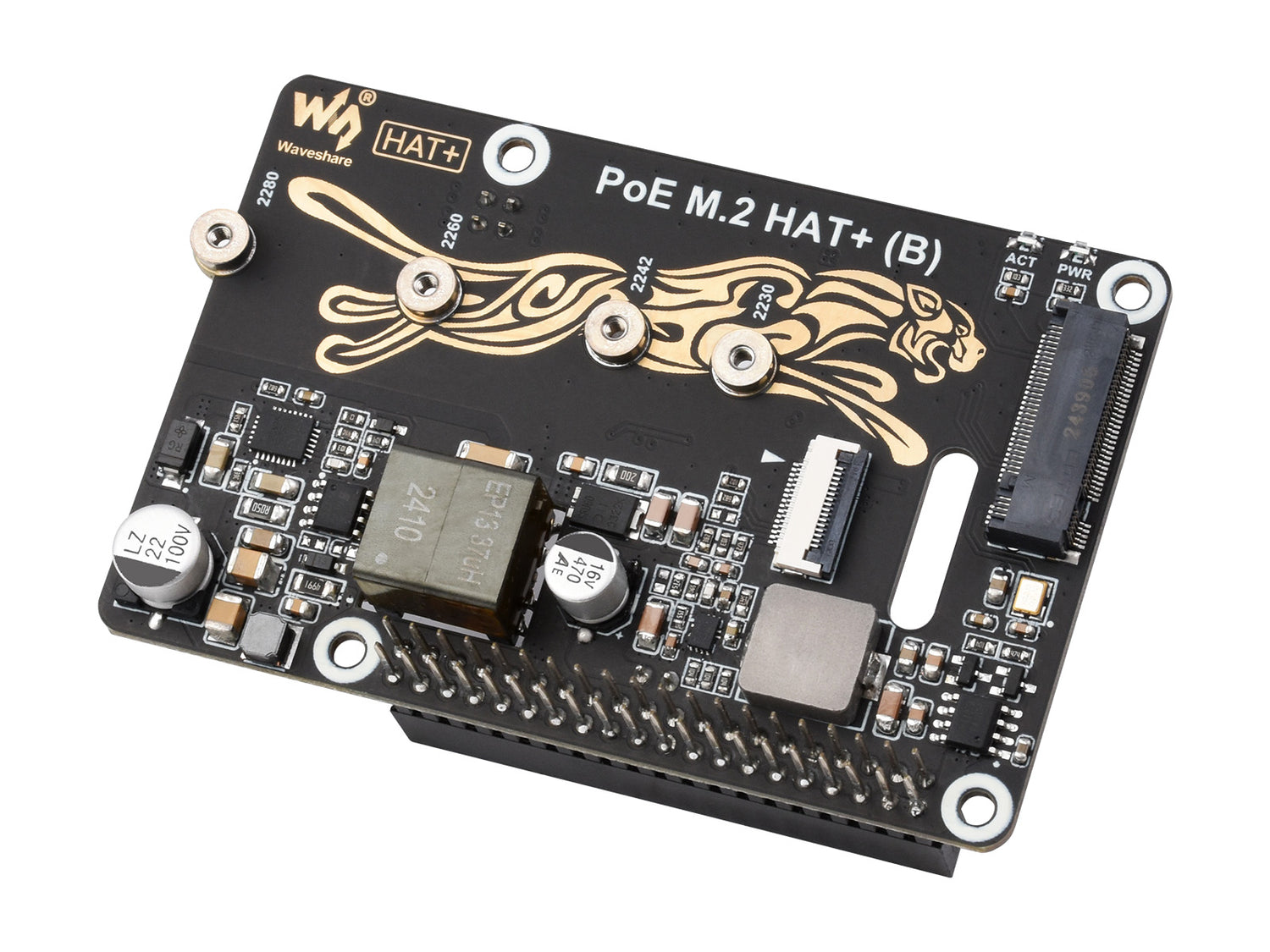

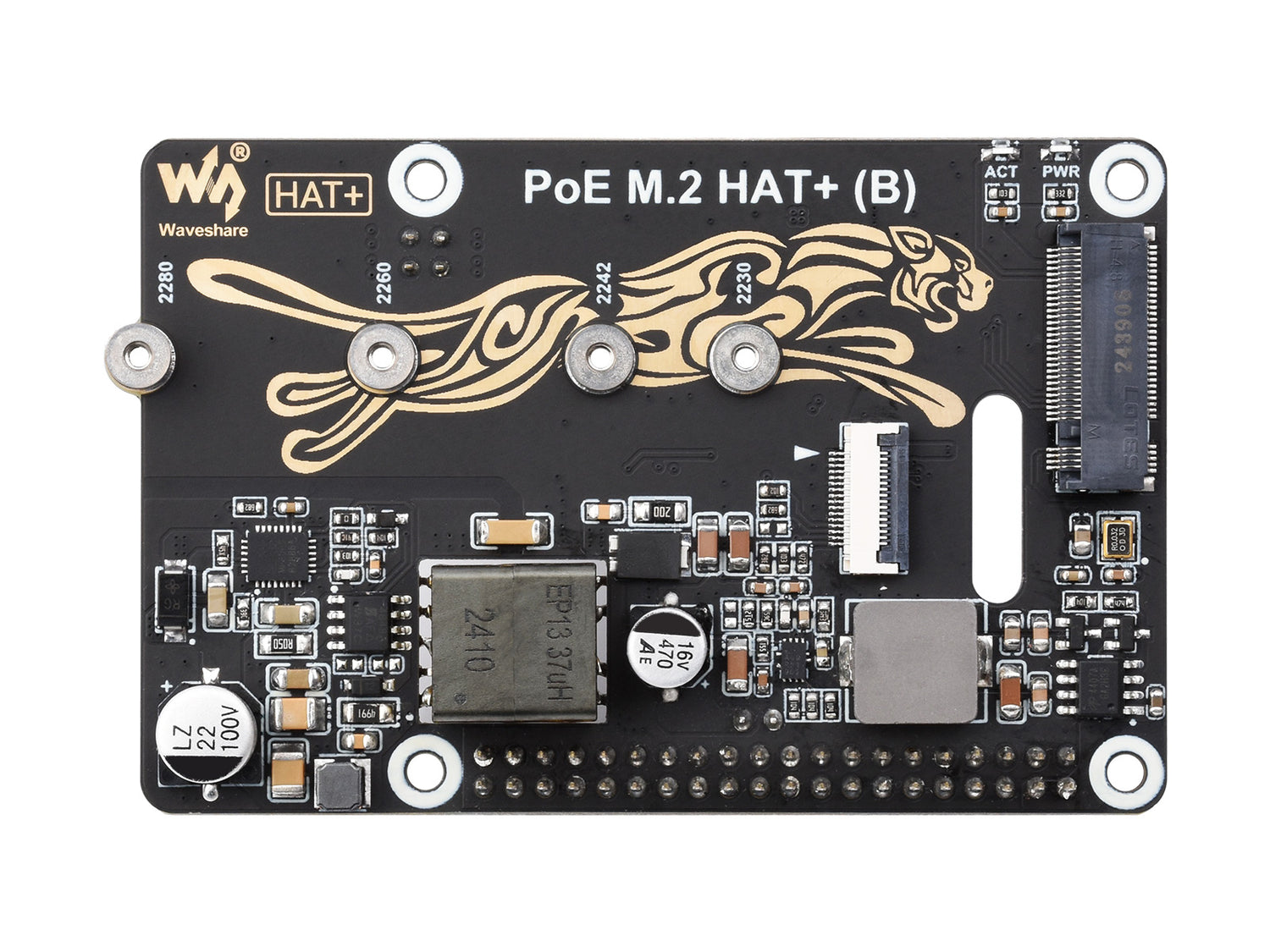

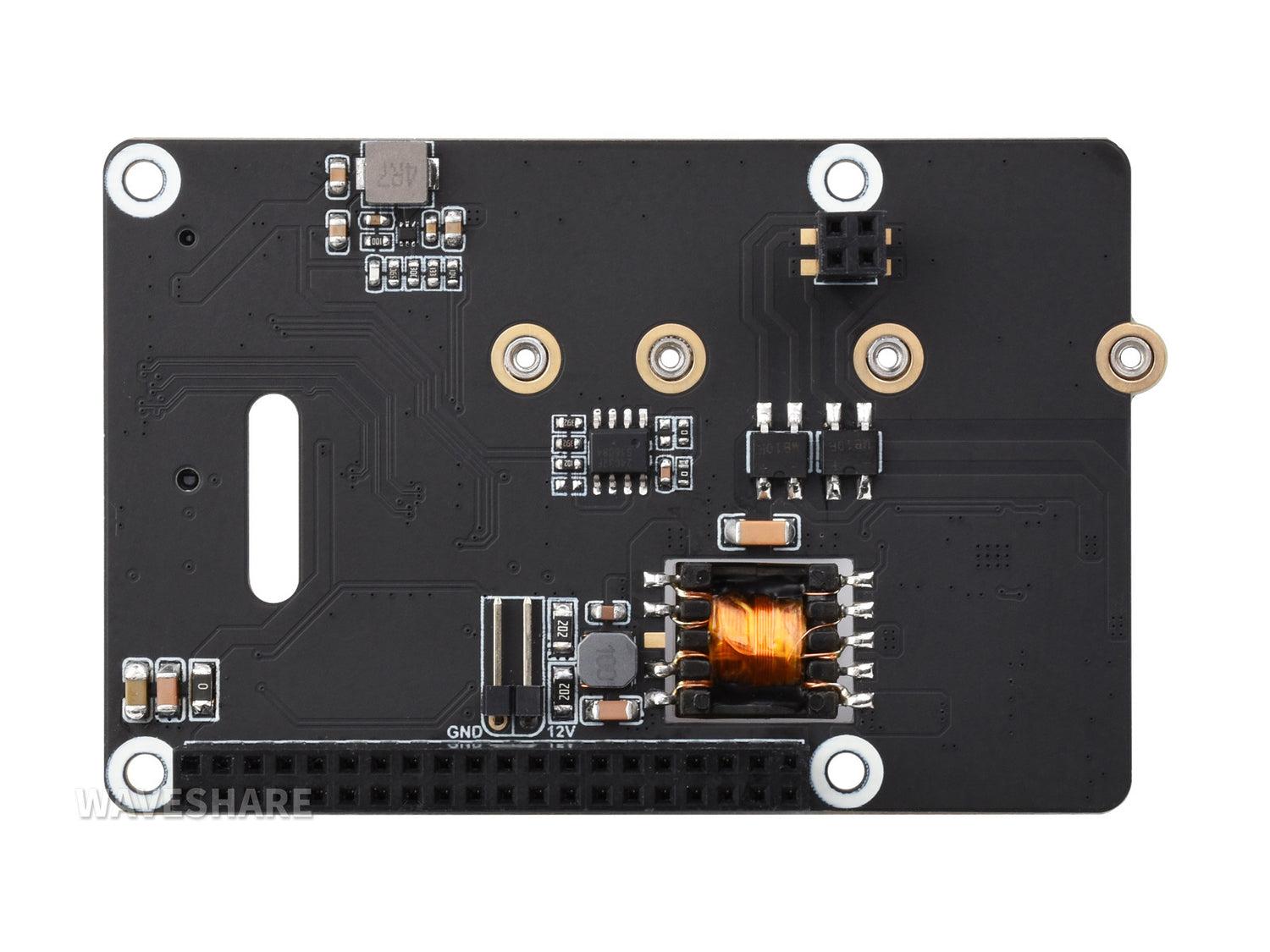

Raspberry Pi 5 PCIe to M.2 NVMe SSD Adapter with PoE Function (B)
Combine high-speed NVMe storage with Power over Ethernet for your Raspberry Pi 5. This PoE M.2 HAT+ (B) supports full-size 2280 SSDs and delivers both power and network through a single Ethernet cable—ideal for servers, embedded systems, and remote deployments.
The adapter connects via the Pi 5's PCIe interface and supports booting directly from NVMe SSD. Dual power outputs provide ample power for peripherals, while the immersion gold PCB ensures long-term durability.
Key Features
- Power over Ethernet – IEEE 802.3af/at compliant, single-cable power and network
- Full-Size SSD Support – Compatible with 2230, 2242, 2260, and 2280 NVMe drives
- Boot from SSD – Gen2 and Gen3 modes for fast boot and file operations
- Dual Power Output – 5V 4.5A max (GPIO) and 12V 2A max (2P header)
- LED Indicators – Dual onboard LEDs for status monitoring
- Quality Construction – Immersion gold PCB for durability and corrosion resistance
Specifications
- PoE Standard: IEEE 802.3af/at
- Power Input: 37-57V DC (via PoE)
- Power Output: 5V 4.5A max (GPIO), 12V 2A max (2P header)
- M.2 Sizes: 2230, 2242, 2260, 2280
- Connection: 16-pin PCIe cable
- Dimensions: 56.0 × 85.0mm
Package Contents
- 1× PoE M.2 HAT+ (B)
- 1× 16-pin PCIe cable
- 1× SSD mounting screw
- 1× Screws pack
