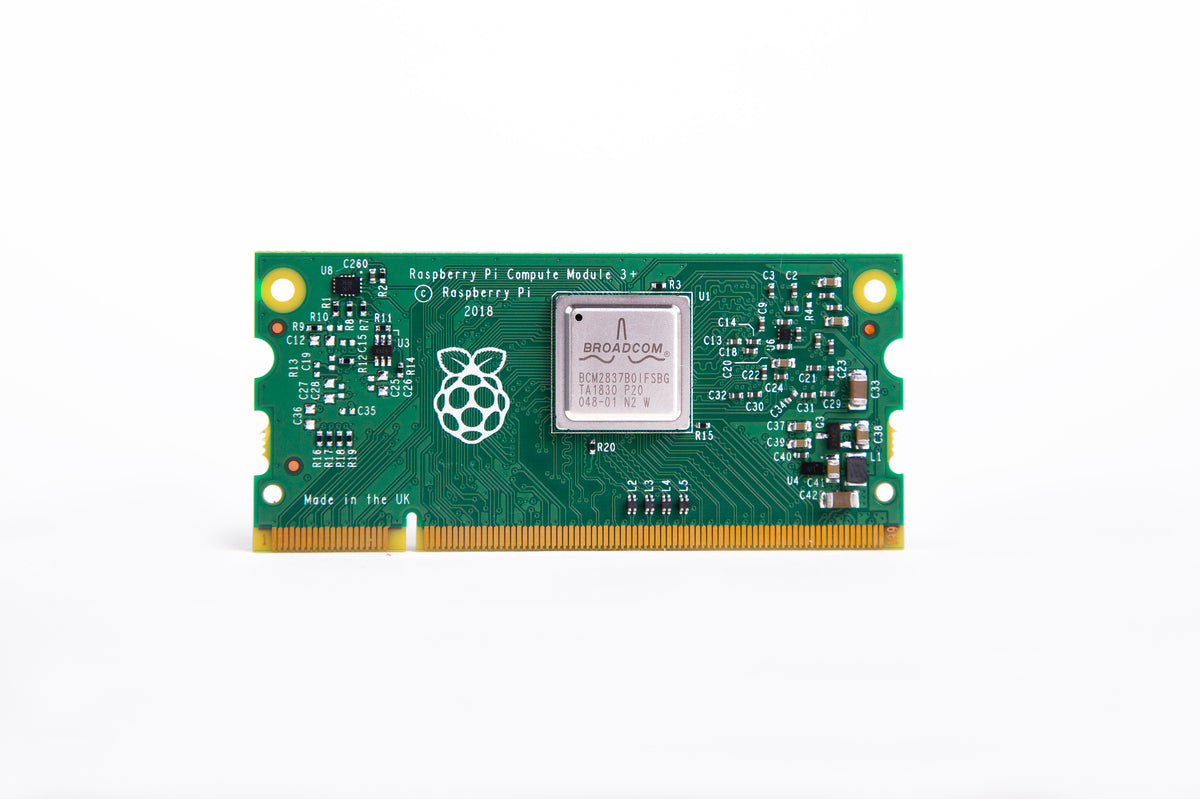

The Raspberry Pi Compute Module 3+ packs the power of a Raspberry Pi 3B+ into a compact DDR2 SODIMM form factor. This variant includes 8GB eMMC storage for reliable, built-in flash memory—ideal for industrial applications and custom hardware designs.
With the BCM2837B0 processor running at 1.2GHz, 1GB LPDDR2 RAM, and a 68 × 30mm footprint, the CM3+ integrates easily into custom PCB designs.
Key Features
- 8GB eMMC Storage – Built-in flash storage, no SD card required
- BCM2837B0 Processor – 64-bit quad-core Cortex-A53 @ 1.2GHz
- 1GB LPDDR2 RAM – Sufficient for most embedded applications
- SODIMM Form Factor – 200-pin DDR2 SODIMM connector
- Compact Size – 68 × 30mm footprint
- Extended Temperature – Operates from -20°C to +70°C
Specifications
- Processor: Broadcom BCM2837B0
- RAM: 1GB LPDDR2
- Storage: 8GB eMMC
- Video: H.264/MPEG-4 decode/encode (1080p30)
- Graphics: OpenGL ES 1.1, 2.0
- Connector: 200-pin DDR2 SODIMM
Ideal For
- Custom PCB designs
- Industrial embedded systems
- Commercial products
- IoT deployments
