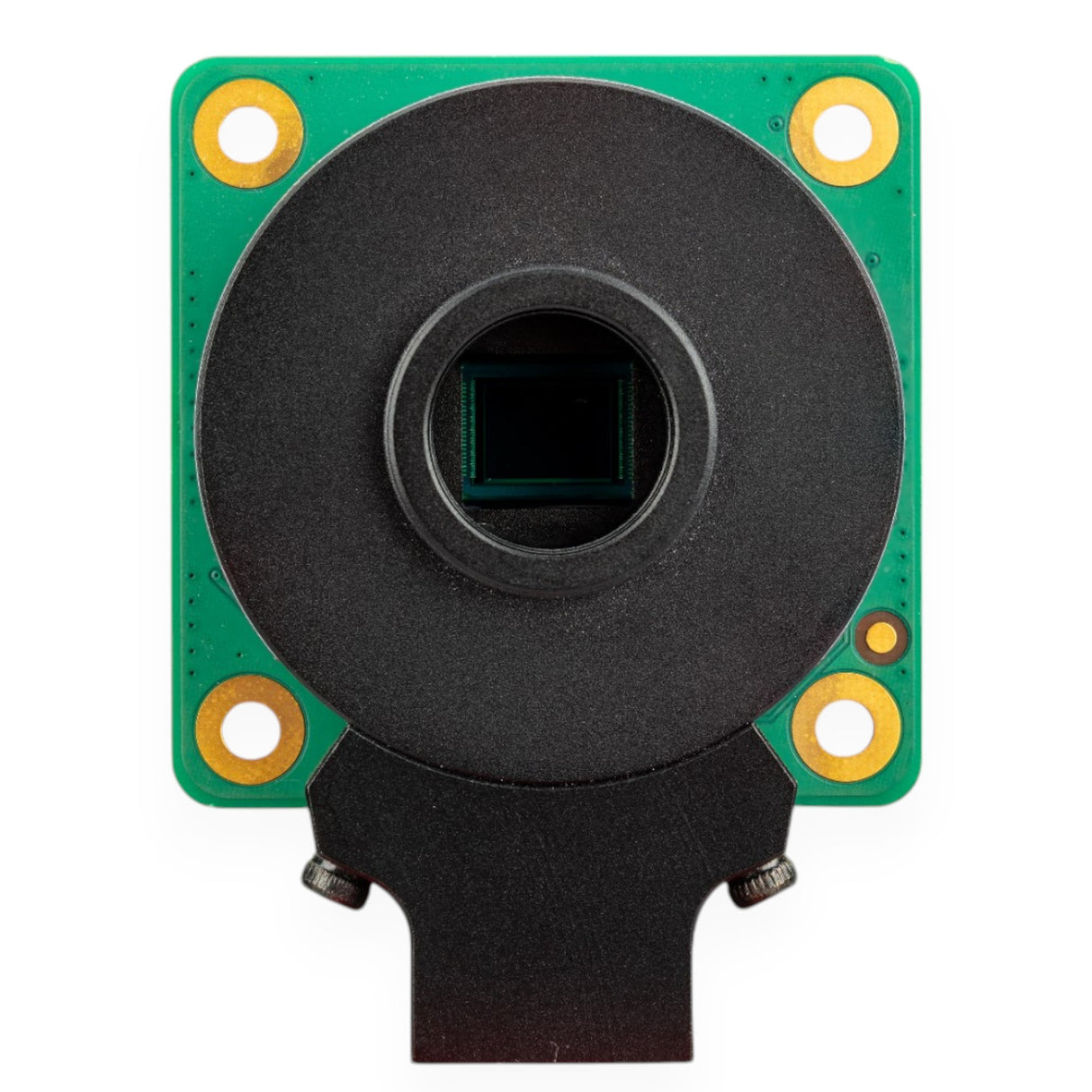

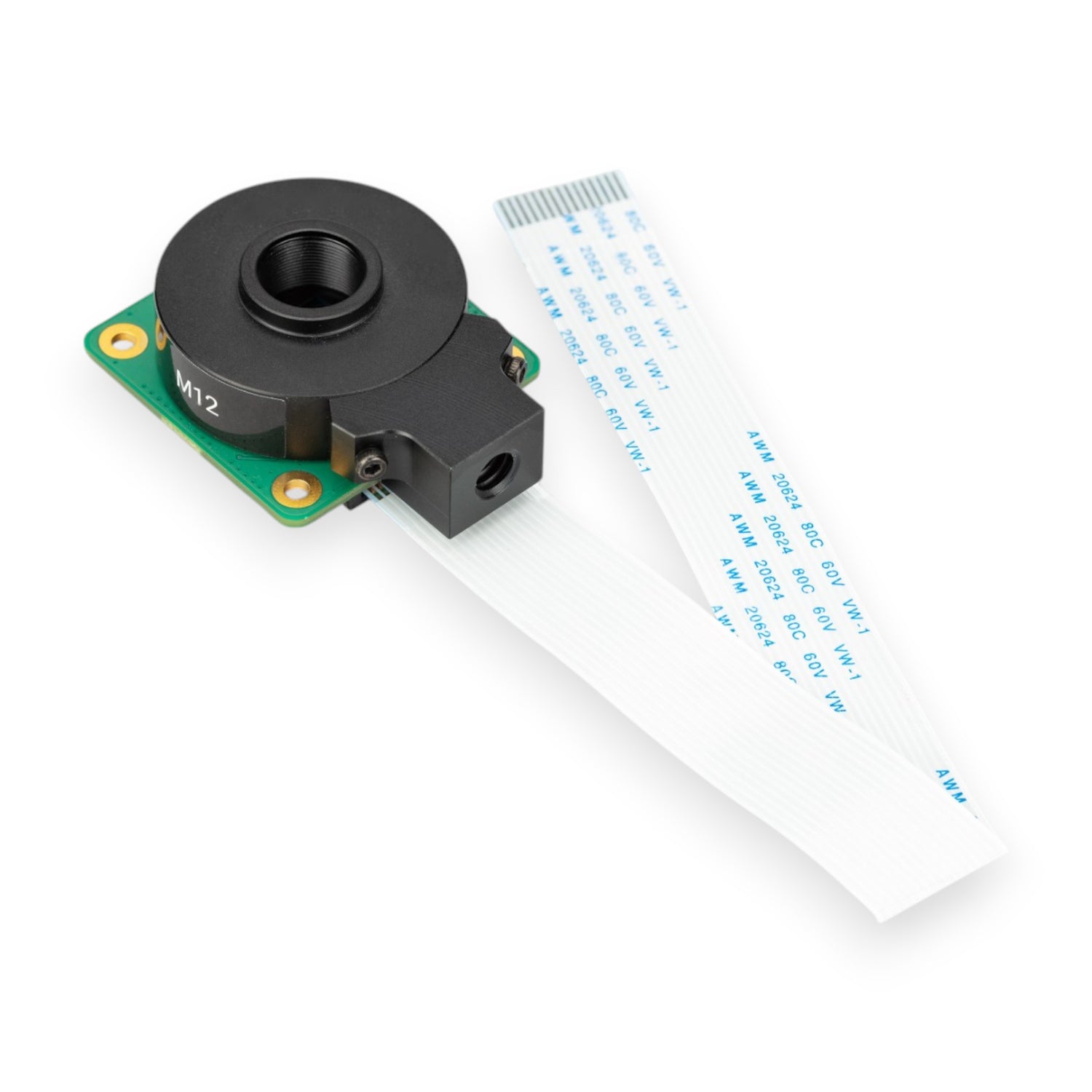

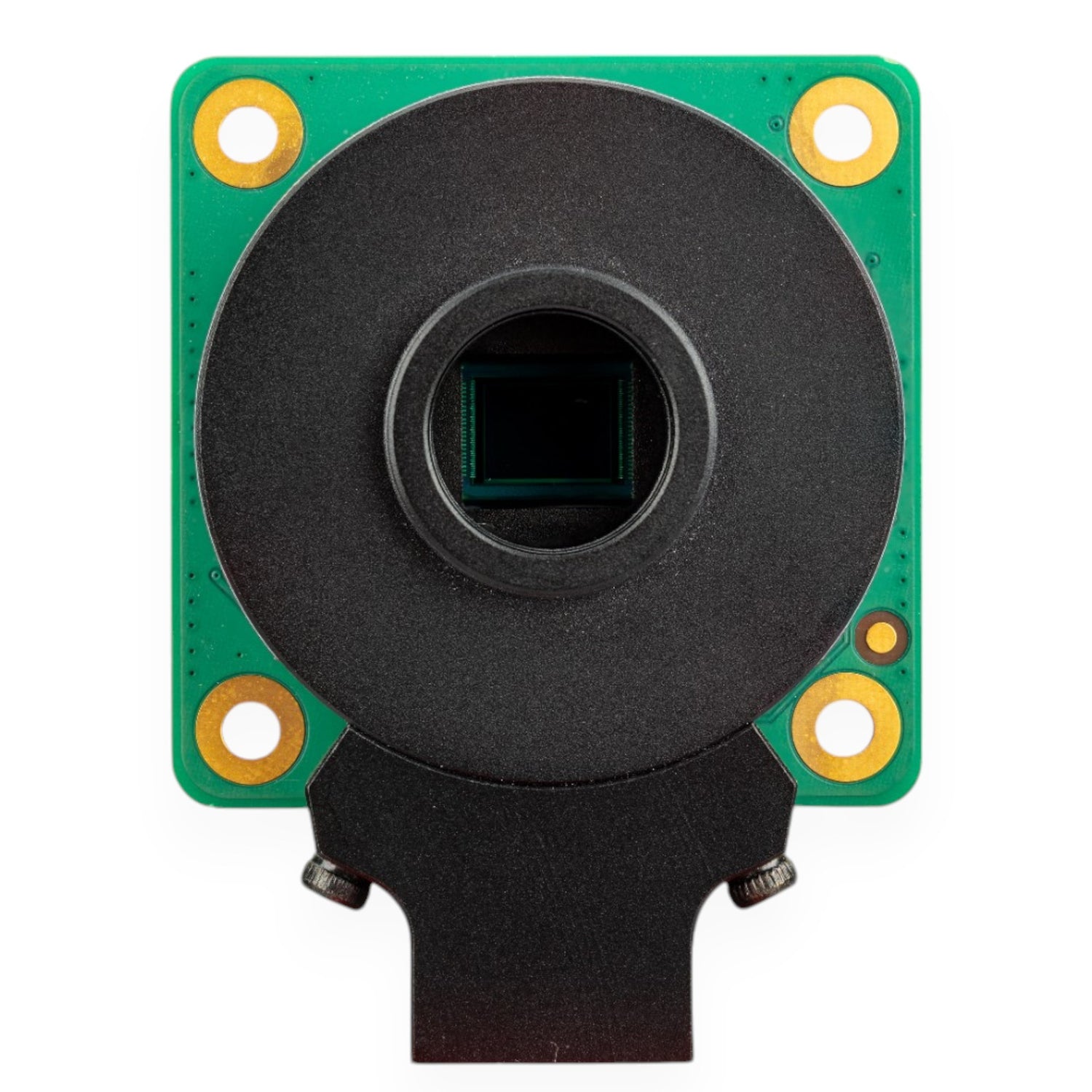

Raspberry Pi HQ Camera - M12 mount
The Raspberry Pi High Quality Camera with M12 mount features the same 12.3-megapixel Sony IMX477 sensor as the standard HQ Camera, but with an M12 lens mount for compact lens compatibility. This makes it ideal for embedded applications, security systems, and projects where space is at a premium.
The M12 mount (also known as S-mount) accepts a wide range of small, affordable lenses commonly used in security cameras and industrial applications. Compatible with all Raspberry Pi models from the Raspberry Pi 1 Model B onwards.
Key Features
- 12.3 Megapixel Sensor – Sony IMX477R stacked, back-illuminated sensor
- M12 Lens Mount – Compact lens mount for smaller form factor lenses
- Superior Low-Light Performance – Larger 1.55μm × 1.55μm pixels
- Adjustable Focus – 2.6mm to 11.8mm focus range
- Tripod Mount – Integrated 1/4"-20 thread in aluminium housing
Specifications
- Sensor: Sony IMX477R, 12.3MP back-illuminated
- Sensor Size: 1/2.3" (7.9mm diagonal)
- Pixel Size: 1.55μm × 1.55μm
- Output: RAW12/10/8, COMP8
- Focus Range: 2.6mm – 11.8mm
- Lens Mount: M12 (S-mount)
- Ribbon Cable: 200mm FPC
- IR Sensitive: No (IR cut filter integrated)
Package Contents
- 1× Raspberry Pi HQ Camera Module with Sony IMX477 sensor
- 1× FPC ribbon cable (200mm)
- 1× Milled aluminium lens mount with tripod mount
- 1× Focus adjustment ring
- 1× M12 lens adapter
Ideal For
- Compact embedded camera systems
- Security and surveillance applications
- Machine vision projects
- Space-constrained installations
