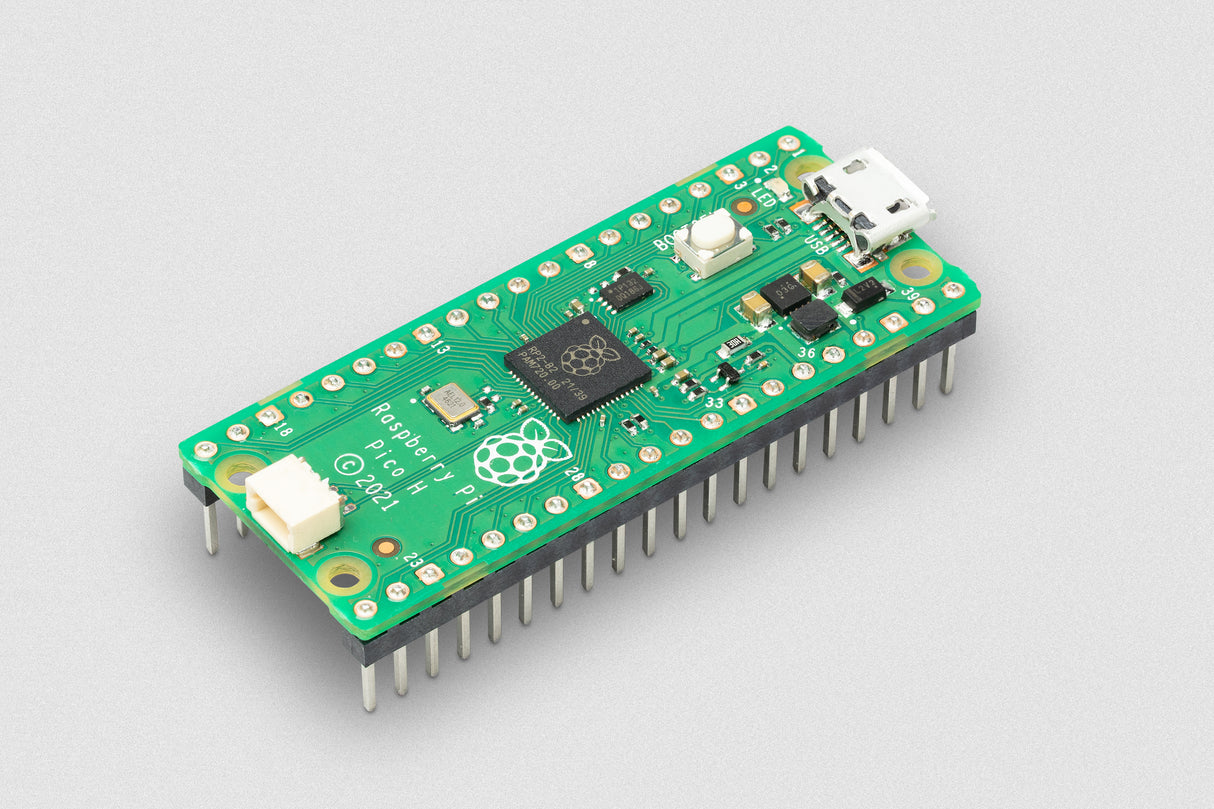

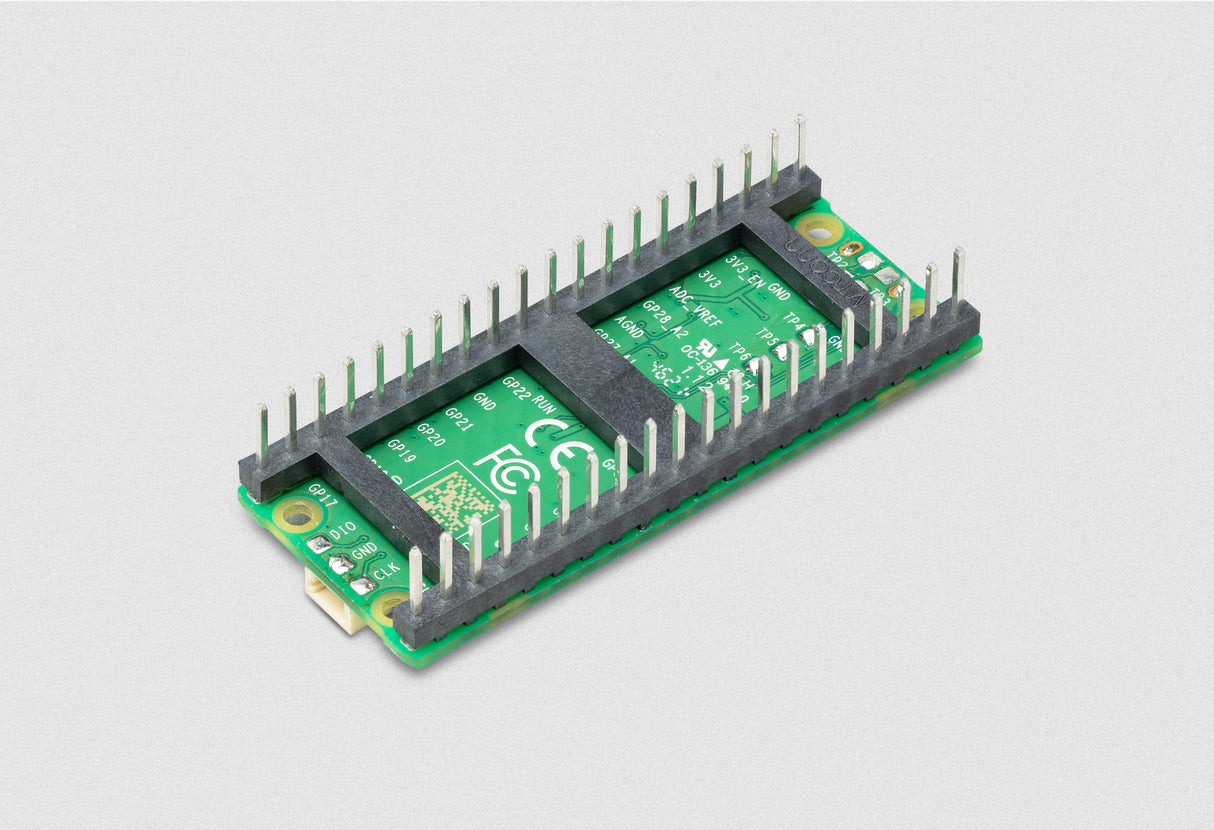

The Raspberry Pi Pico H is the official Pico with pre-soldered male headers, ready for immediate breadboard use. Built around the RP2040 microcontroller, it delivers the same powerful dual-core performance as the standard Pico with the convenience of factory-installed headers.
The Pico H includes a 3-pin debug connector for easy access to the SWD interface, making debugging and development more convenient. Simply plug it into a breadboard and start prototyping—no soldering required.
Key Features
- Pre-Soldered Headers – Ready for breadboard use out of the box
- 3-Pin Debug Connector – Easy access to SWD interface
- RP2040 Microcontroller – Dual-core ARM Cortex-M0+ @ 133MHz
- 264KB SRAM – High-performance multi-bank memory
- 2MB Flash – Onboard QSPI flash storage
- 26 GPIO Pins – Including 3 analogue inputs
- Flexible Power – 1.8–5.5V input via USB or pins
Specifications
- Processor: Dual-core ARM Cortex-M0+ @ 133MHz
- Memory: 264KB SRAM, 2MB flash
- GPIO: 26 pins (23 digital, 3 ADC-capable)
- ADC: 12-bit, 500ksps
- Peripherals: 2× UART, 2× I2C, 2× SPI, 16× PWM channels
- PIO: 2 blocks with 8 state machines
- Debug: 3-pin SWD connector (pre-installed)
- Dimensions: 21 × 51mm
Ideal For
- Breadboard prototyping without soldering
- Quick project development and testing
- Learning microcontroller programming
- Projects requiring easy debug access
