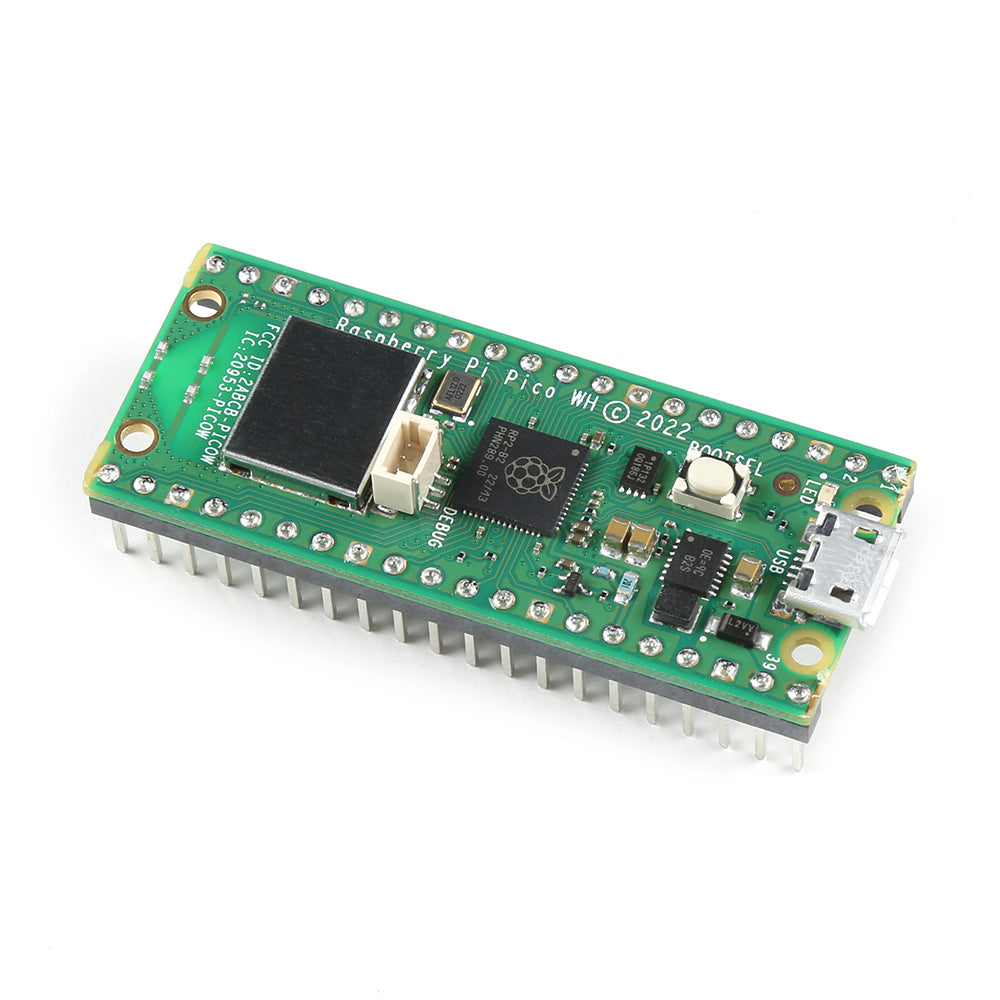

Raspberry Pi Pico WH
The Raspberry Pi Pico WH combines wireless connectivity with pre-soldered headers for immediate breadboard use. Featuring the RP2040 microcontroller and Infineon CYW43439 wireless chip, it supports 2.4GHz Wi-Fi and Bluetooth 5.2 including both Classic and BLE modes.
With factory-installed male headers, the Pico WH is ready for prototyping straight out of the box. Perfect for IoT projects, connected sensors, and wireless applications where soldering isn't practical.
Key Features
- Pre-Soldered Headers – Ready for breadboard use immediately
- Built-in Wi-Fi – 2.4GHz 802.11 b/g/n wireless LAN
- Bluetooth 5.2 – Classic and BLE with Central/Peripheral roles
- RP2040 Microcontroller – Dual-core ARM Cortex-M0+ @ 133MHz
- 264KB SRAM – High-performance multi-bank memory
- 2MB Flash – Onboard QSPI flash storage
- 26 GPIO Pins – Including 3 analogue inputs
- Low Power Modes – Sleep and dormant for battery applications
Specifications
- Processor: Dual-core ARM Cortex-M0+ @ 133MHz
- Wireless: Infineon CYW43439 (Wi-Fi 802.11n, Bluetooth 5.2)
- Memory: 264KB SRAM, 2MB flash
- GPIO: 26 pins (23 digital, 3 ADC-capable)
- ADC: 12-bit, 500ksps
- Peripherals: 2× UART, 2× I2C, 2× SPI, 16× PWM channels
- PIO: 8 state machines (2 blocks)
- Power: 1.8–5.5V via Micro-USB or pins
- Headers: 0.1" (2.54mm) pitch, pre-soldered
Ideal For
- Breadboard prototyping of wireless projects
- IoT devices and connected sensors
- Bluetooth peripherals and beacons
- Quick wireless project development
