Raspberry Pi Touch Display 2 - 5 inch

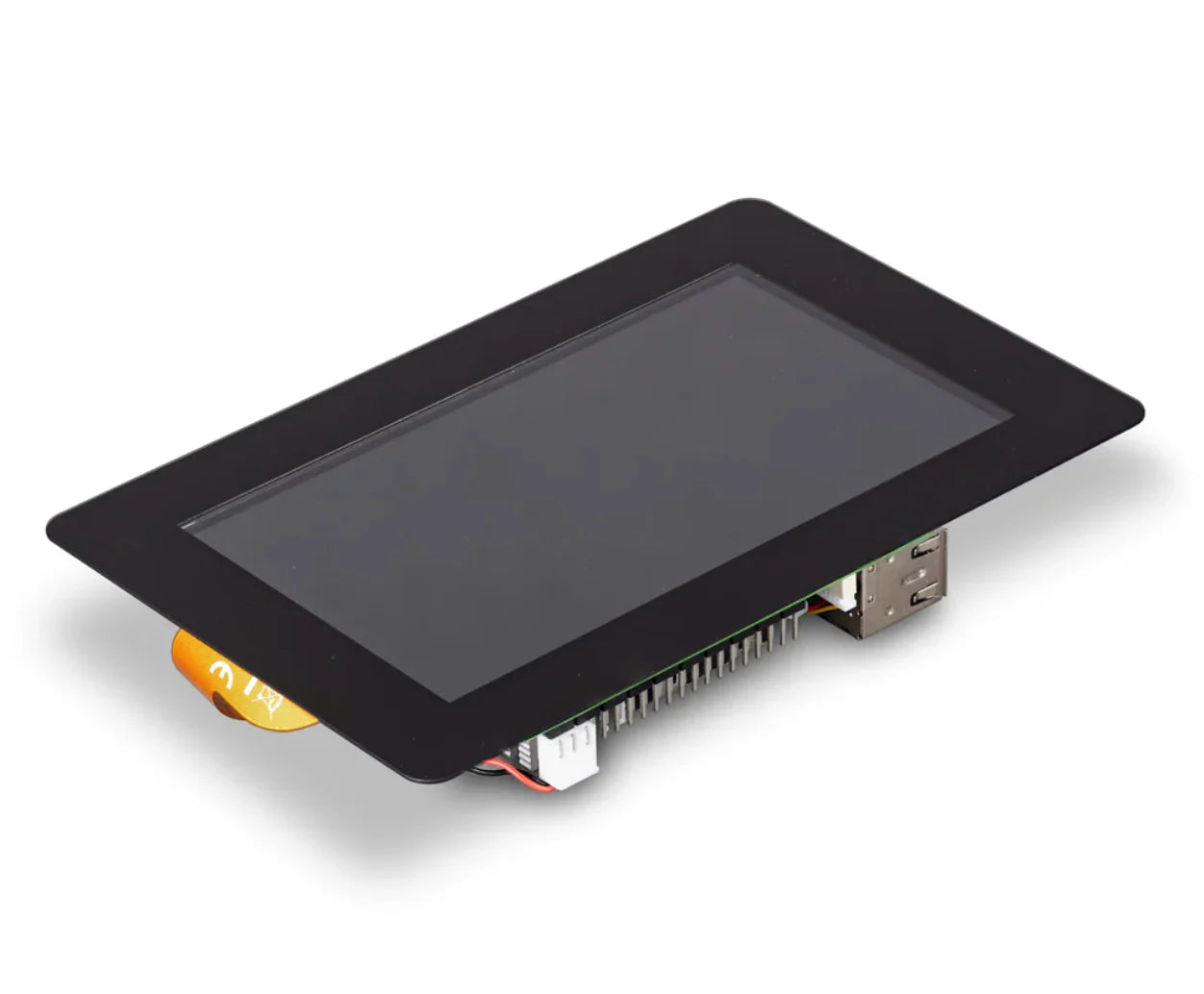

The 5-inch Raspberry Pi Touch Display 2 is the compact version of the official 7-inch model, offering the same sharp 720×1280 resolution in a smaller form factor. Its bright capacitive touchscreen supports five-finger multi-touch, ideal for projects where space is limited.
Connecting with just two cables—GPIO power and DSI ribbon—the display is powered directly by your Raspberry Pi without a separate supply. Raspberry Pi OS includes built-in touchscreen drivers with seamless multi-touch and on-screen keyboard support.
Key Features
- 5" IPS Display – 720×1280 resolution with anti-glare surface
- Five-Finger Multi-Touch – Capacitive touchscreen with 35ms response
- No External Power – Powered directly by the Raspberry Pi
- Simple Connection – DSI ribbon cable and GPIO power

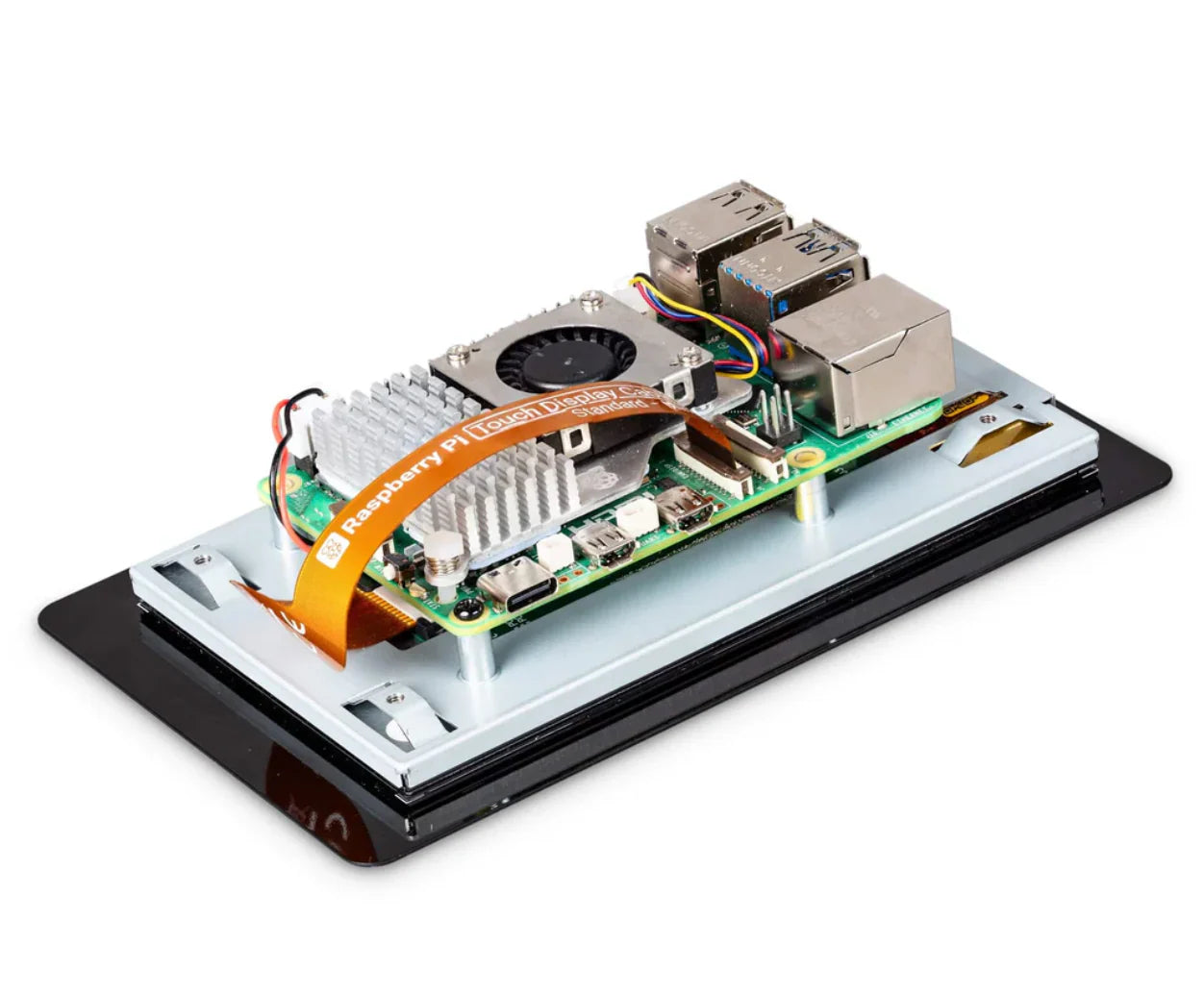

- Rear Mounting – Mount Pi on back with space for Active Cooler and HATs
- High Brightness – 500 cd/m² typical for outdoor visibility
Specifications
- Display Size: 5 inches (diagonal)
- Resolution: 720 × 1280 pixels
- Active Area: 110.4 × 62.1mm
- LCD Type: TFT, transmissive, normally black
- Touch: Capacitive, 5-point multi-touch (35ms response)
- Viewing Angle: 80°
- Brightness: 500 cd/m² (typical)
- Colour: 24-bit RGB
- Operating Temperature: -20°C to +70°C
Package Contents
- 1× Raspberry Pi Touch Display 2 (5")
- 1× DSI cable (for Pi 5)
- 1× DSI cable (for Pi 4/3/3B+/2)
- 1× GPIO power cable
- 8× M2.5 mounting screws
Compatible With
- Raspberry Pi 5
- Raspberry Pi 4 Model B
- Raspberry Pi 3 Model B/B+
- Raspberry Pi 2 Model B
