Relay Module with cycle delay timing switch self-locking and more

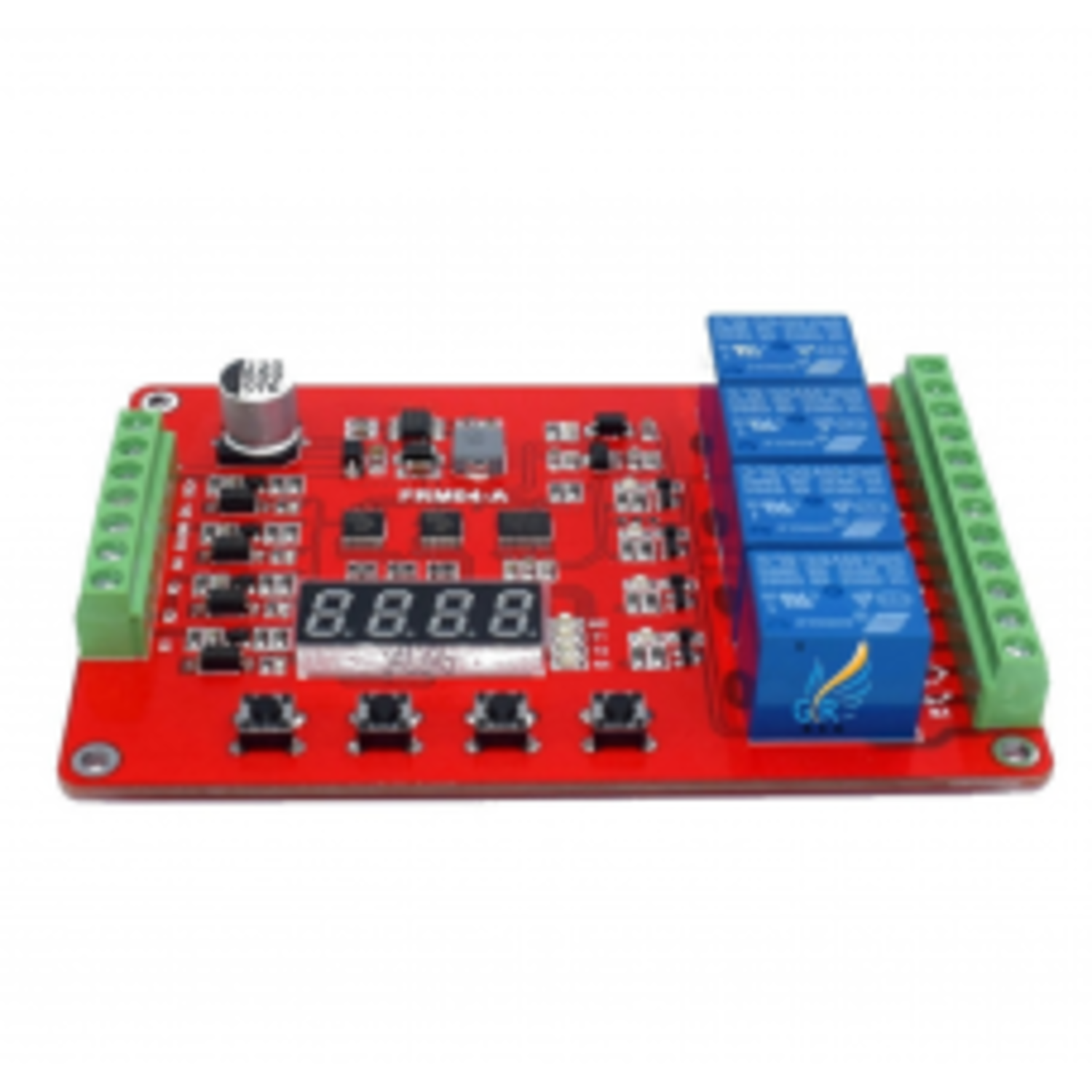

This versatile relay module offers 18 programmable operating modes for timing, cycling, and switching applications. With an integrated display and keypad, you can configure delay times, cycle counts, and trigger behaviours—all with timing precision down to 0.1 seconds.

Whether you need a simple delayed switch, a repeating cycle timer, or trigger-activated control, this module provides the flexibility to handle a wide range of automation tasks.

Key Features

• 18 Operating Modes – Comprehensive selection of timing and switching functions
• Precision Timing – 0.1-second resolution with better than 0.01s accuracy
• Wide Time Range – From 0.1 seconds up to 270 hours
• Cycle Control – Programmable repetitions from 1 to 9999 cycles
• Built-in Display – Configure settings directly on the module
• Multiple Trigger Inputs – Four configurable ports (X1-X4) for pulse signals

Operating Modes

• Auto-Start (Modes 1-8) – Activate on power-up with delay, timed cycling, and repeat patterns
• Trigger-Based (Modes 9-18) – Respond to external pulse signals with self-locking, level control, and delayed disconnection options

Specifications

• Timing Range – 0.1 seconds to 270 hours (infinite modes), 0.1–9999 seconds (cycle modes)
• Cycle Count – 1–9999 repetitions
• Trigger Inputs – 4 ports (X1-X4), minimum 2ms pulse
• Weight – 91g

Ideal For

• Automated lighting and irrigation systems
• Timed equipment control
• Cycling and repeating operations
• Trigger-activated switching
