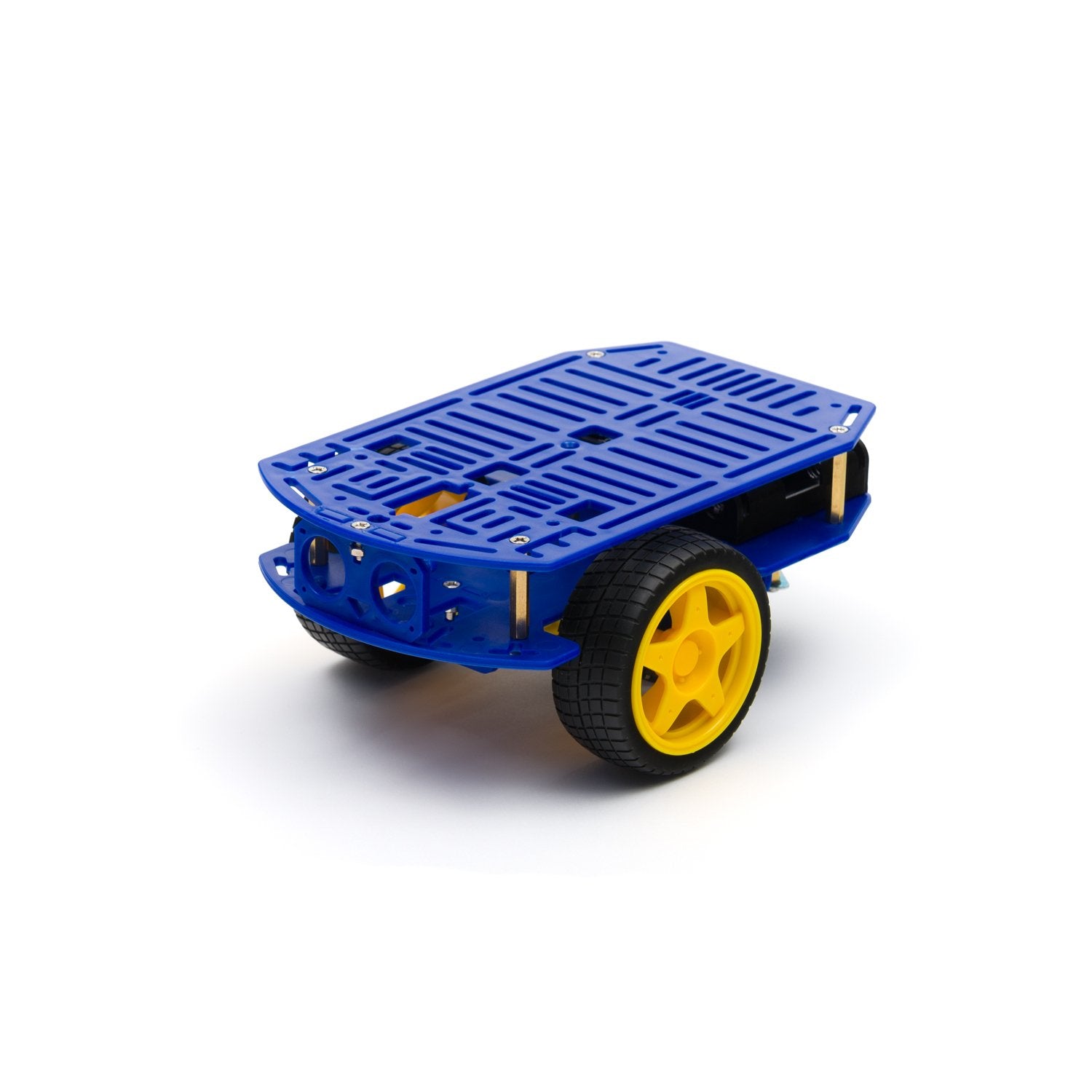

Robot Chassis with 2 wheels
This 2-wheel robot chassis in blue provides a sturdy acrylic platform for building mobile robots. The kit includes two geared DC motors with rubber tyres, ready for connection to Arduino, micro:bit, Raspberry Pi, or other microcontrollers via a motor driver.
Key Features
- Acrylic Platform – Durable 175 × 109 × 3mm base with mounting holes
- Geared DC Motors – 90 RPM no-load speed with good torque
- Rubber Tyres – Solid rubber on plastic rims for grip
- Universal Compatibility – Works with Arduino, micro:bit, Raspberry Pi, and more
Motor Specifications
- Operating Voltage: 4.5V (gearbox 4.8–7.2V)
- No-Load Current: 190mA (max 250mA)
- Stall Current: ~1A
- No-Load Speed: 90 ±10 RPM
- Torque: 800 gf·cm
Dimensions
- Chassis: 175 × 109 × 3mm
- Wheel Size: 67 × 26mm
- Colour: Blue
Package Contents
- 1× Acrylic chassis base
- 2× Geared DC motors
- 2× Wheels with rubber tyres
- 1× Manual
Ideal For
- Learning robotics and motor control
- Line-following robots
- Obstacle-avoiding robots
- STEM education projects
