RP2040 Microcontroller Camera Development Board, Onboard HM01B0 Gra...

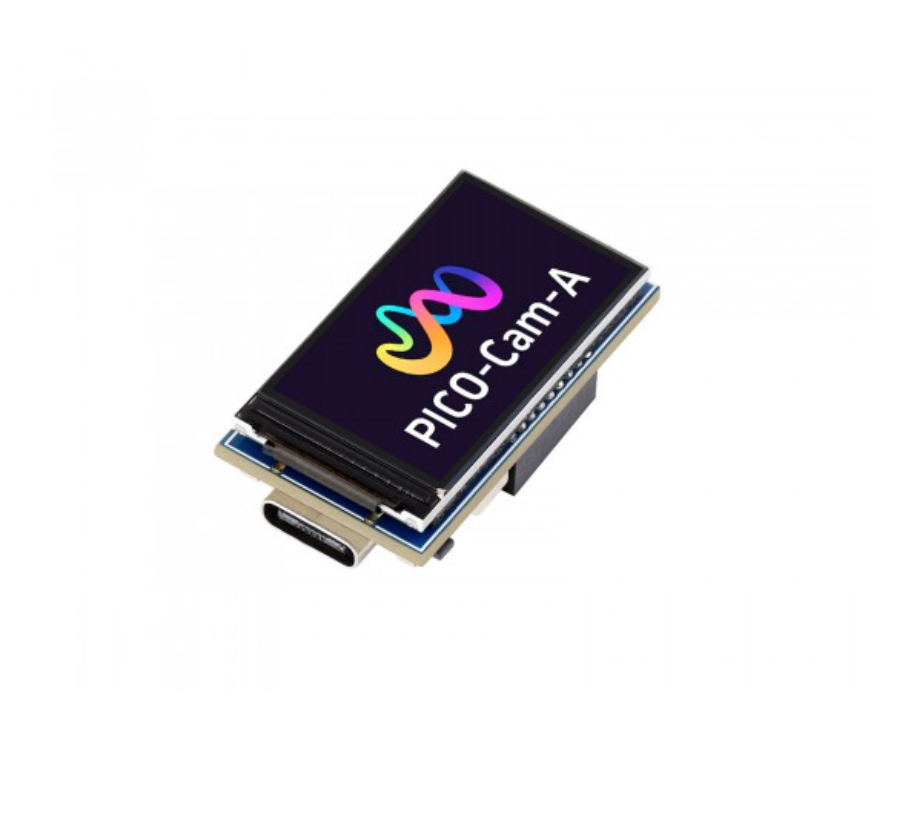

The PICO-CAM-A is an RP2040-based camera development board featuring an onboard HM01B0 grayscale camera and 1.14-inch IPS LCD display. This compact board is ideal for image capture applications, computer vision experiments, and embedded display projects.
Powered by the dual-core ARM Cortex-M0+ RP2040 running at up to 133MHz, with 264KB SRAM and 16MB flash, the board supports drag-and-drop programming via USB and development in C/C++.
Key Features
- RP2040 Microcontroller – Dual-core ARM Cortex-M0+ @ 133MHz
- HM01B0 Grayscale Camera – Onboard camera for image capture
- 1.14" IPS LCD Display – 240 × 135 resolution, 65K colours
- 16MB Flash Storage – W25Q128 NOR-Flash onboard
- USB-C Connectivity – Modern connector with device and host support
- 13 GPIO Pins – Multi-function pins for flexible development
- 8 PIO State Machines – Custom peripheral support
- Low-Power Modes – Sleep and dormant modes for energy efficiency
Specifications
- Processor: Dual-core ARM Cortex-M0+ @ 133MHz
- SRAM: 264KB
- Flash: 16MB (W25Q128)
- Camera: HM01B0 grayscale
- Display: 1.14" IPS, 240 × 135, 65K colours
- GPIO: 13 multi-function pins
- USB: Type-C (USB 1.1, device/host)

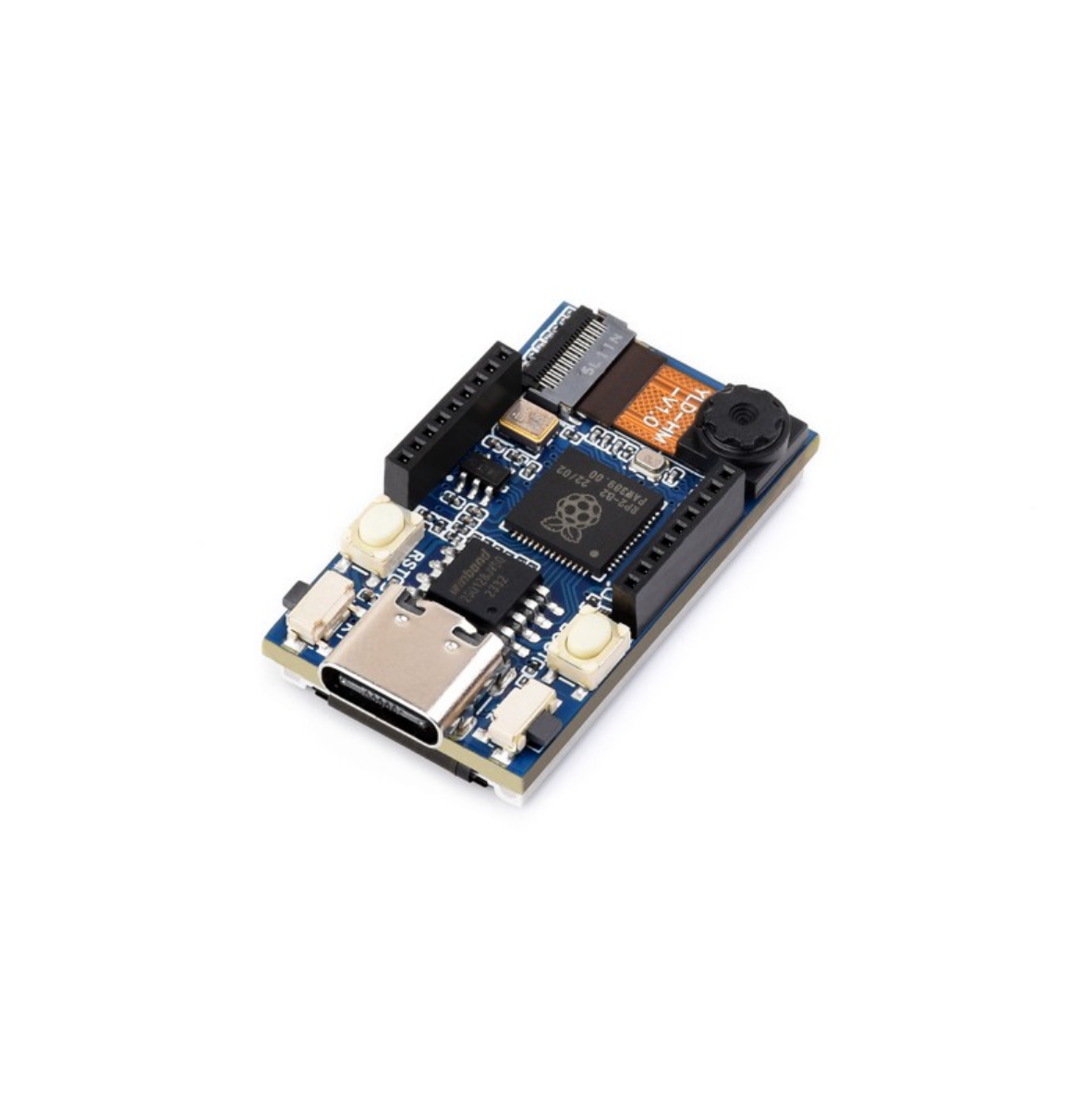

Onboard Components
- USB Type-C connector
- User button, BOOT button, RESET button
- HM01B0 grayscale camera

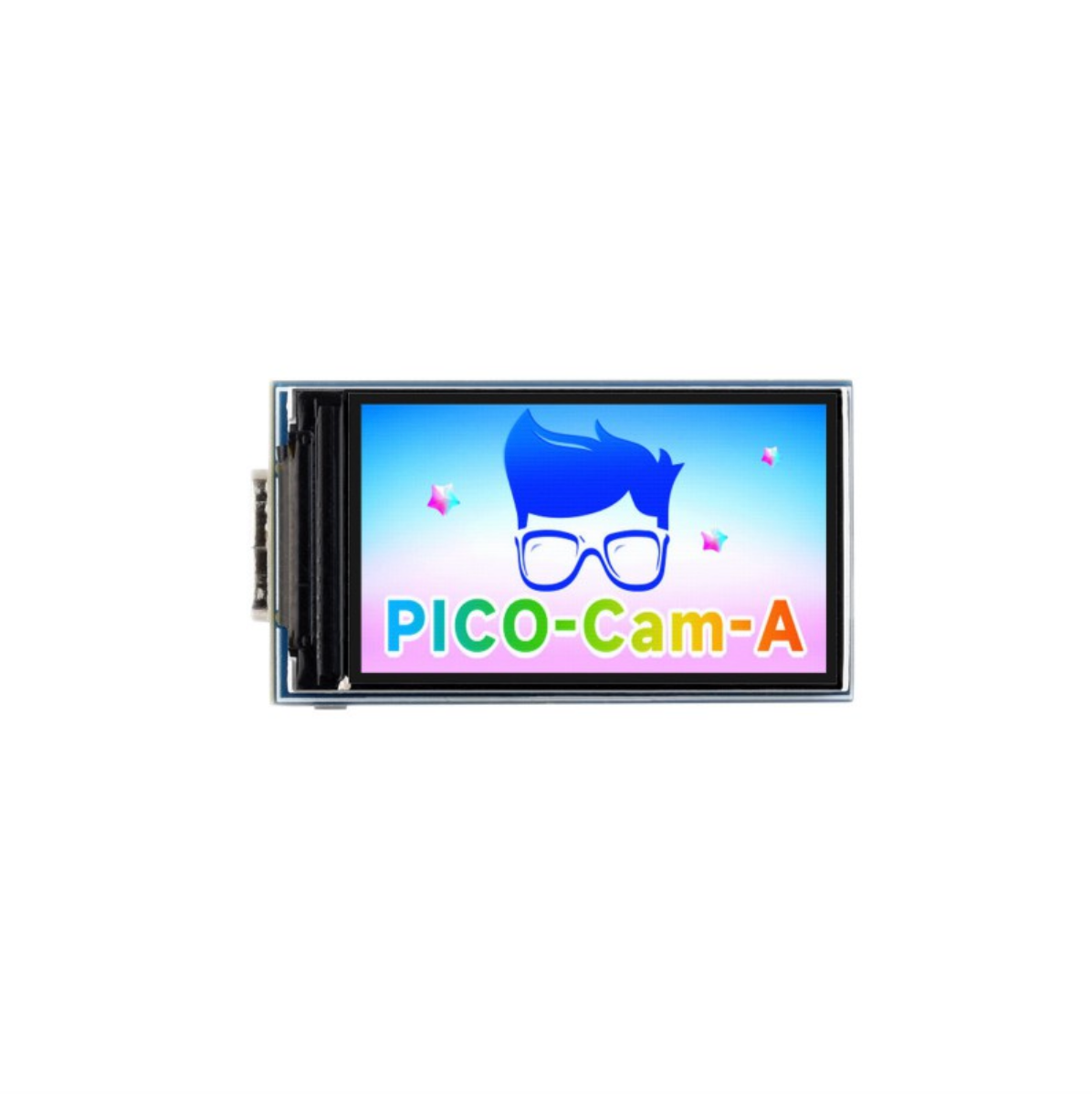

- 1.14" IPS LCD display
- Temperature sensor
Ideal For
- Image capture and processing experiments
- Computer vision learning
- Embedded display projects
- IoT devices with visual feedback
