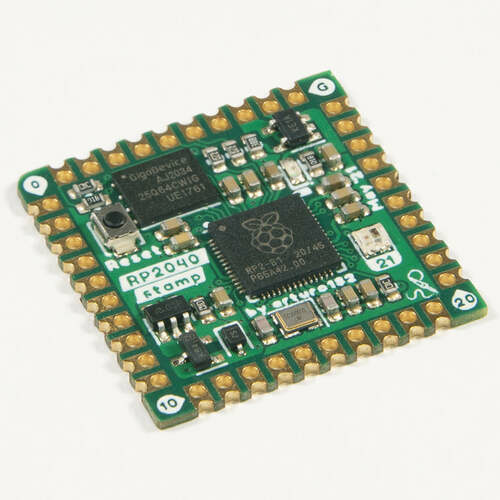

RP2040 Stamp
The RP2040 Stamp packs the full power of the Raspberry Pi RP2040 into a tiny 1×1 inch module designed for embedding in your own PCB designs. With castellated edges at 2mm pitch, it's easy to hand-solder onto your custom boards—no reflow oven required.
Beyond the RP2040 chip, this module integrates 8MB of flash, a 500mA voltage regulator, LiPo battery charging, and even a Neopixel LED—everything you need for a complete embedded system in a compact package.
Key Features
- Compact Form Factor – Just 25×25mm (1×1 inch)
- Hand-Solderable – Castellated edges with 2mm pitch
- 8MB Flash – Four times the storage of a standard Pico
- All 30 GPIOs Exposed – Full access to the RP2040's I/O
- LiPo Charging – Built-in charge management with LED indicator
- Onboard Neopixel – RGB LED for status indication
- 500mA LDO – 3.3V regulator for powering external components
Specifications
- Processor – Dual-core Arm Cortex-M0+ @ 133MHz
- Memory – 264KB SRAM, 8MB Flash
- GPIO – 30 pins exposed
- Interfaces – 2× UART, 2× SPI, 2× I2C, 16× PWM, USB
- Crystal – 12MHz oscillator
- Dimensions – 25 × 25mm
Pre-loaded Software
- CircuitPython with UF2 bootloader
Ideal For
- Custom PCB designs requiring RP2040
- Compact embedded systems
- Battery-powered wearables and portables
- Prototyping production-ready designs
