RP2350 1.8" AMOLED Touch Development Board – 368x448, QSPI, Ac...

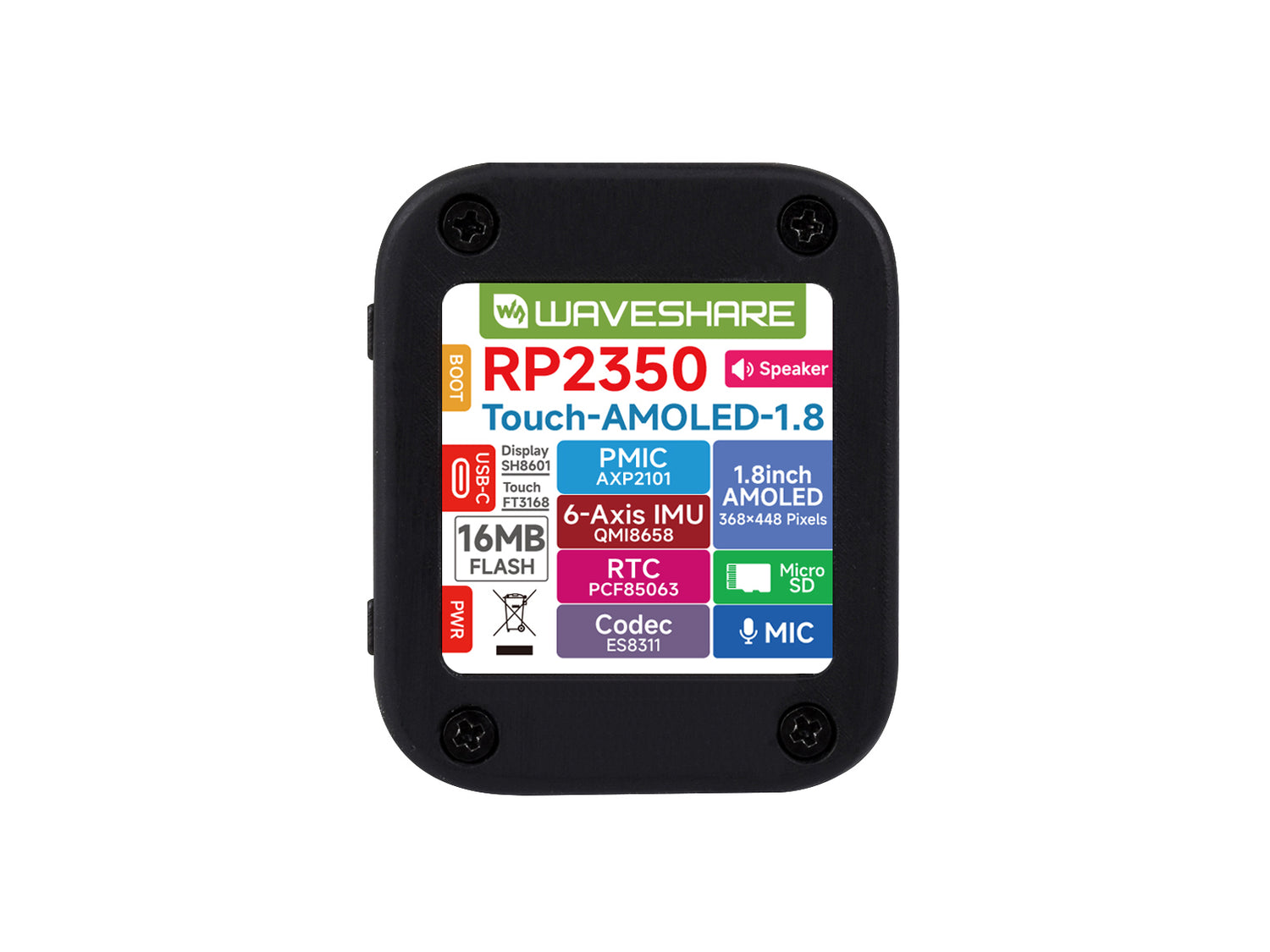

The RP2350 Touch AMOLED development board combines the powerful RP2350A microcontroller with a vibrant 1.8-inch AMOLED capacitive touch display. Featuring built-in motion sensors, audio capabilities, and expandable storage, it's an ideal platform for wearables, smart devices, and interactive prototypes.
Powered by Raspberry Pi's RP2350A with its unique dual-architecture design—dual ARM Cortex-M33 cores and dual Hazard3 RISC-V processors—the board offers flexible, high-performance computing at up to 150MHz.
Key Features
- 1.8" AMOLED Touch Display – 368 × 448 resolution, 16.7 million colours, capacitive touch
- RP2350A Microcontroller – Dual ARM Cortex-M33 + dual RISC-V cores @ 150MHz
- 6-Axis Motion Sensor – 3-axis accelerometer and 3-axis gyroscope
- Audio System – Onboard speaker, microphone, and low-power audio codec
- 520KB SRAM + 16MB Flash – Ample memory for complex applications
- TF Card Slot – Expandable storage for data logging and media
- RTC Chip – Real-time clock for time-based applications
- USB Drag-and-Drop Programming – Easy firmware updates
Specifications
- MCU: RP2350A (dual Cortex-M33 + dual RISC-V @ 150MHz)
- SRAM: 520KB
- Flash: 16MB onboard
- Display: 1.8" AMOLED, 368 × 448, capacitive touch
- Sensors: 6-axis IMU (accelerometer + gyroscope), temperature
- Audio: Speaker, microphone, audio codec
- Interface: QSPI, USB 1.1, GPIO
- Power: USB or optional 3.7V lithium battery
- Weight: 9g
Development Support
- C/C++
- MicroPython
- Arduino IDE
Ideal For
- Wearable device development
- Smart home gadgets
- Interactive prototypes
- Motion-sensing applications
Resources
