RP2350A Pico W5 Board WiFi 2.4GHz/5.8GHz/BT

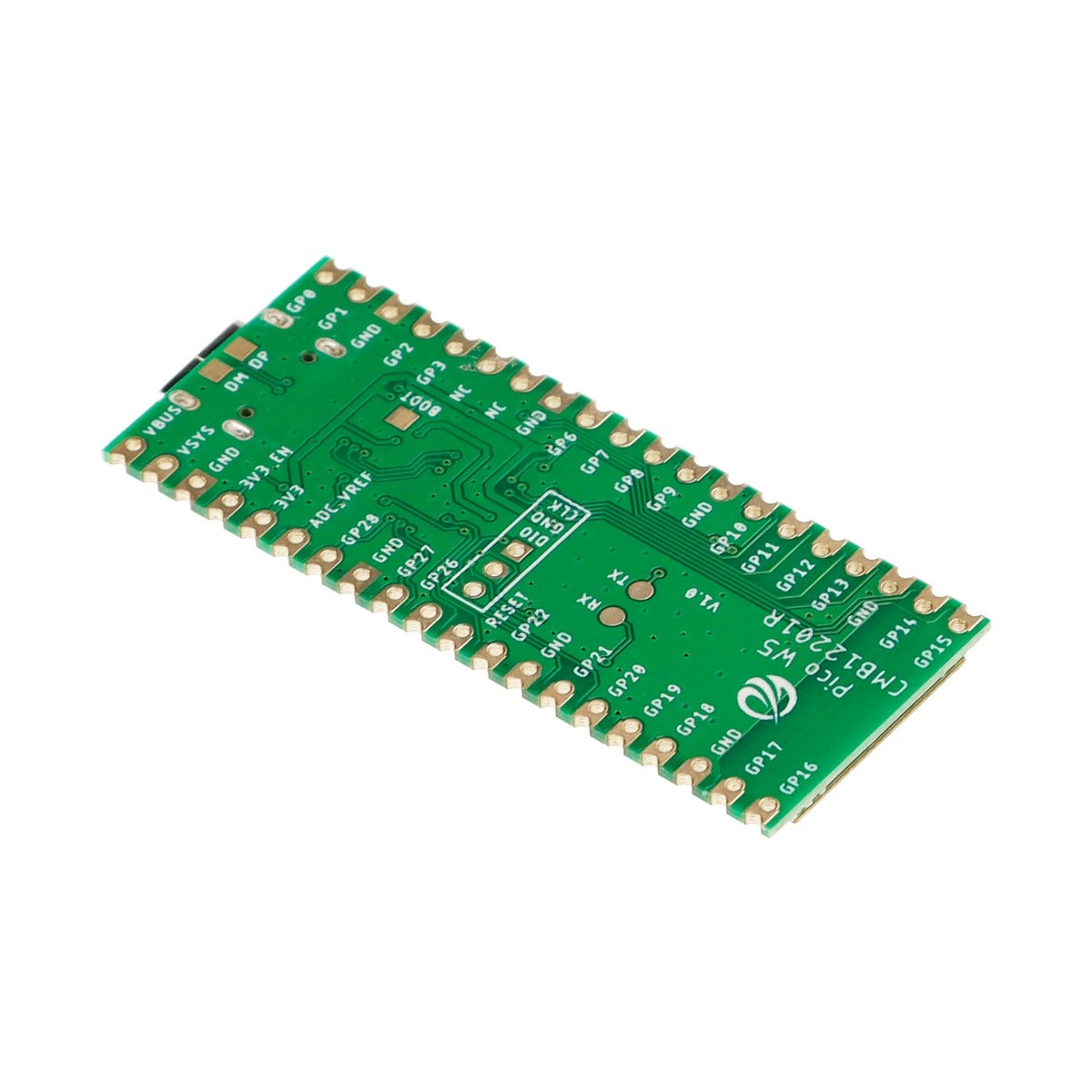

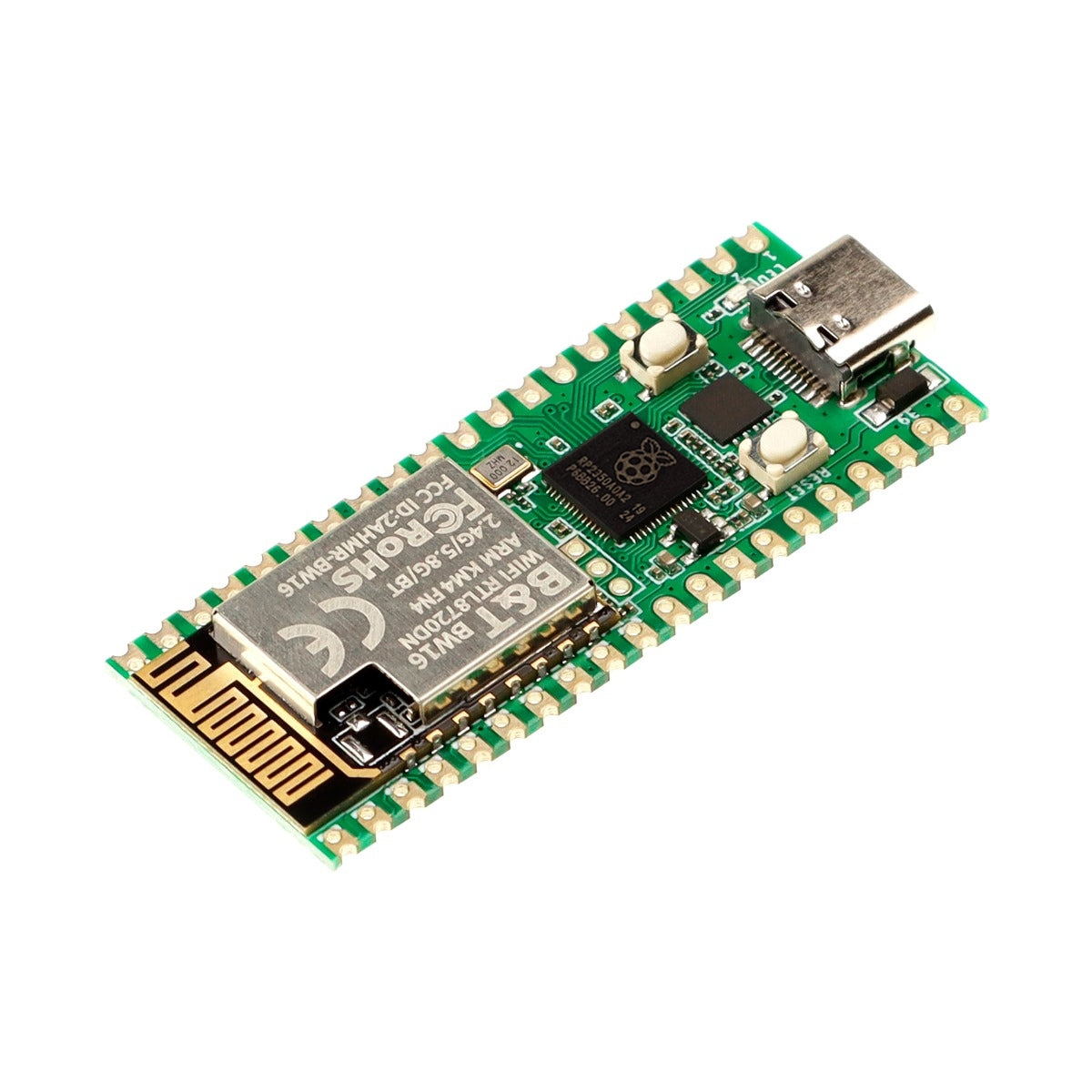

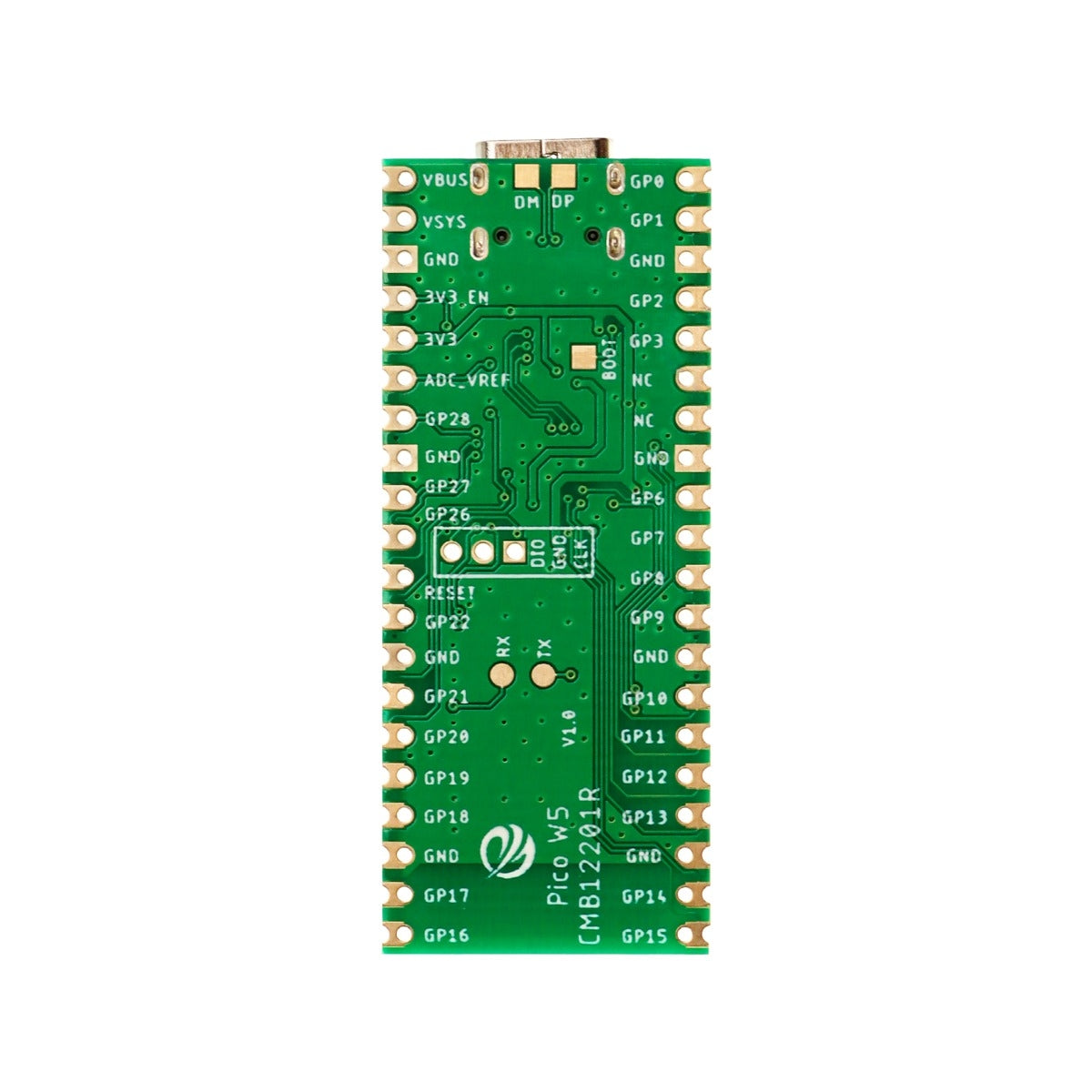

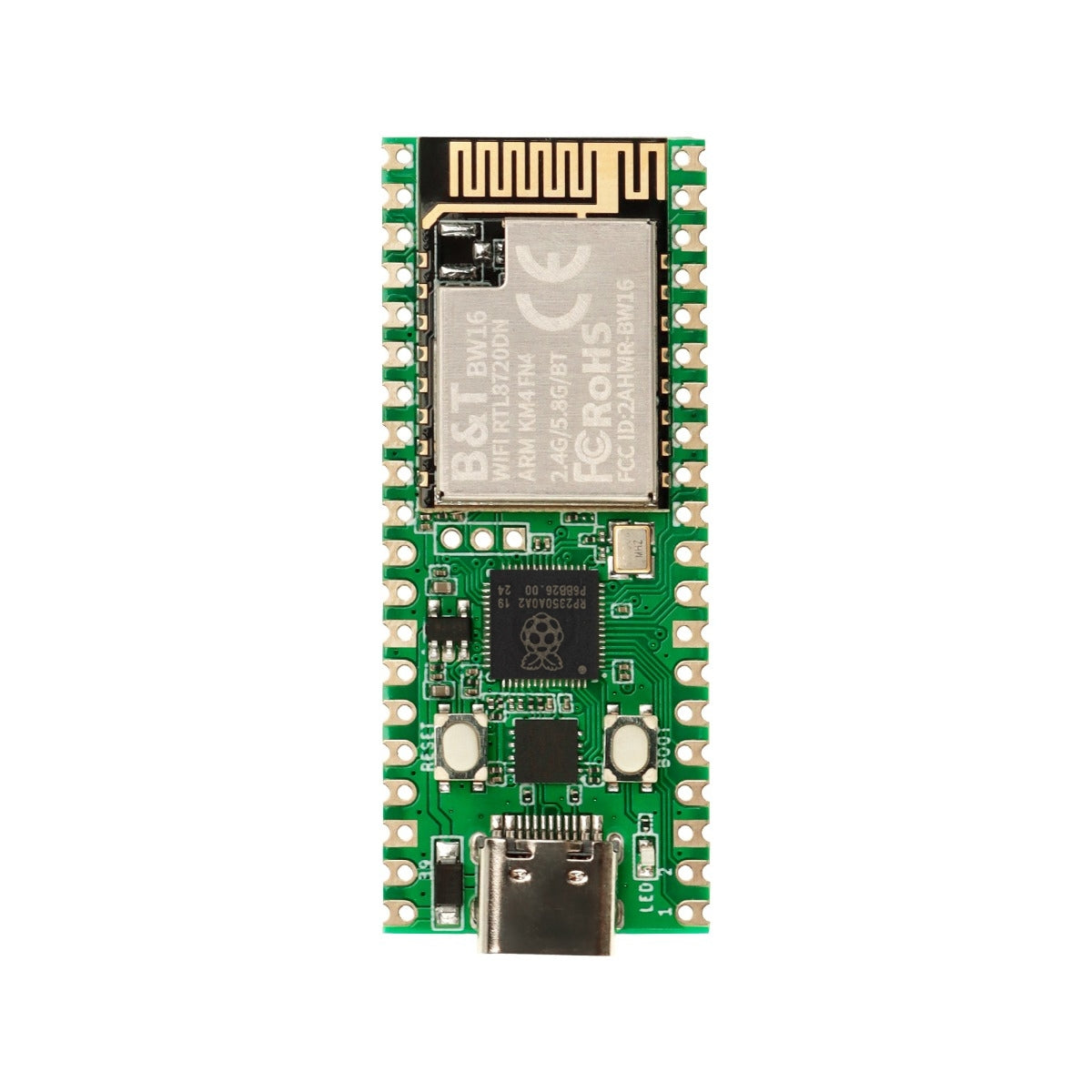

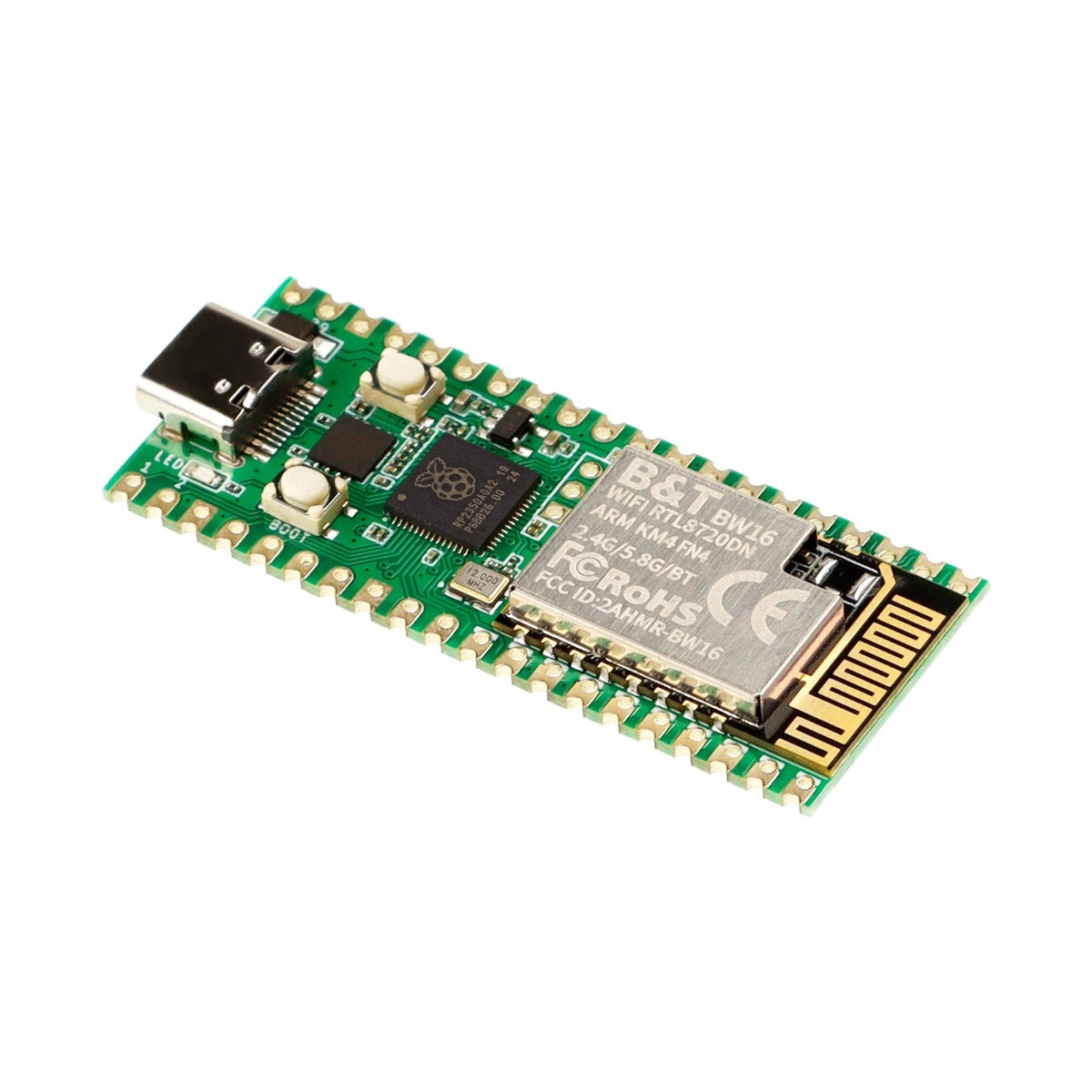

The Pico W5 is an RP2350-based development board with dual-band Wi-Fi and Bluetooth 5.0 connectivity. Maintaining the same form factor, pin layout, and dimensions as the Raspberry Pi Pico, it offers enhanced wireless capabilities with support for both 2.4GHz and 5GHz networks, plus expanded flash storage and a modern USB-C interface.
The stamp-hole design ensures compatibility with most Pico modules and carrier boards, making it an excellent drop-in upgrade for existing Pico W projects that need better wireless performance or dual-band connectivity.
Key Features
- RP2350 Microcontroller – Dual ARM Cortex-M33 or dual RISC-V cores
- Dual-Band Wi-Fi – 802.11a/b/g/n on 2.4GHz and 5GHz
- Bluetooth 5.0 – Including Bluetooth Low Energy support
- 8MB Flash – More storage than standard Pico W
- USB-C Interface – Modern connectivity standard

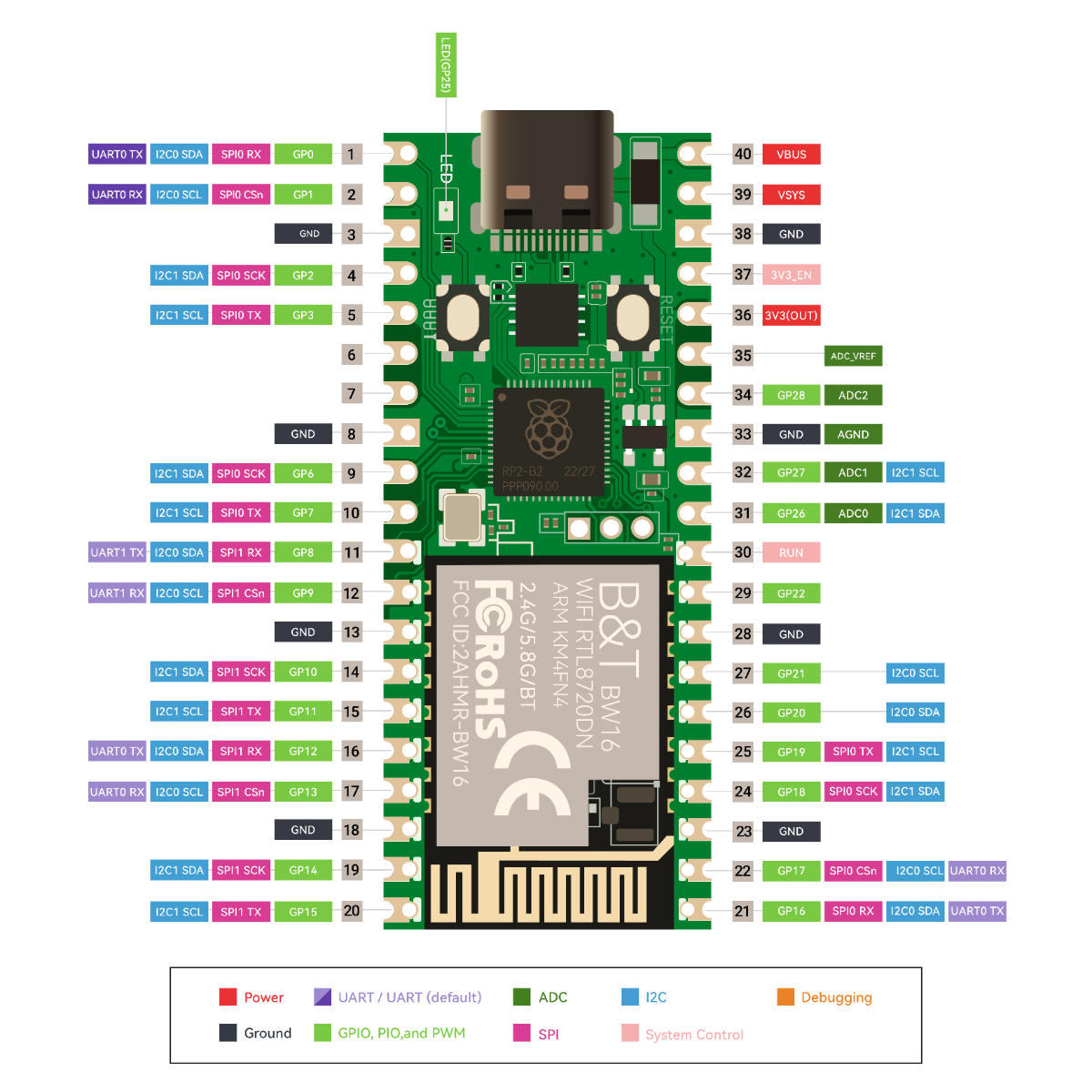

- Pico-Compatible – Same size, pinout, and form factor
- Stamp-Hole Design – Easy soldering onto custom boards
Specifications
- MCU: RP2350 (dual Cortex-M33 or dual Hazard3 RISC-V)
- SRAM: 520KB
- Flash: 8MB
- Wi-Fi: 802.11a/b/g/n (2.4GHz / 5GHz)
- Bluetooth: 5.0 + BLE
- Interface: USB Type-C
- Power: 5V / 2A via USB
- Operating Temp: -10°C to 60°C

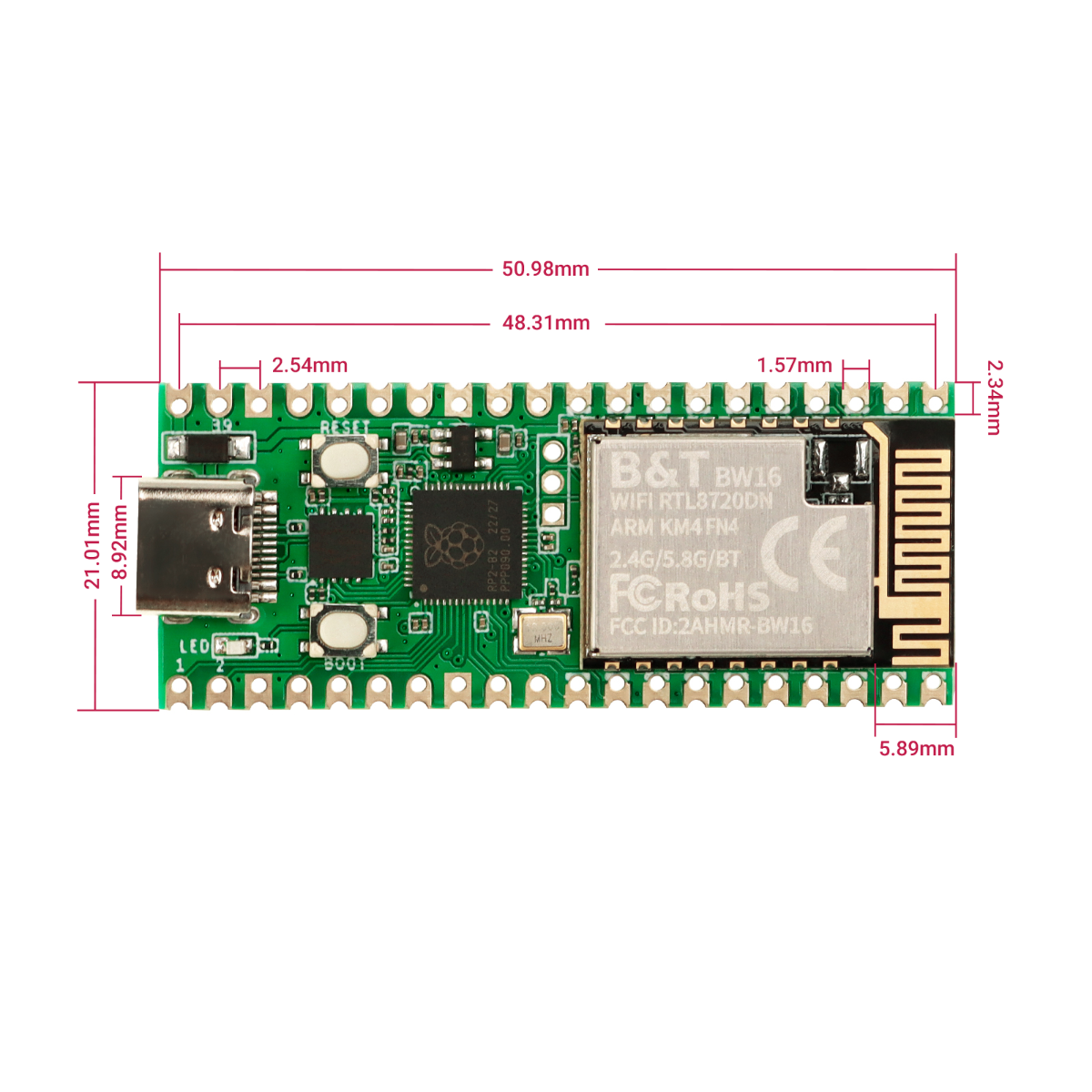

- Dimensions: 51 × 21 × 4.2mm
- Weight: 3g
Onboard Features
- Reset button
- Boot button (for firmware updates)
- User LED
Development Support
- C/C++
- MicroPython
Ideal For
- IoT and smart home devices
- Edge computing and edge AI
- STEM education and robotics
- Low-power embedded systems
- Rapid prototyping
