RTL-SDR BLOG V3 USB Dongle with Dipole Antenna Kit
The RTL-SDR Blog V3 is a software defined radio (SDR) USB dongle designed specifically for SDR experimentation and radio hobbyists. Unlike standard DVB-T dongles, the V3 features a temperature-compensated oscillator, aluminium housing, and improved components for better reception and stability.
This kit includes the Blog V3 dongle plus a complete VHF/UHF dipole antenna kit, making it ideal for beginners exploring software defined radio, amateur radio enthusiasts, and anyone interested in receiving terrestrial and satellite signals.
Key Features
- TCXO Oscillator – Less than 1 PPM temperature drift for stable reception
- Wide Frequency Range – 500 kHz to 1766 MHz (HF mode: 500 kHz – 24 MHz)
- R820T2 Tuner – High-quality tuner chip for improved sensitivity
- USB Bias Tee – 4.5V powered for active antennas and LNAs
- Aluminium Case – Better shielding and passive cooling
- SMA Female Port – Standard connector for antenna accessories
- Cross-Platform – Windows, Linux, macOS, Android, and Raspberry Pi
Specifications
- Tuner: R820T2
- ADC: RTL2832U (8-bit)
- Frequency Range: 500 kHz – 1766 MHz
- HF Direct Sampling: 500 kHz – 24 MHz
- Bandwidth: Up to 2.4 MHz stable
- Input Impedance: 50 Ohms
- Current Draw: 270–280 mA
- Oscillator: TCXO (<1 PPM)

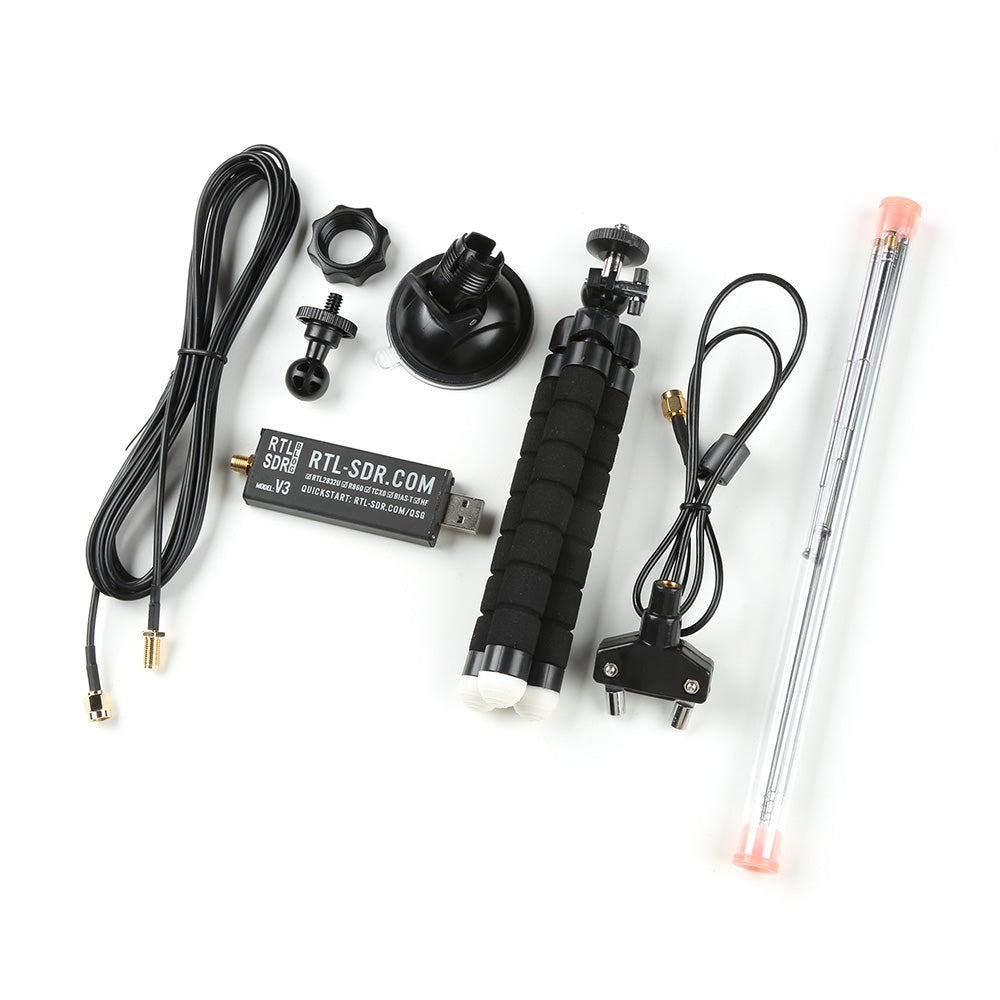

Package Contents
- 1× RTL-SDR Blog V3 USB Dongle
- 2× Telescopic antennas (23cm–1m)
- 2× Telescopic antennas (5cm–13cm)
- 1× Dipole antenna base with 60cm RG174 cable
- 1× 3m RG174 extension cable
- 1× Flexible tripod mount
- 1× Suction cup mount
Ideal For
- Learning software defined radio
- Amateur radio reception
- Aircraft tracking (ADS-B)
- Weather satellite reception
- FM/AM broadcast monitoring
Resources
