Seeed XIAO RP2040 - Supports Arduino, MicroPython and CircuitPython

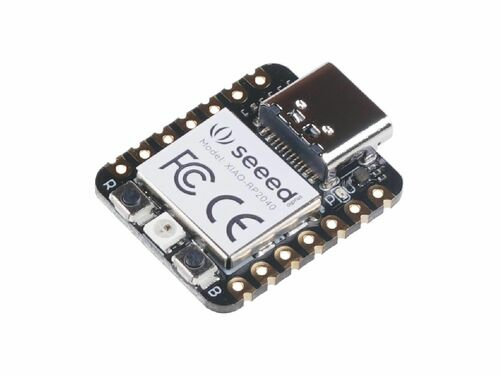

The Seeed XIAO RP2040 packs the power of the Raspberry Pi RP2040 into a thumb-sized board measuring just 20×17.5mm. Despite its tiny footprint, it features a dual-core processor, USB-C connectivity, and full support for Arduino, MicroPython, and CircuitPython.
Perfect for wearables, compact projects, and designs where every millimetre counts, the XIAO RP2040 delivers serious capability in minimal space.
Key Features
- Ultra-Compact – Just 20×17.5mm, smaller than a postage stamp
- Dual-Core RP2040 – Arm Cortex-M0+ running at up to 133MHz
- USB-C Connector – Modern connection for power and programming
- Multi-Platform Support – Arduino, MicroPython, CircuitPython, and C/C++
- Onboard RGB LED – Built-in addressable LED for status indication
- Reset and Boot Buttons – Easy firmware flashing
Specifications
- Processor – Dual-core Arm Cortex-M0+ @ 133MHz
- Memory – 264KB SRAM, 2MB Flash
- Digital Pins – 11
- Analog Pins – 4
- PWM Pins – 11
- Interfaces – 1× I2C, 1× UART, 1× SPI
- Dimensions – 20 × 17.5mm
Package Contents
- 1× Seeed XIAO RP2040
- 2× 7-pin headers
Ideal For
- Wearable electronics
- Space-constrained projects
- Breadboard prototyping
- Battery-powered portable devices
