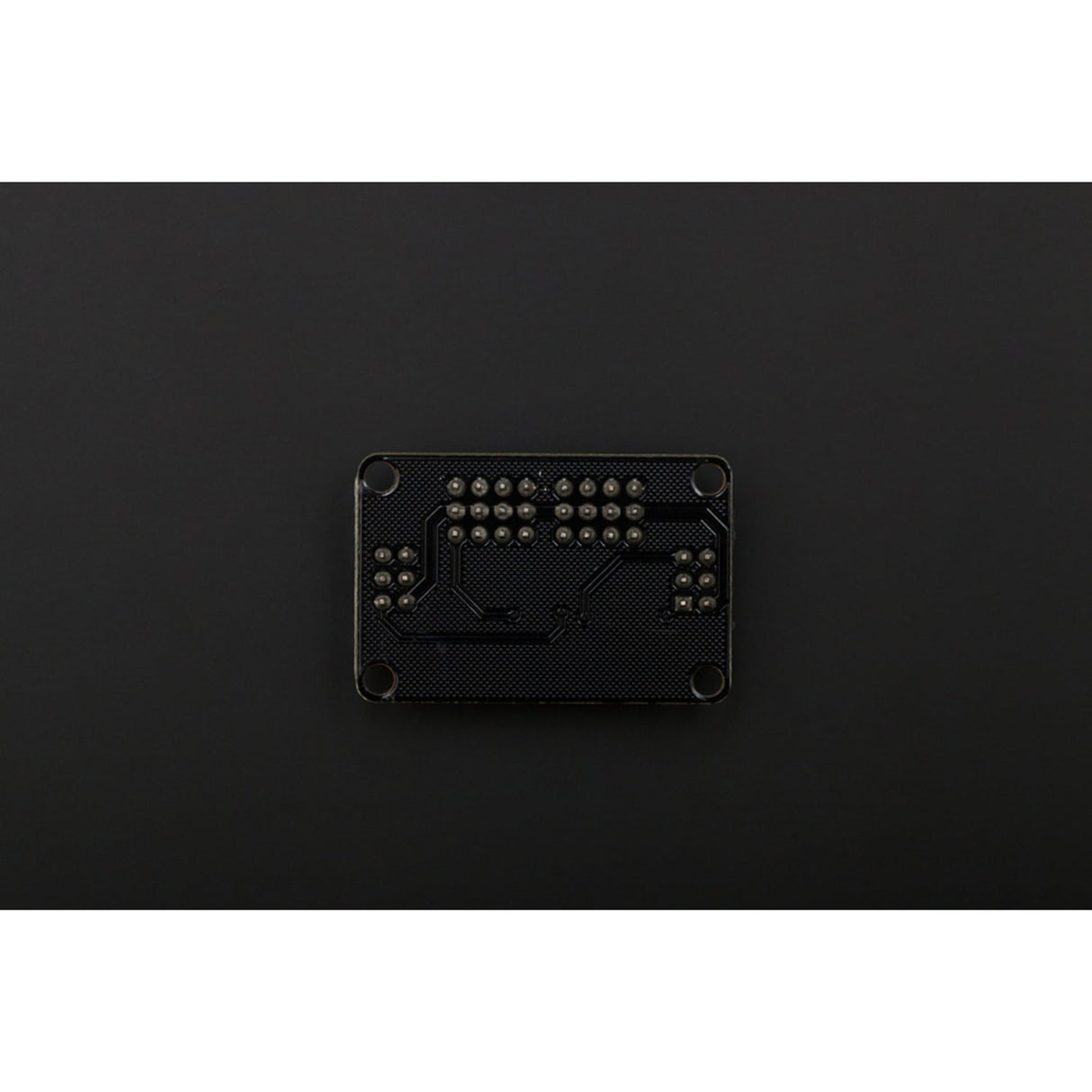

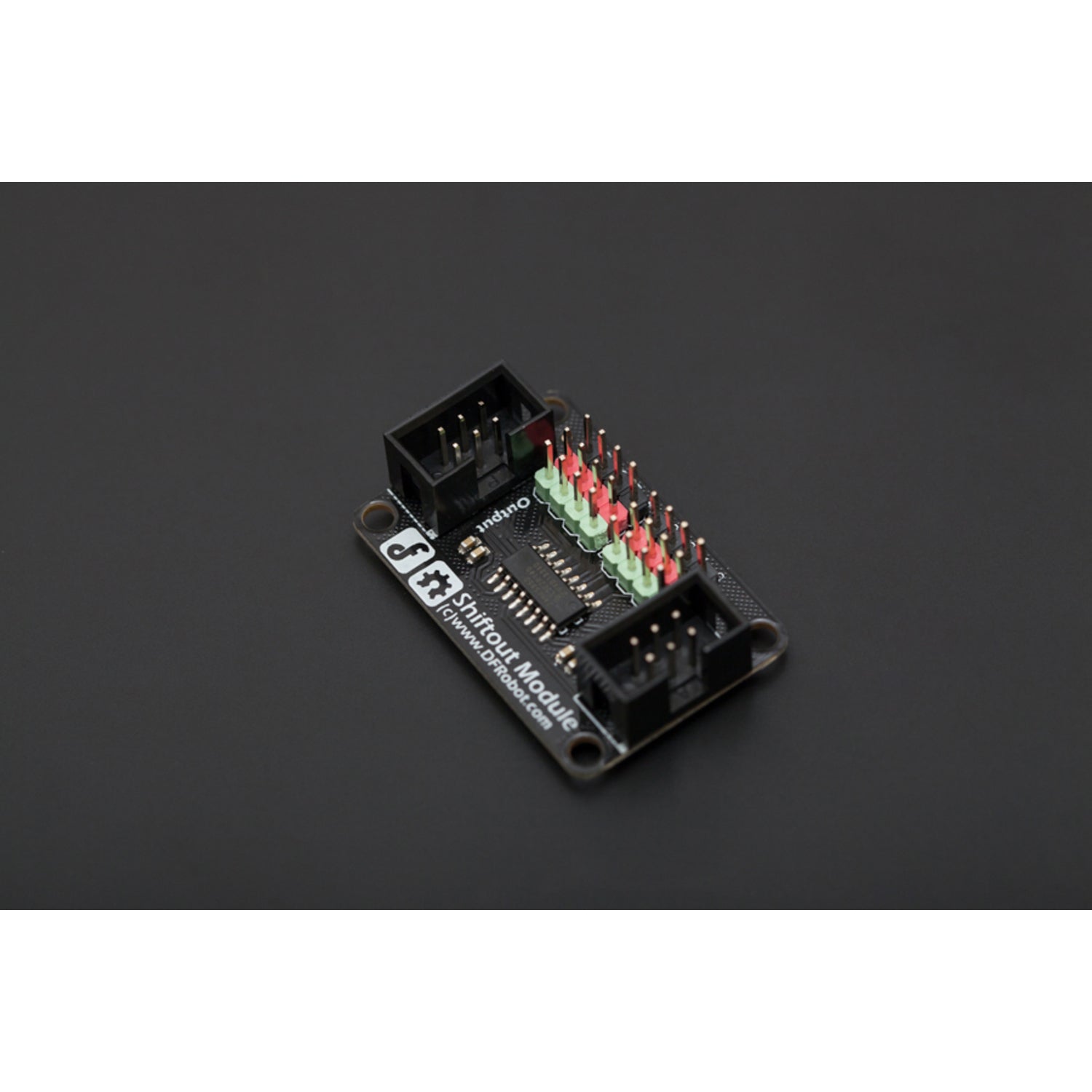

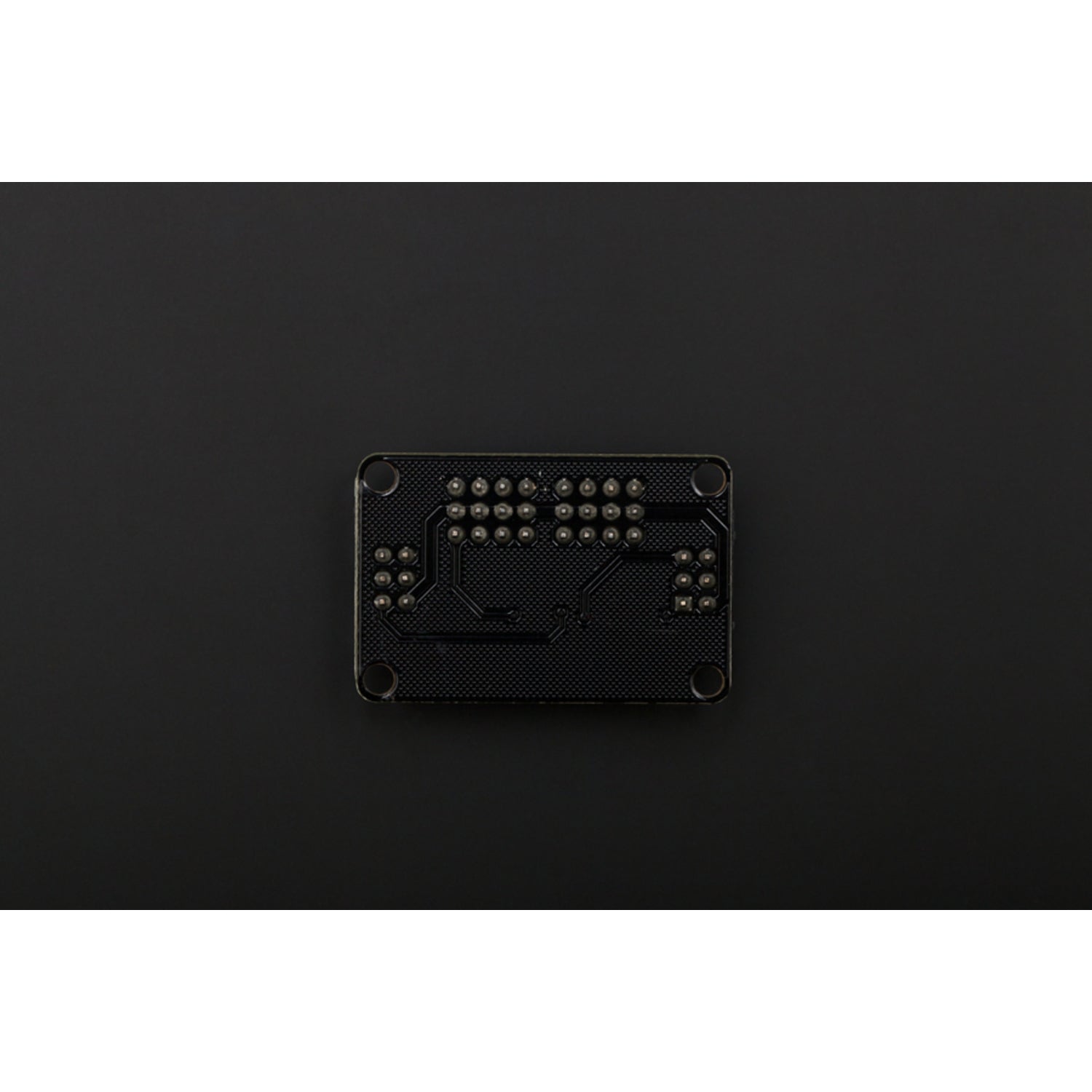

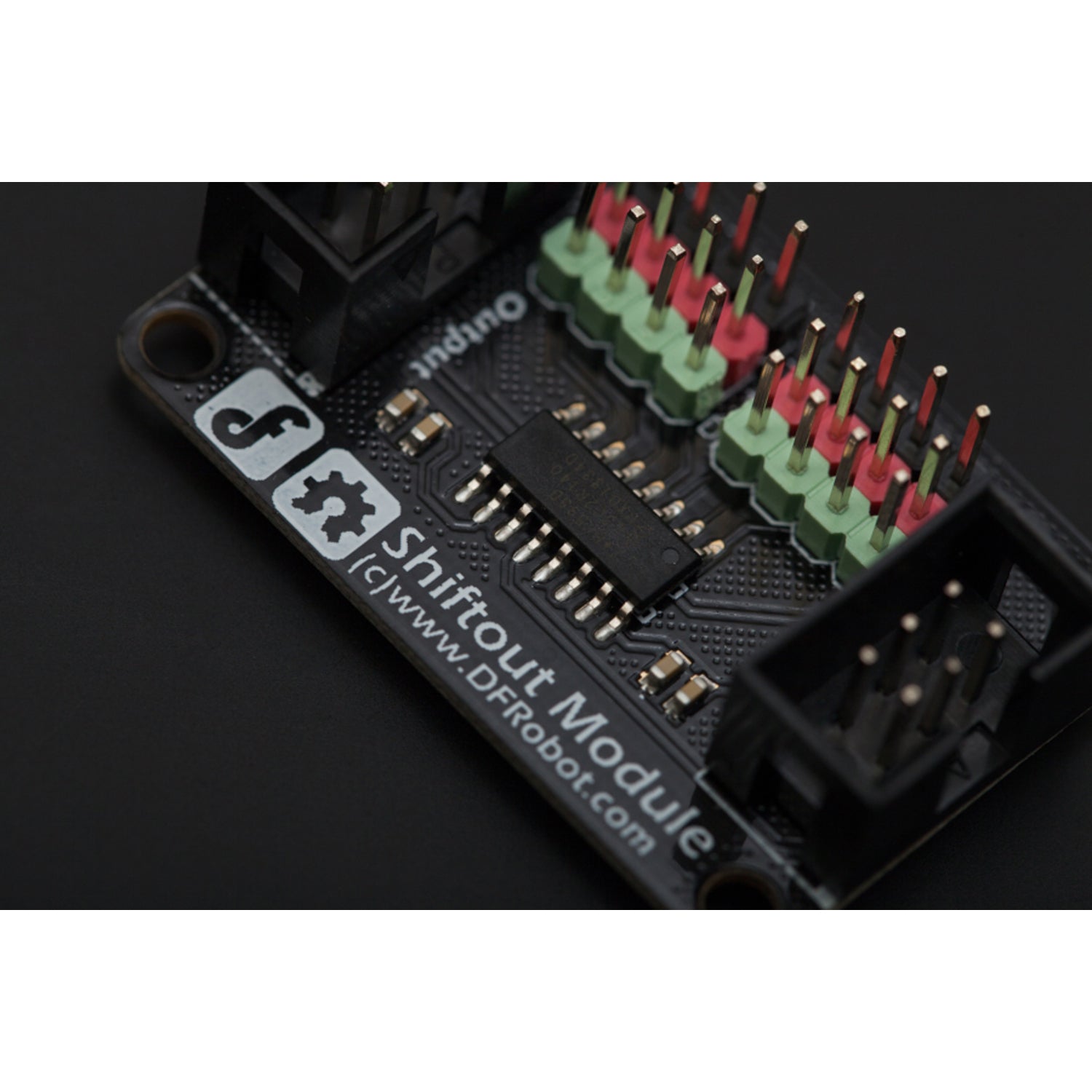

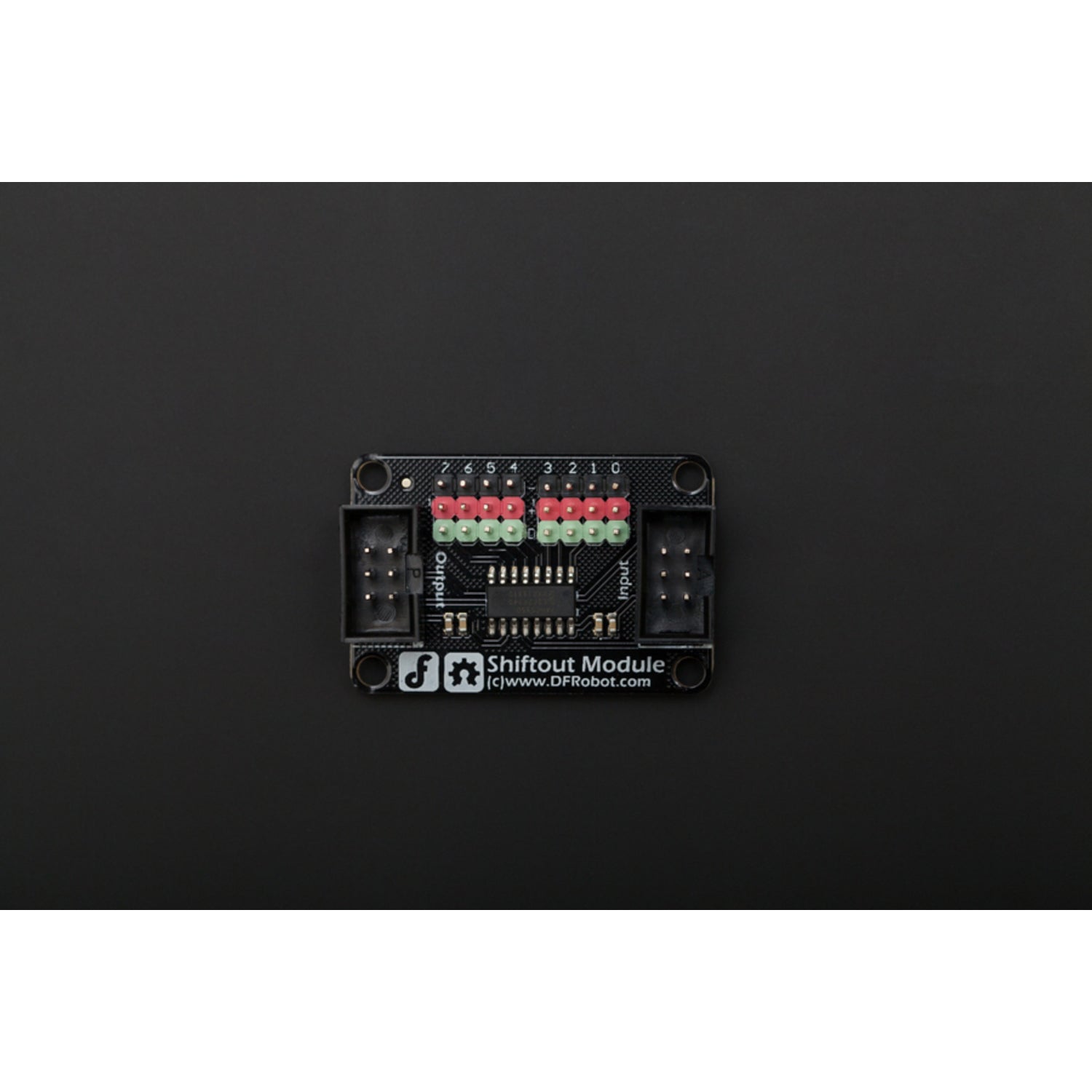

Shiftout Module For Arduino Raspberry Pi- DFRobt
This ShiftOut Module uses a 74HC595 shift register to expand your microcontroller's output capability. Control 8 digital outputs while using only a few GPIO pins—and chain multiple modules together for even more outputs.
A practical solution when your Arduino or Raspberry Pi project needs more digital outputs than available pins, without the complexity of I2C or SPI expanders.
Key Features
- 8 Extra Outputs – Control 8 digital outputs per module
- Daisy-Chainable – Link multiple modules for expanded output capacity
- Minimal Pin Usage – Uses only a few microcontroller pins
- IDC6 Interface – Easy connection with ribbon cables
- Compact Design – Small footprint for tight spaces
Specifications
- Chip – 74HC595 shift register
- Voltage – 5V
- Input Interface – IDC6
- Output Interface – IDC6
- Dimensions – 41 × 22mm
Compatibility
- Arduino (pairs with Interface Shield)
- Raspberry Pi
- Other 5V microcontrollers
Ideal For
- LED arrays and displays
- Projects requiring many digital outputs
- Relay control systems
- Expanding GPIO on pin-limited boards
