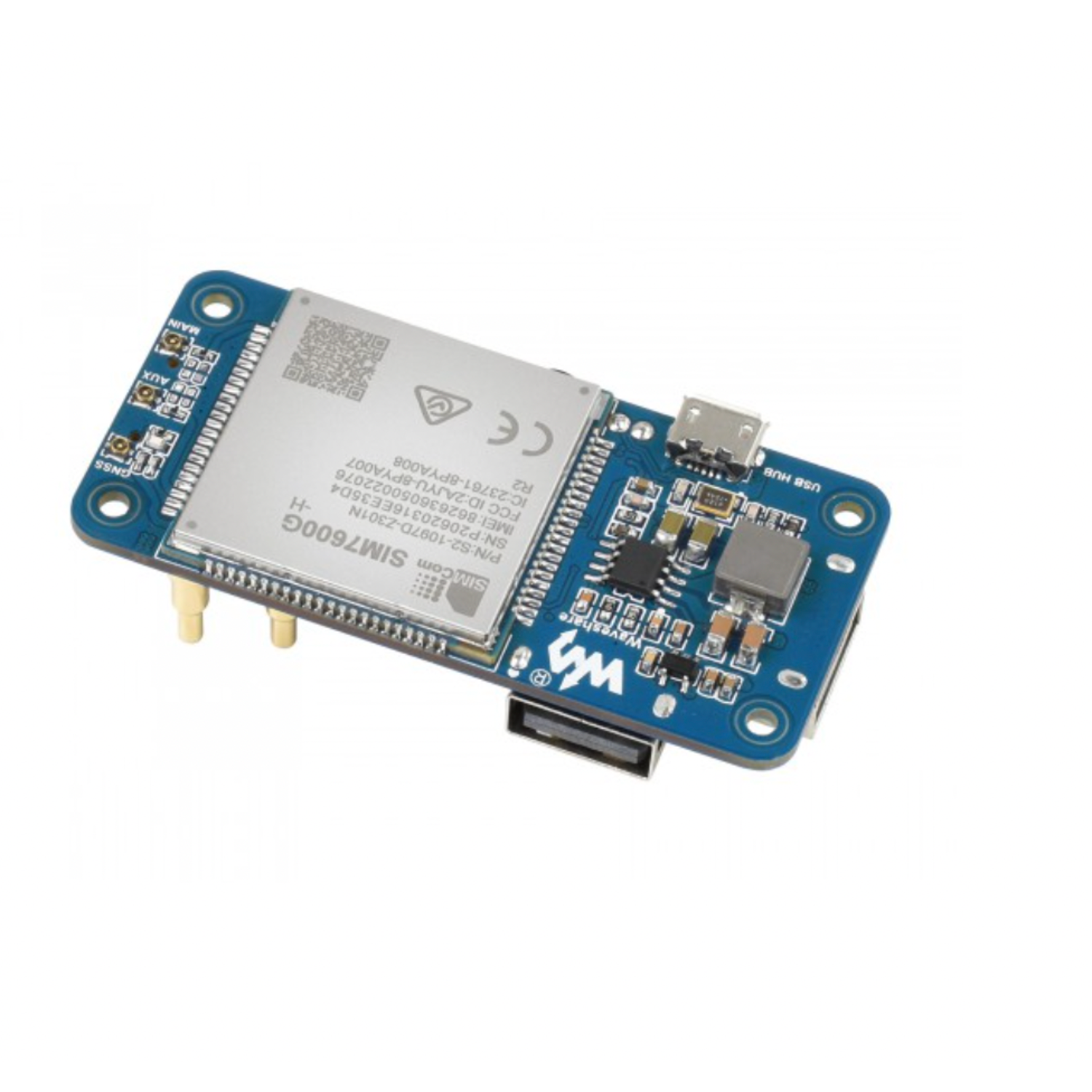

The SIM7600G-H 4G HAT (B) provides LTE Cat-4 cellular connectivity and GNSS positioning for Raspberry Pi. Based on the SIM7600G-H module with global band support, it enables 4G/3G/2G data, voice calls, SMS, and satellite positioning in one compact HAT.

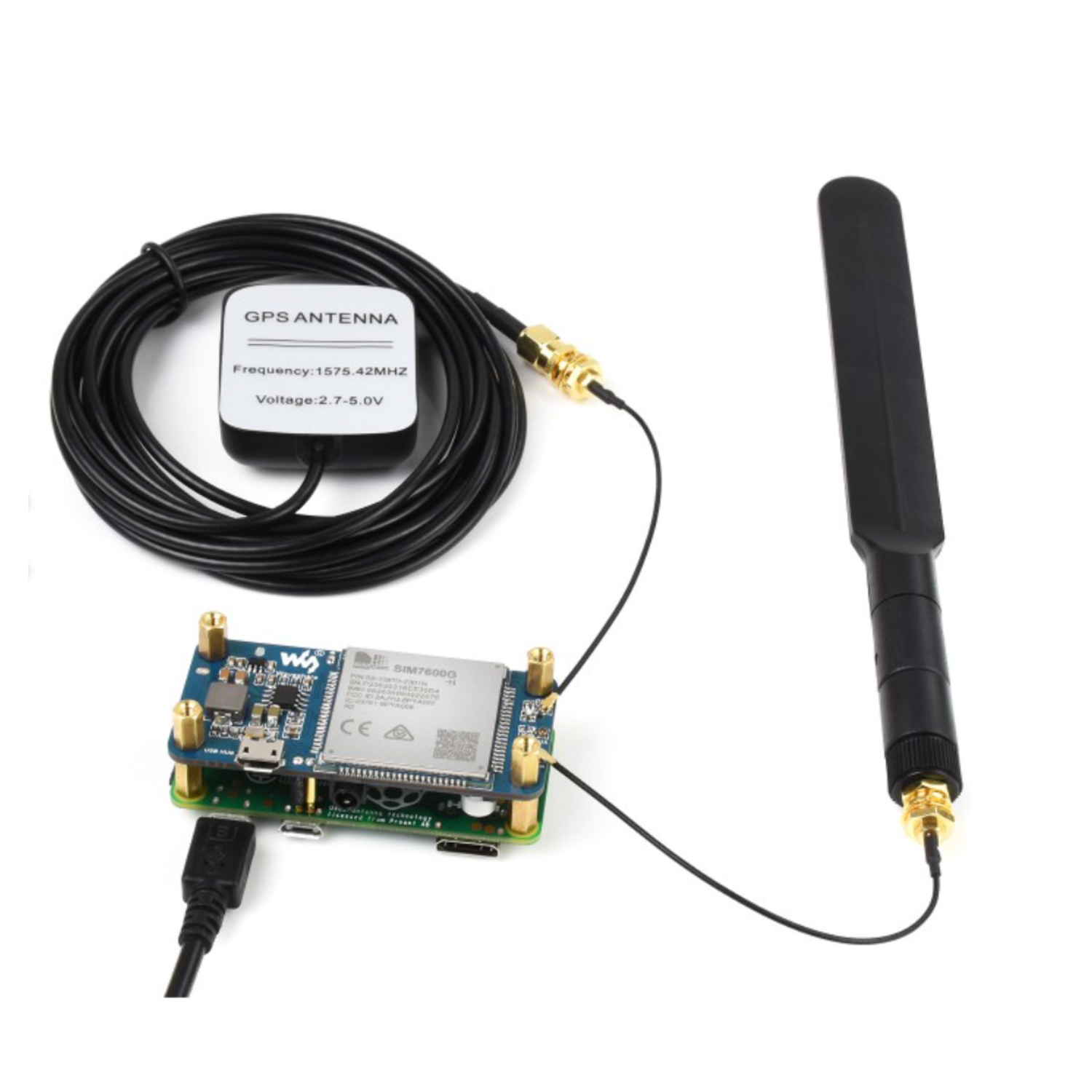

The board connects via dedicated pogo pins on Pi Zero/Zero W or MicroUSB for other Raspberry Pi boards and PCs. An onboard USB HUB provides additional USB-A ports for expansion.
Key Features
- Global 4G/3G/2G – LTE Cat-4 up to 150Mbps down, 50Mbps up
- GNSS Positioning – GPS, BeiDou, GLONASS, and LBS base station
- Voice and SMS – Make calls and send messages via AT commands
- USB HUB – 2× USB-A ports plus solder pad for expansion
- Flexible Connection – Pogo pins for Pi Zero, MicroUSB for other boards
- Audio Jack – 3.5mm earphone/mic connection for voice calls
Frequency Bands
- LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
- LTE-TDD: B34/B38/B39/B40/B41
- 3G: UMTS/HSDPA/HSPA+ B1/B2/B4/B5/B6/B8/B19
- 2G: GSM/GPRS/EDGE 850/900/1800/1900 MHz
GNSS Specifications
- Systems: GPS, BeiDou, GLONASS
- Channels: 16
- Cold Start: <35 seconds
- Hot Start: <1 second
- Sensitivity: -159 dBm (GPS), -158 dBm (GLONASS)
Specifications
- Module: SIM7600G-H
- Power: 5V
- SIM Card: 1.8V / 3V
- Operating Temp: -30°C to 80°C
- Dimensions: 65 × 31mm
Supported Features
- Dial-up, TCP, UDP, HTTP, FTP, DTMF
- SMS (MT, MO, CB, Text, PDU)
- Echo cancellation and noise reduction
- AT command control (3GPP TS 27.007/27.005)
Compatibility
- Raspberry Pi Zero / Zero W (pogo pins)
- Raspberry Pi 3, 4, 5 (MicroUSB)
- PC (MicroUSB)
