SparkFun Pro Micro - RP2350

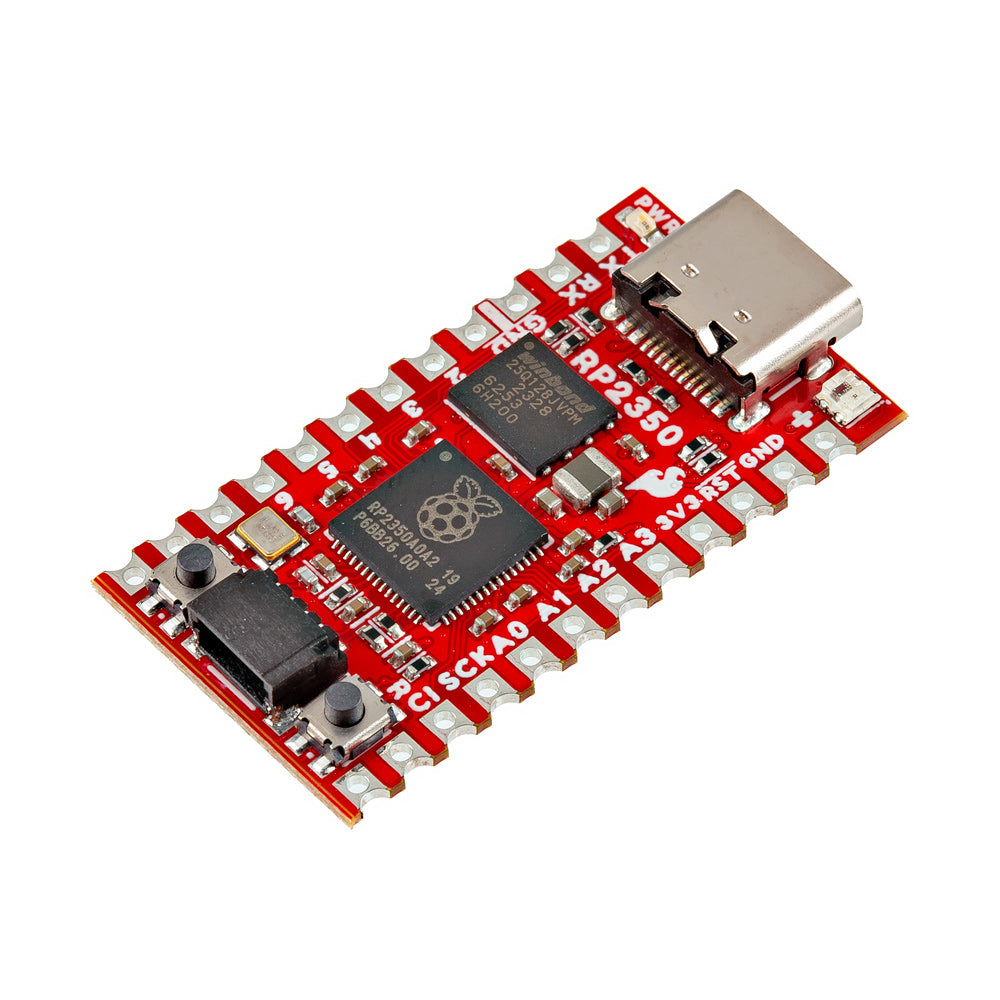

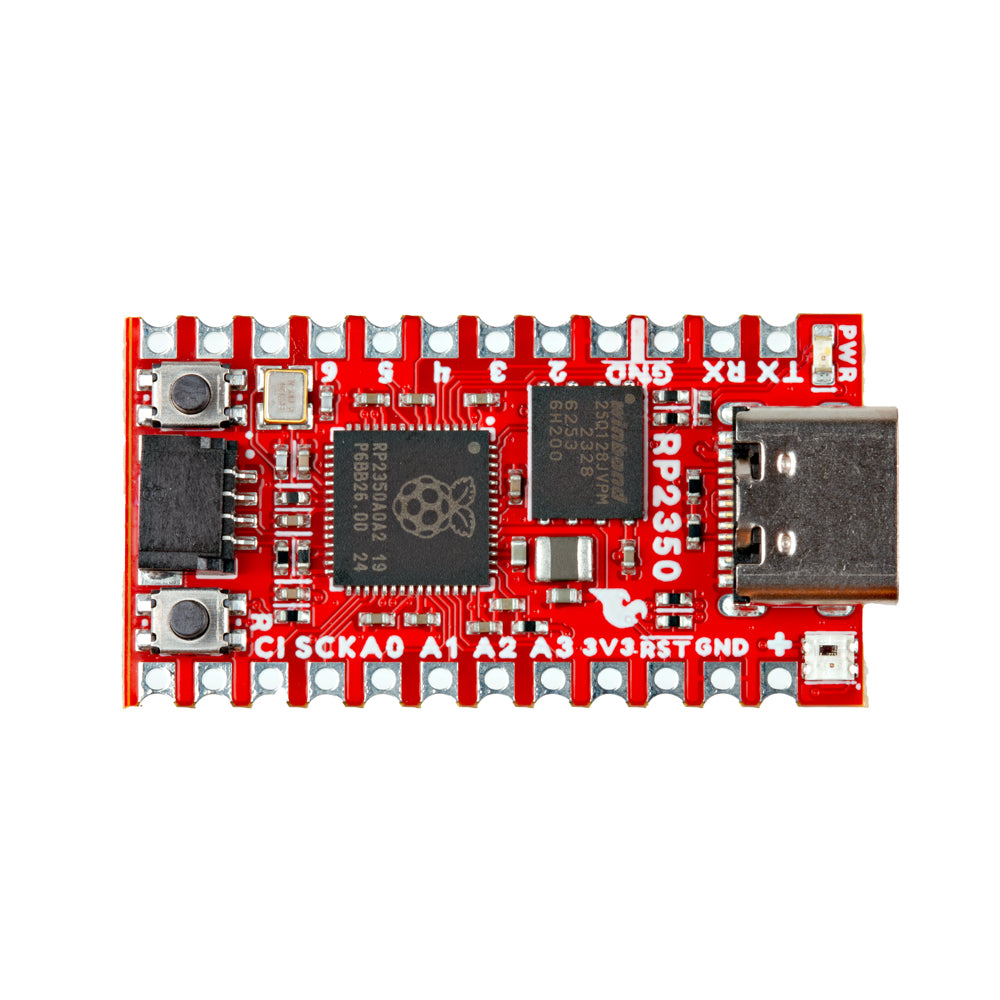

The SparkFun Pro Micro RP2350 packs the powerful RP2350 microcontroller into SparkFun's compact Pro Micro form factor. Featuring dual-core processing with selectable ARM Cortex-M33 or Hazard3 RISC-V cores, expanded memory, and the Qwiic connector system, it's ready for advanced embedded projects.
The board includes USB-C connectivity, an addressable RGB LED, boot and reset buttons, and both PTH and castellated pads for flexible integration into your designs.
Key Features
- RP2350 Microcontroller – Dual ARM Cortex-M33 or dual RISC-V cores @ 150MHz
- Expanded Memory – 16MB Flash and 8MB PSRAM
- Qwiic Connector – Easy I²C device connection
- USB-C – Modern connector with host/device support
- WS2812B RGB LED – Addressable status indicator
- Pro Micro Form Factor – Compact size with castellated pads
- PTC Fuse – Resettable overcurrent protection
Specifications
- Processor: RP2350 (dual Cortex-M33 or dual Hazard3 RISC-V)
- Clock Speed: Up to 150MHz
- SRAM: 520KB (10 banks)
- Flash: 16MB external
- PSRAM: 8MB
- Peripherals: 2× UART, 2× SPI, 2× I²C, USB 1.1
Development Support
- C/C++ with Pico SDK
- MicroPython
Ideal For
- Embedded systems requiring extra memory
- Qwiic sensor projects
- Compact IoT devices
- Prototyping with castellated mounting
