SX1262 LoRa Node Module for Raspberry Pi Pico, LoRaWAN, 915Mhz

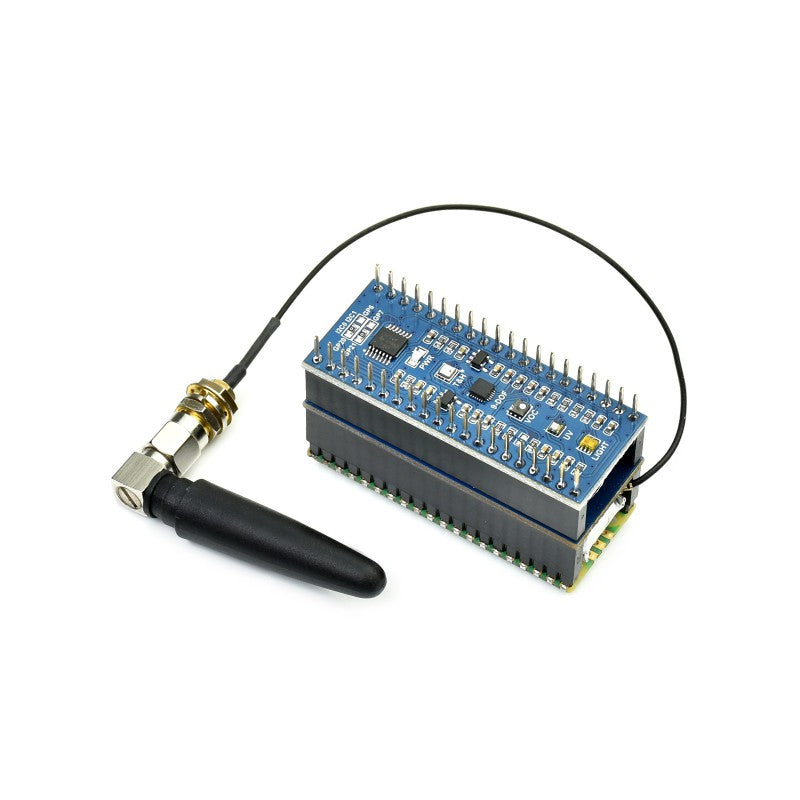

This Waveshare LoRa expansion module adds long-range wireless communication to your Raspberry Pi Pico. Based on the SX1262 chip, it supports LoRaWAN connectivity to networks like TTN (The Things Network) and ChirpStack through LoRa gateways.
The 915MHz frequency band is suitable for use in Australia and other regions using the AU915 band plan. Features include an onboard battery header with charge controller for portable IoT applications.
Key Features
- SX1262 LoRa Chip – Next-generation transceiver with improved performance over SX1276
- High Sensitivity – Up to -148dBm receive sensitivity for extended range
- 22dBm Transmit Power – Strong signal output for long-distance communication
- LoRaWAN Support – Connect to TTN, ChirpStack, and other LoRaWAN servers
- Battery Support – PH1.25 battery header with integrated charge controller
- Temperature Compensated Crystal – Stable frequency across temperature variations
- Multiple Modulations – FSK, GFSK, and LoRa with excellent blocking resistance
Specifications
- Frequency Band – 915MHz (902-930MHz, AU915 compatible)
- RF Module – SX1262
- Transmit Power – Up to 22dBm
- Receive Sensitivity – Up to -148dBm
- Receive Current – 5.3mA @ 125KHz
- Operating Voltage – 3.3V
- Interface – SPI bus
- Operating Temperature – -40°C to +85°C
- Dimensions – 21 × 52mm
Ideal For
- IoT sensor nodes and remote monitoring
- LoRaWAN network applications
- Long-range wireless data transmission
- Battery-powered remote sensors
- Smart agriculture and environmental monitoring
Resources
