Tiny 2350

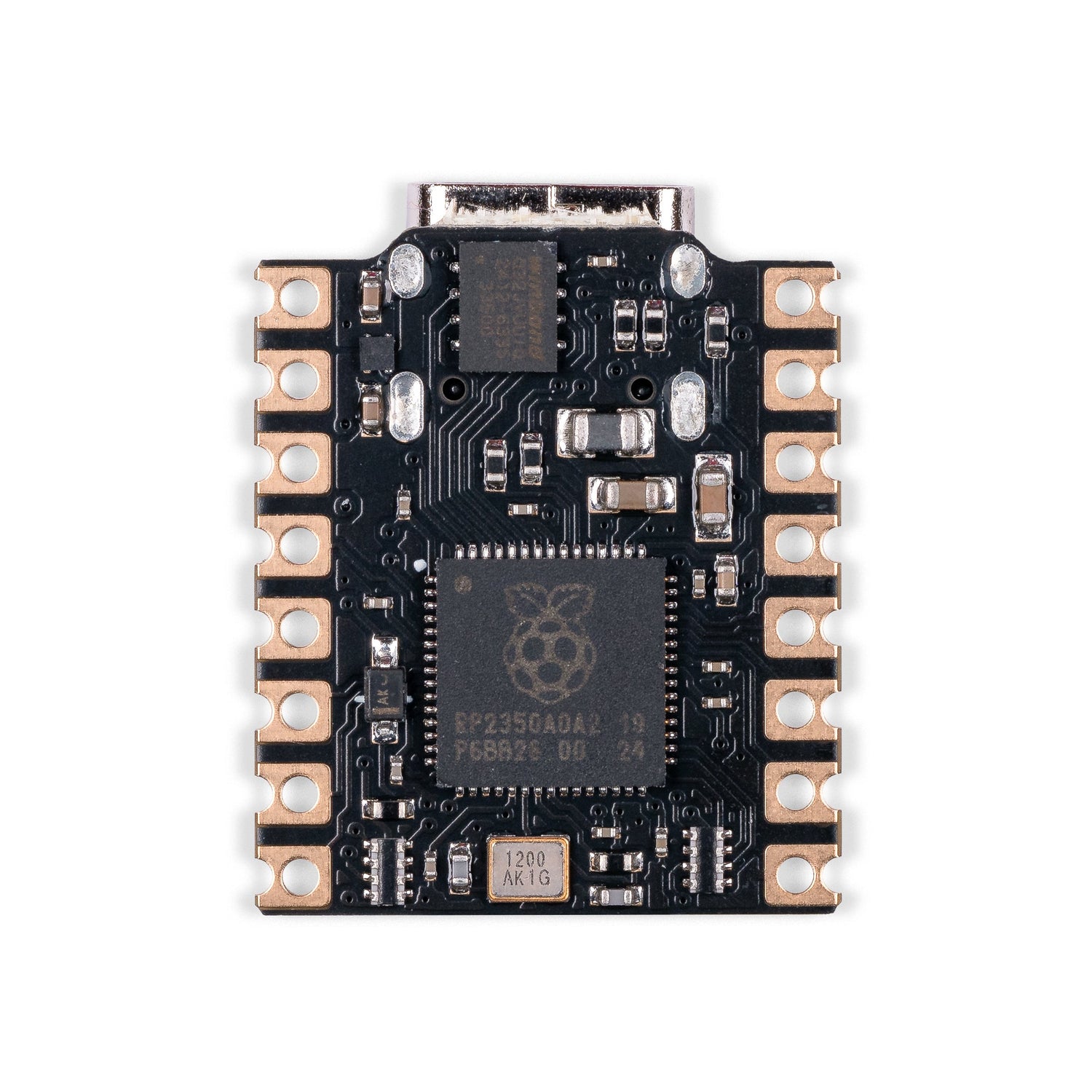

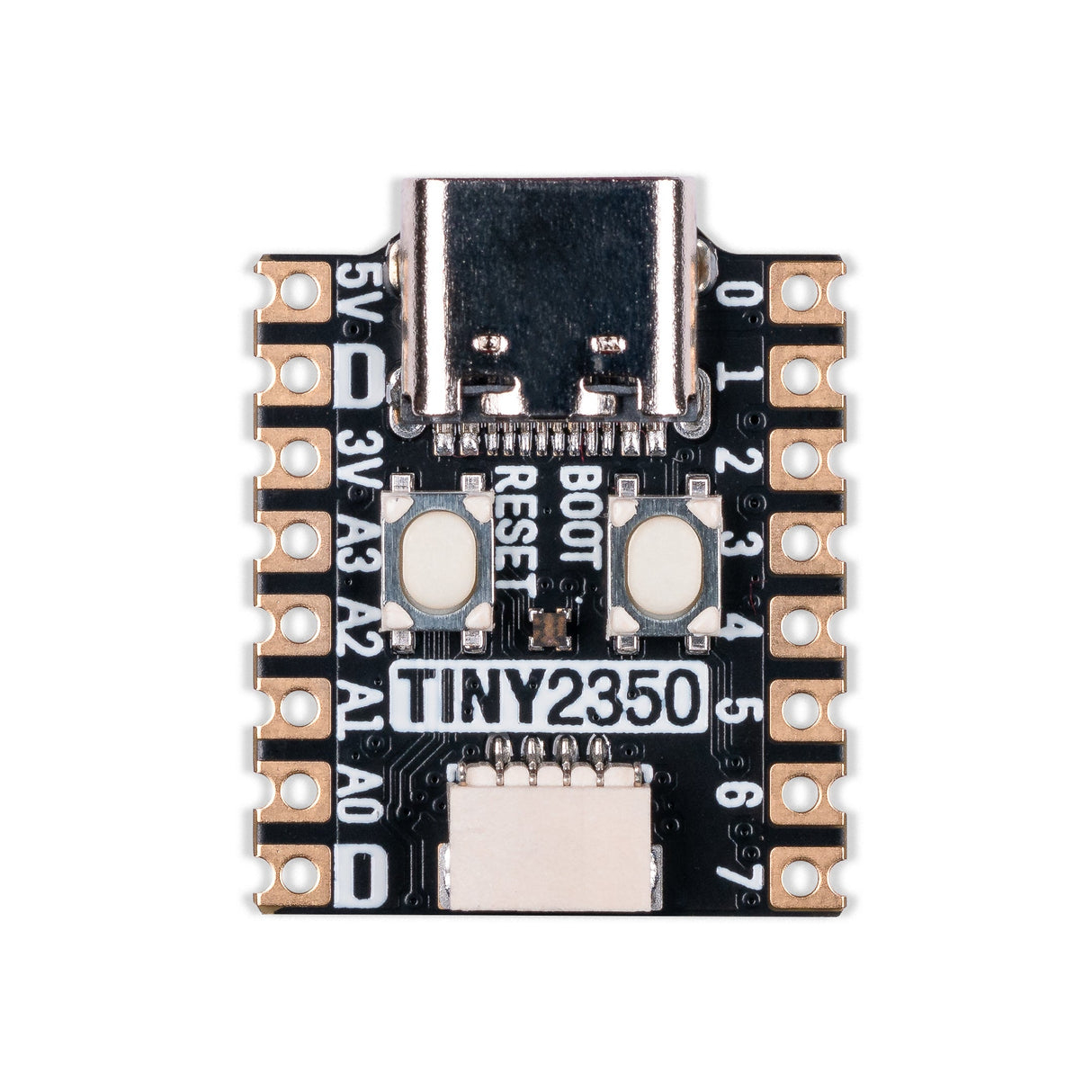

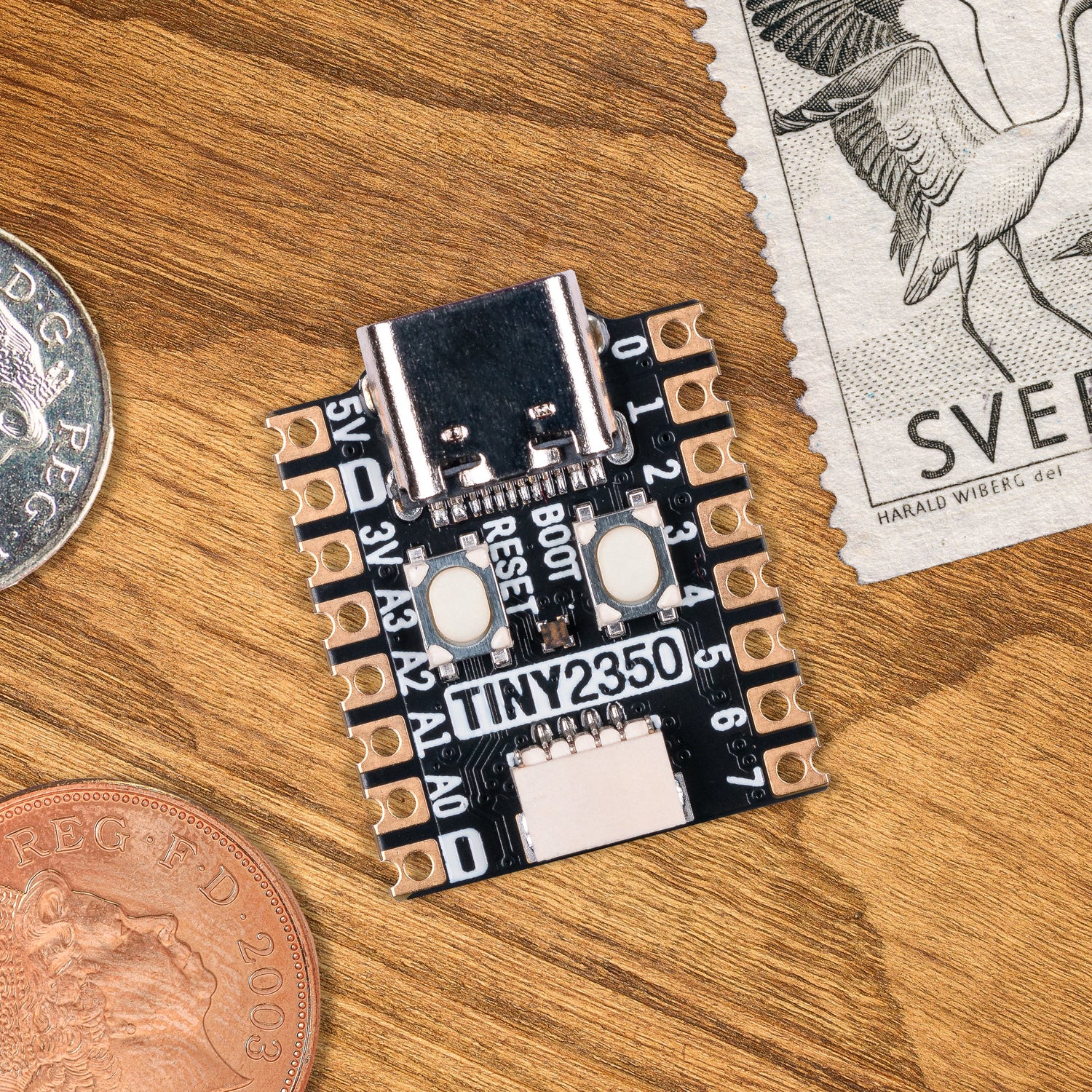

The Pimoroni Tiny 2350 packs the power of the RP2350 into a postage stamp-sized board. With 4MB flash, USB-C connectivity, an RGB LED, and a Qw/ST connector, it's perfect for portable projects, wearables, and embedding into custom creations.
Compatible with Raspberry Pi Pico 2 firmware, programmable with C/C++ or MicroPython. Castellated pads allow direct PCB soldering, or add headers for breadboard use.
Key Features
- RP2350A Processor – Dual ARM Cortex-M33 at up to 150MHz with 520KB SRAM
- 4MB Flash – Generous storage with XiP support
- USB-C – Power, programming, and data transfer
- RGB LED – User-programmable (PWM dimmable)
- Qw/ST Connector – Easy I²C breakout connection (Qwiic/STEMMA QT compatible)
- 12 GPIO Pins – Including 4× 12-bit ADC channels
- Reset & Boot Buttons – Boot button doubles as user input (GP23)
- Castellated Pads – Direct PCB mounting option
Specifications
- Processor – RP2350A (Dual Cortex-M33, 150MHz)
- RAM – 520KB SRAM
- Flash – 4MB QSPI
- GPIO – 12 pins (4× ADC)
- Input Voltage – 3V to 5.5V
- Regulator Output – 3.3V, 300mA max
- Dimensions – 22.9 × 18 × 5.8mm
Ideal For
- Wearables and portable electronics
- Embedding into custom PCBs
- Space-constrained projects
- I²C sensor networks via Qw/ST
- MicroPython or C/C++ development
