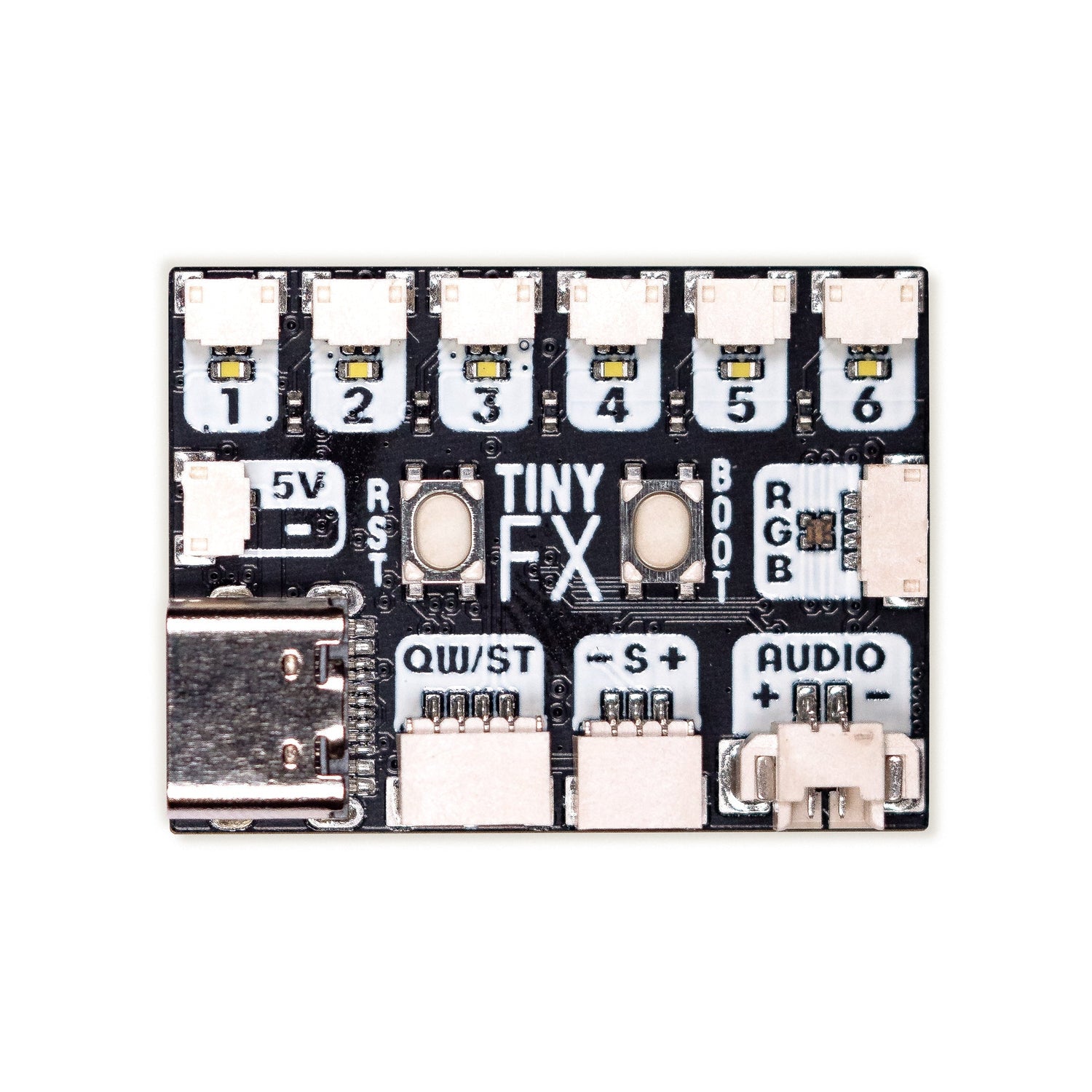

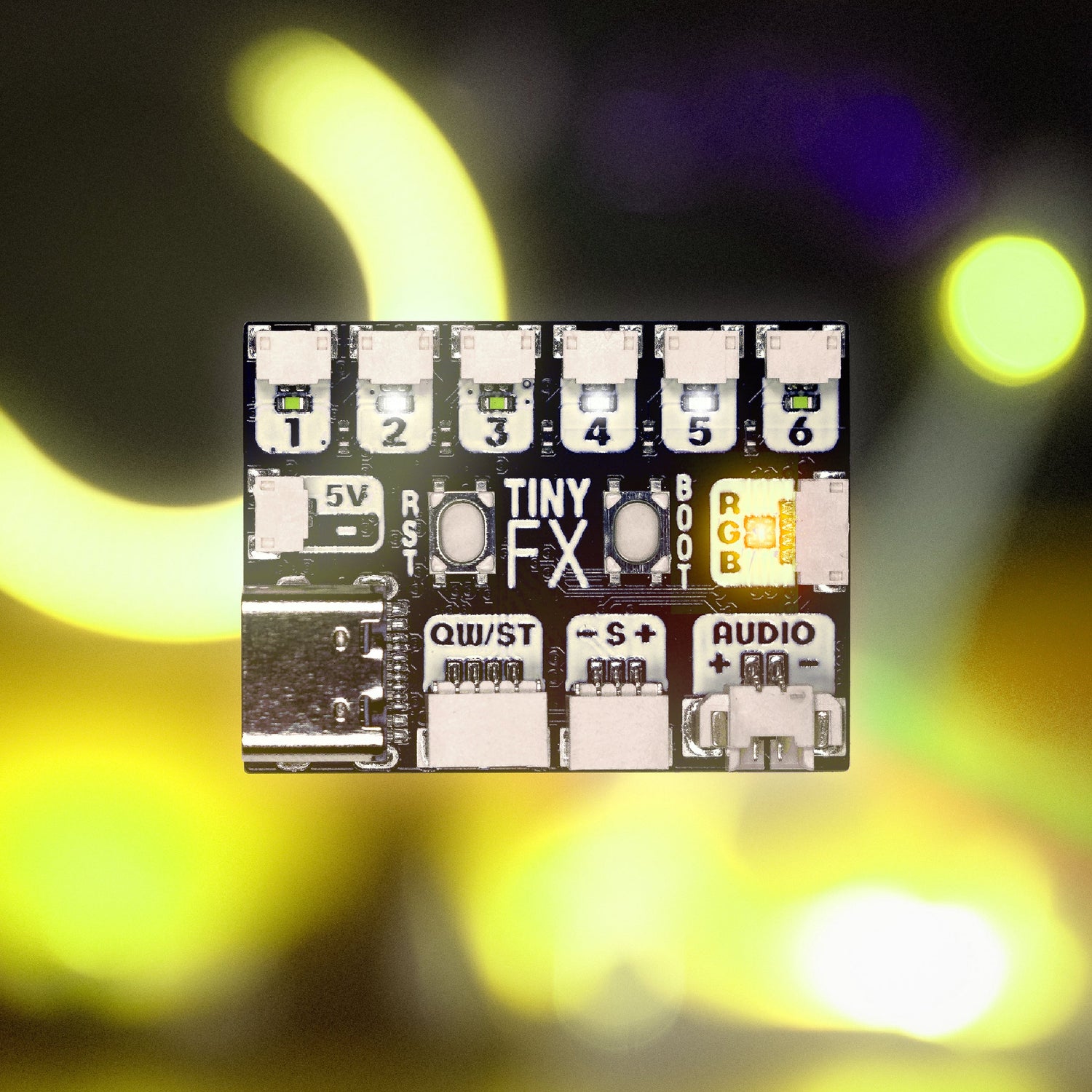

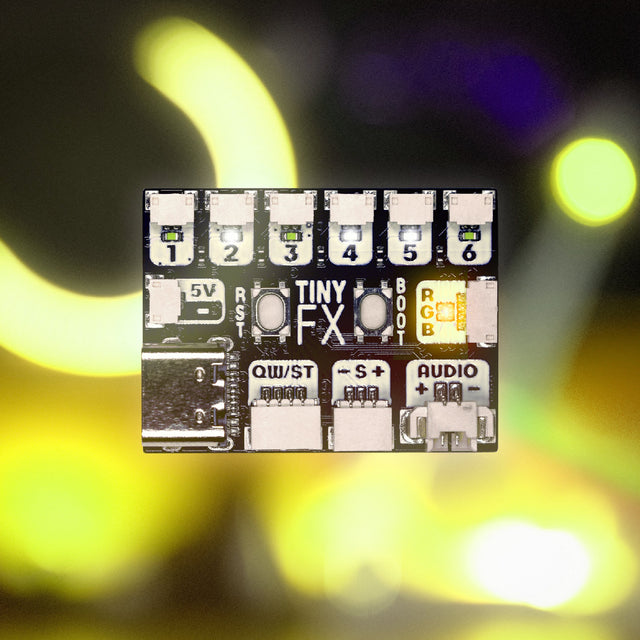

Add smart lighting and sound effects to models, dioramas, and creative builds with Tiny FX W. This RP2040-powered controller drives mono and RGB LEDs typically found in LEGO®-compatible lighting kits, with wireless connectivity for IoT integration.
Create dynamic effects like flickering flames, atmospheric pulses, brightness adjustments, and motion-triggered lighting—all accompanied by sound effects through the onboard amplifier.
Key Features

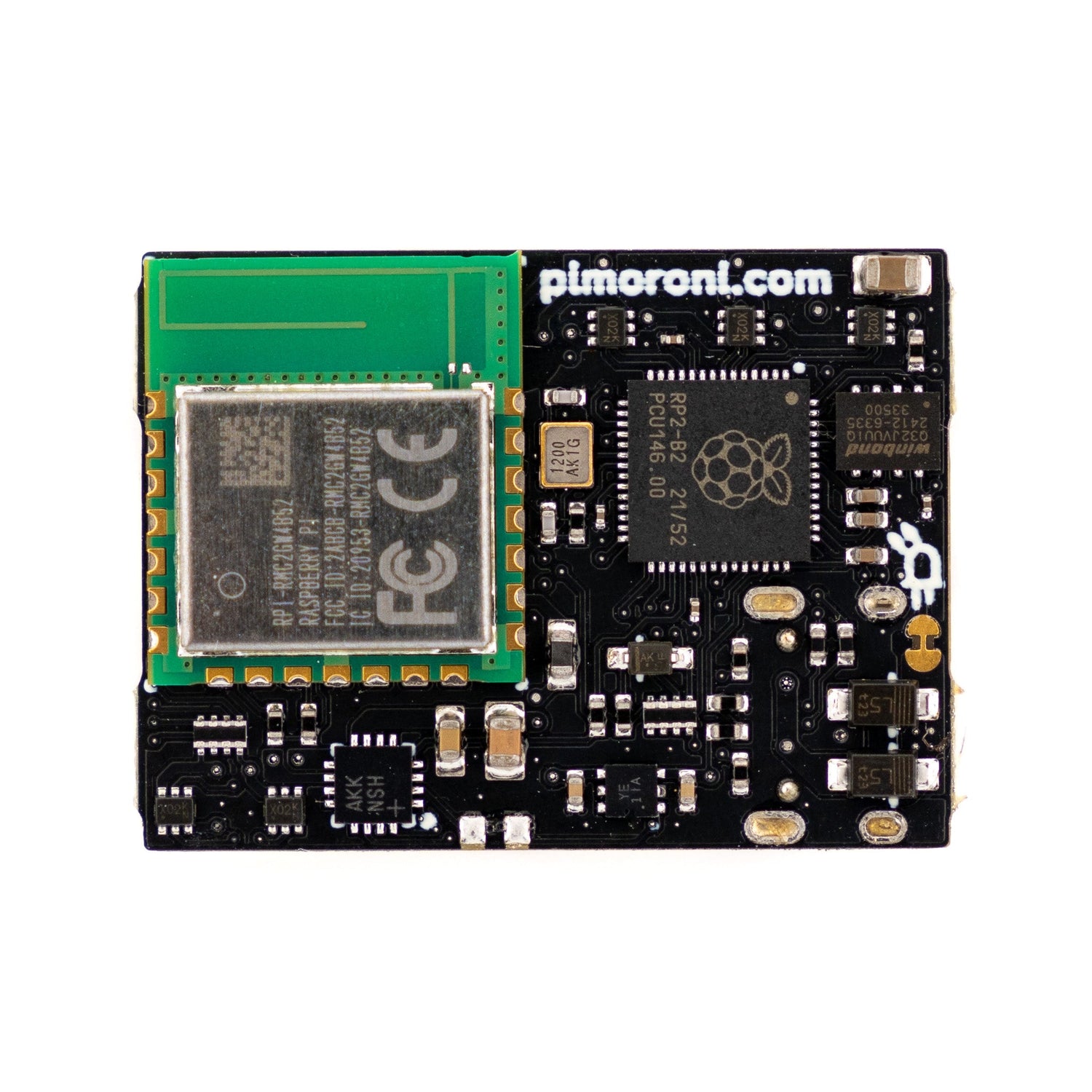

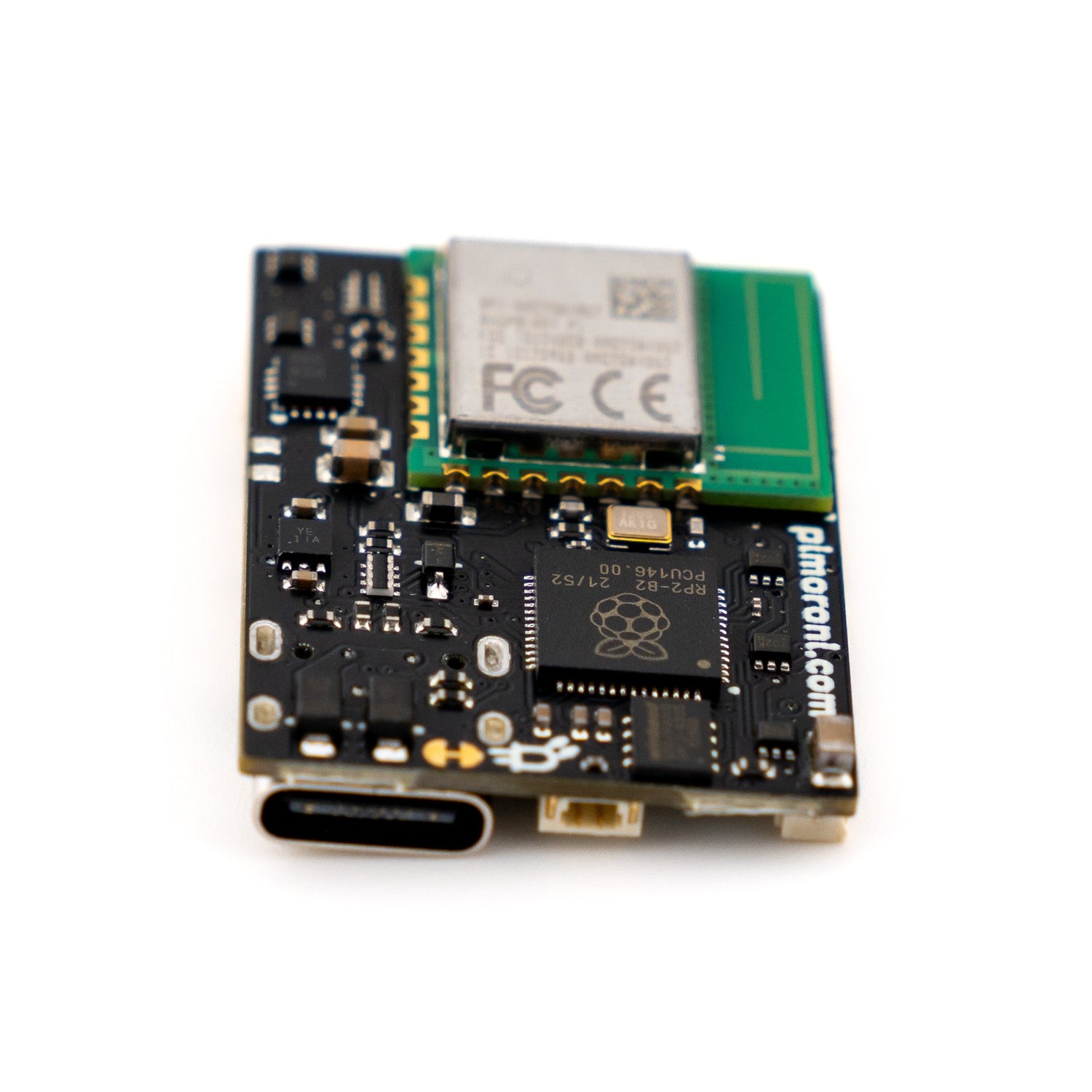

- RP2040 Processor – Dual Cortex-M0+ at 133MHz with 264KB SRAM
- Wireless Connectivity – Raspberry Pi RM2 module for 2.4GHz WiFi and Bluetooth
- 6× Mono LED Channels – 2-pin JST-SUR connectors with indicator LEDs
- 1× RGB LED Channel – 4-pin JST-SUR connector with RGB indicator
- 3.2W I2S Amplifier – Onboard audio for sound effects
- Qw/ST Connector – Add Qwiic/STEMMA QT breakouts
- Sensor Input – 3-pin JST-SH for buttons, PIR, or potentiometers
- 4MB Flash – Plenty of storage for effects and audio
- Fully Assembled – No soldering required
Specifications
- Processor – RP2040 (Dual Cortex-M0+, 133MHz)
- RAM – 264KB SRAM
- Flash – 4MB QSPI
- Power Input – USB-C or 2-pin JST-SUR (1A max)
- Dimensions – 31.2 × 23.2 × 6.7mm
Effect Ideas
- Flickering fire and candle effects
- Atmospheric pulsing for spooky scenes
- Motion-triggered lighting with PIR sensors
- Dynamic brightness adjustments
- Synchronised sound effects
Ideal For
- LEGO® and construction kit lighting upgrades
- Dioramas and shadowboxes
- Book nooks and miniature scenes
- Dollhouses and model buildings
- Papercraft and creative projects
Resources
