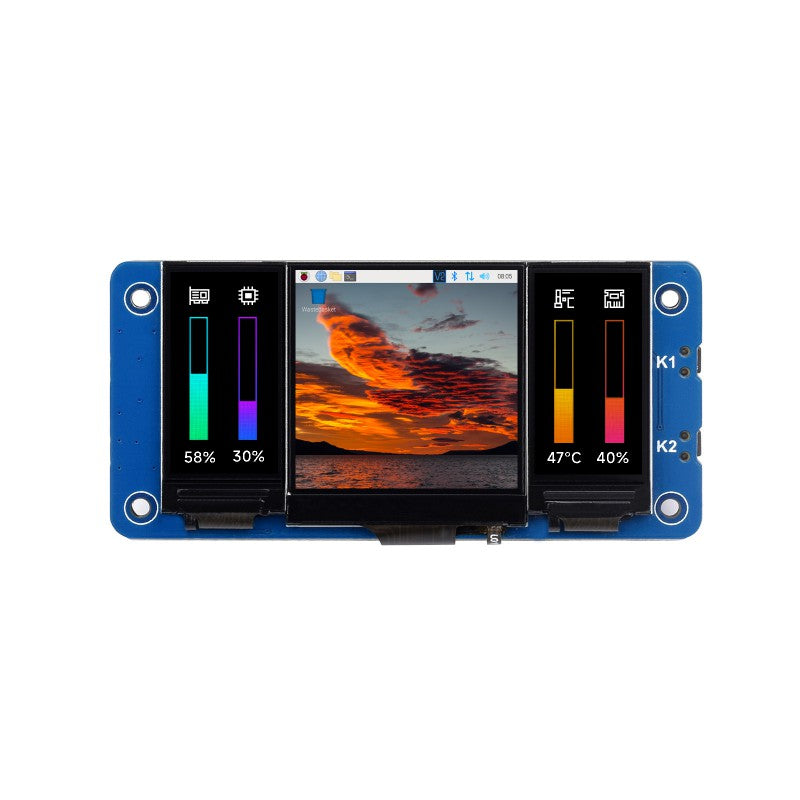

This Waveshare Triple LCD HAT adds three IPS displays to your Raspberry Pi—a main 1.3" screen flanked by two 0.96" secondary screens. Perfect for system monitoring dashboards, status displays, or creative multi-screen projects.
All three displays communicate via SPI and support 65K colours. Two user-programmable buttons provide input for custom applications.
Key Features
- 1.3" Main Display – 240×240 IPS LCD with ST7789 driver, wide viewing angle
- Dual 0.96" Secondary Displays – 160×80 IPS LCD with ST7735S driver
- 65K Colour Support – Vibrant colour output on all screens
- SPI Interface – Fast communication with Raspberry Pi
- 2× User Buttons – Programmable for custom functions
- Standard 40-Pin Header – Compatible with all Raspberry Pi boards
Specifications
- Main Screen – 1.3" IPS, 240×240 resolution, ST7789
- Secondary Screens – 2× 0.96" IPS, 160×80 resolution, ST7735S
- Interface – SPI
- Colour Depth – 65K (16-bit)
- Compatibility – Raspberry Pi series, VisionFive2, Arduino, STM32
Ideal For
- System monitoring dashboards (CPU, memory, network)
- Status indicators and notifications
- Mini control panels
- Creative multi-display projects
- Embedded information displays
Package Contents
- 1× Triple LCD HAT
- 1× Standoffs pack
