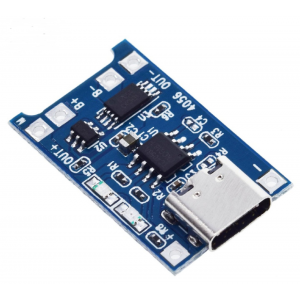

Type-C USB Lithium Battery Charger Module
A compact USB-C lithium battery charger module with built-in protection circuits. Uses constant-current/constant-voltage (CC/CV) charging to safely charge single-cell 3.7V lithium batteries from any USB-C power source.
LED indicators show charging status—red while charging, green when fully charged.
Key Features
- USB-C Input – Modern connector for easy power connection
- CC/CV Charging – Safe, efficient charging method for lithium cells
- Built-in Protection – Overcharge, over-discharge, and over-current protection
- LED Indicators – Red (charging) / Green (complete)
- Compact Size – Only 25 × 16.5mm
- 1A Max Current – Fast charging capability
Specifications
- Input Voltage – 4.35-6V (5V recommended)
- Charge Cut-off Voltage – 4.2V ±1%
- Maximum Charge Current – 1000mA
- Overcharge Protection – 4.28V
- Discharge Protection – 3.0V
- Over-current Protection – 3A
- Dimensions – ~25 × 16.5mm
Ideal For
- DIY battery-powered projects
- Portable electronics
- Solar charging systems
- Custom power banks
- IoT devices with battery backup
