UPS HAT (D) for Raspberry Pi, Supports 21700 Li battery (NOT includ...

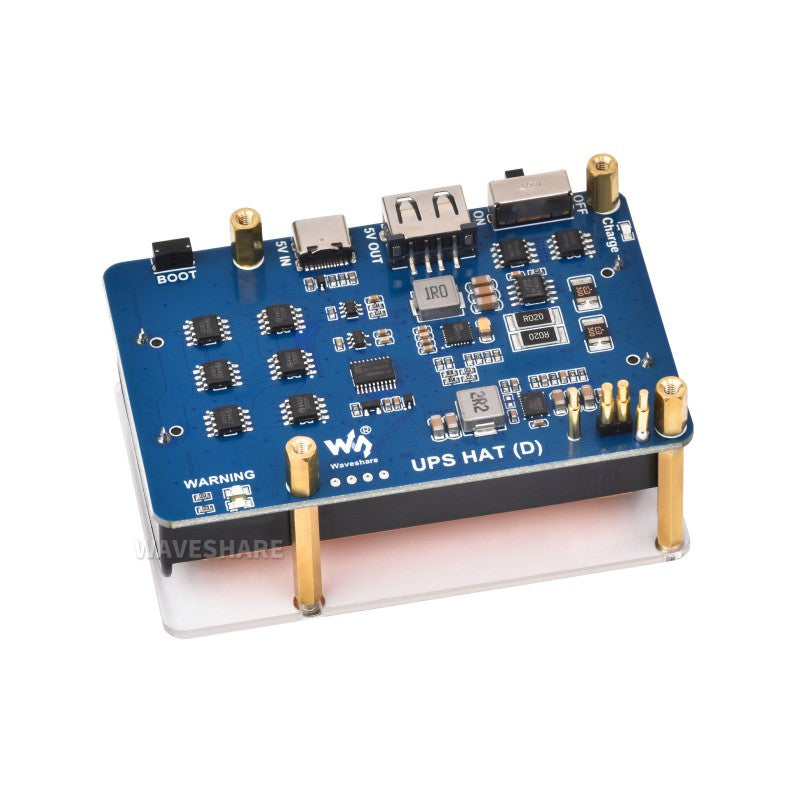

The Waveshare UPS HAT (D) provides uninterruptible power for your Raspberry Pi using a 21700 lithium battery (not included). Features dynamic path management for seamless switching between external power and battery, with real-time monitoring via I2C.
Pogo pin connection means no GPIO pins are used, leaving all pins available for other HATs and accessories. Compatible with Raspberry Pi 3, 3B+, and 4B.
Key Features
- Uninterruptible Power – Automatic switchover keeps your Pi running during power outages
- Dynamic Path Management – Charges battery while powering Pi, disconnects when full
- 21700 Battery Support – Large capacity cell for extended runtime
- Pogo Pin Connection – No GPIO usage, compatible with other HATs
- I2C Monitoring – Real-time voltage, current, power, and capacity readings
- Battery Protection – Overcharge, over-discharge, overcurrent, and short circuit protection
- Auto Shutdown – Safe shutdown when battery is low to prevent data loss
- Auto Reboot – MCU detects power restoration and reboots Pi
Specifications
- Battery Type – 21700 lithium (not included)
- Output – Stable 5V via boost converter
- Charging – USB Type-C input
- Additional Output – USB Type-A for powering other devices
- Monitoring – I2C bus interface
- Indicators – LED status lights
Compatibility
- Raspberry Pi 3 / 3B+
- Raspberry Pi 4B
Package Contents
- 1× UPS HAT (D)
- 1× Acrylic protection panel
- 1× Screws pack
Resources
