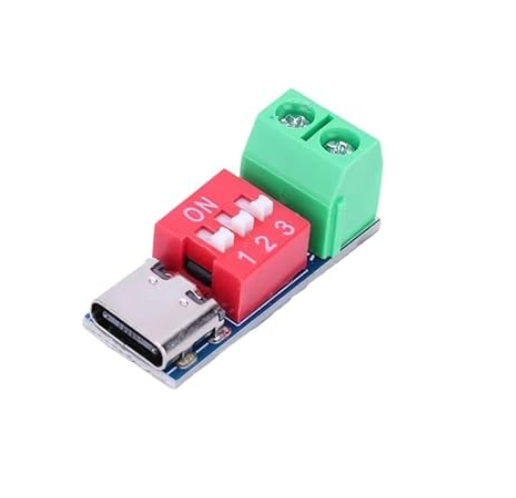

Convert USB-C Power Delivery into selectable DC voltage for your projects. This adapter board negotiates with USB-C PD chargers to provide 5V, 9V, 12V, 15V, or 20V output—up to 100W—selected via onboard DIP switches.
Supports PD3.0/2.0 and BC1.2 protocols with built-in over-temperature and over-voltage protection.
Key Features
- Selectable Voltage – 5V, 9V, 12V, 15V, or 20V output
- 100W Maximum – High power for demanding applications
- USB-C PD Support – PD3.0, PD2.0, and BC1.2 protocols
- Built-in Protection – Over-temperature and over-voltage safeguards
- DIP Switch Selection – Easy voltage adjustment
Voltage Switch Settings
- 5V – Down-Up-Up
- 9V – Up-Up-Up
- 12V – Up-Up-Down
- 15V – Up-Down-Down
- 20V – Up-Down-Up
Specifications
- Input – USB-C (PD compatible charger required)
- Output Voltages – 5V / 9V / 12V / 15V / 20V
- Maximum Power – 100W
- Protocols – PD3.0, PD2.0, BC1.2
Ideal For
- Powering development boards at various voltages
- DIY electronics projects
- Portable power solutions
- Replacing traditional barrel jack adapters
