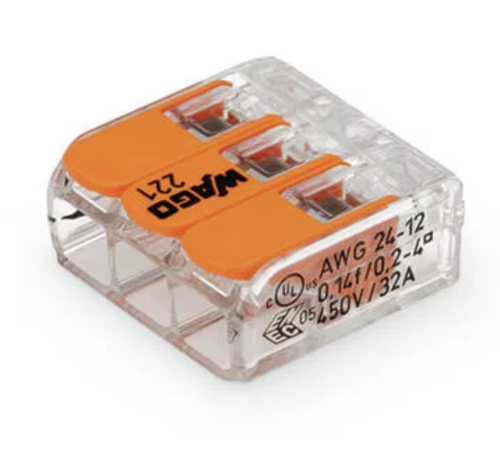

WAGO 221-413 Wire Connectors

WAGO's 221 Series COMPACT splicing connectors provide a quick, secure way to join wires without soldering or crimping. The lever-actuated design makes connections and disconnections fast and tool-free, while the transparent housing lets you verify proper insertion at a glance.

These 3-conductor connectors handle a wide range of wire sizes and types, making them versatile for electrical projects, home automation, LED installations, and prototyping.

Key Features

• Tool-Free Connection – Simply lift the lever, insert wire, and close
• 3 Conductor Ports – Connect up to three wires per connector
• Transparent Housing – Visual verification of proper wire insertion
• Built-in Test Ports – Probe holes for voltage testing without disconnection
• 40% Smaller – More compact than the previous 222 Series
• Larger Levers – Easier to operate than older designs

Specifications

• Wire Range (Stranded) – 0.14–4mm² (24–12 AWG)
• Wire Range (Solid) – 0.2–4mm² (24–12 AWG)
• Voltage Rating – Up to 450V
• Current Rating – Up to 32A
• Operating Temperature – Up to 105°C (221°F)
• Ambient Temperature – Up to 60°C (140°F)

Certifications

• ENEC, UL, PSE/JET, CQC, GOST-R approved
• RoHS compliant

Ideal For

• LED strip and lighting installations
• Home automation wiring
• Electrical prototyping and testing
• Joining wires of different gauges
